AXIOM 9 C70 cutout adapter plate

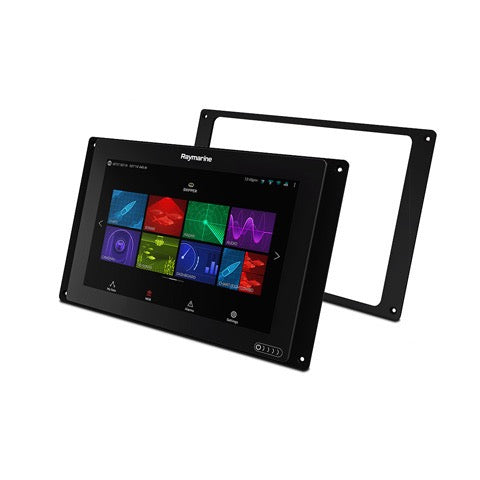

The Raymarine A80525 mounting plate is designed to allow installation of a Raymarine Axiom 9 chartplotter in a dashboard slot originally intended for a Raymarine C70 series display. It simplifies upgrading your navigation system without modifying the existing cutout.

It is made from a material specifically designed for marine environments. This material choice ensures durability and resistance to the harsh conditions encountered at sea.

The external dimensions of the A80525 mounting plate are 253.0 mm in width by 188.0 mm in height. The four corners of the plate feature 6.0 mm radii.

The internal cutout for the Axiom 9 display measures 231.0 mm in width by 145.0 mm in height. The four corners of this internal cutout have radii of 12.0 mm.

The main advantage is to allow owners to modernize their navigation system by installing an Axiom 9 display without having to modify the existing dashboard cutout. This significantly reduces the complexity and cost of refit work.

This mounting plate is specifically designed to fit a Raymarine Axiom 9 chartplotter.

The A80525 adapter plate is designed to fit a dashboard cutout originally intended for a Raymarine C70 series display.

No, this mounting plate is specifically sized for the Axiom 9. The internal cutout dimensions (231.0 mm x 145.0 mm) match the Axiom 9 and will not fit the other models in the Axiom range.

No, the A80525 mounting bracket only ensures mechanical compatibility, i.e., the physical fit, between the old C70 cutout and the new Axiom 9 display. Electrical compatibility and cable connections must be handled separately according to the Axiom 9 specifications.

The Raymarine C70 series represents a previous generation of chartplotters. The Axiom displays, such as the Axiom 9, are Raymarine's current line, offering advanced features and the LightHouse 4 operating system.

It simplifies installation by allowing you to use an existing cutout for a C70 display without requiring physical modifications to the dashboard. The plate precisely fills the space and ensures a perfect fit for the new Axiom 9 screen.

No, the A80525 mounting plate is specifically designed to fit into an existing C70 display cutout without requiring structural modifications to the dashboard. It ensures direct mechanical compatibility.

The mounting plate features a precisely cut internal opening of 231.0 mm by 145.0 mm with 12.0 mm corner radii. These dimensions ensure an exact and aesthetic fit for the Axiom 9 display once installed in the C70 cutout.

The panel has 6.0 mm radii at the four outer corners and 12.0 mm radii at the four corners of the internal cutout. These radii ensure a precise and aesthetic fit, matching the shapes of the Axiom 9 display and dashboard cutout.

The technical drawing provided indicates a thickness of 4.0 mm on section A-A. Detail B also shows thicknesses of 2.68 mm and 4.50 mm, suggesting a design with varying thicknesses for integration and support.

The technical drawing and product description focus on the dimensions of the cutout and the bracket itself. They do not specify whether the bracket includes pre-drilled holes for mounting the Axiom 9. The Axiom 9 display is typically secured within the bracket’s internal cutout using its own mounting methods.

The SKU (Stock Keeping Unit) for this mounting plate is A80525.

Yes, the A80525 mounting bracket is an official Raymarine accessory, designed to integrate seamlessly with the brand's products.

The A80525 mounting plate is designed for flush-mount installation. It does not alter the viewing angle of the Axiom 9 display, which will depend on the orientation and tilt of the existing cutout in the dashboard.

While the plate can technically serve as a template for a new cutout, its primary purpose is to facilitate the integration of an Axiom 9 into an existing C70 series cutout. For a completely new installation, it is generally recommended to follow the cutting instructions provided with the Axiom 9 display itself.
