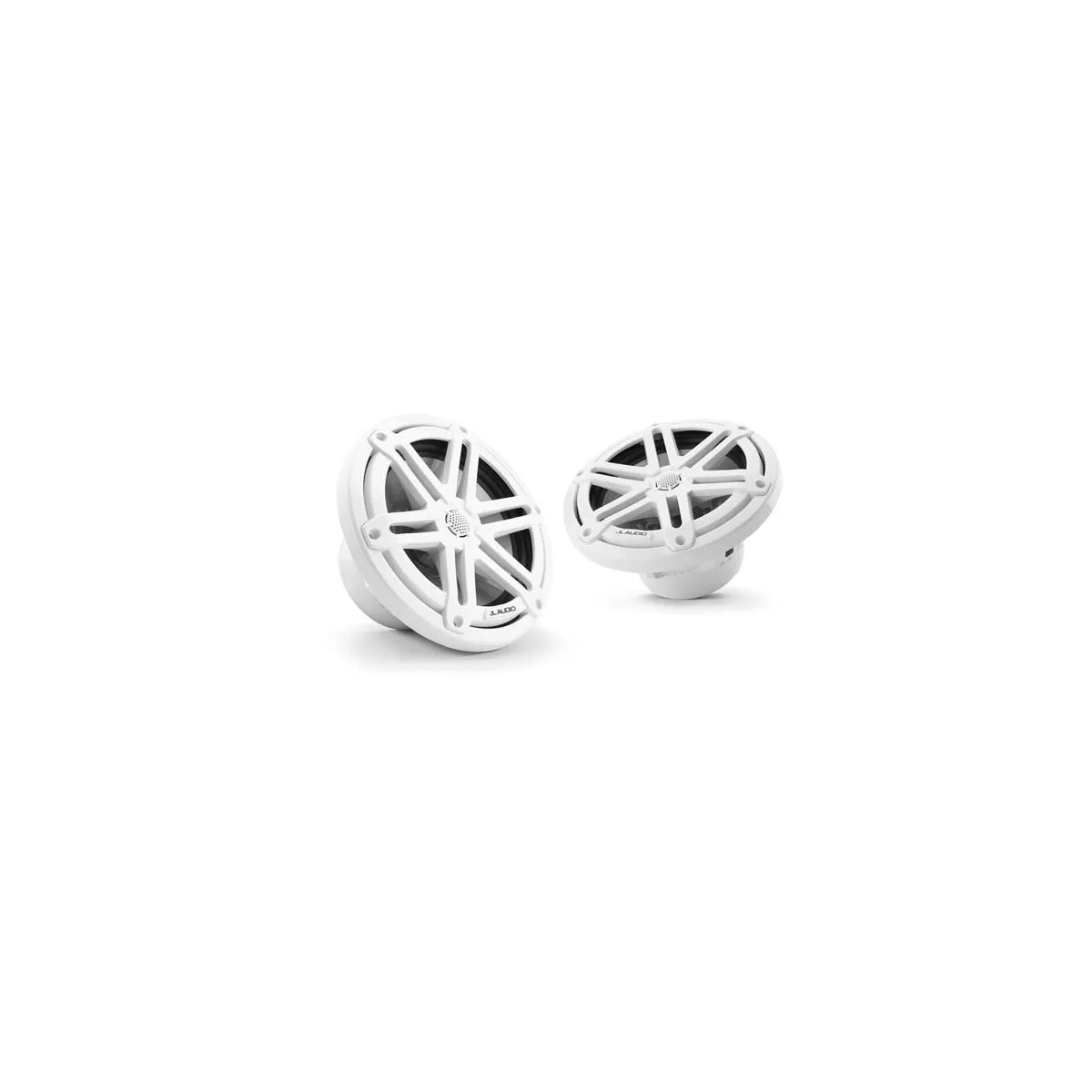

JL Audio M3-650X-S-Gm flush-mount marine speakers
In stock
Technical specifications
Technical specifications
| Speaker Diameter In | 6.5 |
| Rgb Color Select | Non |
| Mounting Diameter | 158.75 mm |
| IP rating | Qualité marine |
| Color | Gris |
| Grille Color | Gris anthracite |
| Mounting type | Encastré |
| Net poids | 2.82 |
| Pilot Hole Diameter Thick Fiberglass | 3.18 mm (1/8") |
| Pilot Hole Diameter Thin Fiberglass | 2.78 mm (7/64") |
| Speaker Type | 2 voies |
Detailed description
Detailed description
The JL Audio M3-650X-S-Gm flush-mount marine coaxial speakers are designed for high-performance audio in marine environments. These 6.5-inch (165 mm) 2-way speakers feature a sport gray anthracite grille.
Acoustic design and performance
These coaxial speakers integrate a 6.5-inch woofer with an injection-molded polypropylene cone filled with mica and UV inhibitors, paired with a synthetic rubber surround. The 0.75-inch (19 mm) tweeter is a pure silk dome, specifically treated for marine environments and using neodymium magnets for high efficiency. The long-excursion design, optimized by JL Audio’s DMA (Dynamic Motor Analysis) technology, enhances power output, bass extension, and power handling. The system is optimized for "infinite-baffle" operation, requiring a minimum air volume of 57 liters (2 cubic feet) for optimal low-frequency performance. A passive 2nd-order crossover for the tweeter includes a polyswitch semiconductor protection circuit.
Technical specifications
- Speaker type: Marine 2-way 6.5-inch (165 mm) coaxial
- Continuous power handling (RMS): 60 W per speaker (120 W per pair)
- Peak music power handling: 225 W
- Recommended amplifier power (RMS): 20 to 125 W per channel (75-100 W per channel for optimal performance)
- Impedance: 4 ohms
- Frequency response: 55 - 25,000 Hz (55 Hz - 25 kHz ± 3 dB)
- Sensitivity: 89.5 dB @ 1 W / 1 m
- Outside frame diameter: 175 mm (6.90 inches)
- Cutout diameter: 127 to 133 mm (4.972 to 5.25 inches)
- Mounting depth: 69.5 to 72 mm (2.74 to 2.825 inches)
- Front grille protrusion: 25 mm (0.973 inches)
- Bolt circle diameter: 155.5 mm (6.125 inches)
Marine durability and installation
These speakers exceed industry standards for salt fog and UV resistance. They feature UV- and corrosion-resistant polymer baskets and grilles, a saltwater-resistant polymer basket, and integrated marine-grade stainless steel grilles. The woofer cones include UV inhibitors and the spiders are made of marine-grade synthetic fiber. The design allows flexible "free-air" (infinite-baffle) installation without requiring dedicated enclosures. RGB LED lighting is available as an option, requiring separate 12 V wiring for each speaker and an RGB controller (sold separately). A 150 mA fuse on the positive LED wire is required for M3-650 and M3-770 models.
