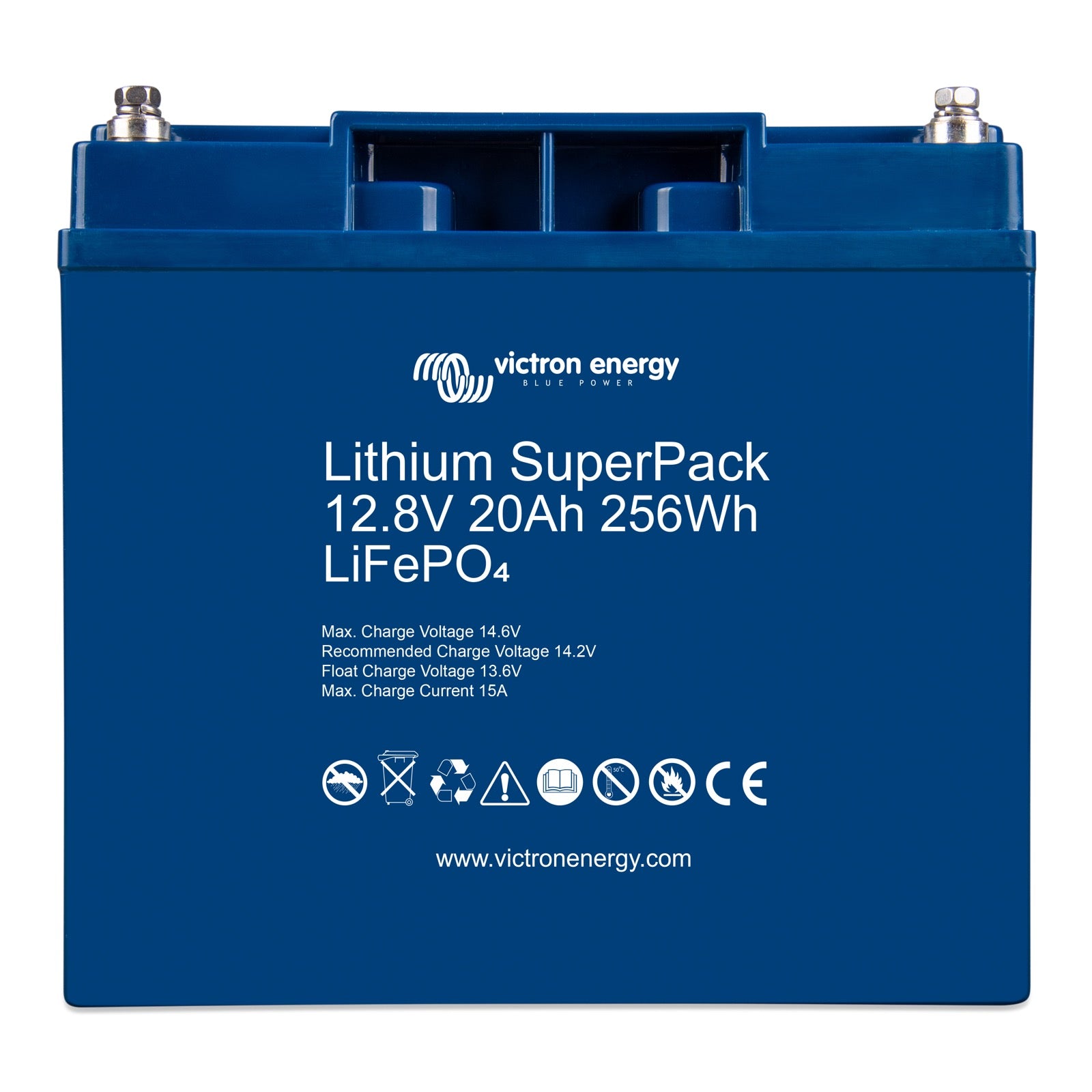

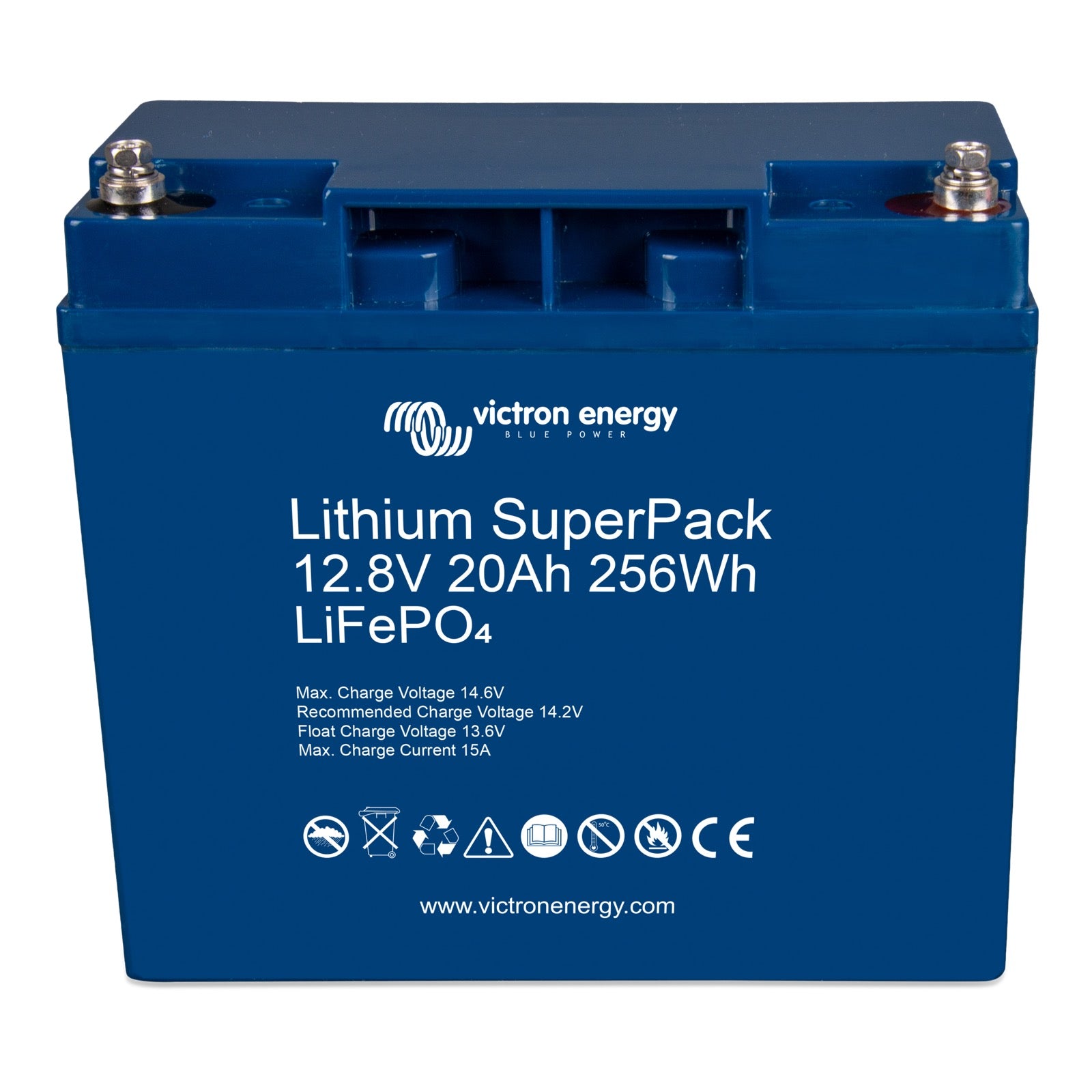

Lithium SuperPack 12.8V/20Ah (M5)
In stock
Technical specifications
Technical specifications
| Battery technology | LiFePO4 |
| Nominal voltage | 12.8 |
| Capacity | 20.0 |
| Energy | 256.0 |
| Integrated BMS | Oui |
| Max charge current (A) | 15.0 |
| Recommended charge current | 15.0 |
| Max discharge current (A) | 30.0 |
| Peak discharge current | 80.0 |
| Discharge cut-off voltage | 10.0 |
| Bulk/absorption charge voltage | 14.4 |
| Float charge voltage | 13.5 |
| Depth of discharge (DoD) | 80.0 |
| Cycle life | 2500.0 |
| Max batteries in series | 0.0 |
| Max batteries in parallel | Unlimited |
| Terminal size | M5 |
| Mounting orientation | Vertical, on the longer side (avoid terminals facing downward) |
| Temperature range (charge) | 0 °C to +45 °C |
| Temperature range (discharge) | -20 °C to +50 °C |
| Storage temperature range | -40 °C to +65 °C |
| IP rating | IP43 |
| Dimensions (W x H x D) | 181 x 167 x 77 mm |
| Weight | 3.0 |
| Low temperature protection | Yes, charge cutoff below 0 °C and discharge cutoff below -20 °C |
| Absorption Time Max Hours | 4 |
| Integrated battery monitoring | Oui |
| Capacity Ah 0c | 16 |
| Capacity Loss Per 100 Cycles Percent | <1 |
| Bénéfice d'optimisation de charge | Does not need to be fully charged to optimize battery life |
| Charge Voltage Absorption Range | 14.2 - 14.4 |
| Energy Loss Per 100 Cycles Percent | <1 |
| Humidity Operating Non Condensing | 95 |
| Simplicité d'installation | Extremely easy |
| Fabricant | Victron Energy |
| Max Storage Time Fully Charged | 1 year (≤ 25°C), 3 months (≤ 40°C) |
| Mounting Restriction Positive Terminal | Do not lay on the long side with the positive terminal (+) facing down. |
| Operating temperature range | -20 °C to +50 °C |
| Overcurrent Protection | Yes |
| Over Charge Protection | Yes |
| Over Discharge Protection | Yes |
| Protection contre la surchauffe | Yes |
| Zone d'application du produit | Marine |
| Nom de la série de produits | SuperPack |
| Recommended continuous discharge current | 30.0 |
| Round Trip Efficiency Percent | 92 |
| Conception gain de place | Compact |
| Suivi par numéro de série | serial |
Detailed description
Detailed description
Designed for marine applications requiring a compact and autonomous power solution, the Victron Energy Lithium SuperPack 12.8V/20Ah (M5) battery integrates a battery management system (BMS) and a safety switch. This integration simplifies installation by eliminating the need for additional external components, distinguishing this range from more complex lithium-ion systems. The internal BMS protects against overcharging, excessive discharging, and extreme temperatures (charge cutoff below 0 °C and discharge cutoff below -20 °C), extending battery lifespan.
Performance and efficiency
With LiFePO4 chemistry, this battery delivers a nominal voltage of 12.8 V and a capacity of 20 Ah at 25 °C, corresponding to a nominal energy of 256 Wh. The SuperPack range features a round-trip energy efficiency of 92%, outperforming lead-acid batteries (80%). Unlike lead-acid batteries, Lithium SuperPack batteries do not require a full charge to optimize lifespan and can accept partial charges without significant degradation. The 12.8V/20Ah model supports a maximum continuous discharge current of 30 A and a peak current of 80 A (10 seconds), with a maximum continuous charge current of 15 A. Its lifespan is estimated at 2500 cycles at 80% depth of discharge (DoD) and 25 °C.
Installation and compatibility

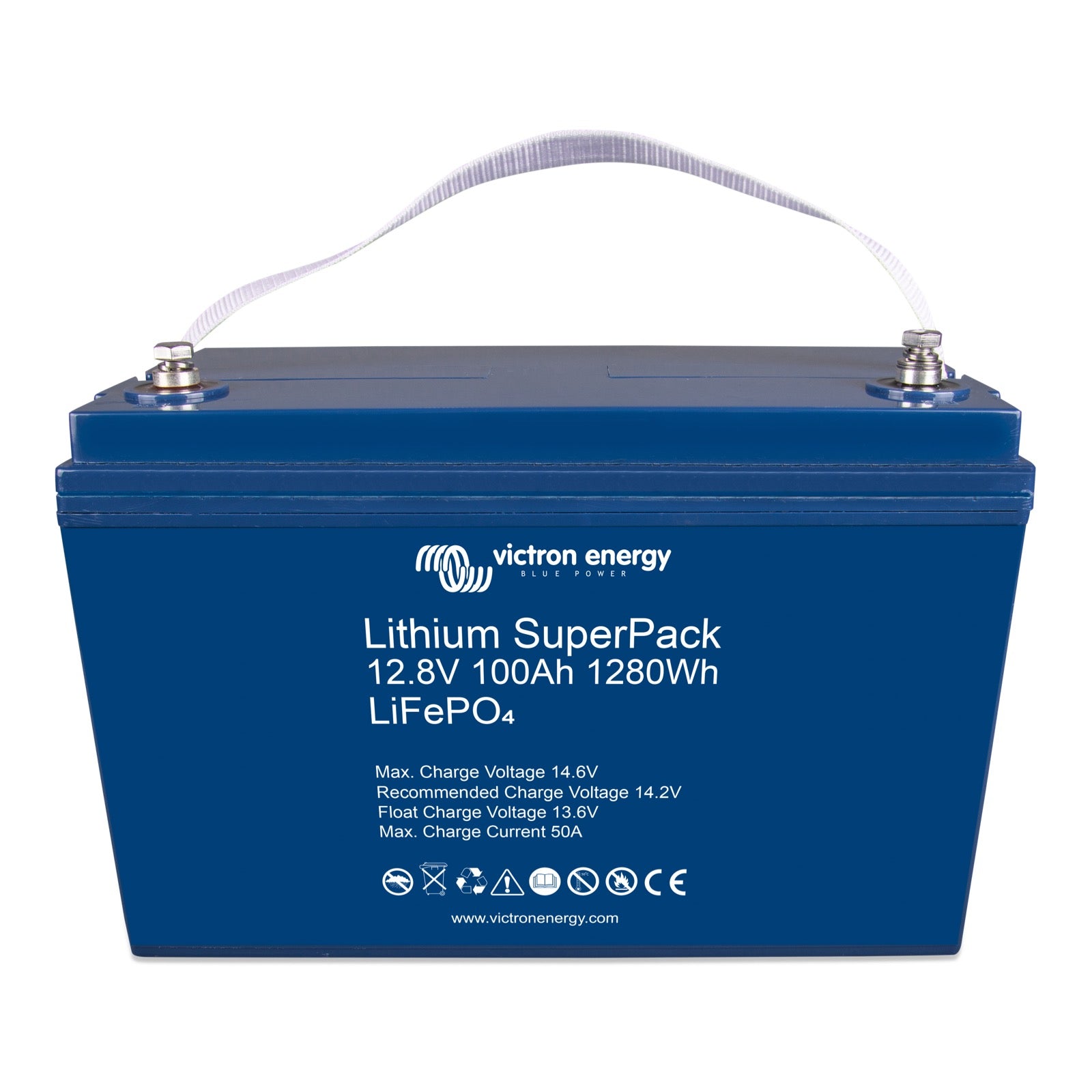

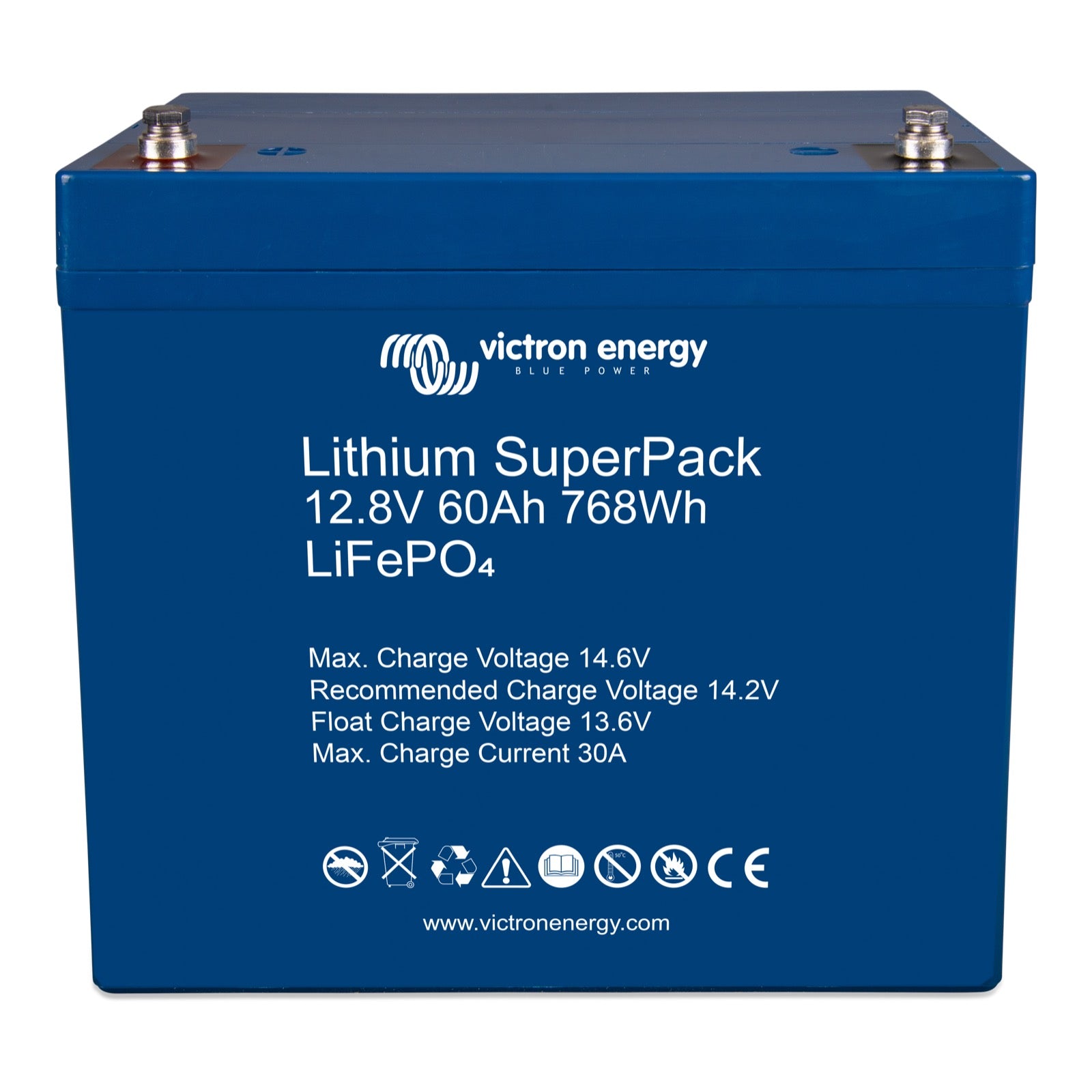

Lithium SuperPack batteries can be connected in parallel to increase capacity, with no limit on the number of units, but series connection is not permitted. The 12.8V/20Ah model is the most compact in the 12.8V SuperPack range, which also includes 60 Ah, 100 Ah, and 200 Ah versions, as well as a 25.6V/50Ah option. Its dimensions of 167 x 181 x 77 mm and weight of 3 kg facilitate integration in confined spaces. It features M5 terminals and has an IP43 protection rating, allowing vertical mounting or on its longest sides, except when terminals are facing downward. The operating temperature range is -20 °C to +50 °C for discharging and 0 °C to +45 °C for charging.
