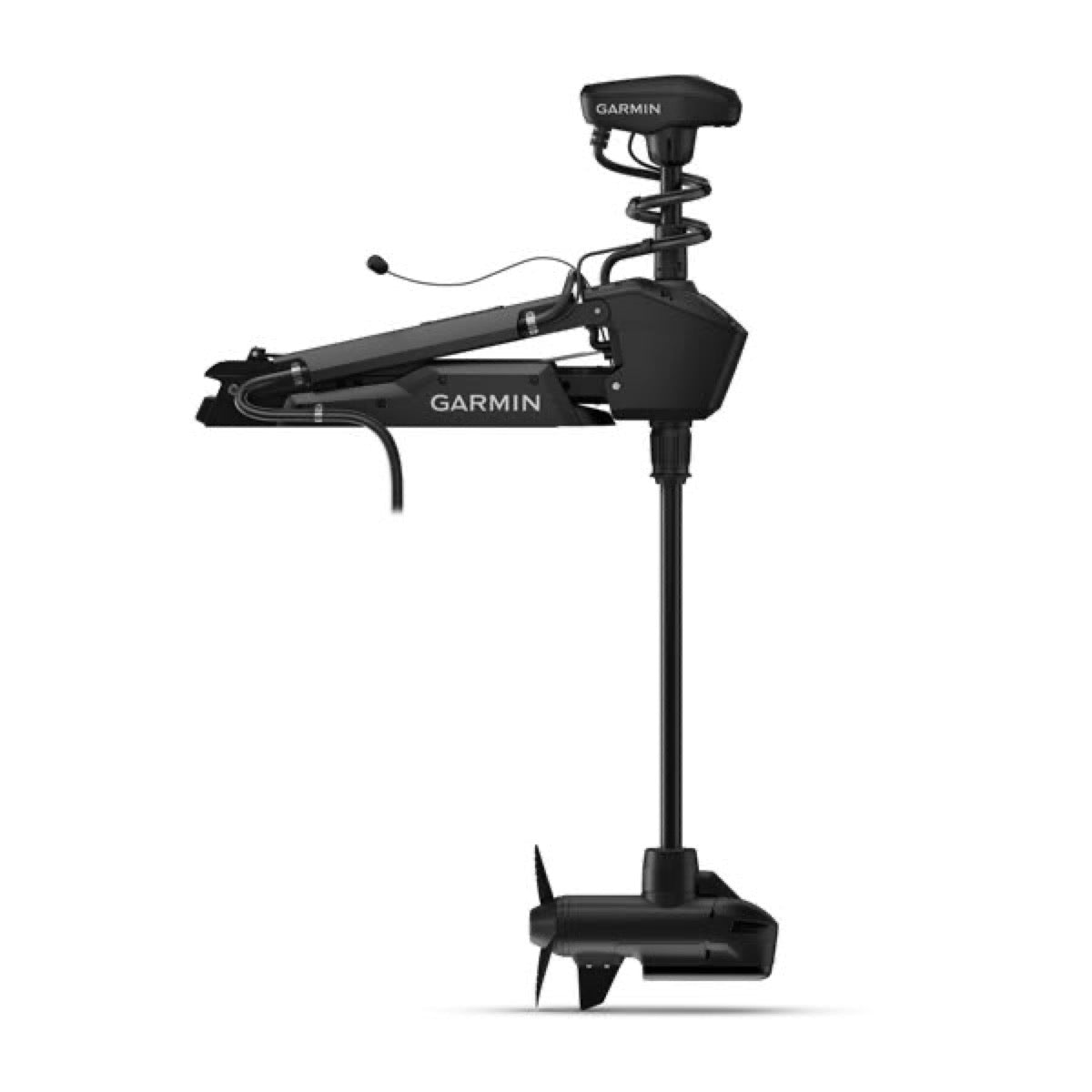

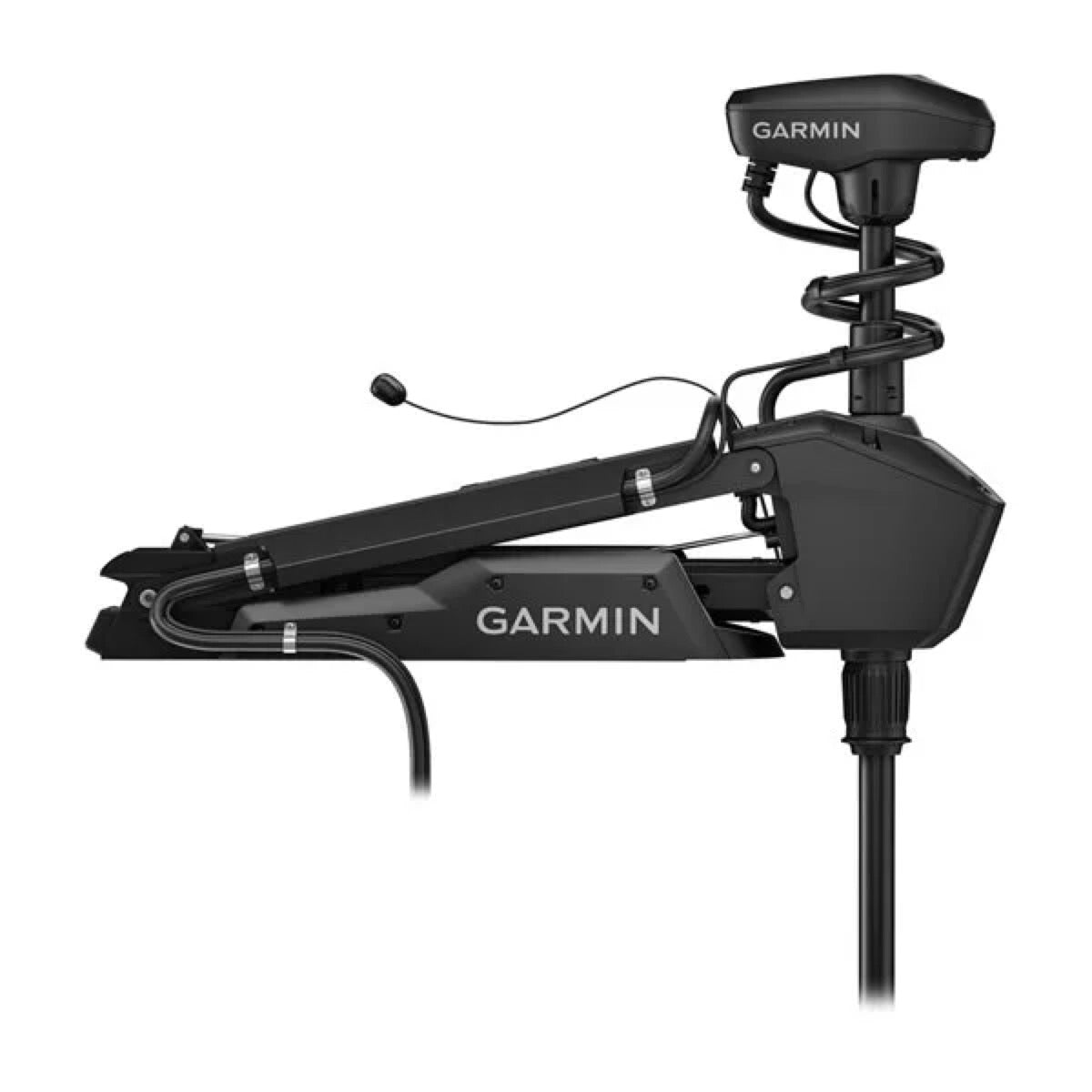

Garmin Force® Pro 50" elektrimootor GT56UHD-sondiga

The Garmin Force® Pro electric motor delivers a thrust power of 100 lbs when powered at 36V and 80 lbs when powered at 24V. These values comply with ISO 13342 standards.

Yes, the Garmin Force® Pro motor is designed for ultra-quiet operation. Its brushless design contributes to this underwater silence, positioning it ahead of competitors in terms of noise reduction.

The Garmin Force® Pro uses a brushless motor. This technology provides quieter operation, increased efficiency, and longer lifespan compared to traditional brushed motors.

The Garmin Force® Pro outboard is equipped with a 50-inch (approximately 127 cm) shaft.

The Garmin Force® Pro motor integrates a GT56UHD-TR all-in-one transducer. This transducer provides high-definition sonar capabilities for improved underwater detection.

The GT56UHD-TR transducer supports the following frequencies:

Traditional CHIRP sonar: 150–240 kHz (350 W power)ClearVü and SideVü: 455 kHz, 800 kHz, 1000 kHz (500 W power)

The GT56UHD-TR fishfinder reaches the following maximum depths:

Up to 800 feet (approximately 244 meters) in traditional CHIRP sonar in freshwater.

Up to 400 feet (approximately 122 meters) in ClearVü.

Up to 500 feet (approximately 152 meters) in SideVü.

Yes, the Garmin Force® Pro motor is equipped with multiband GPS positioning technology that provides highly accurate virtual anchoring (Anchor Lock function), minimizing boat movement.

The Garmin Force® Pro motor can operate on two power supply voltages: 24V or 36V. Thrust power varies depending on the voltage used, delivering 80 lbs at 24V and 100 lbs at 36V.

No, it is not recommended to print your own mounting template. It is strongly advised to use the template provided in the product box to ensure correct installation.

For stabilizer installation, you will need the following tools:

A 9/16" (14 mm) wrench or socket.
A 3/16" hex bit or Allen wrench.
A torque wrench.
A hacksaw or similar cutting tool to adjust stabilizer length (optional).

Yes, the stabilizer must be installed to reduce the risk of damage to the electric motor mount and the boat when navigating in rough conditions or during trailer transport.

No, you must use only hand tools when installing all components during engine assembly, following the specified torque values. Using power tools could damage components and void the warranty.

The stabilizer mount must be positioned so that the bent part of the mount faces the motor’s steering system housing. It can be installed on either the port or starboard side of the steering housing.

If the mounting template is printed at an incorrect scale, this may result in an incorrect cut (too large or too small) on your boat's mounting surface. Garmin declines all responsibility for damage or expenses resulting from incorrect cutting due to failure to follow printing instructions.

If you need to print the template, follow these steps:

Select "File > Print". Ensure you choose the "Actual size" option for scaling and page management. Check that the paper size is larger than the template. After printing, use a ruler to measure at least one dimension line to confirm the template is printed at 100% scale.

Garmin’s limited warranty does not cover:

Aesthetic damage (scratches, nicks, dents).Consumable parts (such as batteries), unless the damage is due to a defect in materials or manufacturing.Damage caused by an accident, abuse, misuse, water, flooding, fire, or other natural disasters or external causes.Damage caused by service performed by a provider not authorized by Garmin.Damage to a product modified without Garmin’s written authorization.Damage to a product connected to power or data cables not supplied by Garmin, or to uncertified UL power adapters that are not labeled as Limited Power Source (LPS).

Yes, using power tools to assemble the engine can damage components and void the warranty. It is imperative to use only hand tools and to respect the torque specifications provided during installation.

The Garmin Force® Pro motor is designed to integrate within the Garmin ecosystem. It uses multiband GPS technology for advanced features such as virtual anchor (Anchor Lock) and autopilot functions, which requires compatibility with Garmin navigation systems and control accessories such as the remote control and foot pedal.

Yes, it is mandatory to install the stabilizer provided with the Garmin Force® Pro 50 electric motor.

Installing the stabilizer is necessary to reduce the risk of damage to the electric motor mount and the boat when navigating in rough conditions or during trailer transport.

The installation process involves the following main steps:

Secure the stabilizer mount to the motor’s steering system housing, ensuring it is correctly oriented and tightened.Insert the stabilizer rod into the mount and attach the protective cap to the lower end.Apply slight pressure to the rod and tighten it to secure, then test the motor’s movement between stowed and deployed positions to ensure proper clearance and support.If necessary, cut off any excess length of the stabilizer rod using a hacksaw and install the upper cap.It is important to use only hand tools for assembly and to adhere to the provided torque specifications to avoid damaging components.
