Garmin GMR Fantom™ 18x radom, must

To install the GMR Fantom 18x radome, you will need the following tools:

A drillA 9.5 mm (3/8 in) drill bitA 32 mm (1 1/4 in) drill bit (optional, for cable routing)A 4 mm (5/32 in) Allen keyA 13 mm (1/2 in) wrench and a torque wrenchMarine sealant

For optimal performance and to avoid exposure to radio frequencies, the radome must be installed while respecting several considerations:

It is strongly recommended to mount the device out of reach of personnel, with the horizontal beam above head height.The device must be mounted high above the vessel's keel line, with minimal obstruction between the vessel and the radar beam.It should be installed on a flat surface or a platform parallel to the vessel's waterline and sufficiently robust to support its weight.Avoid installing it near heat sources (exhausts, lights) or at the same height as spreaders or transverse spreaders.Maintain a safety distance from a magnetic compass, other electronic equipment and cables (at least 2 m from the radar beam path), and from transmission equipment (at least 1 m).

The GMR Fantom 18x radome uses Garmin BlueNet™ technology and is compatible with Garmin BlueNet devices and Garmin Marine Network.

For a Garmin BlueNet network: Connect the included Garmin BlueNet cable to an open network port on your Garmin BlueNet chartplotter or a Garmin BlueNet 20 switch.For a Garmin Marine Network: You must use a Garmin Marine Network adapter cable (part number 010-12531-01, available separately if not included) to connect the radome’s Garmin BlueNet cable to an open network port on your Garmin Marine Network chartplotter or a GMS™ 10 port expander.Make sure to tighten the locking collars on the connectors for a secure connection.

The Garmin GMR Fantom 18x radome integrates MotionScope™ technology. This feature uses the Doppler effect to detect and highlight moving targets in color on your chartplotter screen. It allows you to quickly identify approaching boats, birds, or other obstacles, improving situational awareness and safety at sea.

Yes, it is mandatory to update the software on your Garmin chartplotter when you install the GMR Fantom 18x radome. To obtain the software update instructions, refer to your chartplotter's user manual.

The warranty for your Garmin GMR Fantom 18x radome may be voided in the following cases:

If the power cable is connected without the appropriate fuse in place. If the device is opened by anyone other than a technician authorized by Garmin. The device contains no user-serviceable parts.

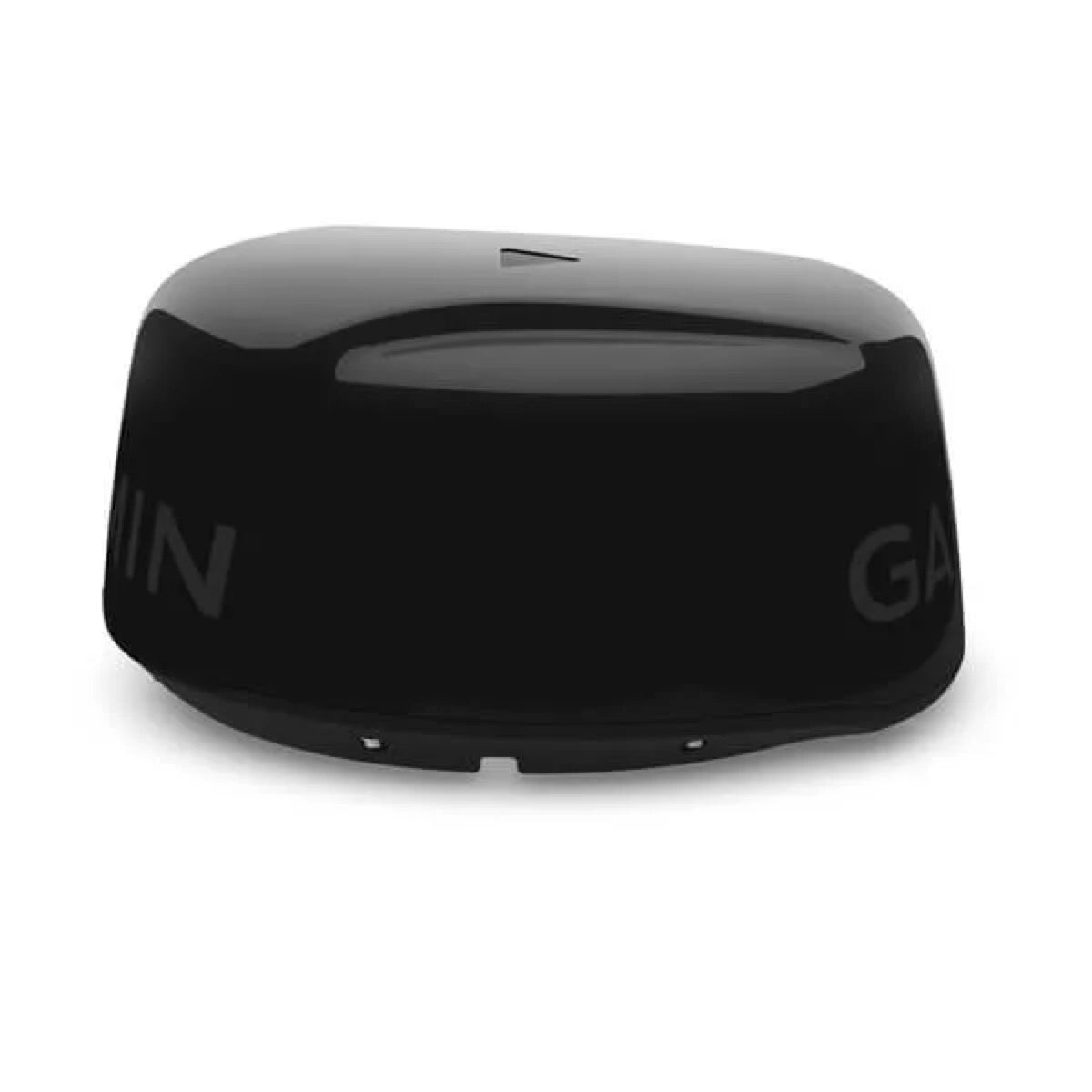

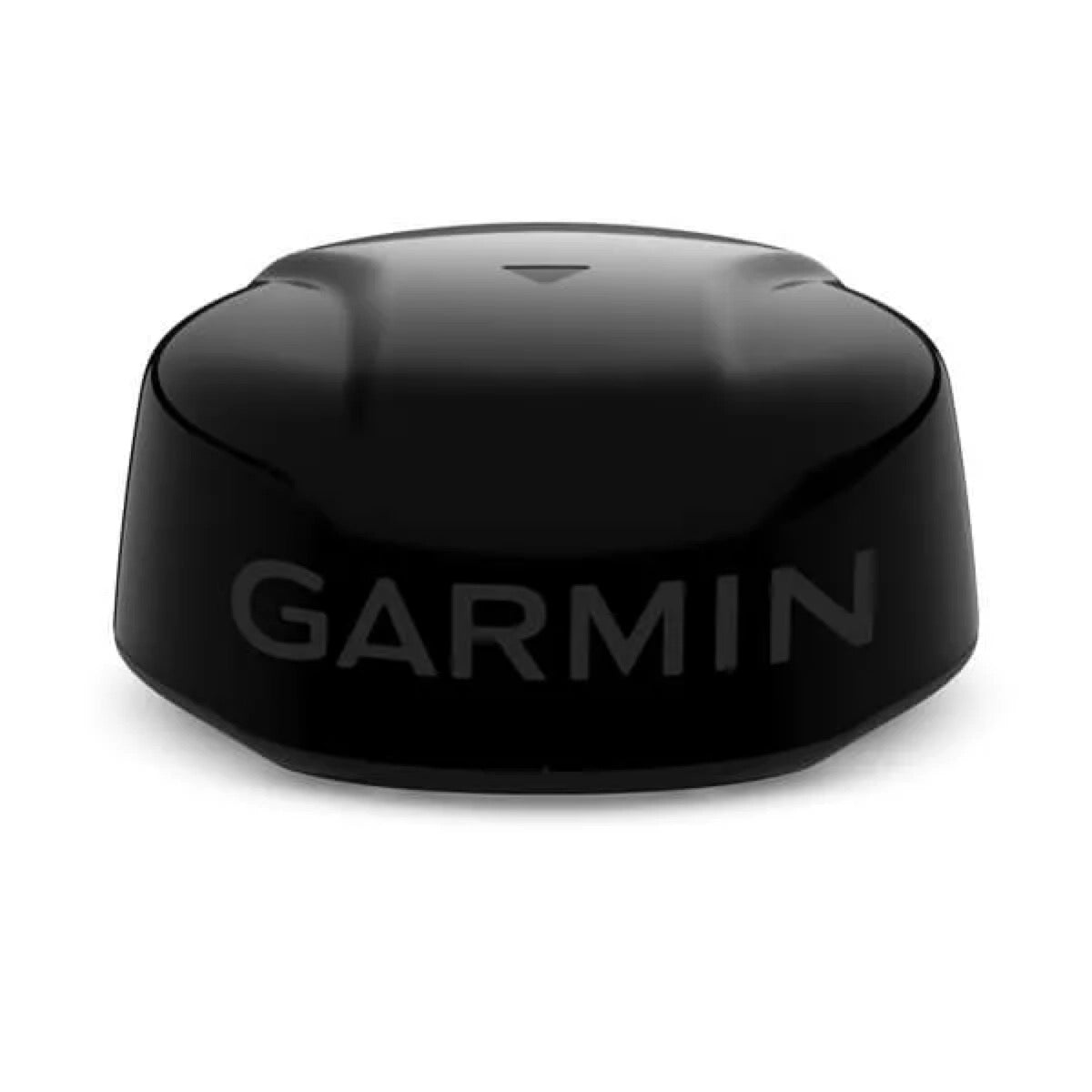

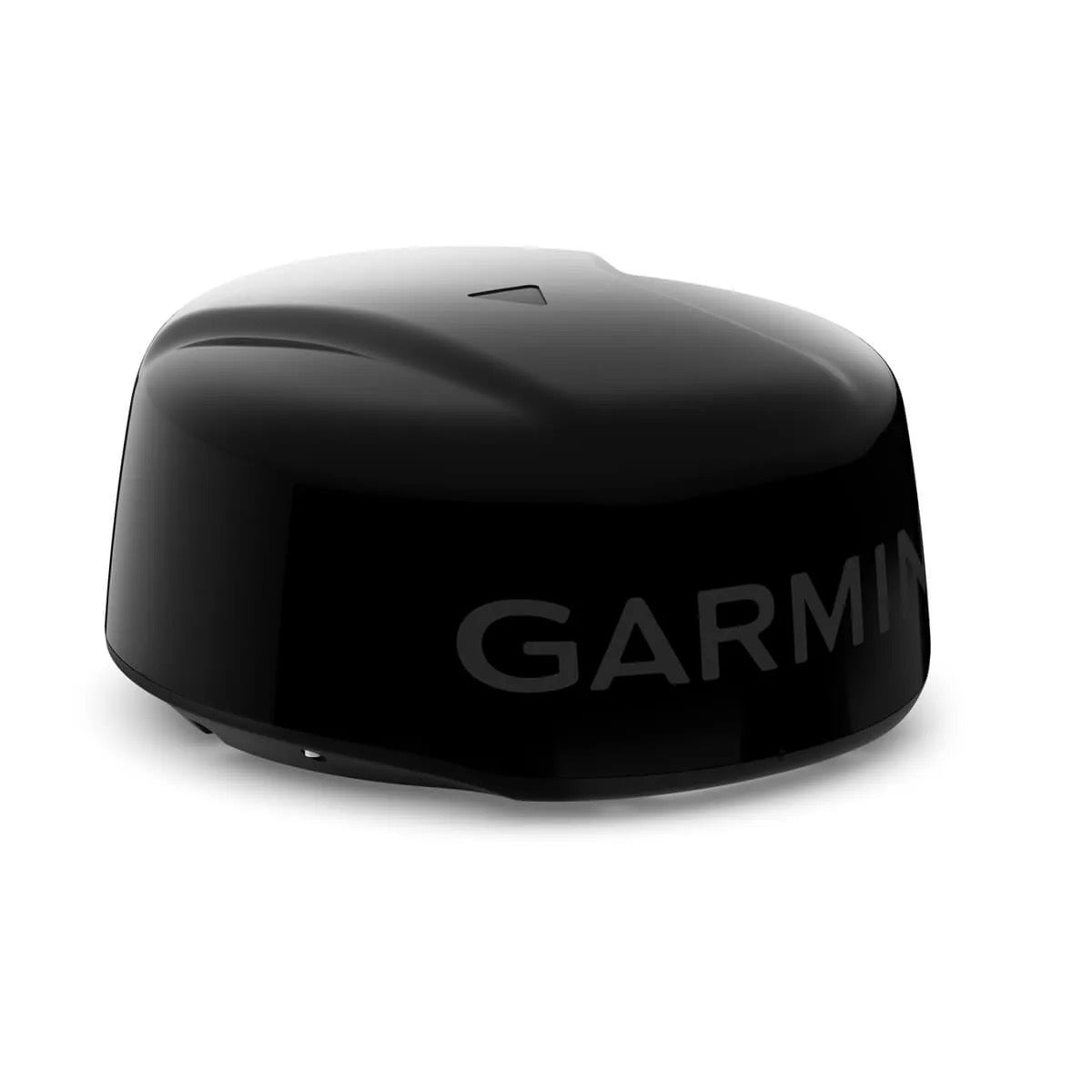

The Garmin GMR Fantom 18x radome is a compact solid-state marine radar. It features MotionScope™ technology for advanced detection of moving targets and ensures seamless integration via Garmin BlueNet™ and Garmin Marine Network networks. This product is designed to enhance navigation safety by providing a clear and precise radar image.

MotionScope™ technology highlights moving targets with different colors on your Garmin chartplotter screen. This helps quickly identify approaching or receding vessels, birds, or obstacles, improving situational awareness and safety at sea.

The Garmin GMR Fantom 18x radome requires a DC power supply voltage between 10 and 32 Vdc.

The Garmin GMR Fantom 18x radome is designed to operate within a temperature range of -15°C to 70°C (5°F to 158°F).

All functions of the GMR Fantom 18x radome are controlled directly from your compatible Garmin chartplotter. There are no physical controls on the radome itself.

To install the GMR Fantom 18x radome, you will need the following tools:

A drillA 9.5 mm (3/8 in) drill bitA 32 mm (1 1/4 in) drill bit (optional for cable routing)A 4 mm (5/32 in) Allen keyA 13 mm (1/2 in) wrench and a torque wrenchMarine sealant

For optimal performance and safety, it is recommended to mount the radome:

Away from personnel, with the horizontal beam above head height.Above the waterline of the vessel, with minimal obstacles.On a flat surface or a platform parallel to the waterline and sufficiently robust.Far from heat sources (exhausts, lights).At a different level from horizontal spreaders and mast bars.More than 2 m (6.5 ft) from other electronic equipment and cables.At least 1 m (40 in) from any transmitting equipment or cables carrying radio signals (VHF, antennas). For SSB radios, increase the distance to 2 m (6.5 ft).

Yes, it is mandatory to update the software of your Garmin chartplotter when installing the GMR Fantom 18x radome. This ensures compatibility and proper operation of the entire system.

During installation, use the arrow on the underside of the radome as a reference to align it with the bow of the vessel. If not aligned initially, you can adjust the boat's offset later via your Garmin chartplotter settings.

Yes, to achieve optimal performance and avoid potential damage to the device or the vessel, installation by a qualified marine technician is highly recommended.

Yes, the GMR Fantom 18x radome uses Garmin BlueNet™ network technology, but it is also compatible with Garmin Marine Network devices. If your boat is equipped only with Garmin Marine Network devices, you will need to use a Garmin Marine Network adapter cable for the connection. This cable (part number 010-12531-01) can be purchased separately if not included.

The product includes a Garmin BlueNet™ network cable. If your installation requires a connection to an older Garmin Marine Network, a Garmin Marine Network adapter cable (part number 010-12531-01) may be required and is sold separately if not included in the box.

Yes, opening the device by anyone other than a technician authorized by Garmin will void the Garmin warranty. The radome contains no user-serviceable parts.
