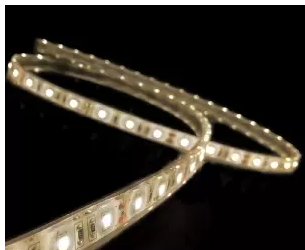

Ruban LED MANTAGUA adhésif 12V, 1m, IP68, blanc chaud 500 LM/M. Bande lumineuse flexible et étanche.

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Säästad 6%

MANTAGUA

01224

LED-pitsat tape 12V – 1m – IP68 – soeval valge – 500LM/m

The MANTAGUA 01224 LED strip is a 12VDC lighting solution measuring 1 meter, delivering 500 lumens per meter in warm white with IP68 waterproofing. Built with 5050 LEDs, it provides powerful and durable illumination, ideal for demanding marine environments. This model is a high-performance option in the IP68 MANTAGUA range and comes with 10 cm of electrical wires at each end for simplified installation.

Public priceGet pro pricing

30,76€

30,76€ ~~32,99€~~

Käibemaksuga Tarne arvutatakse makse tegemise ajal.

Laosolekus

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Technical specifications

Toote alamtüüp	Ruban LED
Töötav pinge	12
Tüüpiline elektritarve	7.2
Valgusvoog	500.0
Värvitemperatuur	3100.0
Valguse värv	Blanc chaud
IP-tunnus	IP68
Oodatav eluiga (tundides)	50000.0
Riboni pikkus (meetrites)	1.0
LED-ide tihedus meetri kohta	60.0
Valgusvoog meetri kohta	500.0
Kleepuv tagakülg	Oui
Kiire kaetavusnurk	120

Detailed description

MANTAGUA LED-pitsat tape (tähis 01224) pakub vastupidavat ja kõrgtasemelist valgustussüsteemi, mis on välja töötatud spetsiaalselt ranged merendus- ja välitingimusteks. Töötades 12VDC pingel, on see 1 meetri pikkune tape võimeline andma 500 lumeni valgusvoogu meetri kohta (LM/m) soeval valgel värvil, tagades efektiivse ja mugava valgustuse. Tema IP68 kaitsetase tagab täieliku kaitse tolmu ja pikaajalise veekindluse vastu, tehes selle ideaalseks nii sise- kui ka välise paigalduse jaoks laevadel.

Konstruktsioon ja jõudlus

See LED-tape kasutab SMD 5050 kiipse, mis on tuntud oma hea valguse intensiivsuse ja energiatõhususe poolest. 60 LEDi tihedusega meetri kohta ja 7,2 W/m tarbimisega paigutub see MANTAGUA seerias võimsate valikute hulka, ületades IP68 LED-tapeid, mis kasutavad 3528 LEDe (nt 01136 190 lm/m või 01137 75 lm/m) valgusvoo poolest. Tape on lõigatav iga 5 cm järel, võimaldades paindlikku paigaldust vastavalt ruumi vajadustele. Eluiga on 50 000 tundi, eeldusel, et kasutatakse DC/DC regulaatorit, mida MANTAGUA soovitab süsteemi stabiilsuse ja pikaealisuse tagamiseks.

Paigaldus ja integreerimine

MANTAGUA LED-tape kinnitamine on lihtne tänu tema tagaküljel olevale liimkihile, võimaldades kiiret ja kindlat kinnitamist erinevatele pindadele. 120° valguse hajutamise nurk tagab ühtlase valguse jaotuse. Toodet tarnitakse 10 cm pikkuste juhtmetega mõlemas otsas, võimaldades lihtsa ühendamise 12VDC vooluringis, jälgides polaarsust optimaalse töötamise tagamiseks. Võrreldes üldotstarbeliste lahendustega on see tape spetsiaalselt välja töötatud vastupidavaks merekeskkonnale, pakkudes usaldusväärset ja vastupidavat alternatiivi pardavalgustusele.

Documentation

Type	Nom
	Pages_rubans2023-30.pdf

Expert review

Pol CONIN

Digital Manager

« MANTAGUA LED strip: performance and IP68 waterproofing for marine use »

The MANTAGUA 12V, 1m LED strip, IP68-rated, with 500 lumens per meter, is a high-reliability marine lighting solution. Its IP68 certification makes it fully waterproof and resistant to prolonged immersion, which is critical for outdoor installations or damp areas aboard. The use of 5050 LEDs ensures superior luminous intensity compared to 3528 models, with a power consumption of 7.2 W/m that is easily managed by 12VDC onboard systems. To maximize its rated lifespan of 50,000 hours and ensure stable light output, the use of a DC/DC regulator is mandatory to protect the strip from the frequent voltage variations found in a shipboard network. Its 5cm cut points and adhesive backing facilitate custom and durable installation in complex configurations.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

LED-pitsat tape 12V – 1m – IP68 – soeval valge – 500LM/m

30,76€

30,76€ ~~32,99€~~

Complete your installation with

Complementary equipment

MANTAGUA

Kolmevärviline tuletüüp TYNI Tri 1MN mastipea (alla 12 m pikkune laev)

Ref : 00085

138,68€

138,68€ ~~151,12€~~

MANTAGUA

Lugevalgusti Hoedic LED lülitiga - 10W - soe valge

Ref : 01141

72,43€

72,43€ ~~76,25€~~

MANTAGUA

NIVIDIC ruumalamp NIVIDIC ruut 10W LED, roostevaba, ilma lülitita, roostevaba teras

Ref : 01525

51,73€

MANTAGUA

LED-tugiprožektor mantagu MANTAGUA, soojavalk 3000K, 25°, must anooditud alumiinium

Ref : 01598

312,02€

312,02€ ~~312,91€~~

Frequently asked questions

Need help? Contact us

What is the color of the lighting for this LED strip?

The MANTAGUA LED strip (ref. 01224) emits a warm white light with a color temperature of 3100 Kelvin.

What is the required supply voltage for this LED strip?

This LED strip operates on a 12VDC supply voltage.

What is the length of this LED strip?

This LED strip is 1 meter long.

Is this LED strip water-resistant or suitable for outdoor use?

Yes, this LED strip has an IP68 protection rating. This means it is fully protected against dust and can withstand prolonged immersion in water. It is specifically designed for demanding marine and outdoor environments.

What is the brightness of this LED strip?

This LED strip provides a brightness of 500 lumens per meter (LM/M).

How is this LED strip installed?

The LED strip has a self-adhesive backing for surface mounting, enabling quick and secure installation on various surfaces.

Can this LED strip be cut to fit a specific length?

Yes, this LED strip can be cut every 5 cm, offering flexibility to fit precisely into available spaces.

What type of LED is used in this LED strip?

This LED strip uses SMD 5050 chips, known for their brightness and energy efficiency.

What is the power consumption of this LED strip?

The power consumption of this LED strip is 7.2 watts per meter (W/m).

What is the beam angle of this LED strip light?

The beam angle of this LED strip light is 120°, ensuring even light distribution.

Is the LED strip supplied with connection cables?

Yes, the strip is supplied with 10 centimetres of electrical wires at each end, ready to be integrated into a 12 V DC circuit.

What is the estimated lifespan of this LED strip?

This LED strip has an estimated lifespan of 50,000 hours, provided it is used with DC/DC regulation.

Is a DC/DC regulator necessary with this LED strip?

Yes, MANTAGUA strongly recommends using a DC/DC regulator to optimize system stability and longevity, achieving the 50,000-hour lifespan.

How many LEDs are there per meter on this strip?

This LED strip has 60 LEDs per meter.

Is this LED strip suitable for installation on a vessel?

Yes, this LED strip is specifically designed to withstand marine constraints and is ideal for indoor and outdoor installations on vessels, thanks to its IP68 protection rating.

What are the physical dimensions of this LED strip?

The LED strip is 12 mm wide and 5 mm thick. Its length is 1 meter.

Is there a polarity to respect when connecting the LED strip?

Yes, the polarity must be respected when connecting the electrical wires to ensure optimal operation and avoid damaging the LED strip.

How does this LED strip compare to other models in terms of brightness?

This LED strip uses SMD 5050 chips and delivers 500 lm/m. It is positioned as a powerful option in the MANTAGUA range, outperforming IP68 models equipped with 3528 LEDs (which provide, for example, 190 lm/m or 75 lm/m) in terms of luminous flux.

On which types of surfaces can the adhesive backing of the tape be installed?

The adhesive backing allows for quick and secure installation on various surfaces. For optimal adhesion, the surface should be clean, dry, and smooth.

Is the LED strip ready to use upon receipt?

Yes, the strip is delivered with 10 cm of electrical wires at each end, making it ready to be integrated into a 12VDC circuit. Its adhesive backing also allows for simple and quick installation.
