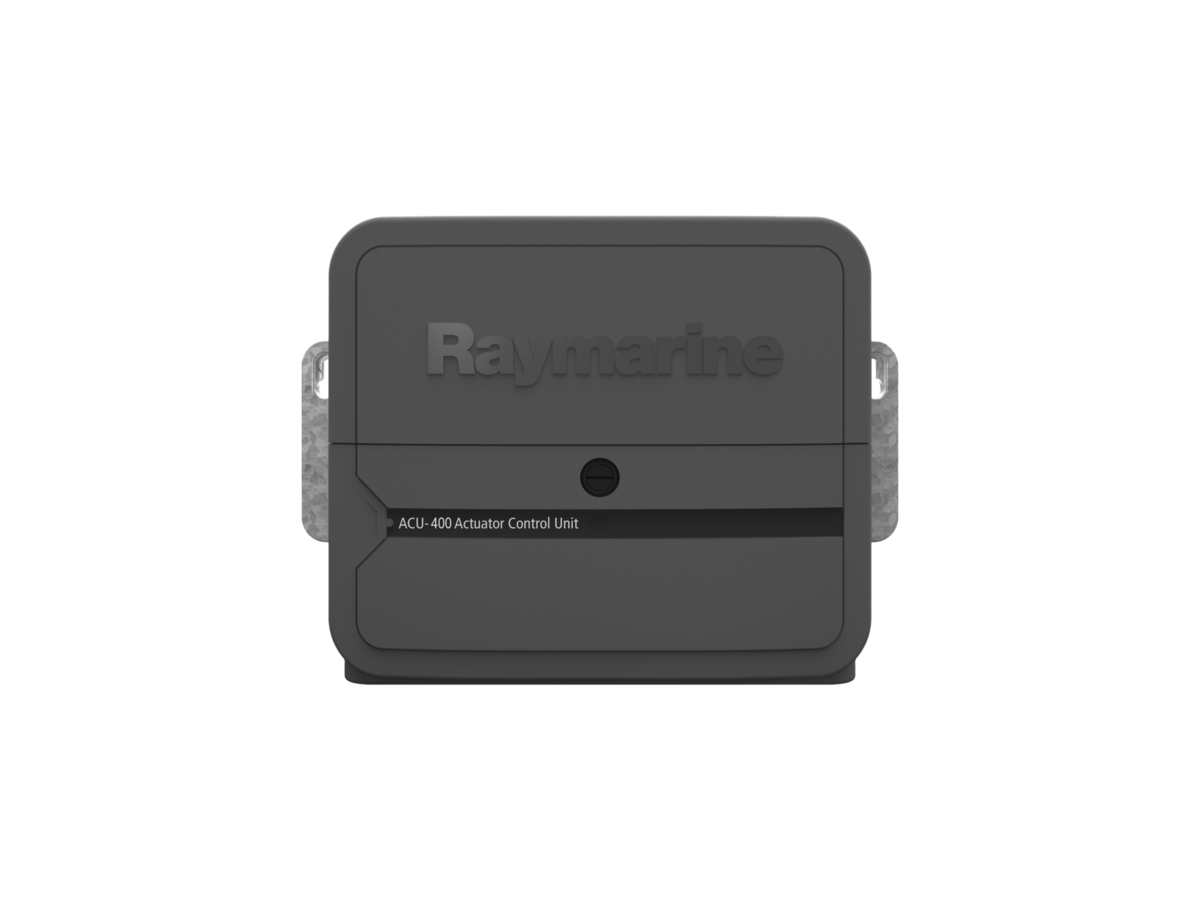

ACU-400 Evolution autopilot actuator control unit

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Säästad 2%

Raymarine

E70100

ACU-400 võimsusmoodul

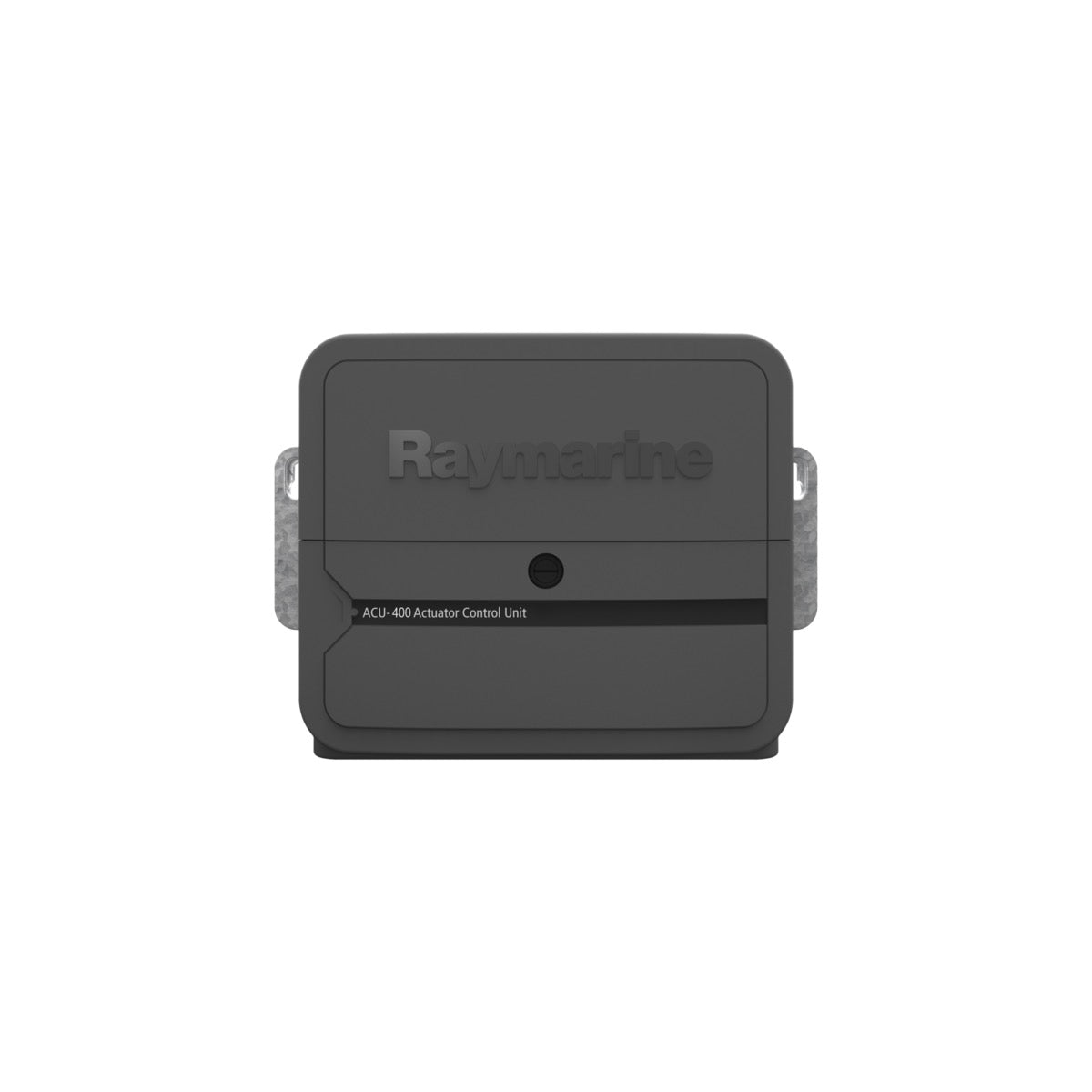

Le boîtier de puissance Raymarine ACU-400 est l'unité de commande d'actionneur des pilotes automatiques Evolution, conçue pour les systèmes de direction à forte consommation électrique. Il gère une large gamme d'actionneurs via SeaTalk NG, assurant une intégration fluide et une commande précise. Modèle le plus puissant de la série ACU-200/300/400, il est destiné aux installations exigeantes. Les accessoires inclus sont détaillés dans la documentation fournie et comprennent un pack de documentation, un câble SeaTalkng spur (400 mm), un câble adaptateur Devicenet vers SeaTalkng (120 mm), 4 vis de montage (M5 x 30), 4 vis de montage (M5 x 20), 4 rondelles et 4 rondelles ressort, ainsi que 4 écrous.

Public priceGet pro pricing

2.496,90€

2.496,90€ ~~2.574,00€~~

Käibemaksuga Tarne arvutatakse makse tegemise ajal.

Laosolekus

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Technical specifications

Maksimaalne elektritarve	720
Töötav pinge	12 V ou 24 V CC
Soovitatav sulavkaitse suurus	30
Toote laius	284.9
Toote kõrgus	59.6
Toote sügavus	261.0
Võrguühilduvus	NMEA 2000,SeaTalk NG
Traadivõrk	NMEA 2000,SeaTalk NG
Montaažitüüp	Montage en surface
Sertifikaadid	CE
Juhimoodid	Auto, Veille, Vent, Nav, Suivi, Power Steer
Aktuaatori tüüp	Linéaire (Type 1/2), Hydraulique linéaire (Type 2/3), I/O Stern, Roue, Sport Drive, Verado, Rotatif (Type 1/2), Pompe hydraulique (Type 1/2/3)
NMEA 0183 pordid	0
Sõrmi brauseriga seadistamine	Non
Liikumise korrektsiooni toetus	Oui
Hoiatusväljund	Via réseau SeaTalk NG

Detailed description

Raymarine Evolutioni autopiloodisüsteemide jaoks konstrueeritud ACU-400 võimsusmoodul (E70100) on juhtseade, mis on mõeldud kõrge võimsusega süsteemidele. See moodul toimib liideseks keskse EV-1 anduri, juhtpultide (p70, p70s, p70R, p70Rs) või multifunktsionaalsete ekraanide (MFD) ning laeva roolimootori vahel.

Integratsioon ja ühilduvus

ACU-400 ühendub Raymarine SeaTalk NG võrguga, hõlbustades kommunikatsiooni ja andmete jaotamist. See on ühilduv laia valikuga juhtimissüsteemidega, sealhulgas lineaarsed mootorid tüüpi 1 ja 2, lineaarsed hüdraulilised süsteemid tüüpi 2 ja 3, I/O Sterni ülekanded, roolijuhid, Sport Drive, Verado ning pöörlevaid mootoreid tüüpi 1 ja 2 ja hüdraulpumpasid tüüpi 1, 2 ja 3. See paindlikkus tagab ühilduvuse erinevate suunamissüsteemidega keskmise ja suure laevade jaoks. Mooduli füüsilised mõõtmed on 284,9 mm x 261,0 mm, kõrgus 59,6 mm, ning vajab kaablite jaoks vähemalt 50 mm vaba ruumi.

Asukoht Evolutioni sarjas

ACU-400 moodul on kõige robustsem lahendus ACU-seerias (kuhu kuuluvad ka ACU-100, ACU-150, ACU-200 ja ACU-300). Kuigi ACU-100 ja ACU-150 on mõeldud madala kuni keskmise võimsusega rakendusteks, on ACU-400 (koos ACU-200 ja ACU-300-ga) spetsiaalselt mõeldud kõrge voolutarbega roolimootoritele, nagu suure võimsusega hüdraulpumbad või võimsad lineaarsed silindrid. See moodul on oluline, et säilitada autopiloodi täpne ja reageeriv juhtimine nõudlikumatel laevadel.

Documentation

Type	Nom
	EN - Plan technique - Boîtier de puissance ACU-400
	EN - Notice d'installation - Boîtier de puissance ACU-400
	EN - Document technique - Boîtier de puissance ACU-400
	FR - Notice d'installation - Boîtier de puissance ACU-400
	EN - Declaration de conformite - Boîtier de puissance ACU-400
	EN - Declaration de conformite - Boîtier de puissance ACU-400
	EN - Declaration de conformite - Boîtier de puissance ACU-400
	EN - Gabarit de montage - Boîtier de puissance ACU-400
	EN - Gabarit de montage - Boîtier de puissance ACU-400

Expert review

Pol CONIN

Digital Manager

« Raymarine ACU-400: Power management for demanding Evolution autopilot systems »

The Raymarine ACU-400 power unit is a critical component for Evolution autopilot systems, particularly suited to vessels equipped with high-power steering actuators. Its primary function is to provide a robust and reliable interface between the SeaTalk NG network and hydraulic power cylinders or pumps, ensuring that autopilot commands are transmitted with the required power and precision.

During installation, it is essential to comply with wiring requirements, including dedicated grounding via a drain wire, to ensure system stability and protection against electromagnetic interference. Its wide compatibility with different actuator types (linear, hydraulic, rotary) makes it a versatile choice. However, its sizing is clearly intended for installations where ACU-100 or ACU-150 units would be undersized, typically for hydraulic pumps of type 2 or 3.

Commissioning involves detailed configuration steps via the autopilot controller, including hull type and drive type selection, as well as dockside calibration. These steps are fundamental to optimizing steering performance. Choosing the ACU-400 means opting for a solution capable of handling the demands of the most demanding steering systems, providing added value in terms of reliability and performance on larger vessels.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

ACU-400 võimsusmoodul

2.496,90€

2.496,90€ ~~2.574,00€~~

Complete your installation with

Complementary equipment

Raymarine

EV1 Evolution arvutusandur

Ref : E70096

981,54€

981,54€ ~~1.110,00€~~

Raymarine

Purjekapteni nurgaanduri 10 m kaabel

Ref : M81105

348,82€

348,82€ ~~396,00€~~

Raymarine

Autopiloti L/stroke LIN juhtimismooduli moodul

Ref : N005

1.673,33€

1.673,33€ ~~1.944,00€~~

Raymarine

i70s multifunktsiooninäidik

Ref : E70327

678,00€

678,00€ ~~714,00€~~

Frequently asked questions

Need help? Contact us

What is the role of the ACU-400 power unit in a Raymarine Evolution autopilot system?

The ACU-400 power unit is an actuator control unit dedicated to Raymarine Evolution autopilot systems. It serves as the essential interface between the EV-1 central sensor, control heads (such as p70, p70s, p70R, p70Rs) or multifunction displays (MFD), and the vessel's steering actuator. It is specifically designed for installations requiring high power management for steering.

Which types of steering actuators is the ACU-400 control unit compatible with?

The ACU-400 is compatible with a wide range of steering drive systems, ensuring versatility for various vessel configurations. It supports the following actuator types:

Linear actuators Type 1 and 2Linear hydraulic systems Type 2 and 3I/O Stern DrivesSport DriveVeradoRotary drives Type 1 and 2Hydraulic pumps Type 1, 2 and 3

What are the physical dimensions of the ACU-400 housing and the space required for its installation?

The physical dimensions of the ACU-400 housing are 284.9 mm x 261.0 mm, with a height of 59.6 mm. For proper installation and cable connections, a minimum clearance of 50 mm is required around the unit.

How does the ACU-400 connect to the SeaTalk NG network?

The ACU-400 integrates directly into Raymarine's SeaTalk NG network. This connection enables communication and data distribution between all components of the Evolution autopilot system, including the EV-1 central sensor, control heads, and multifunction displays, ensuring smooth and fast data exchange.

Which control heads or multifunction displays are compatible with the ACU-400 control unit?

The ACU-400 control unit is designed to work with the following Raymarine autopilot control heads:

p70, p70S, p70R, p70RS

It is also compatible with Raymarine multifunction displays (MFDs) that can be used as autopilot controllers, allowing full integration into your navigation system.

What is the difference between the ACU-400 and other power boxes in the Evolution series?

The ACU-400 is the most robust solution in the ACU series (which also includes the ACU-100, ACU-150, ACU-200, and ACU-300). While the ACU-100 and ACU-150 are designed for low to medium power applications, the ACU-400 is specifically sized for high-current steering actuators. It is ideal for high-capacity hydraulic pumps or powerful linear actuators, essential for maintaining precise and responsive autopilot control on boats with higher steering power demands.

What are the main steps for commissioning a Raymarine Evolution autopilot system using the ACU-400?

Commissioning a Raymarine Evolution autopilot system with the ACU-400 involves the following steps:

Power up all components of the autopilot system.Select the vessel's hull type via the controller menu.Use the dockside calibration assistant to configure basic parameters.Select the steering drive type.Check rudder alignment (for systems with rudder angle sensor).Set the rudder limit.Check the rudder drive.If no rudder angle sensor is installed, specify the hard-over time.Linearize the compass.

Does the ACU-400 power unit require a dedicated ground connection?

Yes, for optimal and safe operation, the ACU-400 power unit requires a dedicated ground connection. A dedicated drain wire must be used for this ground connection.
