Raymarine

E70628

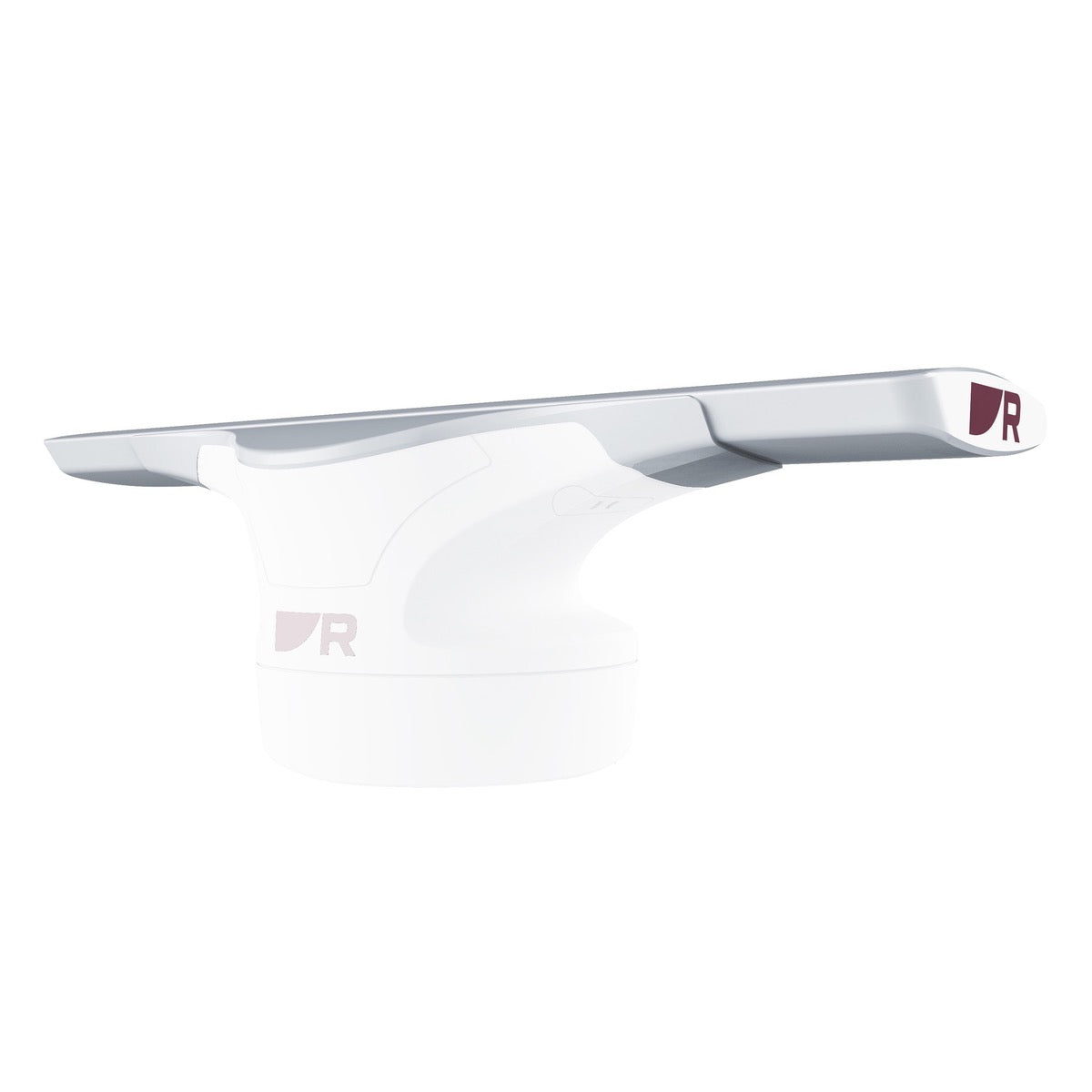

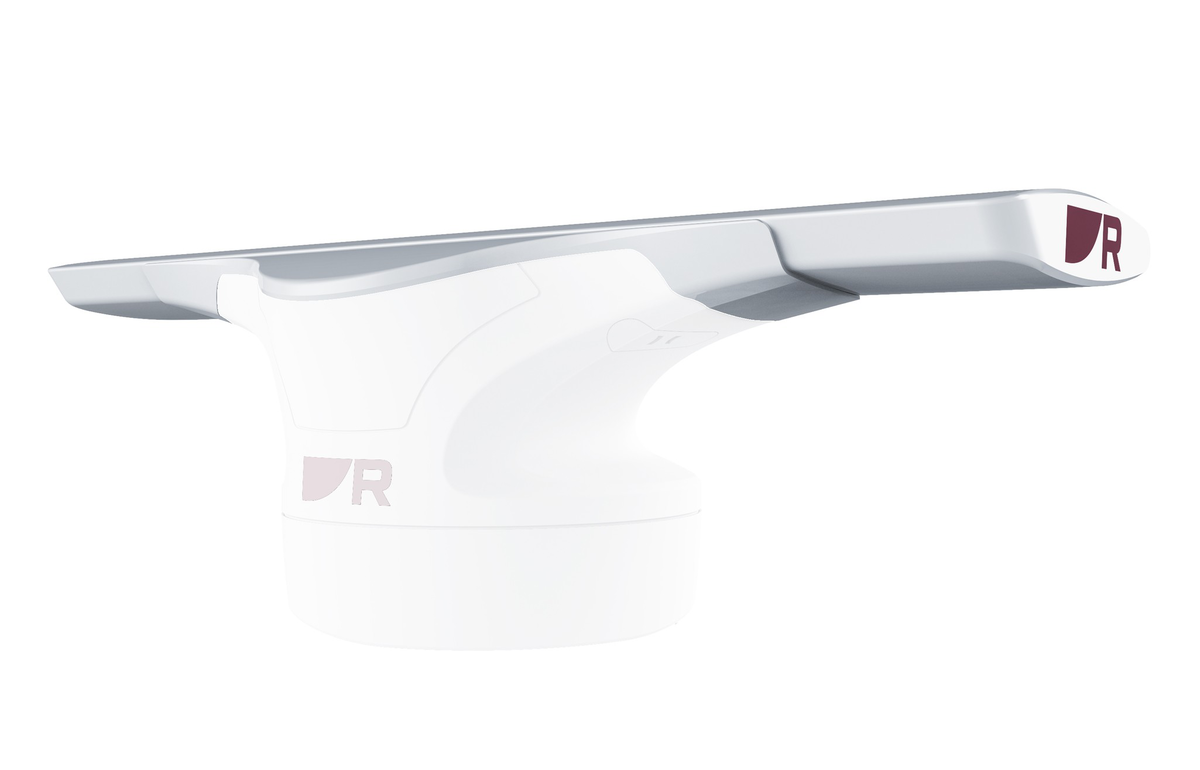

Raymarine Cyclone 3’ pardaantenn

L'antenne poutre Raymarine Cyclone 3' (E70628) est un composant pour les systèmes radar Raymarine Cyclone et Cyclone Pro. Conçue pour être associée aux embases E70620 ou E70621 et au module VCM100, elle complète les capacités Doppler de la série Cyclone, offrant une option compacte au sein de la gamme. Ce produit inclut uniquement l'antenne poutre de 3 pieds.

Public priceGet pro pricing

2.440,22€

2.440,22€ ~~2.634,00€~~

Käibemaksuga Tarne arvutatakse makse tegemise ajal.

Laosolekus

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Technical specifications

Toote kõrgus	335 mm
Töötav pinge	12/24 V CC
Maksimaalne elektritarve	170
Radari tehnoloogia	CHIRP à compression d'impulsion avec Doppler
Radari maksimaalne ulatus	72
Soovitatav sulavkaitse suurus	20
Radari pöörlemiskiirus	12, 24, 36, 48, 60
Horisontaalne kiirguslaotus	2.83
Veekindel	IPX6
Tüüpiline elektritarve	70
Sweepi ribalaius	60 MHz
Impulsi pikkus	0.04 à 1.2 µs
Kompassi ohutuskaugus	100
Müra tegur	< 5
Radari minimaalne ulatus	6
Traadivõrk	RayNet (Ethernet)
Töötamise temperatuur	-25 à +55
MARPA jälgimine	Oui
Saatmise võimsus	55
Radari sagedusala	Bande X
Antenni/radomi liik	Open Array (poutre)
Toote laius	343 mm
Doppleri radaritehnoloogia	Oui
Kahekaugusradar	Oui (via RangeFusion™)
VelocityTrack radar	Oui
Vertikaalse kiire laius	25
Radari tipptugevus	55
Pakendi sisu	Antenne poutre 3 pieds
Saadaolevad häired	Zone de garde, CPA/TCPA (via ARPA)

Detailed description

Raymarine Cyclone 3’ (E70628) pardaantenn on mõeldud uue põlvkonna radarisüsteemidele. See on oluline osa Cyclone-seeriast ja sobib ainult Cyclone (E70620) ning Cyclone Pro (E70621) embastesse, vajades tööks ka pingemuundur VCM100 (E70648). 3-jala pikkune antenn on Cyclone-seeria kõige kompaktsem variant, mis hõlmab ka 4- ja 6-jala versioone, pakkudes lahendust ruumipiiratud paatidele.

Paigaldus ja täiustatud võimalused

Cyclone 3’ antenn võimaldab ära kasutada Cyclone radari täiustatud võimalusi, sealhulgas Doppler-töötlust liikuvate sihtmärkide tuvastamiseks ja ARPA funktsiooni automaatseks jälgimiseks, eeldusel, et kasutatav multifunktsionaalne ekraan ja andmeallikad seda toetavad. Antenni disain vastab ohutus- ja elektromagnetilise ühilduvuse nõuetele (vastavalt tervise-, ohutus-, EMC- ja raadiospektri nõuetele) ning vastab direktiivile 2014/53/EU.

Tehnilised andmed ja paigaldus

Antenni kogupikkus on 1080 mm ja see paigaldatakse Cyclone embase pöörlemiskeskmesse. Tal on M10 kinnituspunktid (4 tk) 70 mm vahega ja 343 mm laiusega kinnitusala. Toite- ja andmekaablite painutamise raadius peab olema vähemalt 52 mm, et tagada ühenduste terviklikkus. Ühendumise ja tehniliste andmete kohta täpsemalt viitab paigaldusjuhend 87402 (Rev 8).

Documentation

Type	Nom
	EN - Plan technique - Antenne poutre Cyclone 3'
	EN - Notice d'installation - Antenne poutre Cyclone 3'
	FR - Notice d'installation - Antenne poutre Cyclone 3'
	EN - Declaration de conformite - Antenne poutre Cyclone 3'
	EN - Declaration de conformite - Antenne poutre Cyclone 3'
	EN - Gabarit de montage - Antenne poutre Cyclone 3'

Expert review

Pol CONIN

Digital Manager

« Technical analysis of the Raymarine Cyclone 3' open-array antenna »

The Raymarine Cyclone 3' open-array antenna is the right choice for medium-sized vessels or sailboats where space is a major consideration. Unlike enclosed radomes, this open antenna—even in its 3-foot version—offers superior target discrimination and increased angular resolution, essential for precise detection in dense traffic or low-visibility conditions. Its integration into a Cyclone system provides access to Doppler functions, greatly facilitating threat identification and complex situation management when approaching targets.

Installation requires a Cyclone or Cyclone Pro base and the VCM100 module, which means planning the location for these three components. The antenna is secured to the base with four M10 bolts. While aligning the heading line is a standard step for any radar, the procedure is documented and poses no particular difficulty for a qualified installer. It is critical to respect the minimum cable bend radius to ensure long-term system reliability. This antenna is particularly well-suited for coastal and offshore navigation where radar performance is critical but mast or arch space is limited, offering an optimal balance between compactness and advanced capabilities.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Raymarine Cyclone 3’ pardaantenn

2.440,22€

2.440,22€ ~~2.634,00€~~

Complete your installation with

Complementary equipment

Raymarine

AIS 700 klass B transponder VHF antenni jagaja integreeritud

Ref : E70476

1.305,60€

1.305,60€ ~~1.434,00€~~

Raymarine

i70s multifunktsiooninäidik

Ref : E70327

678,00€

678,00€ ~~714,00€~~

Frequently asked questions

Need help? Contact us

Which additional components are required to operate this antenna?

The Cyclone 3' (E70628) beam antenna requires essential Cyclone-series components to operate:

A Cyclone base (E70620) or Cyclone Pro (E70621).A VCM100 voltage converter module (E70648).

Is this antenna compatible with the Doppler radar function?

Yes, the Cyclone 3' beam antenna fully supports the Cyclone radar features, including Doppler processing for mobile target identification. Using this feature depends on the software requirements of compatible multifunction displays and the necessary data sources.

What are the mounting requirements for installing the antenna?

For installing the Cyclone 3' beam antenna, the mounting requirements are as follows:

It must be mounted at the rotation center of the Cyclone bases.It has 4 M10 mounting points.The spacing between these mounting points is 70 mm.The mounting area has a width of 343 mm.The routing of power and data cables must maintain a minimum bend radius of 52 mm to ensure connection integrity.

Is the Cyclone 3' whip antenna compliant with safety and electromagnetic standards?

Yes, the Cyclone 3' whip antenna is designed to meet safety and electromagnetic compatibility standards. Its design ensures compliance with Directive 2014/53/EU, covering health/safety requirements, EMC (Electromagnetic Compatibility), and radio spectrum usage.

Can ARPA features be used with this radar antenna?

Yes, the Cyclone 3' beam antenna enables ARPA (Automatic Radar Plotting Aid) features for automatic target tracking. Activation of these features depends on the software requirements of compatible multifunction displays and required data sources.

Is there any information about the warranty for this product?

The Raymarine Cyclone 3' stub antenna is covered by Raymarine's warranty policy. It is generally possible to register your product with the manufacturer to fully benefit from warranty services.

What is the minimum recommended bend radius for antenna cables?

The minimum recommended bend radius for the Cyclone 3' beam antenna power and data cables is 52 mm. It is critical to adhere to this specification during installation to ensure connection integrity and proper equipment operation.
