Raymarine

E70646-05-NEU

Element 12 HV – 12" GPS-ekraan, Wi-Fi, CHIRP- ja HYPERVISION-sond, HV-100+ sond, Lighthouse Euroopa põhjaosa kaart

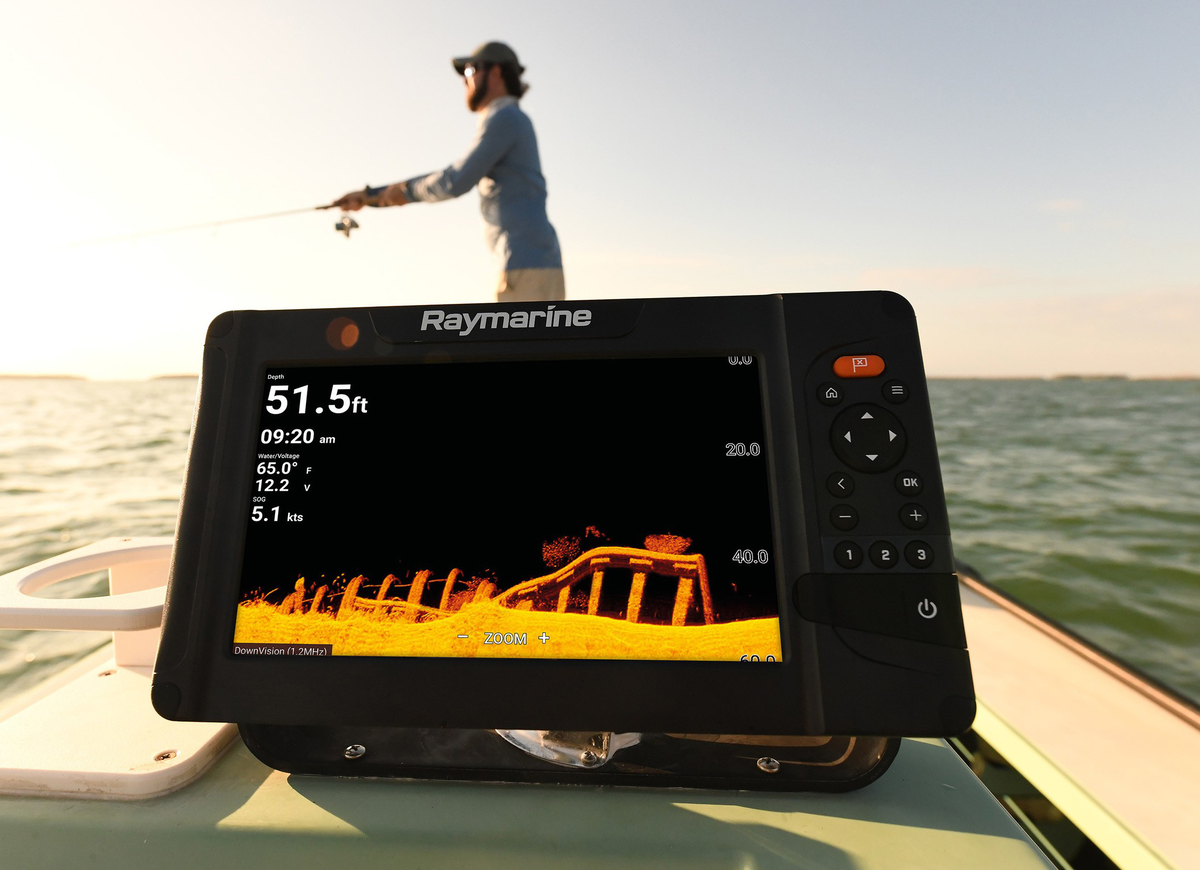

Le Raymarine Element 12 HV est un sondeur GPS de 12 pouces avec Wi-Fi, intégrant les technologies CHIRP et HyperVision pour une imagerie sous-marine détaillée. Issu de la gamme Element, ce modèle est une solution complète et performante pour la navigation et la pêche, offrant un excellent compromis entre fonctionnalités avancées et simplicité d'utilisation. Le pack inclut l'écran, la sonde de tableau arrière HV-100+ et la cartographie Lighthouse Europe du Nord.

Suurus: 12 inches

7 inches 9 inches 12 inches

Kaardistamine: Northern Europe

No chartplotter mapping Mediterranean Northern Europe Western Europe

Public priceGet pro pricing

1.448,26€

1.448,26€ ~~1.674,00€~~

Käibemaksuga Tarne arvutatakse makse tegemise ajal.

Laosolekus

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Technical specifications

Töötav pinge	12
Töötamise temperatuur	-25 à 70
Toetatud sonari tehnoloogiad	CHIRP,HyperVision,DownVision,SideVision
Sonari sagedused	200, 350, 1200
Sonariühenduse tüüp	15 broches HyperVision™
ActiveTargetiga ühilduv	Non
Kaardisõbralikkus	Lighthouse, Navionics, C-MAP
IP-tunnus	IPX7
Sonari salvestamine	Oui
Võrguühilduvus	NMEA 2000,SeaTalkng,NMEA 0183,Wi-Fi,Ethernet
Trimimootori integreerimine	Non
Traadivõrk	NMEA 2000,SeaTalkng,Ethernet,NMEA 0183
Sisseehitatud GPS-antenn	Oui
Traadita ühenduvus	Wi-Fi
Montaažitüüp	Encastré, Étrier
Sertifikaadid	CE,EMC,IEC 60945
Ekraani tüüp	LCD couleur
Ekraani suurus	12
Puutetundlik ekraan	Non
Tarkvara uuendamise meetod	Wi-Fi, Carte SD
Traadiga sisend	Alimentation,NMEA 2000,NMEA 0183,Sondeur,Ethernet
Väljaandmise aasta	2019.0
Pakendi sisu	Écran Raymarine Element 12 HV, Sonde de tableau arrière HV-100+, Cartographie Lighthouse Europe du Nord (préchargée), Câble d'alimentation, Kit de montage sur étrier, Kit de montage encastré, Documentation
Veetemperatuuri mõõteulatus	-25 à 70
Saadaolevad häired	Navigation, Ancre, Sondeur, MOB
Maksimaalne süvis	274
Hukkumise hoiatus (MOB) toetus	Oui (via GPS pour VHF ASN)

Detailed description

Raymarine Element 12 HV (E70646-05-NEU) on 12-tolline GPS-ekraan, mis on mõeldud rannikul navigeerimiseks ja kalapüügiks. See ühendab CHIRP- ja HyperVision-sondide võimalused. Sellesse süsteemi on integreeritud kaarditrajektori funktsioon, pakkudes kompaktset lahendust kasutajatele, kes vajavad detailset veealuste struktuuride tuvastamist ja täpset kaardistamist suure ekraani peal.

Täiustatud sonaritehnoloogiad

Element 12 HV kasutab Raymarine HyperVision-tehnoloogiat, mis võimaldab visualiseerida veealuseid struktuure 1,2 MHz resolutsiooniga. See tehnoloogia koos CHIRP-, DownVision- ja SideVision-sondidega pakub selgeid pilte kaladest ja struktuuridest kuni 60 meetri sügavuseni HyperVisioni puhul ja sügavamate tuvastusvõimalustega traditsioonilise CHIRP-ga. Kaasas on tagaseina sond HV-100+, mis võimaldab otsepaigaldust ja optimeeritud tööd nende funktsioonide jaoks. Võrreldes Raymarine Axiom-seeriaga pakub Element rohkem integreeritud sondi- ja trajektoriühendust, sarnanedes Garmini ECHOMAP UHD või Lowrance Elite FS seeriatega, kuid eristub HyperVisioni 1,2 MHz eripära poolest.

Navigeerimine ja ühenduvus

Element 12 HV-l on sisse ehitatud GPS, mis tagab täpse asukoha jälgimise ja usaldusväärse marsruudi planeerimise. 12-tolline ekraan on sobiv nii avatud kui ka suletud roolipostide jaoks. Wi-Fi ühendus võimaldab tarkvara uuendamist ja mobiilrakendustega integreerumist. Kaart Lighthouse Euroopa põhjaosa on eelnevalt laaditud, pakkudes selle piirkonna kohta detailseid andmeid. LightHouse Sport kasutajaliides on loodud kasutamiseks intuitiivselt ja kiireks juurdepääsuks olulistele funktsioonidele, mis eristab Elementi keerukamatest mitmefunktsioonilistest süsteemidest lihtsama kasutamise poolest.

Documentation

Type	Nom
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Declaration de conformite - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	FR - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	FR - Notice d'installation - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord
	EN - Gabarit de montage - Element 12 HV - Écran GPS 12” Wi-Fi, sondeur CHIRP et HYPERVISION, sonde HV-100+, cartographie Lighthouse Europe du Nord

Expert review

Pol CONIN

Digital Manager

« Technical analysis: Raymarine Element 12 HV, integrated HyperVision fishfinder performance »

The Raymarine Element 12 HV is a relevant solution for recreational boaters and anglers seeking a high-performance multifunction console focused on underwater detection, without the complexity of an extensive NMEA 2000 network. With its 12-inch display, it provides a comfortable viewing area for navigation and fishfinder image analysis. The 1.2 MHz HyperVision technology, paired with the included HV-100+ transducer, is a major asset for accurately identifying structures and fish schools in depths up to 60 meters. This feature makes it well-suited for coastal fishing and shallow waters, where image clarity is critical.

Installing the HV-100+ transom-mount transducer is relatively straightforward, compatible with most recreational and sportfishing hulls. It is essential to follow placement guidelines to minimize turbulence and ensure optimal fishfinder performance, particularly for SideVision and HyperVision views. The system is designed as an efficient standalone unit, simplifying wiring and initial setup. It is less suitable for vessels requiring deep integration with multiple third-party sensors or complex autopilot systems via NMEA 2000, for which the Axiom range would be more appropriate. However, for navigation and fishing use with high sonar requirements, the Element 12 HV delivers significant practical value.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Element 12 HV – 12" GPS-ekraan, Wi-Fi, CHIRP- ja HYPERVISION-sond, HV-100+ sond, Lighthouse Euroopa põhjaosa kaart

1.448,26€

1.448,26€ ~~1.674,00€~~

Complete your installation with

Complementary equipment

Raymarine

AIS 700 klass B transponder VHF antenni jagaja integreeritud

Ref : E70476

1.305,60€

1.305,60€ ~~1.434,00€~~

Raymarine

Digitaalne näidik i50 Tridata

Ref : E70060

567,25€

567,25€ ~~654,00€~~

Raymarine

Kaugseadeldav kaardilugeja RCR-1

Ref : A80585

120,00€

120,00€ ~~138,00€~~

Frequently asked questions

Need help? Contact us

Which chartplotter mapping is preloaded on the Element 12 HV?

The Raymarine Element 12 HV comes with Lighthouse Europe North preloaded chartplotter mapping, providing detailed data for this region.

What type of transducer is included with the Raymarine Element 12 HV?

The Raymarine Element 12 HV comes with the HV-100+ transom-mount transducer. This transducer is optimized for CHIRP and HyperVision fishfinder features.

What type of antifouling paint can I use on the HV-100+ depth sounder?

You must use only water-based antifouling paint on the HV-100+ depth sounder. It is critical NOT to use antifouling paint based on ketone or copper, as this could damage the sounder.

What type of sealant should I use for installing components?

For installation, use only neutral-curing polyurethane sealants of marine quality. Do NOT use sealants containing acetate or silicone, as they can damage plastic parts.

Can I test the HV-100+ depth sounder out of the water before putting it in the water?

No, you must test and use the depth sounder only in the water. Running the depth sounder out of the water can cause overheating.

What is the screen size of the Raymarine Element 12 HV?

The Raymarine Element 12 HV is equipped with a 12-inch GPS display.

How can I register my Raymarine Element 12 HV product to benefit from the warranty?

To register ownership of your Raymarine product and benefit from all warranty advantages, you must visit the Raymarine website at www.raymarine.com and register online. The serial number of the unit is indicated on the barcode label included in your device's packaging.
