Säästad 4%

Raymarine

A62360

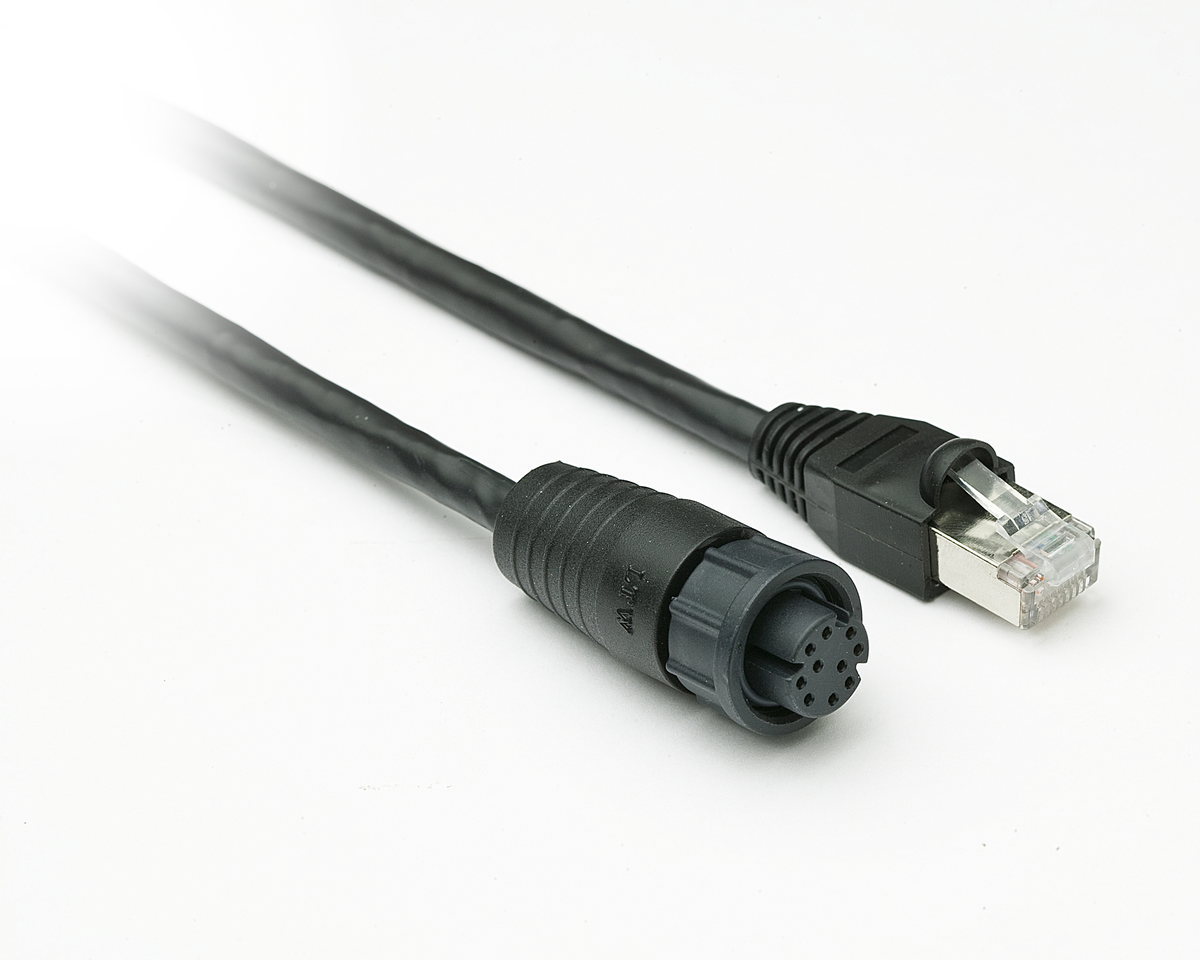

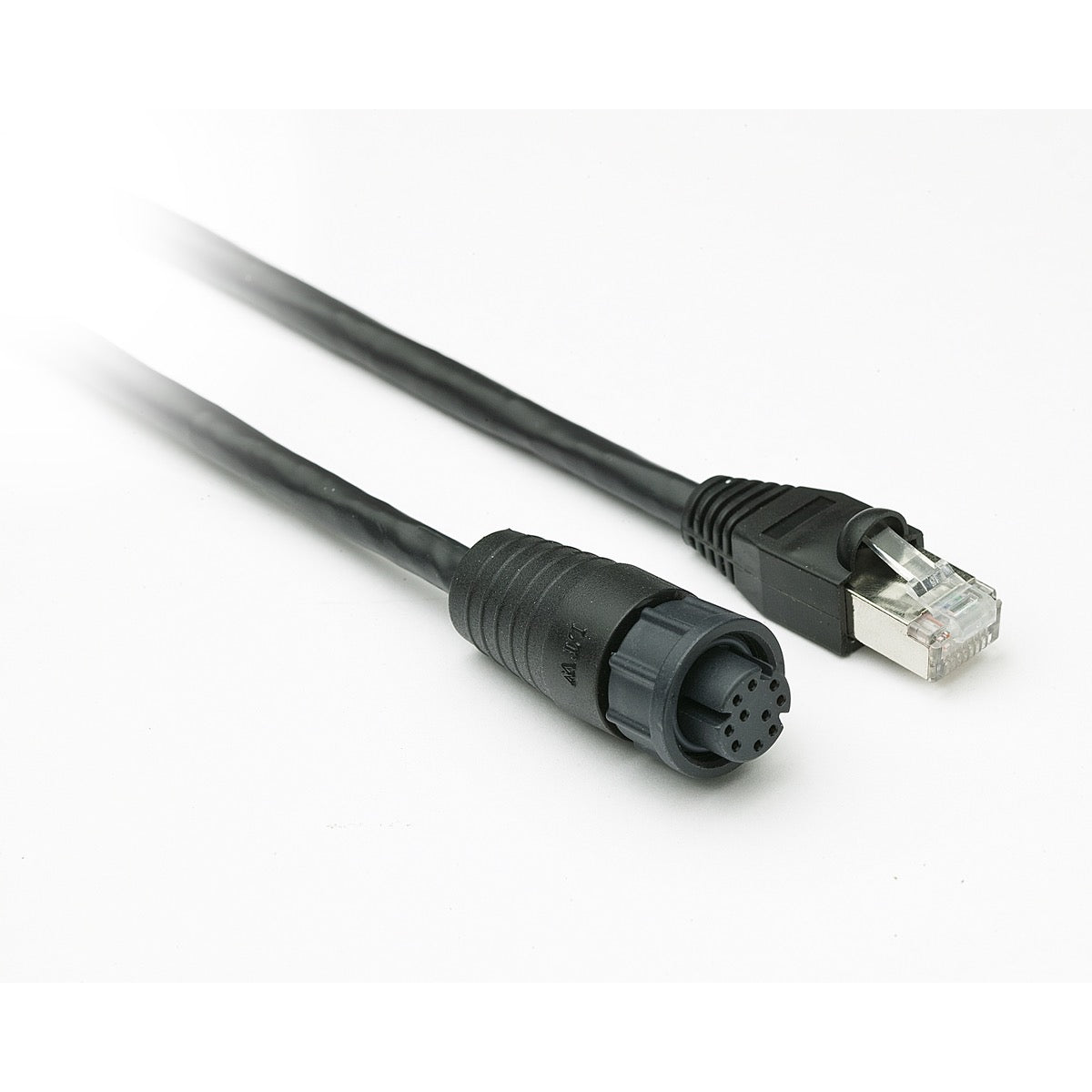

RayNet-kaabel RJ45-ühenduse jaoks – 1m

Conçu pour l'intégration réseau, le câble Raymarine A62360 de 1m permet de connecter un appareil RayNet à un port RJ45 standard. Cet accessoire est essentiel pour la maintenance logicielle et l'interfaçage de systèmes Raymarine avec des équipements Ethernet. Le produit inclut un câble RayNet vers RJ45 d'une longueur de 1 mètre.

Public priceGet pro pricing

74,40€

74,40€ ~~78,00€~~

Käibemaksuga Tarne arvutatakse makse tegemise ajal.

Laosolekus

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

via our network of certified installers

Find an installer

Support service

Choose additional installation support

Technical specifications

Ühenduse tüüp	RayNet (femelle) / RJ45 (mâle)
Kaabli tüüp	Réseau Ethernet
Kaabli pikkus	1.0
Ühilduv võrgustik	RayNet, Ethernet
Traadivõrk	Ethernet
Töötav pinge	60 V DC
Töötamise temperatuur	-25°C à +55°C
Salvestustemperatuur	-40°C à +85°C
IP-tunnus	RayNet : Étanche (IPX6/IPX7) ; RJ45 : Non étanche
Sertifikaadid	CE, IEC 60945
Toote tüüp	Câble réseau
Ühilduvad mudelid	Écrans multifonctions Raymarine (ex: Axiom), switchs réseau Raymarine, appareils Ethernet RJ45

Detailed description

Võrguside jaoks konstrueeritud 1 meetri pikkune Raymarine A62360 kaabel võimaldab ühendada RayNet-pordi (nt multifunktsionaalsel Axiom-ekraanil või Raymarine lülituslülitusel) standardse Etherneti RJ45-pordiga seadmega. Selle põhifunktsioon on võimaldada paindlikku sideliidest, näiteks tarkvara uuendamiseks arvutist või mitte-RayNet IP-seadmete ühendamiseks laeva Ethernet-võrku.

Raymarine võrguliides

Raymarine A62360 on 1 meetri pikkune võrgukaabel, mis võimaldab ühendada RayNet-võrgu standardse Etherneti infrastruktuuriga. Erinevalt RayNet-vers-RayNet kaablitest, mis laiendavad Raymarine omanikvõrku, võimaldab see kaabel väljuda RayNet-võrgust ja ühenduda üldisema Etherneti võrguga. See on vajalik paigaldustele, mis vajavad välisele punkti Raymarine võrgule, näiteks Wi-Fi ruuteri või sülearvuti ühendamiseks. Konstrueeritud merekeskkonnas töökindla andmeedastuse tagamiseks.

Süsteemi integreerimine ja hooldus

See RayNet-vers-RJ45 kaabel on praktiline tööriist Raymarine süsteemidega varustatud laevade omanikele. See pakub otsest lahendust hoolduseks ja diagnostikaks, võimaldades tehnikutele või pädevatele kasutajatele lihtsalt ühendada laeva võrku ilma keerukate adapterite vajaduseta. See täiendab Raymarine võrgukaablite valikut, lisaks standardsetele RayNet-kaablitele erinevates pikkustes (0,5 m, 2 m, 5 m, 10 m jne), pakkudes võimalust kolmandate osapoolte RJ45-seadmete ühendamiseks. Kasutusala on spetsiifiline ja suunatud eelkõige integreerimise ja teenindamise vajadustele.

Expert review

Pol CONIN

Digital Manager

« Essential bridge for Raymarine network integration »

The Raymarine A62360 cable is a key component for interconnecting Raymarine systems with standard Ethernet peripherals. Its primary purpose is to connect a RayNet multifunction display (MFD), such as an Axiom or gS Series unit, to a laptop or network router. This is particularly useful for performing software updates via a PC’s Ethernet port or for integrating IP cameras or other RJ45-compatible network devices. This cable is not designed to extend the main RayNet network between MFDs but rather to bridge to an external IT environment.

In terms of installation, this is a simple "plug-and-play" solution for a technician or experienced user. Simply connect the RayNet end to the Raymarine device and the RJ45 end to the desired Ethernet port. The 1-meter length is suitable for short, direct connections, such as between an MFD and a nearby laptop for a one-time operation. For permanent installations or longer distances, consider using a RayNet switch or another RayNet cable of the appropriate length, then use this A62360 cable for the final RJ45 access point. It is essential to ensure that the RJ45 equipment is compatible with Raymarine’s communication protocol for advanced functions, although physical connectivity is guaranteed.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

RayNet-kaabel RJ45-ühenduse jaoks – 1m

74,40€

74,40€ ~~78,00€~~

Complete your installation with

Complementary equipment

Raymarine

AIS 700 klass B transponder VHF antenni jagaja integreeritud

Ref : E70476

1.305,60€

1.305,60€ ~~1.434,00€~~

Raymarine

EV1 Evolution arvutusandur

Ref : E70096

981,54€

981,54€ ~~1.110,00€~~

ACU-100 toiteplokk Evolutioni juhtimissüsteemile

Raymarine

ACU-100 toiteplokk Evolutioni juhtimissüsteemile

Ref : E70098

693,89€

693,89€ ~~750,00€~~

Frequently asked questions

Need help? Contact us

What is the RayNet to RJ45 cable from Raymarine used for?

This cable is designed to connect a Raymarine device with a RayNet port (such as an Axiom multifunction display or a Raymarine switch) to a device using a standard Ethernet RJ45 connection. It allows you to "exit" the proprietary RayNet network to connect to more generic Ethernet infrastructures. Its main uses include software updates via a PC, integration of certain non-RayNet IP peripherals, or connection to a Wi-Fi router or laptop for access to the onboard network.

Which Raymarine equipment is this cable compatible with?

The RayNet to RJ45 cable is compatible with all Raymarine equipment featuring a RayNet port. This includes multifunction displays from the Axiom series, Raymarine network switches, and other navigation system devices using this proprietary Ethernet interface.

What is the exact length of this RayNet to RJ45 cable?

This specific RayNet to RJ45 cable is 1 meter long.

How to install this cable to connect a PC to my Raymarine network?

To install this cable and connect a PC to your Raymarine network:

Connect the RayNet end of the cable to an available RayNet port on your Raymarine equipment (for example, an Axiom multifunction display or a Raymarine switch). Connect the RJ45 end of the cable to the Ethernet port on your laptop or PC. Once connected, your PC will be able to communicate with the Raymarine network, including for operations such as software updates.

What is the difference between a RayNet to RJ45 cable and a RayNet to RayNet cable?

The main difference lies in their connectivity function:

A RayNet to RJ45 cable (like this product) acts as an adapter to connect Raymarine's proprietary RayNet network to devices using the Ethernet RJ45 standard (e.g., a PC or a router). It allows you to "exit" the RayNet network.A RayNet to RayNet cable is used to extend and interconnect Raymarine proprietary network devices exclusively, linking for example two multifunction displays or a display to a Raymarine switch.
