Tark IP43 laadija 12/50 (1+1)

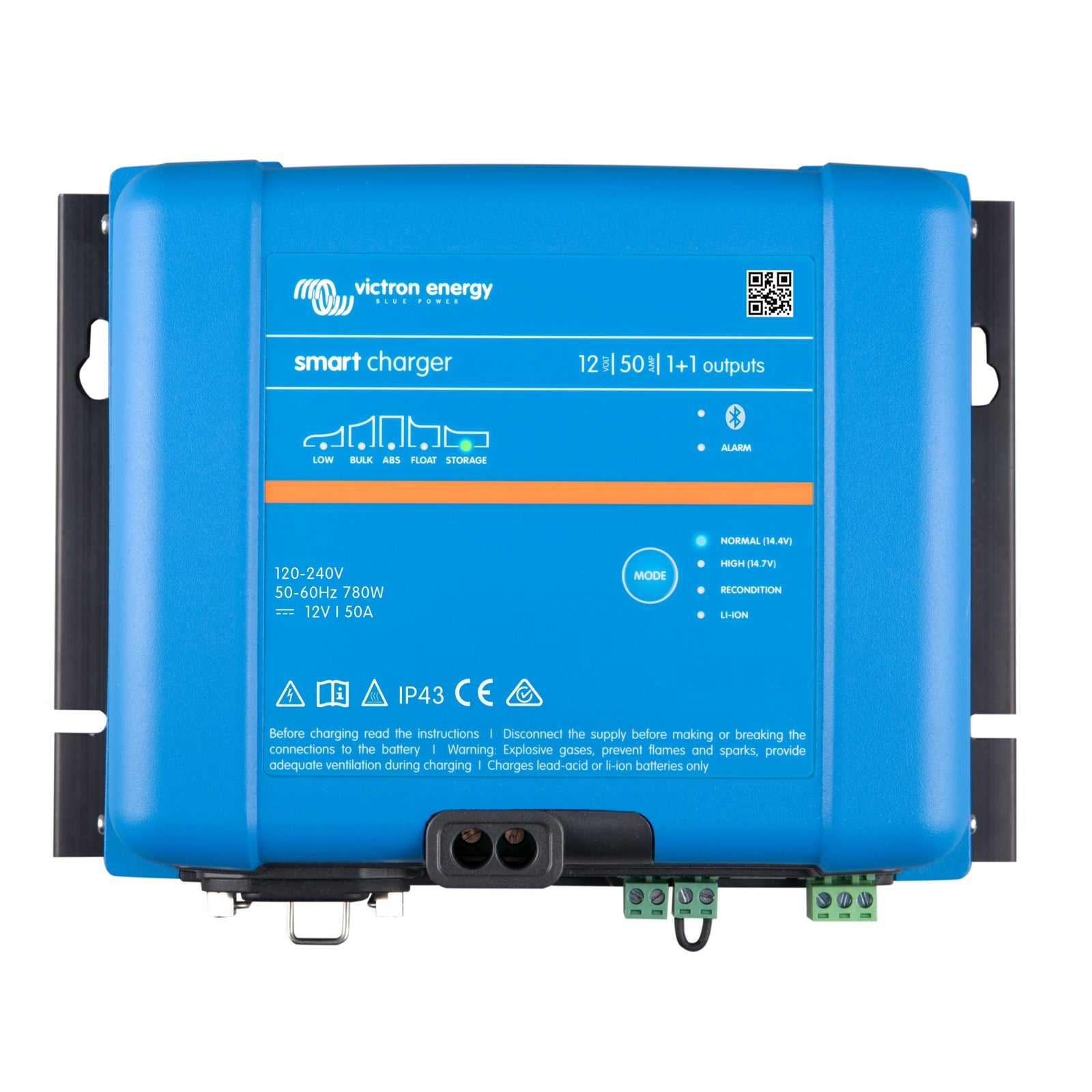

This Victron Energy Smart IP43 12/50 (1+1) 120/240V charger is a smart charger designed for demanding marine applications. It provides a main output of 50 amps for a house bank and a secondary output of 4 amps for a starter battery. It features a 6-stage adaptive charging algorithm, Bluetooth Smart connectivity, and a VE.Direct interface for monitoring and control. It is convection-cooled and compatible with various battery types, including LiFePO₄.

This Victron Energy Smart IP43 12/50 (1+1) 120/240V charger provides a maximum charging current of 50 amperes for the house battery. The second output dedicated to the starter battery is limited to approximately 4 amperes.

The Smart IP43 Charger 12/50 (1+1) model is designed to charge two battery banks simultaneously. It features a main output for the house bank and a secondary output for a starter battery.

The second charge output, labeled (1+1), is limited to approximately 4 amperes and has a slightly lower output voltage. It is specifically designed for maintenance and recharging of a starter battery, while the main 50-ampere output is dedicated to the house battery bank.

The Victron Energy Smart IP43 12/50 (1+1) 120/240V charger is convection-cooled, meaning it has no fan.

This charger uses a 6-stage adaptive charging algorithm:

Bulk (bulk charge)AbsorptionReconditioningFloat (float charge)Storage (storage)Refresh (refresh)

Yes, the BatterySafe mode is included. It prevents damage caused by excessive gas release by limiting the rate of voltage increase once the gassing voltage is reached, even if a high charge current and high absorption voltage have been selected.

The Storage mode activates when the battery has not been discharged for 24 hours. In this mode, the float voltage is reduced to 13.2 V for a 12 V battery to minimize gassing and corrosion of the positive plates. Once per week, the voltage is raised to the absorption level to 'equalize' the battery, preventing electrolyte stratification and sulfation.

Yes, this charger can be used as a power supply. The output voltage can be adjusted via Bluetooth and/or the VE.Direct interface.

The dimensions of the Victron Energy Smart IP43 12/50 (1+1) charger are 180 mm (height) x 249 mm (width) x 116 mm (depth). Its weight is 2.7 kg.

This charger can operate within a temperature range of -20 °C to 60 °C. The nominal output current is maintained up to 40 °C, then linearly reduced to 20 % at 60 °C.

The protection rating of this charger is IP43 for the electronic components and IP22 for the connection area.

Yes, this charger is compatible with Li-ion (LiFePO₄) batteries. It features a specific charging algorithm for these batteries, which can be programmed via Bluetooth or VE.Direct. The charger’s on/off control can also be implemented by connecting a relay or an optocoupler open-collector output from a Li-ion BMS to the remote on/off port.

The adaptive battery management system of this charger is compatible with most common types of lead-acid batteries, such as flooded, AGM, and Gel batteries.

Yes, external sensors can be connected. A Smart Battery Sense, a SmartShunt, or a BMV-712 Smart battery monitor can be used to relay battery voltage and temperature to one or more Smart IP43 chargers via the VE.Smart Networking.

Yes, thanks to its VE.Direct interface, this charger can be connected to a GX device such as the Cerbo GX for wired data connection. This also enables remote Instant Readout functionality via the VRM portal.

The charger must be permanently mounted using the mounting brackets integrated into the heat sink. It must be installed vertically with the terminals facing downward, on a non-flammable substrate, with at least 10 cm of clearance around it and adequate natural ventilation. Do not install it directly above the battery or in a sealed compartment with the battery.

The AC connection to the shore power must comply with local electrical regulations. The charger must be plugged into a grounded AC outlet. The AC cable is ordered separately and connects via an IEC 320 C14 inlet with a retaining clip.

For DC connections, use flexible multistrand copper DC power cable with sufficient cross-section. Install an inline fuse or appropriately rated circuit breaker as close as possible to the battery. Ensure the DC power cable polarity is correct at all connections. Battery terminals are 16 mm² (AWG6) screw terminals.

After installation, you can configure the charger in two ways:

Via the charger: Press the MODE button to select one of the built-in charging modes (Normal, Normal + Reconditioning, High, High + Reconditioning, or Li-ion). Via VictronConnect: Use a Bluetooth-compatible device (phone or tablet) with the VictronConnect app. Connect to the charger, access the battery settings, and choose a built-in preset or set custom parameters.
