Sučelje brojila CZone MI

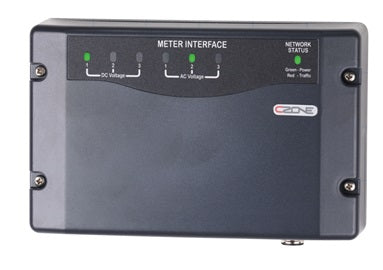

The CZone MI (Meter Interface) meter interface is a device designed for full integration of marine and mobile electrical systems. It enables detailed monitoring of AC and DC power supplies by centralizing data from various current and voltage sensors, then broadcasting it over the CZone/NMEA 2000 network.

The CZone MI interface is equipped with three AC voltage inputs and two AC current inputs. These inputs enable the calculation of true RMS power for accurate monitoring of AC systems.

For DC monitoring, the CZone MI interface has three DC voltage inputs and two DC current inputs. It provides measurement resolution down to 0.1A for DC currents.

With its DC monitoring capabilities, the CZone MI interface provides accurate calculation of battery capacity in ampere-hours and remaining charge percentage. This is a key feature for effective battery energy management on board.

The CZone MI display interface has compact dimensions of 100 mm height (H), 156 mm length (L), and 42 mm depth (P).

The CZone MI module weighs 281 grams (0.281 kg).

The CZone MI interface has an IPX5 waterproof rating, making it resistant to water jets and suitable for marine environments.

Yes, the CZone MI interface is ignition-protected, ensuring enhanced safety in marine environments where flammable gases may be present.

The 0.1A DC current measurement resolution enables highly accurate monitoring of DC consumption and loads, which is critical for fine energy management and precise battery state-of-charge estimation.

The CZone MI interface is a dedicated and advanced module designed for complex systems. Unlike some multifunction displays (MFD) that may include basic monitoring functions, the MI specializes in power monitoring.

The CZone MI interface is designed to operate on the CZone/NMEA 2000 network. It broadcasts monitoring data over this standardized network.

Yes, the CZone MI interface outputs standard NMEA 2000 power monitoring frames, ensuring broad compatibility with NMEA 2000-compatible displays and systems.

The CZone MI interface is designed to centralize data from various current and voltage sensors. The description does not specify the exact types, but it is compatible with the sensors required for its AC and DC inputs.

Yes, the CZone MI interface emits standard NMEA 2000 power monitoring data frames, ensuring interoperability with other NMEA 2000-compatible marine equipment.

The CZone MI interface is designed to simplify electrical installation. It replaces complex wiring with a robust NMEA 2000 network connection.

The CZone MI interface simplifies electrical wiring by centralizing data from multiple sensors and transmitting it over a single NMEA 2000 network connection, reducing the need for complex point-to-point wiring.

Thanks to its IPX5 protection and ignition protection, the module is suitable for demanding marine environments. It can be installed in areas where it may be exposed to splashes or moisture.

The CZone MI interface requires a connection to an existing NMEA 2000 network to operate and broadcast its monitoring data.

Although the description does not detail specific software configuration, CZone modules integrate into an ecosystem that allows customization and configuration via the CZone network to adapt monitoring to the system's specific needs.

Yes, the CZone MI interface is perfectly suited for marine environments. It features IPX5 immersion protection and is ignition-protected, essential characteristics for use at sea.
