CZone

80-911-0095-00

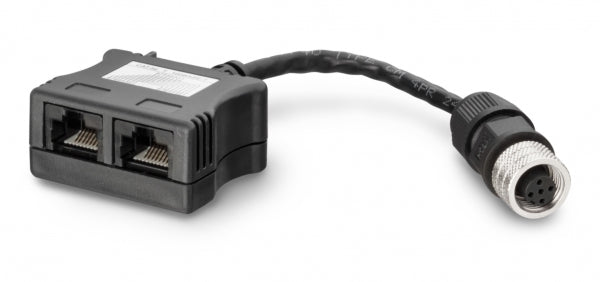

WiFi MasterBus konektor CZone

The WiFi MasterBus CZone connector (80-911-0095-00) is an essential component for the CZone 80-911-0090-00 wireless interface, enabling integration with the MasterBus network. It allows control and monitoring of electrical equipment via WiFi from a tablet. This connector is supplied alone, without additional accessories.

Public priceGet pro pricing

81,13€

81,13€ ~~106,68€~~

UK Isporuke izračunate u trenutku plaćanja.

Na zalihi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat for onboard equipment installation

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional installation assistance

Technical specifications

Vrsta sučelja	Connecteur WiFi
Komunikacijski protokol	WiFi
Žičana mreža	MasterBus
Žičani ulaz	MasterBus
Žičani izlaz	MasterBus
Serije kompatibilnih uređaja	Interface sans fil CZone (80-911-0090-00), réseaux MasterBus
Kompatibilan s MasterBus-om	Oui
Izvor napajanja	MasterBus
Vrsta montaže	Connexion directe
IP zaštitni stupanj	IPX7
Certifikati	CE, FCC
Connector Gender	Mâle
Vrsta priključka	MasterBus
Kompatibilan s CZone	Oui
Document Ids	341, 150
Ecosystem Compatibility	CZone, Mastervolt
Humidity Operating Range Percent	max 95, sans condensation
Max Operating Voltage Dc	18
Min Operating Voltage Dc	9
Mrežni protokol	MasterBus
Nazivni napon	12
Operating Temperature Range C	-10 à 50
Raspon radnog napona	9-18
Težina pakiranja	0.1
Tipična električna potrošnja (mA)	50
Tip primjene proizvoda	Extension de connectivité réseau
Kategorija proizvoda – razina 0	Marchandise
Kategorija proizvoda – razina 1	NAVICO GROUP
Kategorija proizvoda – razina 2	04 - CZone
Naziv modela	Connecteur WiFi MasterBus
Namjena proizvoda	Permet la connexion au réseau MasterBus pour l'interface sans fil CZone (80-911-0090-00), activant ainsi le contrôle et la surveillance des systèmes MasterBus via l'interface sans fil.
Serija proizvoda	CZone
Vrsta proizvoda	Connecteur
SKU proizvoda	80-911-0095-00
Storage Temperature Range C	-20 à 70
Težina	0.1
Bežična povezanost	WiFi

Detailed description

WiFi MasterBus CZone konektor (80-911-0095-00) je ključna komponenta namijenjena proširenju mogućnosti povezivosti digitalnih upravljačkih sustava CZone i Mastervolt. Radi se specifično o konektoru potrebitom za sučelje MasterBus, omogućavajući bežičnom CZone sučelju (referenca 80-911-0090-00) uspostavljanje veze s MasterBus mrežom.

Integracija i funkcionalnost

Ovaj konektor osigurava besprijekornu integraciju između bežičnog CZone sučelja i postojećih MasterBus mreža na brodu. Dok bežično CZone sučelje 80-911-0090-00 već nudi veze NMEA 2000, WiFi i Ethernet, WiFi MasterBus CZone konektor je neophodan za aktivaciju MasterBus povezanosti. Omogućuje tako upravljanje i nadzor električne opreme povezane s MasterBus sustavom putem bežičnog sučelja, koje potom može proslijediti te podatke uređajima povezanima putem WiFi, kao što su tableti.

Pozicioniranje u CZone seriji

Konektor 80-911-0095-00 zauzima ključno mjesto unutar CZone/Mastervolt ekosustava, kao dopuna bežičnom sučelju. Bez ovog konektora, potpuna mogućnost upravljanja MasterBus opremom putem bežičnog sučelja ne može se iskoristiti. Radi se o specifičnom integrativnom dijelu, za razliku od samostalnijih modula kao što su CZone DC distribucijski moduli ili NMEA 2000 sučelja koja izravno upravljaju krugovima ili pretvorbom podataka. Njegova funkcija je omogućavanje povezanosti za postojeće sučelje, umjesto dodavanja nove primarne funkcionalnosti.

Documentation

Type	Nom
	80-911-0090-00_instr_installationenglish_pdf.pdf
	connecteur-wi-masterbus_pdf.pdf

Expert review

Pol Conin

Digitalni odgovorni

« Optimizing MasterBus connectivity for the CZone wireless interface »

The WiFi MasterBus CZone connector (80-911-0095-00) is a targeted interfacing component whose value lies in its ability to finalize the integration of the CZone wireless interface (80-911-0090-00) with a MasterBus network. It is not a standalone module but a key component for installations seeking to consolidate control of MasterBus equipment via the CZone WiFi interface. Its installation is direct, fitting into an existing or planned deployment of the wireless interface.

Typically, this connector is chosen when a fleet or yacht is already equipped with a MasterBus infrastructure and the goal is to add the flexibility of CZone wireless control via tablet. It centralizes management without requiring complex conversion gateways or additional software configurations. The installing engineer must ensure compatibility with the wireless interface version and verify that the entire CZone/MasterBus system is properly configured for optimal communication. Its simplicity of integration makes it a pragmatic choice for extending the reach of existing digital systems.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

WiFi MasterBus konektor CZone

81,13€

81,13€ ~~106,68€~~

Frequently Asked Questions

Need help? Contact us

What is the purpose of the WiFi MasterBus CZone connector (80-911-0095-00)?

This connector is an essential component that enables the CZone wireless interface module (reference 80-911-0090-00) to connect to the MasterBus network. It is required to activate MasterBus connectivity for this interface, allowing control and monitoring of electrical equipment managed by the MasterBus system via WiFi.

Is the MasterBus CZone WiFi connector a standalone WiFi module?

No, the MasterBus CZone WiFi connector (80-911-0095-00) is not a standalone WiFi module. It is a required accessory for the CZone wireless interface (80-911-0090-00) to enable it to communicate with the MasterBus network. The wireless interface itself handles WiFi, NMEA 2000, and Ethernet connections.

Which other CZone product is this connector compatible with?

This connector (80-911-0095-00) is specifically designed to be used with the CZone wireless interface module (reference: 80-911-0090-00). It acts as a bridge to enable this interface to communicate with the MasterBus network.

Is this connector required for NMEA 2000 connectivity of the CZone wireless interface?

No, the WiFi MasterBus CZone connector (80-911-0095-00) is not required for NMEA 2000 connectivity. The CZone wireless interface module (80-911-0090-00) already provides native NMEA 2000, WiFi, and Ethernet connections. This connector is specifically needed to add MasterBus connectivity to the wireless interface.

Can I control MasterBus equipment with my tablet or smartphone using this connector?

Yes, indirectly. The MasterBus CZone WiFi connector (80-911-0095-00) allows the CZone wireless interface (80-911-0090-00) to connect to the MasterBus network. Once this connection is established, the wireless interface can relay data and commands to WiFi-connected devices, such as tablets or smartphones, via the CZone app.

What is the main function of the MasterBus network?

MasterBus is a proprietary communication protocol developed by Mastervolt (part of the Navico group, like CZone). Its primary function is to enable centralized management, monitoring, and control of electrical and electronic equipment aboard a vessel, such as battery chargers, inverters, energy management systems, and batteries.

Is the WiFi MasterBus CZone connector easy to install?

Installing this connector involves plugging it into the CZone wireless interface module (80-911-0090-00) and connecting it to the existing MasterBus network. While the physical installation is generally straightforward, a good understanding of MasterBus wiring and the CZone system is recommended for correct and functional integration.

What are the benefits of integrating my MasterBus system with WiFi connectivity?

Integrating your MasterBus system with WiFi connectivity via this connector and the CZone wireless interface provides several benefits:

Remote monitoring: Access your electrical system data from any mobile device connected to WiFi.Simplified control: Manage MasterBus equipment via an intuitive user interface on your tablet or smartphone.Flexibility: Enjoy freedom of movement on board while keeping an eye on your systems.Diagnostics: Facilitates system diagnostics and configuration.

Can this connector be used with older Mastervolt systems?

The connector is designed to integrate with MasterBus networks. If your Mastervolt system uses the standard MasterBus communication protocol, this connector should be compatible to establish the connection via the CZone wireless interface (80-911-0090-00). It is always recommended to check the specific documentation of your Mastervolt system to confirm compatibility with CZone interfaces.

What does the WiFi MasterBus CZone connector box contain upon delivery?

The box contains the WiFi MasterBus CZone connector (reference 80-911-0095-00) itself. The MasterBus connection cables or the CZone wireless interface module (80-911-0090-00) are typically sold separately, as this product is a specific accessory for this interface.

What is the SKU reference for this connector?

The SKU (Stock Keeping Unit) reference for this WiFi MasterBus CZone connector is 80-911-0095-00.

Does the connector require a separate power supply?

The WiFi MasterBus CZone connector (80-911-0095-00) does not require a separate power supply. It draws power directly from the MasterBus network to which it is connected, via the CZone wireless interface (80-911-0090-00).

What type of data can I monitor via the MasterBus-WiFi connection?

Once the connection is established via the CZone wireless interface and connector, you can monitor a wide range of data from devices connected to the MasterBus network, including:

Battery status (voltage, current, state of charge)Charger and inverter data (input/output voltage, current, operating mode)Tank levelsPump and lighting statusSystem alarms and warnings

What is the difference between this connector (80-911-0095-00) and the CZone wireless interface module (80-911-0090-00)?

The CZone wireless interface module (80-911-0090-00) is the main unit that provides NMEA 2000, WiFi, and Ethernet connections. The connector (80-911-0095-00) is a specific accessory that allows this main interface to connect to the MasterBus network. Without this connector, the wireless interface cannot communicate with MasterBus devices.

Can this connector be used to extend a NMEA 2000 network?

No, this connector (80-911-0095-00) is specifically designed for MasterBus connectivity. It is not intended to extend a NMEA 2000 network. The CZone wireless interface module (80-911-0090-00) to which it connects already handles NMEA 2000 connectivity independently.

Are there any specific requirements for MasterBus cabling when installing this connector?

During installation, ensure your MasterBus network is properly configured and terminated according to Mastervolt specifications. The connector plugs into an available MasterBus port on the CZone wireless interface module (80-911-0090-00) and must then be connected to the MasterBus network using a standard MasterBus cable. It is critical to respect the polarity and termination of the MasterBus network.

Is the connector compatible with third-party mobile applications for monitoring?

The connector itself facilitates connection to the MasterBus network for the CZone wireless interface (80-911-0090-00). Monitoring via mobile applications is handled by the CZone wireless interface and the official CZone app. Compatibility with third-party applications depends on the openness of the CZone wireless interface's API, which is not a direct function of the connector.

Where should this connector be mounted?

The WiFi MasterBus CZone connector (80-911-0095-00) must be mounted near the CZone wireless interface module (80-911-0090-00) as it connects directly to it. The assembly must be installed in a suitable environment for marine electronic equipment, protected from excessive moisture and extreme temperatures, in accordance with CZone wireless interface installation recommendations.

Does the connector support software updates?

The WiFi MasterBus CZone connector (80-911-0095-00) is a passive or semi-passive hardware component that does not contain user-modifiable firmware. Any required software updates would apply to the CZone wireless interface module (80-911-0090-00) to which it is connected, not the connector itself.
