Raymarine

T075-868

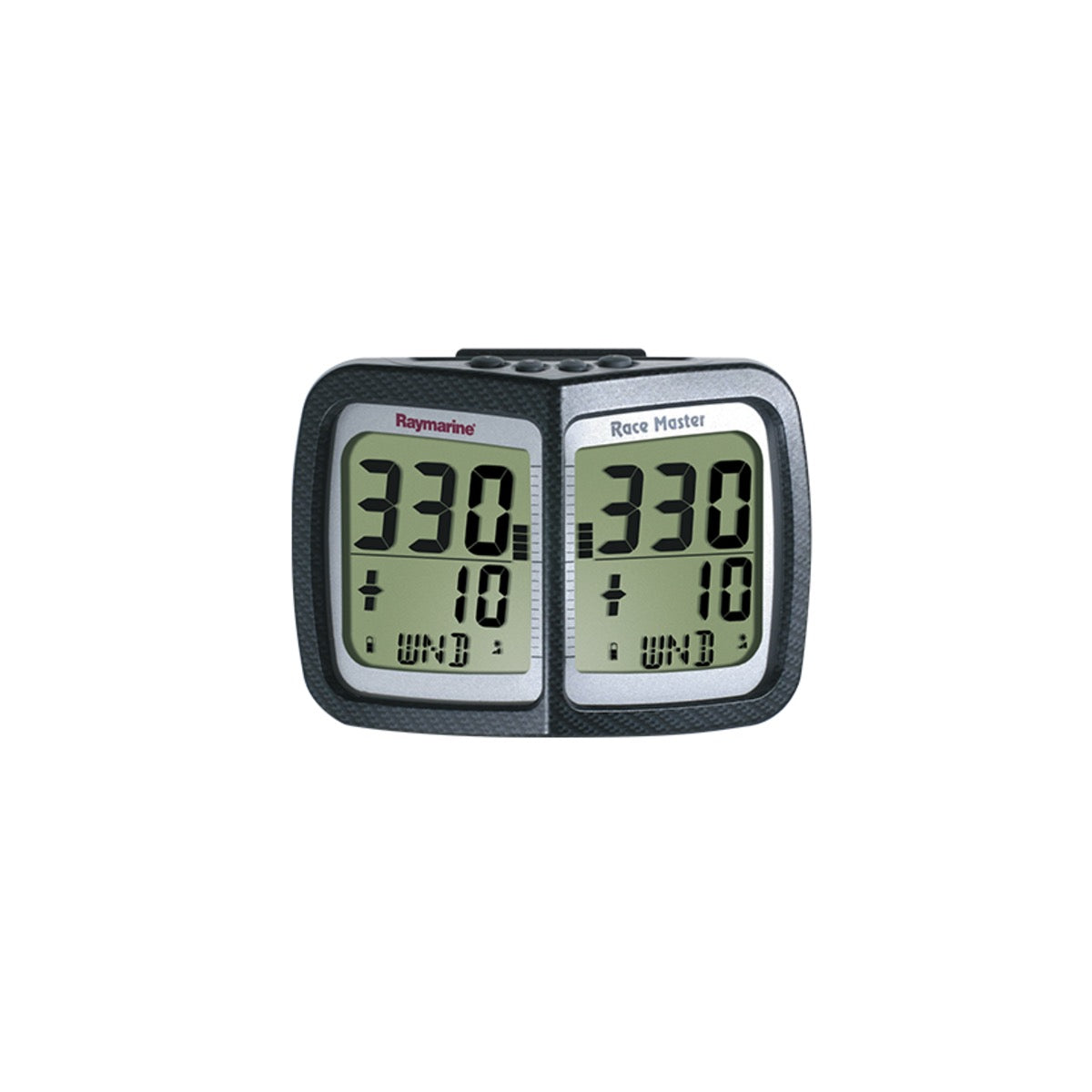

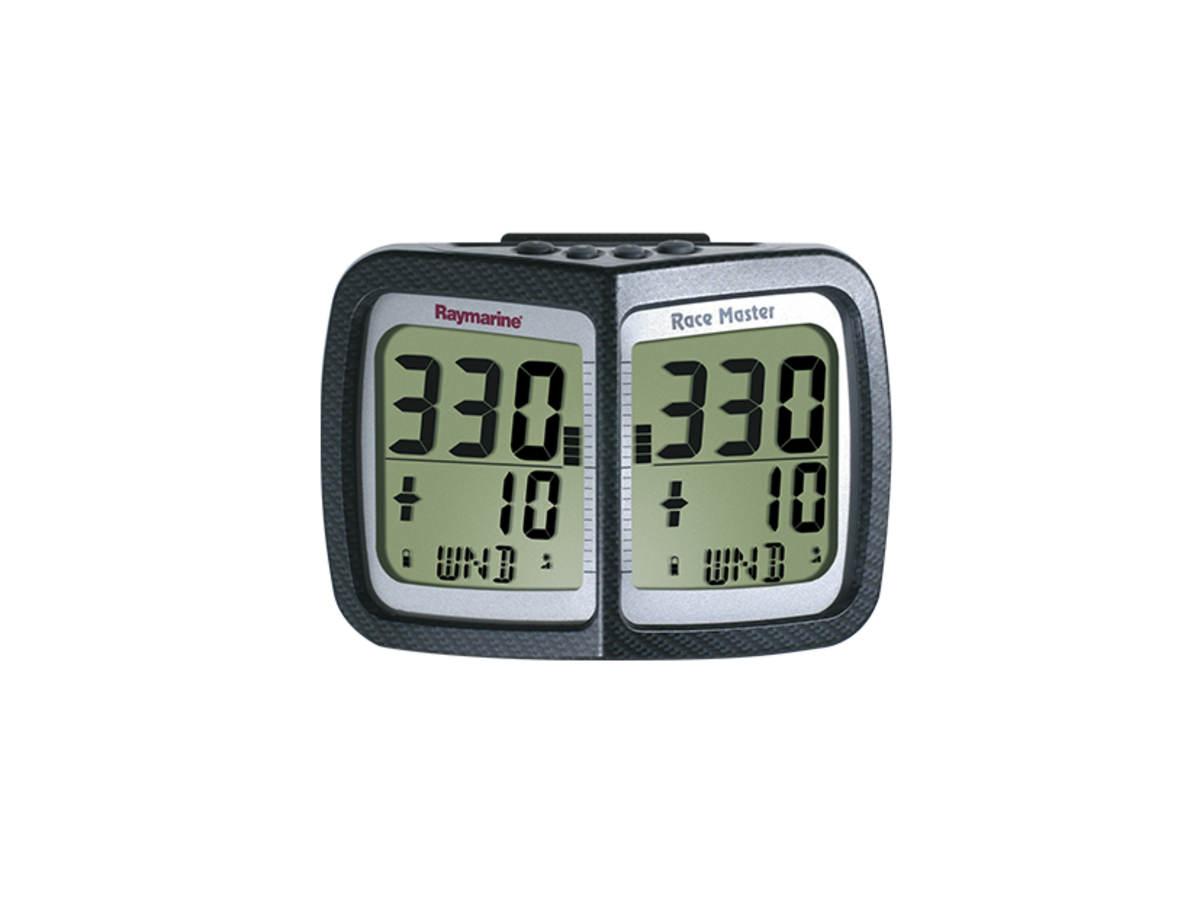

Sustav Raymarine Micronet Race Master, triducer i solarni panel

Le système sans fil Raymarine Micronet Race Master T075-868 est conçu pour la régate, offrant les données essentielles de profondeur, vitesse et température via un triducer. Sa transmission sans fil simplifie l'installation et l'intégration à bord, se distinguant de la complexité des systèmes câblés. Ce kit inclut le système Race Master, un triducer, un panneau solaire et les vis auto-foreuses pour la fixation de l'émetteur.

Public priceGet pro pricing

1.240,62€

1.240,62€ ~~1.434,00€~~

UK Isporuke izračunate u trenutku plaćanja.

Na zalihi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat for onboard equipment installation

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional installation assistance

Technical specifications

NMEA 2000 ekvivalent opterećenja (LEN)	Non applicable directement au système sans fil Micronet
Podržane sonarne tehnologije	Sondeur traditionnel
Radni napon	12/24 V
Tip konektora sonara	Propriétaire Raymarine
Ugrađeni senzor temperature	Oui
Kompatibilni displeji	Maxi Display (inclus)
Kompatibilnost sabirnice	Micronet, NMEA 0183, NMEA 2000
Žičana mreža	NMEA 0183, NMEA 2000
Bežična povezanost	Micronet
Vrsta montaže	Sur étrier, encastré, ou vertical
Certifikati	CE
Ugrađeni senzor brzine	Oui
Razina korisnika	Intermédiaire

Detailed description

Sustav Raymarine Micronet Race Master T075-868 je bežična instrumentacijska rješenja namijenjena za regatu, koja pruža ključne navigacijske podatke uz jednostavnu instalaciju. Ovaj sustav koristi bežičnu tehnologiju iz Raymarineove serije Micronet, poznatu po mogućnosti smanjenja složenosti ožičenja na brodu, što je značajna prednost u usporedbi s žičanim sustavima NMEA 2000 kao što su serije i70s od Raymarinea ili GMI/GNX od Garmina.

Arhitektura i funkcionalnosti

U srcu sustava nalazi se odašiljač na trupu (Hull Transmitter), koji prikuplja podatke s uključene sonde (dubina, brzina i temperatura). Ovaj odašiljač mora biti postavljen okomito, najmanje 50 cm iznad vodene linije, u dobro prozračenom prostoru, a ne u vodonepropusnom odjeljku. Spaja se na napajanje 12/24Vdc broda ili, za veću autonomiju, na priloženi solarni panel Raymarine. Spojevi sonde zahtijevaju posebnu pažnju: masa mora biti spojena na priključak dubine, a ako senzor brzine ne uključuje senzor temperature, mora se napraviti most između smeđe i bijele žice na priključku brzine.

Pozicioniranje i prednosti

Sustav Raymarine Micronet Race Master odlikuje se fleksibilnošću instalacije i autonomijom, što ovaj komplet čini idealnim za jedrilice za regatu i brodove gdje je ožičenje otežano. Za razliku od sustava koji zahtijevaju opsežnu žičanu mrežu, bežični pristup minimizira težinu i složenost. Priloženi šabloni za instalaciju za Maxi Display, sučelje trup/NMEA i nosač daljinskog upravljača (Remote Cradle) ukazuju na integraciju osmišljenu za intuitivnu uporabu i jasno očitavanje podataka tijekom utrke. Ovaj sustav pruža precizne informacije bez opterećivanja elektroničke infrastrukture broda.

Documentation

Type	Nom
	EN - Gabarit de montage - Micronet Race Master System, Triducer and Solar Panel
	EN - Notice d'installation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	FR - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	FR - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Notice d'installation - Micronet Race Master System, Triducer and Solar Panel
	EN - Notice d'installation - Micronet Race Master System, Triducer and Solar Panel
	EN - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	FR - Manuel d'utilisation - Micronet Race Master System, Triducer and Solar Panel
	EN - Plan technique - Micronet Race Master System, Triducer and Solar Panel
	EN - Plan technique - Micronet Race Master System, Triducer and Solar Panel
	EN - Plan technique - Micronet Race Master System, Triducer and Solar Panel

Expert review

Pol Conin

Digitalni odgovorni

« Technical analysis of the Raymarine Micronet Race Master system for racing »

The Raymarine Micronet Race Master T075-868 system is a strategic solution for regatta sailors and sailboat owners prioritizing simplicity and efficiency. Its wireless design is a major advantage, eliminating the complex wiring constraints often encountered when installing traditional navigation instruments. This feature makes it particularly relevant for retrofits or installations on vessels where cable runs are difficult or undesirable, contributing to weight reduction and improved deck organization.

The integration of the triducer for depth, speed, and temperature, combined with the hull transmitter, ensures reliable data acquisition. Flexible power options (12/24Vdc or included solar panel) provide valuable autonomy, crucial in racing where every ampere counts. It is essential to follow the transmitter installation guidelines, particularly its vertical positioning more than 50 cm above the waterline in a ventilated area, to optimize transmission and device longevity. The specific triducer connection, with grounding on the depth connector and bridging for speed sensors without temperature, is a technical detail not to be overlooked to ensure data accuracy.

This system positions itself as a targeted alternative to heavier NMEA 2000 architectures, offering a solution dedicated to basic performance data without the overcomplexity of an extended network. It is less suited to boats requiring deep integration with multiple multifunction displays and highly diverse sensors, but excels in its role as a provider of vital and immediate race data. It is therefore ideal for small to medium-sized sailboats where performance and ease of installation take precedence over exhaustive system integration.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Sustav Raymarine Micronet Race Master, triducer i solarni panel

1.240,62€

1.240,62€ ~~1.434,00€~~

Frequently Asked Questions

Need help? Contact us

Where should I install the Raymarine Micronet hull sensor?

Installing the Raymarine Micronet hull sensor requires following precise guidelines to ensure proper operation and warranty validity:

Mount the sensor at least 50 cm above the waterline.Avoid direct contact with water.Install it in a well-ventilated area.Do NOT mount it in a watertight compartment.Position the unit vertically, with cables exiting from the bottom.Drill three 2.5 mm holes, marked 'B' on the provided template.Secure the sensor using the included self-tapping screws, ensuring not to overtighten to avoid damaging the housing.

How is the Raymarine Micronet Race Master system powered?

The Raymarine Micronet Race Master system can be powered in two main ways to ensure its operation:

It can be connected to the boat's 12/24Vdc power supply. For increased autonomy, it can be powered by the Raymarine solar panel included in the system.

What are the specific instructions for wiring the triducer?

For correct triducer wiring, it is crucial to follow these steps:

The ground braid (shield) must be connected to the depth connector and not to the speed connector. If your speed sensor does not have an integrated temperature sensor, you must bridge the brown and white terminals of the speed connector.After connections, apply silicone grease to the terminals, secure the cables near the transducer, and ensure the housing is properly installed, clamping the outer cable sheaths inside the transducer.

What navigation data does the triducer provide?

The triducer included in the Raymarine Micronet Race Master system is a multifunction sensor that collects and transmits three essential types of data for navigation:

Depth below the hull.Water speed.Water temperature.This data is then used by the system to display relevant information on the screens.

What are the advantages of the Micronet Race Master wireless system compared to traditional wired systems?

The Raymarine Micronet Race Master system stands out for its wireless technology, which offers several significant advantages, particularly compared to wired NMEA 2000 systems:

Simplified installation: It significantly reduces wiring complexity on board, making it ideal for racing sailboats and vessels where cable routing is difficult.Weight reduction: The absence of extensive cabling minimizes the system's total weight.Flexibility: Allows for great freedom in positioning displays and sensors without wiring constraints.Autonomy: With the included solar panel, the system can operate autonomously, reducing reliance on the boat's main power supply.

What are the recommended cut-out dimensions for installing the Maxi Display?

For flush-mount installation of the Maxi Display, whether on a support or directly in a bulkhead, the recommended cut-out is 72 mm by 72 mm. Installation templates are provided to help you achieve precise cuts.

What are the main components included in the Raymarine Micronet Race Master T075-868 system?

The Raymarine Micronet Race Master T075-868 system is a complete wireless regatta instrumentation package, including the following main components:

The Micronet Race Master system.A triducer, which is a sensor combining depth, speed, and temperature.A Raymarine solar panel for autonomous power supply.A hull transmitter (Hull Transmitter) for wireless data collection and transmission.A Maxi Display, the primary display screen.A hull/NMEA interface.A remote cradle.
