Ispravljač Phoenix VE.Direct Schuko 24V/800W

This inverter can supply a continuous power of 800W at 25°C. If the ambient temperature reaches 40°C, the continuous power is 650W.

The inverter has a peak power capacity of 1200W, maintained for 15 seconds, which is useful for starting demanding loads.

This inverter is designed to operate with a nominal DC input voltage of 24V. The accepted input voltage range is from 18.4 V to 34 V.

This inverter is equipped with a Schuko (CEE 7/4) AC output socket.

The inverter features a VE.Direct communication port for full configuration and monitoring. You can connect it to a computer via a VE.Direct to USB interface cable, or to smartphones and tablets (Apple and Android) using a VE.Direct Bluetooth Smart dongle.

The VE.Direct port allows configuration of several parameters, including low battery voltage alarm and cutoff thresholds, restart levels, load-dependent dynamic cutoff, AC output voltage (adjustable between 210-230V), frequency (50Hz or 60Hz), and ECO mode settings.

The inverter is protected against short circuits and overheating, whether due to overload or high ambient temperature. It also includes protections against excessively high or low battery voltage and excessive DC ripple.

The inverter can operate within an ambient temperature range of -40°C to +65°C. However, its power is derated by 1.25% per degree Celsius above 40°C.

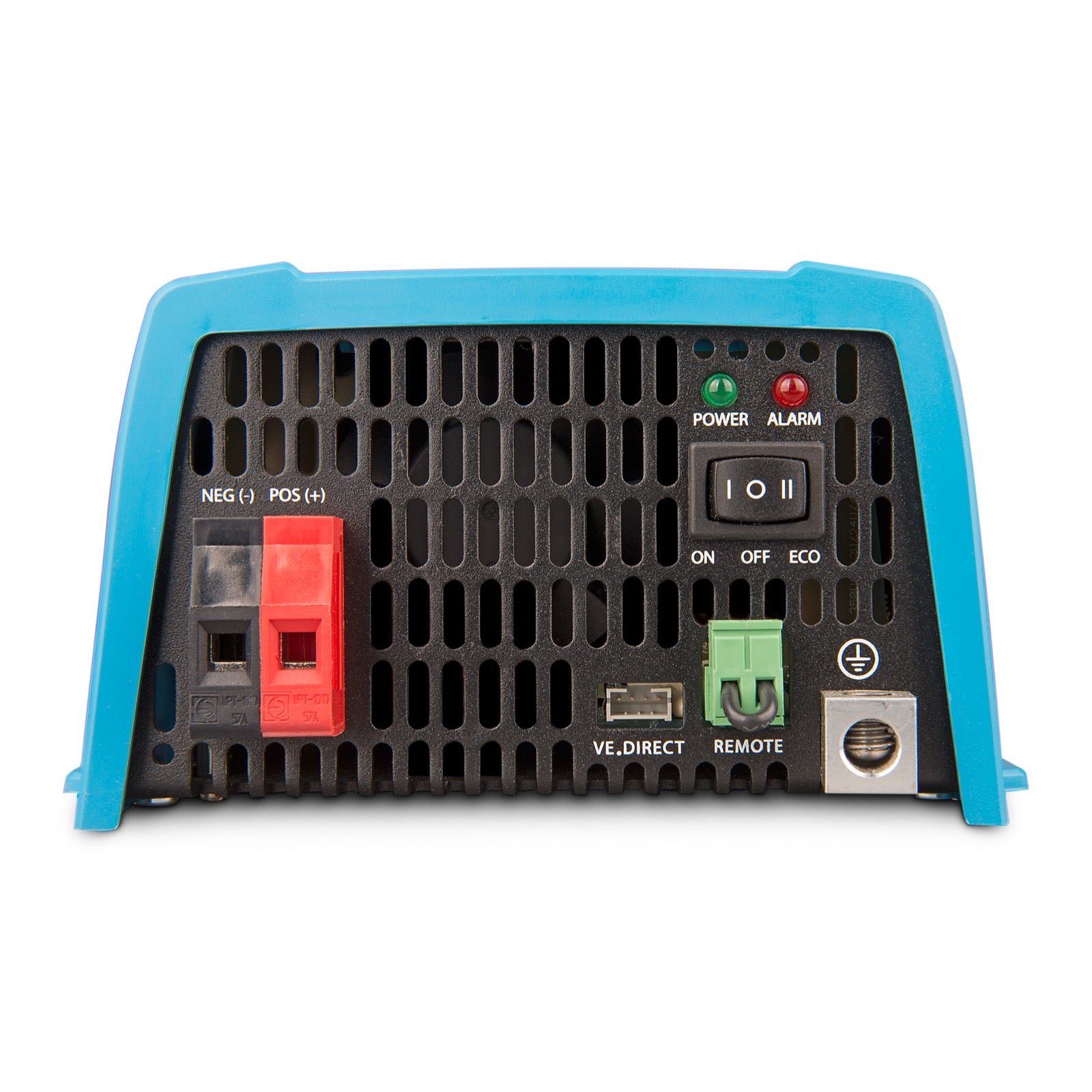

Yes, the inverter is equipped with a two-pole connector for a remote on/off switch. It can also be activated by connecting the left contact of the connector to the battery positive, which is useful for automotive applications.

For optimal results, the inverter must be mounted on a flat surface. It is important to avoid any contact with water, direct exposure to sunlight, and to ensure at least 10 centimeters of free space around the device for adequate ventilation. The ambient temperature must be between -20°C and 40°C.

Yes, the inverter is a Safety Class I product and its chassis must be grounded. The ground conductor, connecting the chassis ground terminal to earth, must have at least half the cross-section of the conductors used for the battery connection.

No, never connect the inverter's AC output to another AC source, such as a domestic wall outlet or a generator. This could damage the device.

No, the inverter has no fuse on the AC output. The AC wiring is protected by a fast-acting current limiter in case of short circuit and an overload detection mechanism that mimics the characteristics of a fuse.

The AC output is isolated from the DC input and the chassis. If local regulations require a true neutral, one of the AC output wires must be connected to the chassis, and the chassis must be bonded to a reliable ground.

The VE.Direct port is compatible with a VE.Direct to USB interface cable for connection to a computer, and with a VE.Direct Bluetooth Smart electronic key for wireless connection to smartphones, tablets, and other Apple and Android devices.

Yes, for low-power inverters like this one, Victron Energy recommends using the Filax automatic transfer switch. The Filax provides a very short switching time (less than 20 milliseconds), ensuring uninterrupted operation for electronic equipment.

This Victron Energy VE.Direct inverter provides a continuous power output of 800W at an ambient temperature of 25°C. At 40°C, the output is 650W. For demanding loads or start-ups, it can deliver a peak power of 1200W for 15 seconds.

Yes, the inverter is equipped with a VE.Direct communication port that allows full configuration and monitoring. You can connect it to a computer (with a VE.Direct to USB interface cable) or to smartphones and tablets (with a VE.Direct Smart Bluetooth dongle).

Configurable parameters include:

Battery low-voltage alarm and cut-off thresholds, as well as restart levels.The dynamic cut-off level, which depends on the load.Output AC voltage (adjustable between 210 and 230V) and frequency (50Hz or 60Hz).ECO mode activation and detection level to optimize energy consumption.Real-time monitoring lets you view input and output voltage, charge percentage, and alerts.

This Victron Energy VE.Direct inverter is equipped with a Schuko (CEE 7/4) AC output socket.
