B&G

000-12302-001

SonicHub2 garso serveris

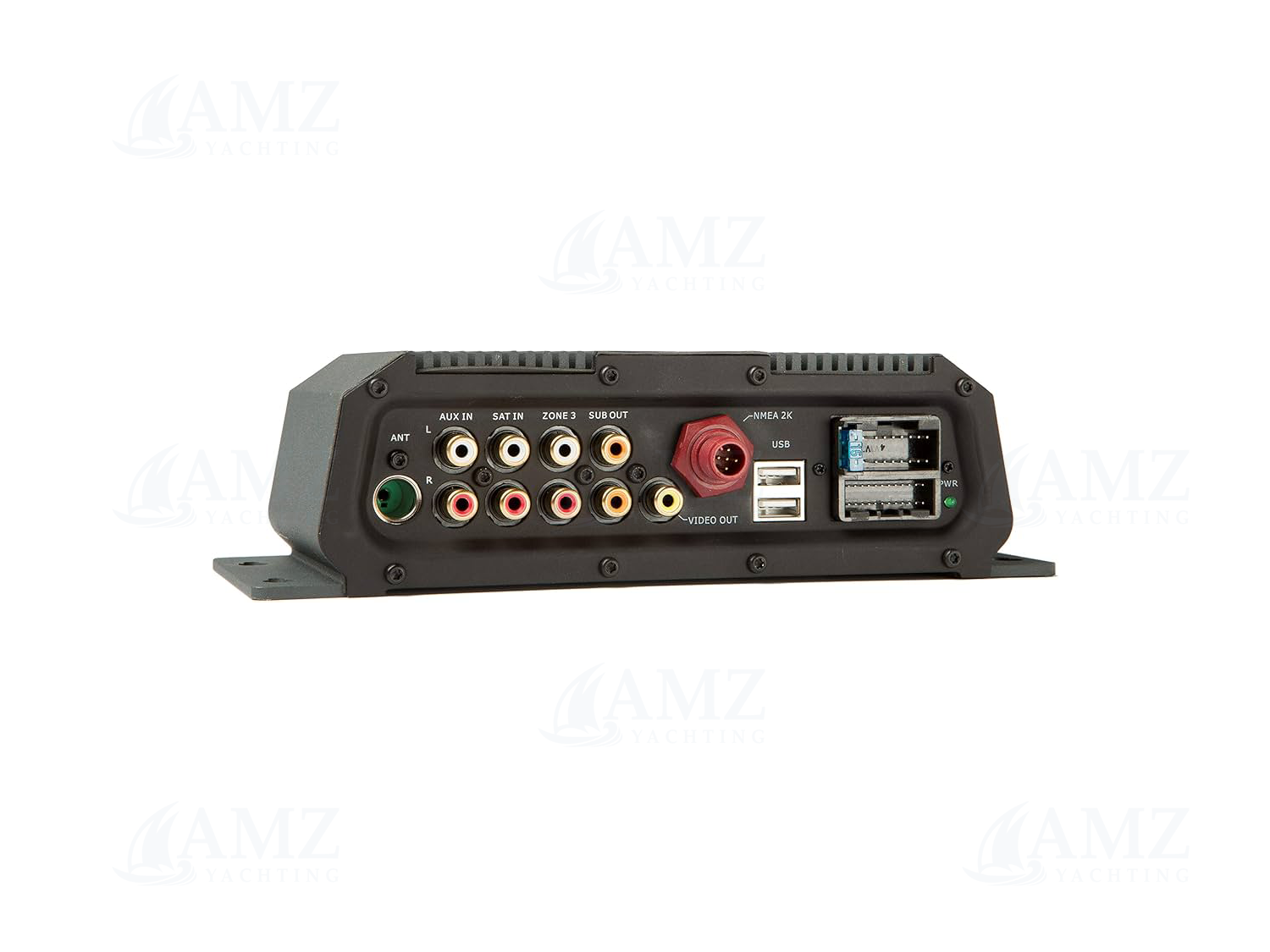

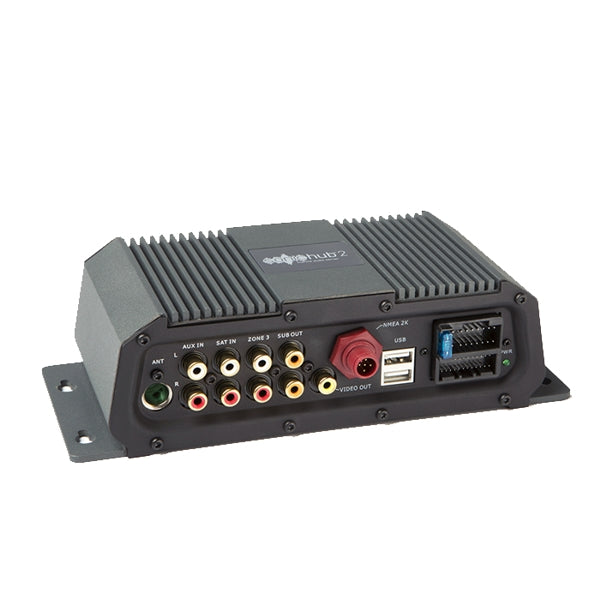

The B&G SonicHub2 marine audio server integrates a 4 x 50 W amplifier, Bluetooth connectivity, and two USB ports to control your entertainment directly from your multifunction displays via the NMEA 2000 network. Note: this older-generation system is now obsolete and discontinued by the manufacturer, though it remains compatible with B&G (Zeus, Vulcan), Simrad, and Lowrance chartplotter networks.

Includes: SonicHub2 audio server module only.

Public priceGet pro pricing

382,73€

382,73€ ~~454,80€~~

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Mažai liko

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

Audio jungties tipas	RCA / ISO
Valdymas per NMEA 2000	Oui
Išėjimo garsio galingumas	4 x 50
Preamplifikatoriaus išėjimai	2.0
Šaltinio tipas	Black Box
Transliavimo protokolai	Bluetooth
Bluetooth versija	4.0
Produkto matmenys	107.2 x 225.0 x 62.0
IP klasifikacija	IPX2
Veikimo įtampa	12 V DC
Didžiausias elektros energijos suvartojimas	120
Tipinis elektros energijos suvartojimas	25
Supported File Systems	FAT16, FAT32, NTFS
Video Output Format	PAL, NTSC
Svoris	0.88

Detailed description

B&G SonicHub2 yra visavertis jūrinis garso serveris, skirtas sklandžiam integruotis su B&G, Simrad ir Lowrance daugiafunkciais ekranais per NMEA 2000 tinklą. Nors tai yra ankstesnės kartos produktas, kuris jau nebeparduodamas, jis išlieka našia „juodosios dėžės“ tipo priemone, leidžiančia centralizuoti garso valdymą tiesiogiai iš jūsų navigacijos įrenginio, tuo pačiu atleidžiant vietą prietaisų skydelyje.

Stiprinimas ir daugiazonis valdymas

SonicHub2 turi 4 kanalus stiprinantį bloką, kuris teikia iki 50 W galios kiekvienam kanalui, o bendra galia siekia 200 W. Jis leidžia nepriklausomai valdyti dvi atskiras klausymo zonas per garsiakalbių išvestis. Sudėtingesniems sistemoms įrenginys turi išankstinio stiprinimo (RCA) išvestis trečiai zonai bei specialią išvestį subwooferiui, užtikrinančią maksimalų lankstumą jūsų laivo garso sistemai.

Jungtis ir garso šaltiniai

Šis garso serveris palaiko Bluetooth v4.0 (profiliai A2DP, AVRCP, HFP) be laidų garso transliacijai iš išmaniojo telefono ar planšetės. Jame taip pat yra du USB jungtys, skirtos multimedijos failų (FAT16, FAT32, NTFS) atkūrimui ir įrenginių (iki 1A) įkrovimui. Garso šaltiniai papildomi dviem stereo įvestimis (AUX), integruotu AM/FM radijo imtuvu bei kompozitine vaizdo išvestimi (PAL/NTSC). Amerikos rinkai skirtas įrenginys palaiko SiriusXM WM-3 palydovinės meteorologijos ir radijo modulį (reikalingas abonementas).

Techninės specifikacijos ir instaliavimas

SonicHub2 veikia esant 10–16 V DC maitinimui, sunaudojant mažiau nei 250 mA tylos režimu ir iki 15 A maksimaliai. Jo matmenys yra 107,2 × 225,0 × 62,0 mm, o svoris – 0,88 kg. Reikia atkreipti dėmesį į IPX2 apsaugos lygį, kuris reikalauja įrengimo sausame skyriuje, apsaugotame nuo vandens purslų ir drėgmės. Įrenginys atitinka CE (EN 60945), FCC ir C-Tick normas.

Documentation

Type	Nom
	EN - Déclaration de Conformité CE - SonicHub2 serveur audio
	EN - Guide d'installation - SonicHub2 serveur audio
	EN - Manuel d'installation du serveur audio - SonicHub2 serveur audio
	EN - Déclaration de Conformité - SonicHub2 serveur audio
	EN - Guide d'installation - SonicHub2 serveur audio
	FR - Gabarit de montage - SonicHub2 serveur audio
	ZH - Certificat d'homologation d'équipement de transmission radio - SonicHub2 serveur audio

Expert review

Pol CONIN

Digital Manager

« NMEA 2000 audio hub: Centralized integration by Navico »

The SonicHub2 is Navico’s reference solution for centralized audio integration on older-generation B&G, Simrad, and Lowrance systems. Its main advantage lies in its NMEA 2000 communication, which allows full control from the multifunction display, providing a unified and streamlined interface at the helm. While this is an obsolete product, it remains a reliable option for replacing an existing unit or equipping a boat with electronics from the same era. However, be aware of its IPX2 protection rating: it must be installed in a completely dry and ventilated space, protected from any condensation or water spray, which is its primary technical constraint.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

SonicHub2 garso serveris

382,73€

382,73€ ~~454,80€~~

Frequently asked questions

Need help? Contact us

What audio sources can I use with the SonicHub2?

The SonicHub2 supports a wide variety of audio sources:

Bluetooth: Wireless streaming from a smartphone or tablet.FM/AM radio tuner: Built-in FM/AM tuner.USB: Two USB ports for reading files from a USB drive.Auxiliary inputs: Two stereo inputs (AUX1, AUX2) to connect other devices.SiriusXM: Compatible with the SiriusXM satellite weather and radio module WM-3 (available in the United States only; subscription required).

Can I control music in different areas of my boat?

Yes, the SonicHub2 is designed for multi-zone management. It allows independent control of two listening zones via its speaker outputs. Additionally, it features pre-amplified outputs (RCA) for a third zone and a dedicated output for a subwoofer.

Which multifunction displays is this audio server compatible with?

The SonicHub2 is designed to integrate seamlessly with multifunction displays from B&G, Simrad, and Lowrance brands. Control is handled directly from the display via the NMEA 2000 network.

Is the SonicHub2 waterproof and can it be installed outdoors?

No, the SonicHub2 has an IPX2 waterproof rating. This means it is protected only against dripping water. It must be installed in a dry compartment, shielded from water splashes and humidity.

Can I connect a subwoofer to the SonicHub2?

Yes, the SonicHub2 is equipped with a dedicated RCA pre-amplified output for a subwoofer. This allows you to add a subwoofer to your setup for deeper sound.

Can USB ports charge a mobile device?

Yes, both USB ports can be used to charge devices. They provide a maximum charging capacity of 1 A.

Can I use the SonicHub2 without a multifunction display?

No, the SonicHub2 is an audio server of the "black box" type. It has no buttons or dedicated screen and is entirely designed to be controlled from a compatible B&G, Simrad or Lowrance multifunction display via the NMEA 2000 network.

Is this product still in production?

No, the SonicHub2 audio server is a discontinued product from the manufacturer. This is a previous-generation product that is no longer in production.
