Raymarine

E70621

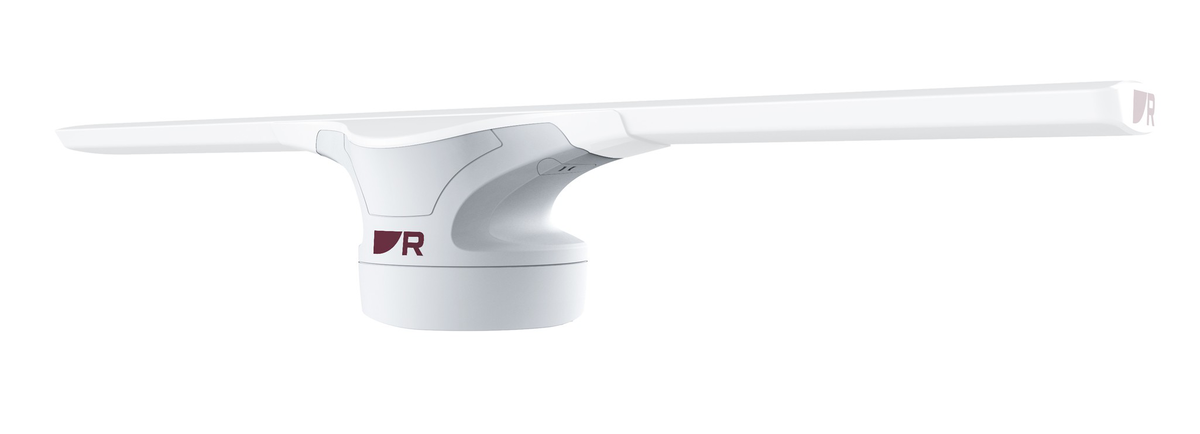

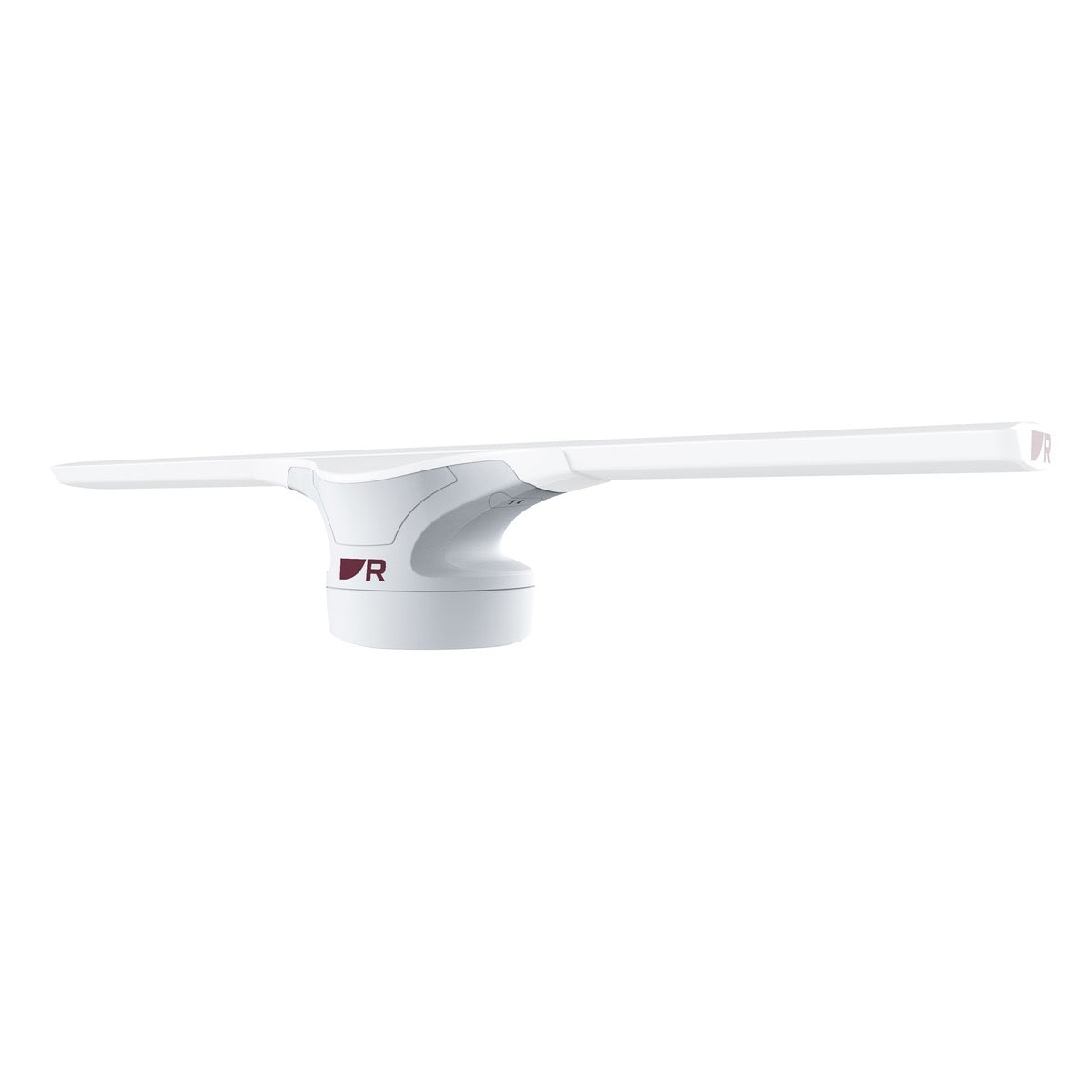

Radaro pakyla Raymarine Cyclone Pro 110 W

Le piedestal radar Raymarine Cyclone Pro 110 Watts (E70621) constitue la base des systèmes radar open array haute performance.

Faisant partie de la gamme Cyclone Pro, il offre une puissance de 110W pour une détection avancée, compatible avec les fonctions Doppler et ARPA via les écrans multifonctions Raymarine compatibles.

Ce produit inclut uniquement le piedestal radar Cyclone Pro 110 Watts.

Public priceGet pro pricing

6.894,94€

6.894,94€ ~~7.554,00€~~

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Sandėlyje

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

Produkto skersmuo	388
Produkto aukštis	360
Veikimo įtampa	10.8 V DC à 31.2 V DC
Didžiausias elektros energijos suvartojimas	110
Radaro technologija	CHIRP à semi-conducteurs, Doppler
Radaro maksimalus nuotolis	96
Rekomenduojamas saugiklio vardinė vertė	15
Radaro sukimosi greitis	12, 24, 36, 48 tr/min (sélectionnable)
Horizontaliojo pluošto plotis	Dépend de l'antenne (1.25° à 2.5°)
Hermetiškas	IPX6
Tipinis elektros energijos suvartojimas	70
Skenavimo dažnių juosta	32
Impulso ilgis	0.04 à 1.6
Kompaso saugumo atstumas	100
Triukšmo koeficientas	< 4
Radaro minimali nuotolis	6
Laidinis tinklas	RayNet (Ethernet)
Veikimo temperatūra	-25°C à +55°C
MARPA sekimo sistema	Oui, 25 cibles
Radaro siuntimo galia	110
Radaro dažninė juosta	Bande X
Antenos/radomo tipas	Open Array
Produkto plotis	388
Doplerio radaro technologija	Oui
Dviejų nuotolių radaras	Oui
VelocityTrack radaro sistema	Oui
Vertikalaus spindulio plotis	25
Radaro didžiausia galia	110
Paketo turinys	Piedestal radar, 4 boulons de montage M10x30mm, 4 rondelles M10, 4 rondelles ressort M10, gabarit de montage, pack de documentation
Galimos signalizacijos	Alarme CPA/TCPA, alarmes de zone de garde

Detailed description

Skirtas išrankiesiems jūreiviams, Raymarine Cyclone Pro 110 W radaro pakyla (E70621) yra pagrindinis atviro tipo radaro sistemos elementas. Priklausantis aukščiausios klasės Raymarine Cyclone serijai, šis pakylos modelis išskirtinis 110 W galia, skirtingai nuo standartinių Cyclone modelių bei mažesnės galios radomo radaru. Tai esminis komponentas siekiant aptikti ir sekti jūrinius objektus įvairiomis sąlygomis, užtikrinant didesnį veikimo nuotolį ir vaizdo aiškumą.

Veikimo galia ir sistemos integracija

Raymarine Cyclone Pro 110 W pakyla suderinama su įvairaus dydžio atviro tipo antenomis (36, 48 ir 72 coliai), leidžianti pritaikyti įrenginį pagal laivo įrengimo ir veikimo reikalavimus. Ji integruojama su suderinamais Raymarine daugiafunkciais ekranais (MFD), tokiais kaip Axiom serija, siekiant panaudoti pažangias funkcijas, kaip antai Doplerio radarą ir ARPA galimybes. Doplerio radaras leidžia greitai identifikuoti pavojingus objektus spalviniu kodu, o ARPA funkcija (reikalaujanti radaro taikinių duomenų šaltinio) automatiškai seka objektus ir skaičiuoja artėjimo tašką (CPA) bei artėjimo laiko tašką (TCPA), palengvinant sprendimų priėmimą. Ši galimybė leidžia konkuruoti su konkurentų sistemomis, tokiomis kaip Garmin (Fantom serija) ar B&G (Halo serija), atviro tipo radaru segmente.

Įrengimas ir jungtis

Pakylos įrengimas apima tvirtą pritvirtinimą keturiais M10 montavimo taškais. Kabelių tvarkymas palengvinamas užpakalinės ar centrinės kabelių išvesties galimybėmis, su minimaliu lenkimo spinduliu 52 mm jungčių atžvilgiu. Sistemai reikalingas atskirai parduodamas VCM100 įtampos keitiklio modulis elektros maitinimui, o duomenų perdavimui naudojami RayNet kabeliai. Šios specifikacijos užtikrina patikimą ir ilgalaikį įrengimo jūrinėje aplinkoje stabilumą. Privaloma konsultuotis su įrengimo vadovais dėmesio centre dėl detalių jungčių ir specifikacijų, įskaitant kompaso saugumo nuotolio reikalavimus.
