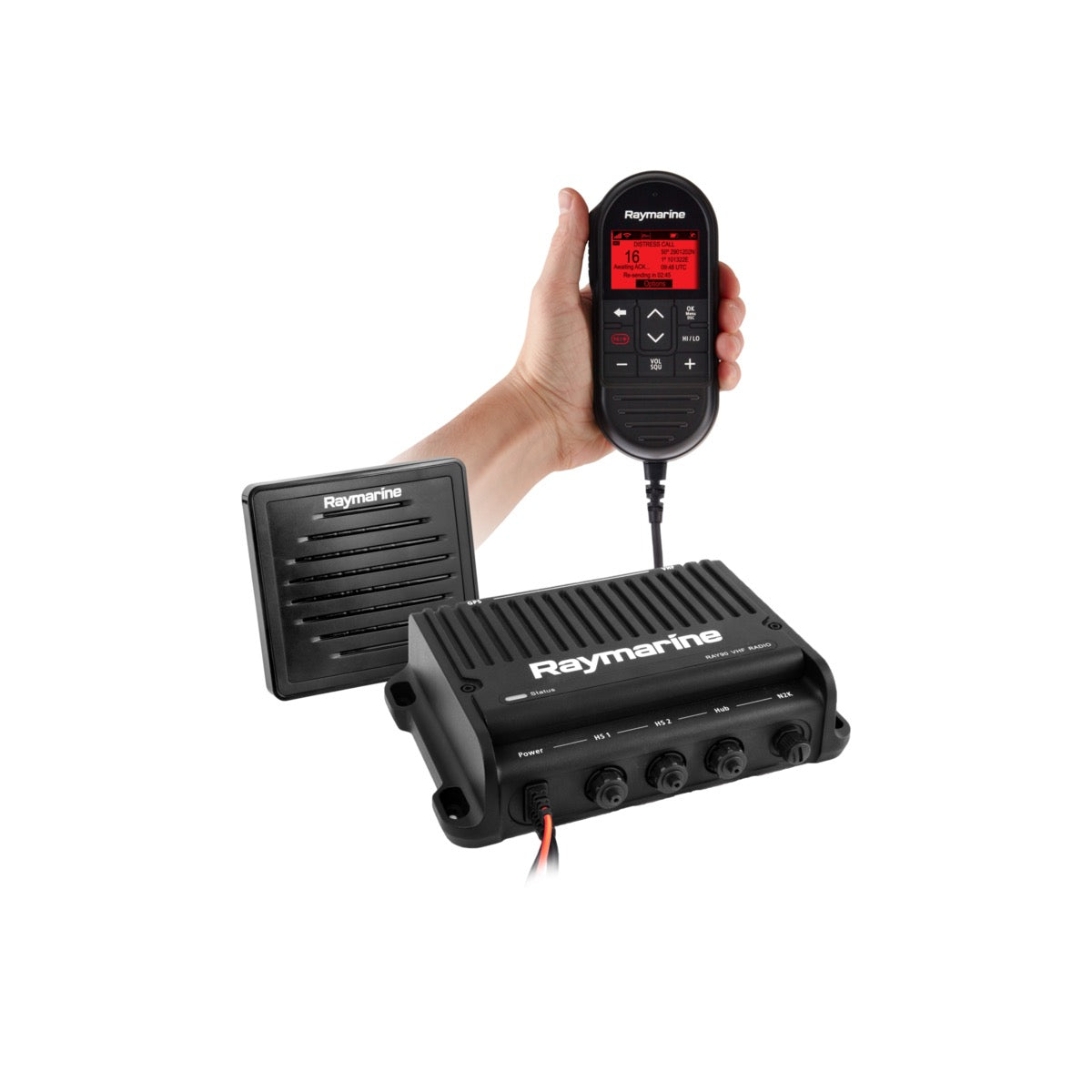

VHF transceiver with ASN Ray 90 (inc. combined unit, passive speaker and cable)

The Raymarine Ray 90 is a VHF transceiver of the "black box" type. This means the main unit is remote-mounted and can be installed discreetly, for example under the deck or in a technical compartment. Unlike traditional all-in-one VHF units, this design allows flexible installation and a less cluttered deck, with only the handset and speaker visible.

The Raymarine Ray 90 system is supplied complete for immediate use. It includes:

A Raymic wired handsetA passive speakerThe necessary cables for installation and component connection

Yes, the Raymarine Ray 90 transceiver integrates Digital Selective Calling (DSC) Class D functionality. This feature is essential for maritime safety, enabling distress calls with the vessel's GPS coordinates and direct communication with other vessels or shore stations.

Yes, the Raymarine Ray 90 is designed with a modular architecture. You can extend the system by adding additional wired displays (up to two wired displays total on Ray90/Ray91) or wireless displays. It is also possible to add additional active or passive speakers to extend audio coverage aboard your vessel.

The Raymarine Ray 90 transceiver offers switchable transmit power. You can select between a high power of 25 W for long-range communications and a low power of 1 W for short-range communications, to comply with regulations and optimize battery life.

The Raymarine Ray 90 system is designed to integrate with Raymarine networks and is compatible with compatible Raymarine multifunction displays (MFD). This integration allows centralized management of VHF communications directly from your MFD screen, providing better ergonomics and easier access to radio functions.

When installing the Raymarine Ray 90 base unit, several factors must be taken into account:

Ventilation: Ensure adequate ventilation around the unit.Mounting surface: Choose a stable and appropriate mounting surface.Cable routing: Plan careful cable routing to avoid interference and damage.RF interference: Avoid mounting the unit near other electronic equipment that may generate radiofrequency interference.Compass safety distance: Maintain the required safety distance from the vessel's magnetic compass to prevent disruption.A Raymarine-certified installation is recommended to benefit from extended warranty advantages.

To ensure compatibility and correct operation with the Raymarine Ray 90 transceiver, the Raymic wired headset must run software version VH1.26 or later. It is recommended to always check and update the software of your Raymarine devices to guarantee optimal performance and compatibility.
