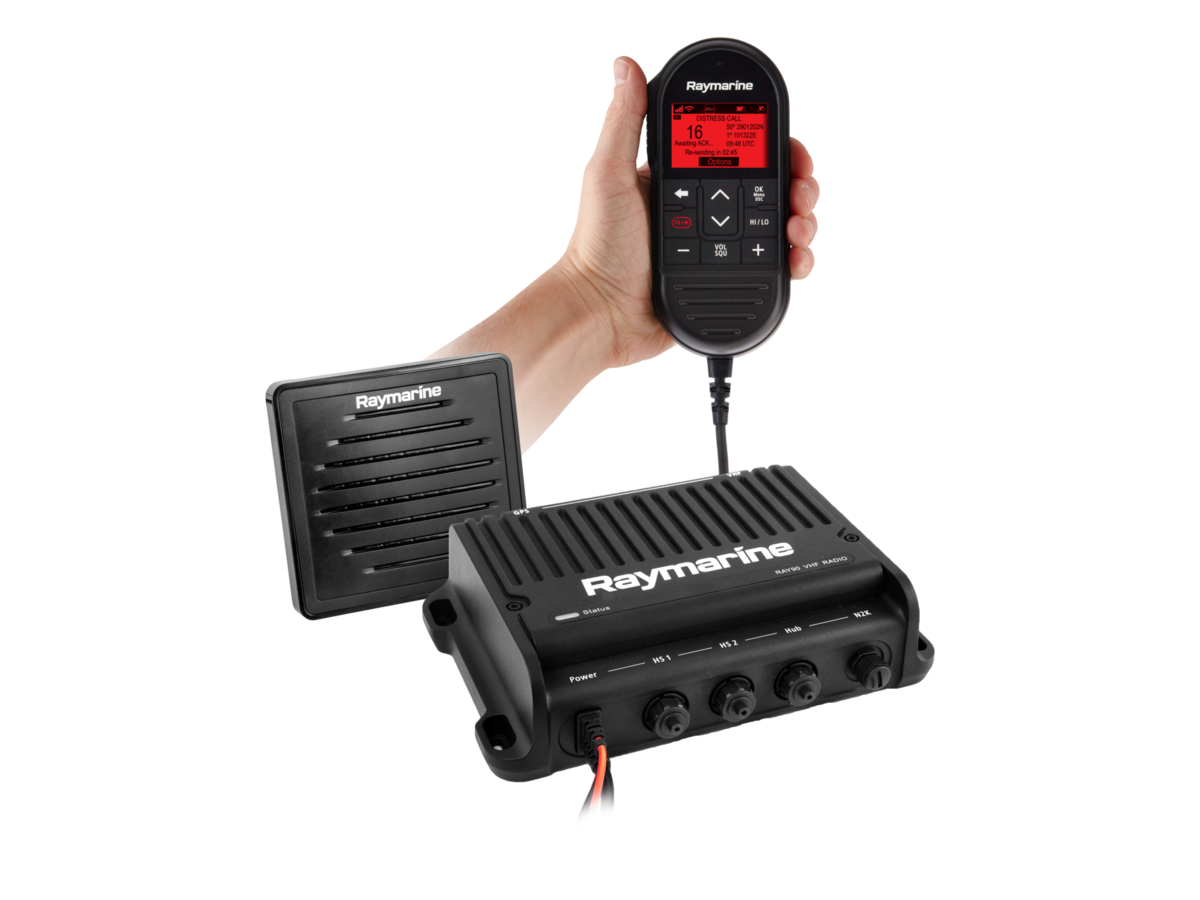

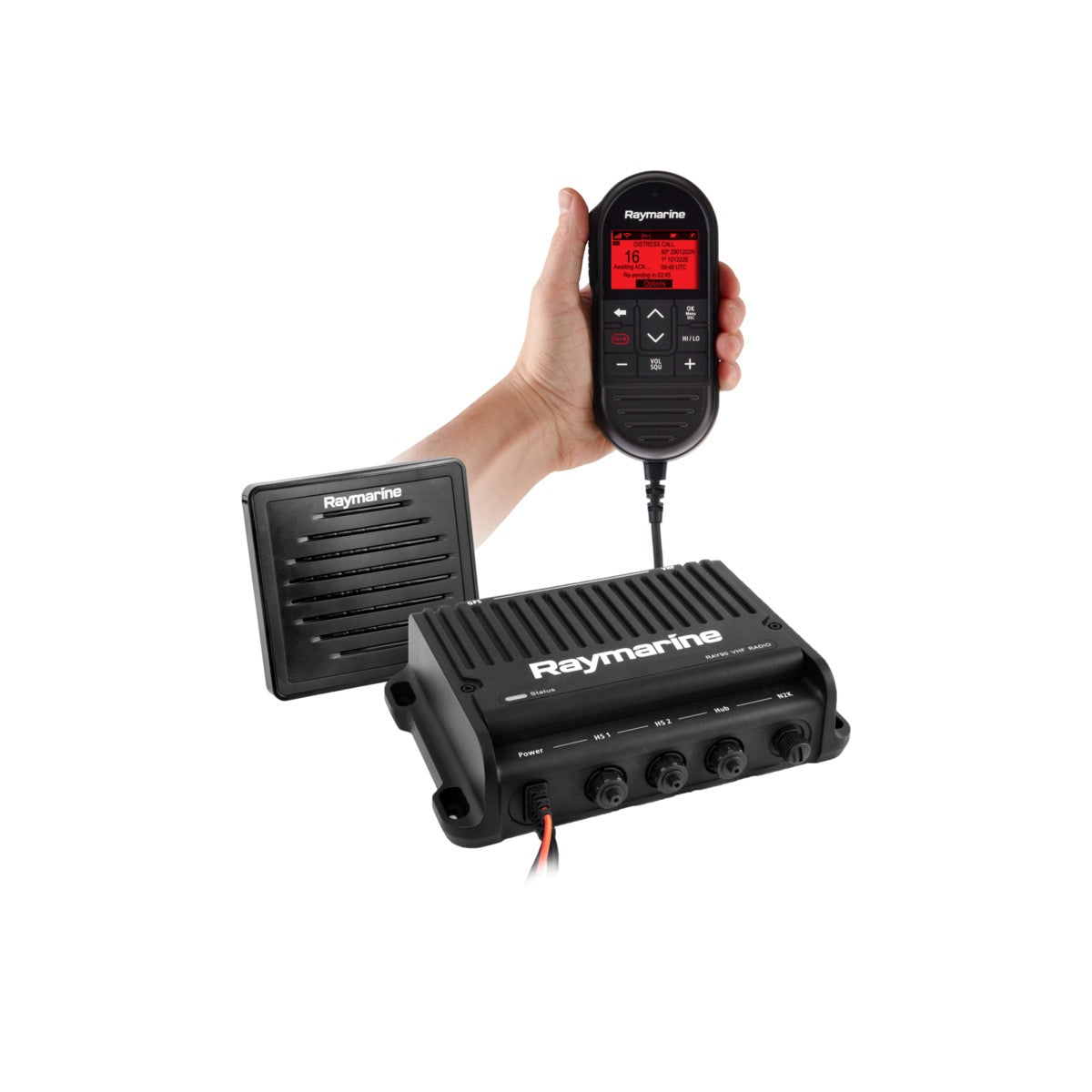

VHF transceiver with ASN and AIS Rx Ray 91 (inc. combined unit, passive speaker and cable)
VHF transceiver with ASN and AIS Rx Ray 91 (inc. combined unit, passive speaker and cable)
In stock
Caractéristiques techniques
Caractéristiques techniques
| Maximum power consumption | 72 W |
| Typical electrical consumption | 6 W |
| Operating voltage | 12 V |
| Recommended fuse rating | 10 A |
| Wired network | NMEA 2000,NMEA 0183,SeaTalk NG |
| Wireless connectivity | Propriétaire Raymarine |
| Audio output power | 5 W |
| Product height | 150 mm |
| Product width | 236 mm |
| Product depth | 51 mm |
| Detachable handset | Oui (Système "boîte noire") |
| Bus compatibility | NMEA 2000,NMEA 0183,SeaTalk NG |
| Compass safe distance | 180 cm |
| Mounting type | Boîte noire (unité principale), Encastré/Surface (combiné) |
| Certifications | FCC,ISED,CE |
| AIS class | Récepteur Classe B |
| AIS reception | Oui |
| AIS transmission | Non |
| ATIS | Oui |
| Antenna connector | SO-239 |
| DSC | Oui |
| GPS | Oui (interne ou externe) |
| Intercom function | Oui |
| VHF frequency range | 156.000 - 162.000 MHz (International) |
| VHF transmit power | 25 W / 1 W |
| Max wired handsets | 2.0 |
| Display type | LCD (sur combiné) |
| GPS antenna connector | TNC |
| Detachable fist mic | Oui (via combiné déportable) |
| Available alarms | ASN, AIS, Météo |
Description détaillée
Description détaillée
Designed for flexible integration on any type of vessel, the Raymarine Ray91 VHF transceiver (part number E70493) is a marine communication system with a "black box" architecture. It integrates Digital Selective Calling (DSC) and an Automatic Identification System (AIS) receiver for improved situational awareness and enhanced safety at sea. This model differs from the Raymarine Ray90 by including the integrated AIS receiver, providing a complete solution for monitoring maritime traffic.
Features and Positioning
The Raymarine Ray91 allows connection of one or more combined units (wired or wireless) and passive or active speakers, offering high installation modularity. This "black box" design is particularly suited to boats with limited dashboard space, enabling the main unit to be remotely mounted. Compared to integrated VHF units such as the Ray63 or Ray73 models, the Ray91 offers superior system configuration flexibility for onboard communication. It is compatible with Raymarine multifunction displays (MFD) for full integration of AIS data and VHF functions on the main display.
Integration and Compatibility
The system requires an MMSI (Maritime Mobile Service Identity) license and, for certain regions, an ATIS (Automatic Transmitter Identification System) number to operate in compliance with regulations. The Raymic wired handset is compatible with software version v1.61a or higher for the Ray90/Ray91. Installation and maintenance are simplified by detailed technical documentation available on the Raymarine website and a modular design that allows individual component diagnosis and updates. The Ray90/Ray91 base station measures 236 mm long and 150 mm wide, with mounting points spaced 217 mm and 104 mm apart respectively, facilitating discreet integration.
Documentations
Documentations
Avis de l'expert
Avis de l'expert
« Raymarine Ray91: Modular VHF with AIS Rx for enhanced safety »
Vos informations de paiement et données sont traitées de manière sécurisée.
Équipements complémentaires
Raymarine i70s multifunction display
Ref : E70327
Choose your option

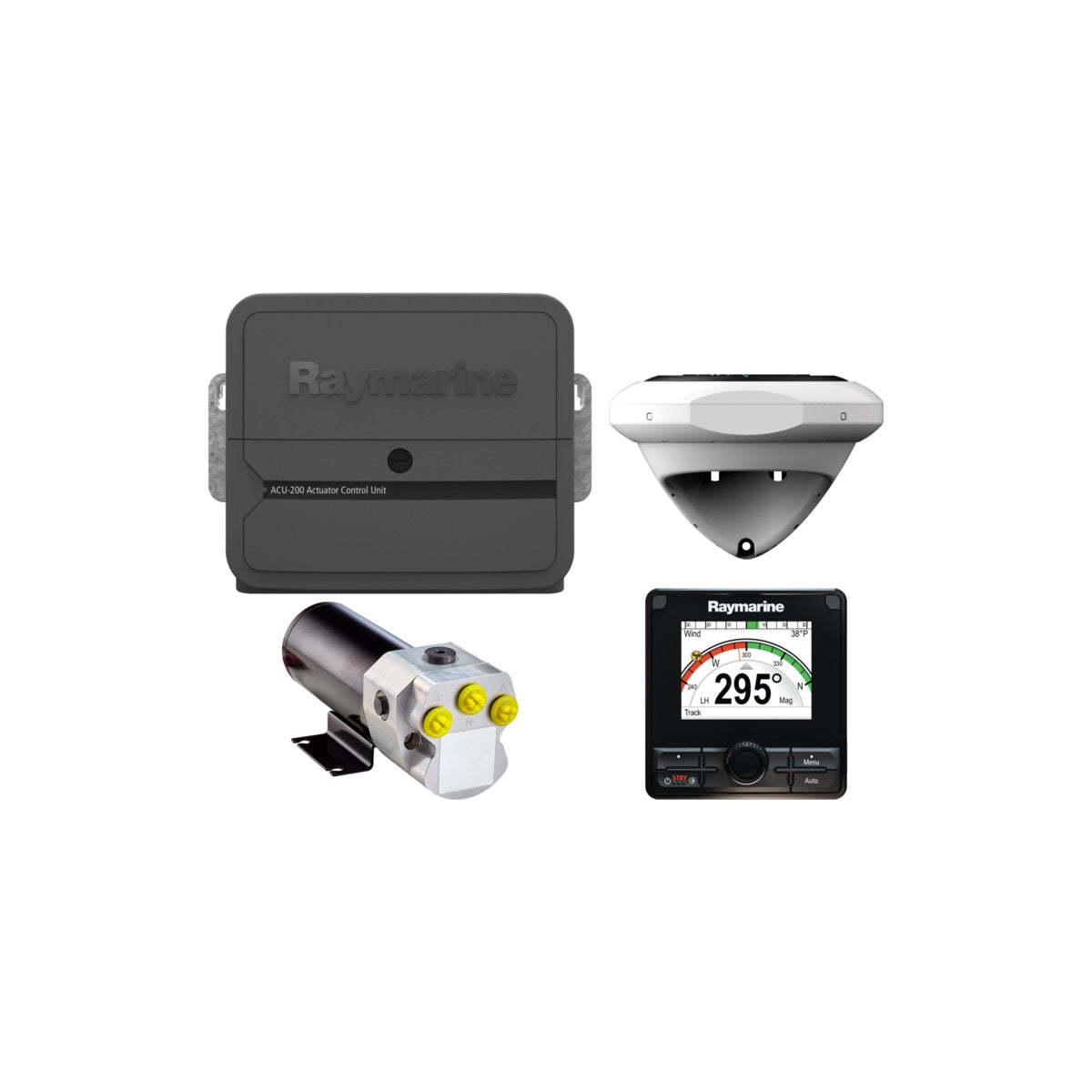

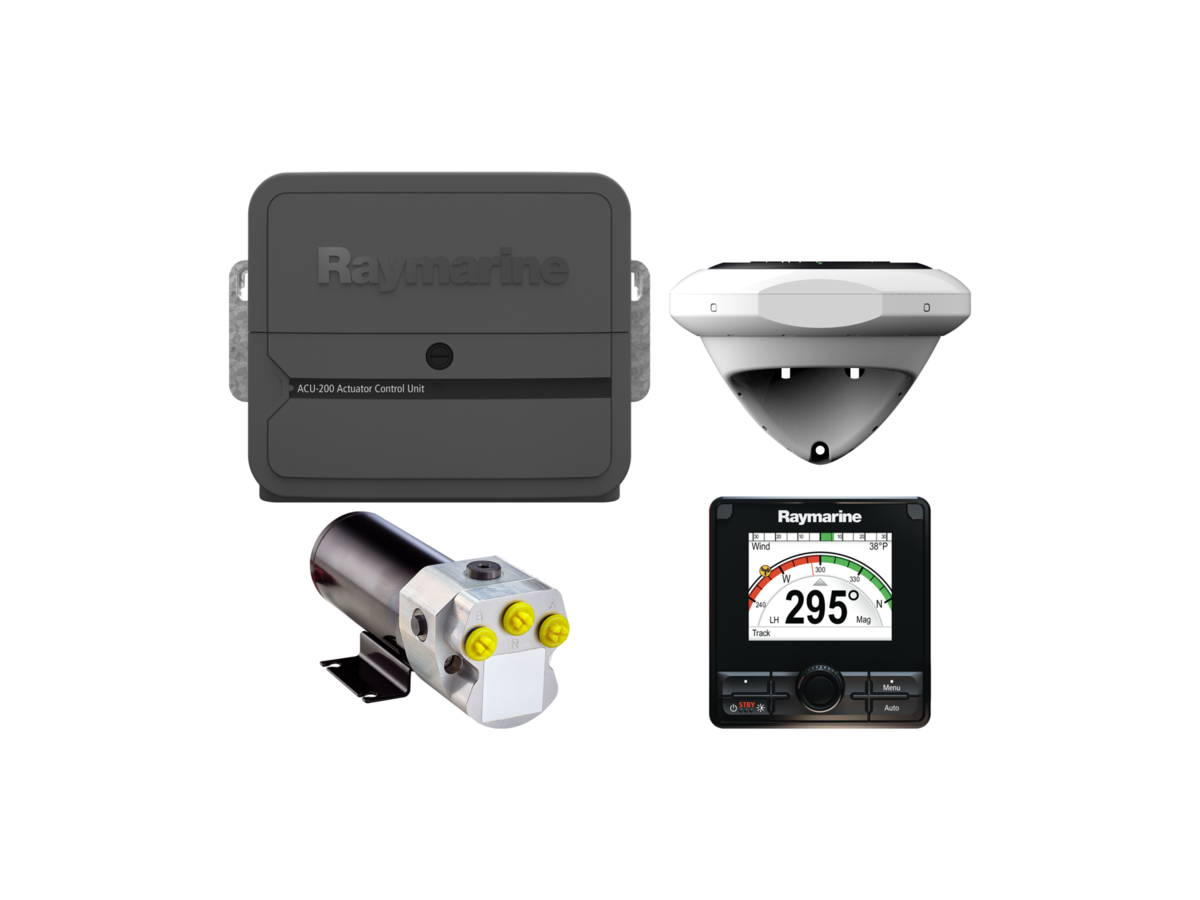

EV-200 autopilot kit with type 1 hydraulic pump
