Kamera morska IP GC™ 200

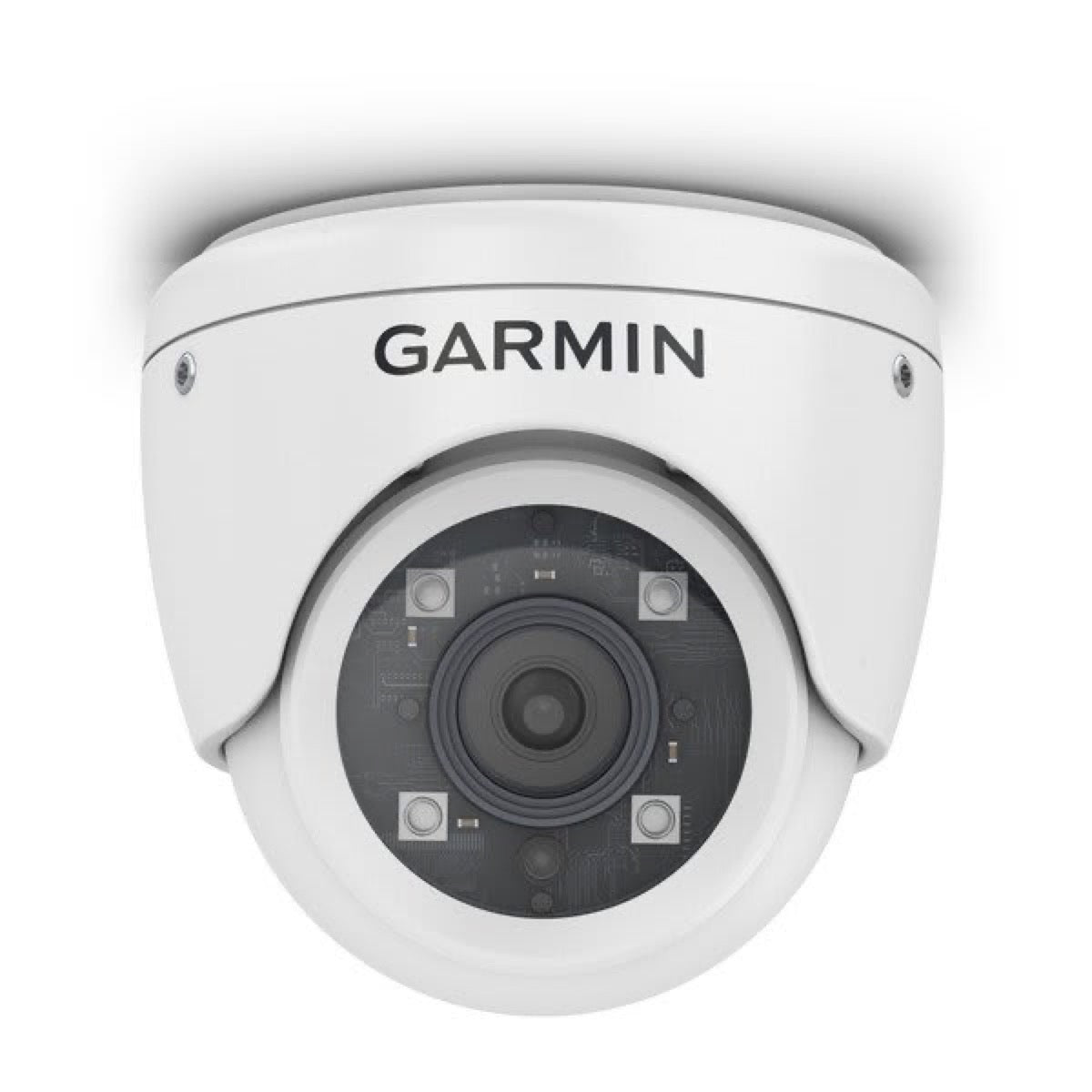

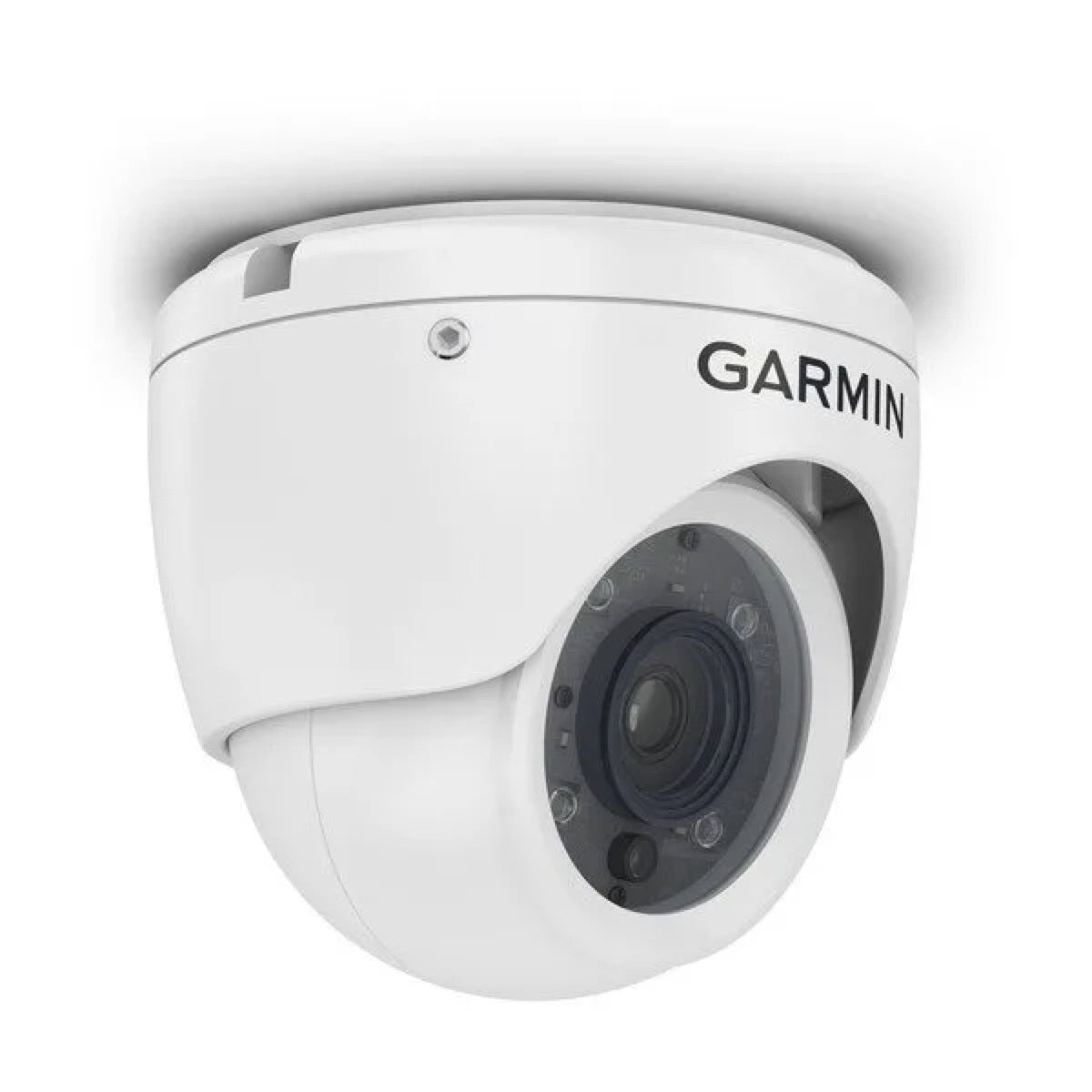

The Garmin GC™ 200 marine IP camera is a robust and versatile surveillance solution designed to integrate seamlessly with Garmin navigation systems. This fixed camera provides enhanced visibility around the vessel, improving situational awareness, whether for monitoring the deck, maneuvering areas, or immediate surroundings during docking or sailing.

The Garmin GC™ 200 camera is a fixed marine IP camera that provides enhanced visibility. Its main features include:

Certified waterproofing to IEC 60529 IPX7 standard, meaning it can withstand accidental immersion up to 1 meter for 30 minutes.A horizontal field of view of 99.2 +/- 3 degrees and vertical field of view of 74 +/- 3 degrees.Infrared vision capability up to 30 meters for night surveillance.Compatibility with Garmin BlueNet™ and Garmin Marine Network networks.

The GC™ 200 camera requires an input voltage of 9 to 18 VDC for a direct connection. It must be connected via a fast-blow 1 A fuse (not included) to prevent malfunctions.

For 24 VDC systems, it is mandatory to use a Garmin power module (part number 010-12527-00, not included) to prevent damage to the camera. With the power module, the input voltage can range from 9 to 32 VDC.

Yes, the Garmin GC™ 200 camera has an IEC 60529 IPX7 waterproof rating. This means it can withstand accidental immersion in water up to 1 meter deep for 30 minutes.

The GC™ 200 camera is compatible with Garmin BlueNet™ networking technology and Garmin Marine Network devices.

If your boat is equipped with a Garmin BlueNet chartplotter, you can connect the camera directly using the included Garmin BlueNet cable.
If your boat is equipped with a Garmin BlueNet chartplotter and uses a Garmin BlueNet 30 gateway, you can connect the GC™ 200 directly to a BlueNet device or a Garmin Marine Network device via a Garmin Marine Network adapter cable (part number 010-12531-01, not included unless provided).
If your boat is equipped only with Garmin Marine Network devices, the Garmin Marine Network adapter cable (part number 010-12531-01, not included unless provided) is required for connection.

When installing the GC™ 200 camera, the following points must be considered:

The camera can be mounted upside down or sideways, and the image can be flipped for a reverse-vision mode. Choose a location where it will not be submerged, pose no hazard in doors or passageways, and cannot be damaged by docks or other equipment. The mounting surface must be strong enough to support the device’s weight and allow for camera removal. Install the camera so the LED is visible and cables can be connected easily. To avoid compass interference, maintain a 10 cm (4 in) safety distance from magnetic compasses. It is recommended to test the camera in the chosen location before permanent installation.

To install the Garmin GC™ 200 camera, you will need the following tools:

A drill and a 2 mm (1/16 in) bit. A Pozidriv® screwdriver. The hex key included with the camera.

Yes, the Garmin GC™ 200 marine IP camera is covered by Garmin’s standard limited warranty.
