VE.Direct na USB-C

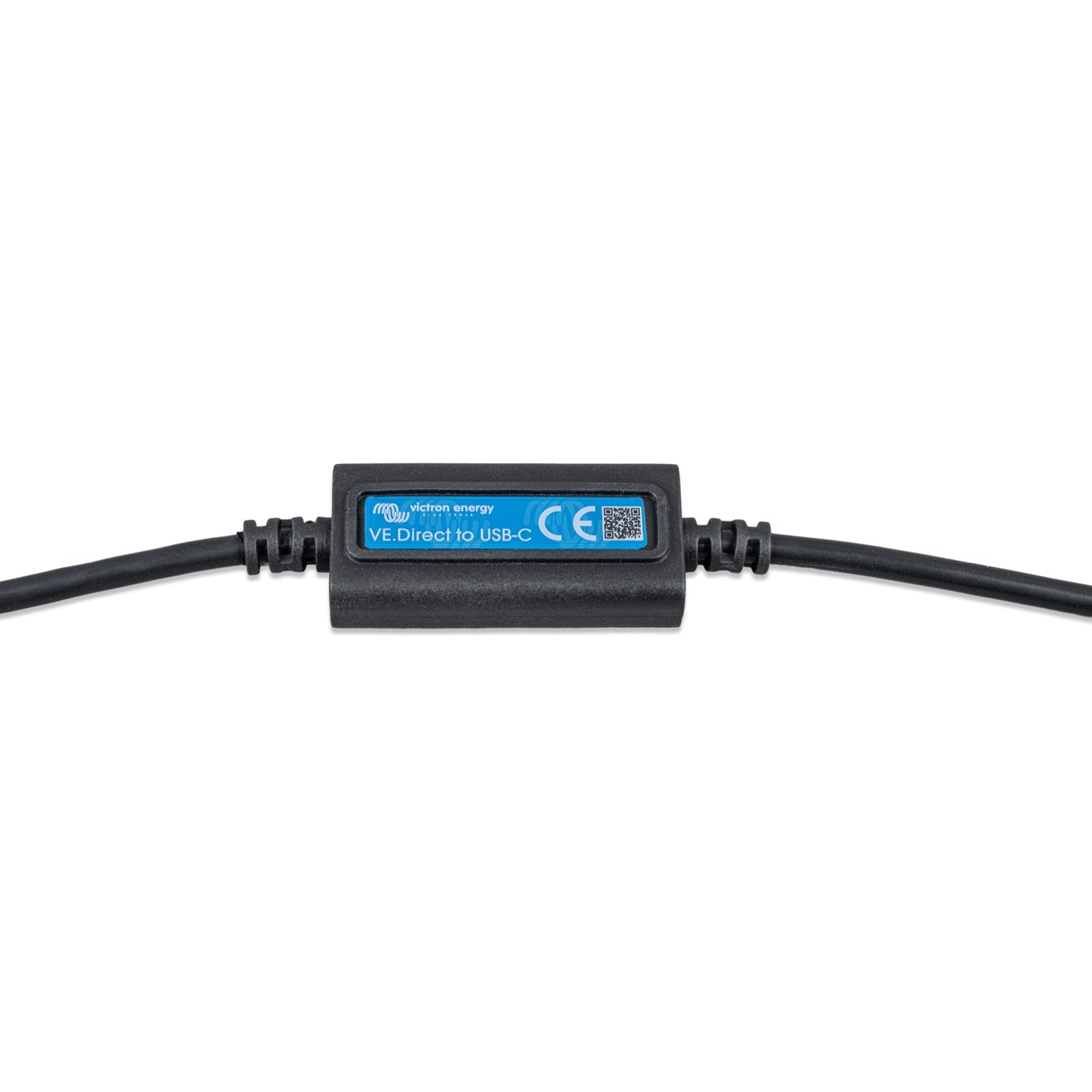

The Victron Energy VE.Direct to USB-C interface is an adapter designed to provide a direct connection between a Victron device with a VE.Direct port and a computer or tablet equipped with a USB-C port. It enables communication and configuration of Victron equipment via the VictronConnect software.

This adapter is primarily used for monitoring, diagnostics, and configuration of Victron Energy devices. It allows users to view real-time performance data, adjust device settings, and update its firmware using the VictronConnect software on a USB-C compatible device.

This interface is compatible with all Victron Energy devices equipped with a VE.Direct communication port. This includes many solar charge controllers (MPPT), battery monitors (BMV), inverters, battery chargers, and some inverter/chargers from the brand.

To install the interface, connect the VE.Direct end to the Victron device and the USB-C end to your computer or tablet. You then need to install the VictronConnect software on your device. The required drivers are usually installed automatically with VictronConnect or are standard USB drivers already present on your operating system.

No, the VE.Direct to USB-C interface does not require external power. It is powered directly by the USB-C port of the computer or tablet to which it is connected.

The VE.Direct to USB-C interface provides a direct wired connection, which may be preferable in environments where wireless interference is present or when the stability of a wired connection is required. Unlike Bluetooth, it does not depend on radio range and can offer a faster connection for certain operations, although both methods allow the use of VictronConnect software.

No, the VE.Direct to USB-C interface is designed for point-to-point connection. It allows connecting only one Victron device with a VE.Direct port at a time to your computer or tablet.

Yes, one of the primary uses of this interface is to allow firmware updates for Victron Energy devices via the VictronConnect software. This ensures your equipment has the latest features and improvements.

No, the VE.Direct to USB-C interface does not replace a Cerbo GX. The Cerbo GX is a communication hub that centralizes control and monitoring of an entire Victron Energy system, providing advanced features such as remote monitoring via the VRM portal. The VE.Direct to USB-C interface is a direct diagnostic and configuration tool for a single device at a time.

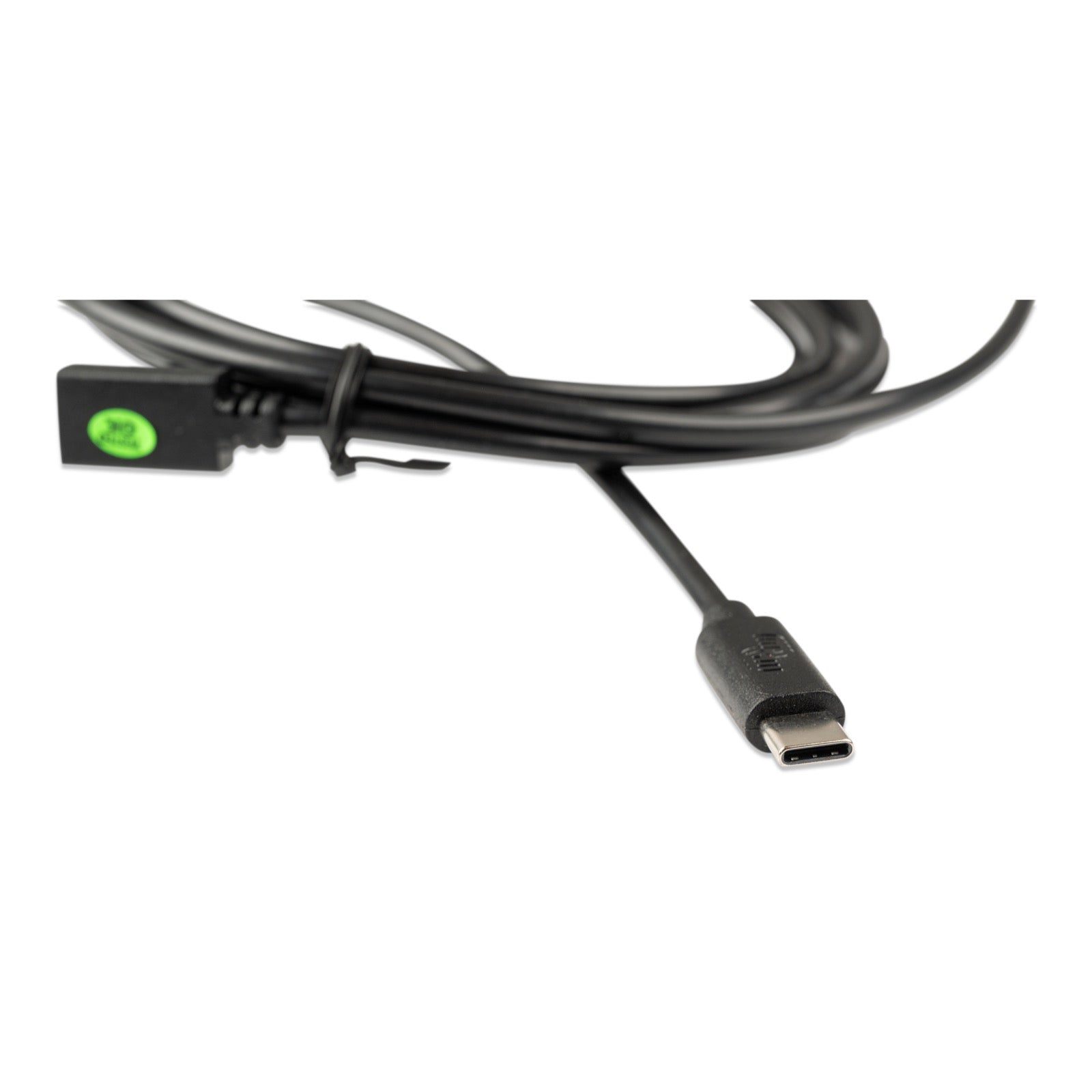

USB-C is a modern, reversible connectivity standard increasingly common on recent laptops and tablets. Using USB-C for this interface ensures native compatibility with these devices without requiring an additional adapter.

The VE.Direct to USB-C interface is an adapter that includes both connectors (VE.Direct and USB-C) and the cable connecting them, forming a ready-to-use assembly.

While it allows real-time monitoring, the VE.Direct to USB-C interface is primarily designed for diagnostics and occasional configuration. For long-term or remote monitoring of your Victron system, solutions like the Cerbo GX or integrated Bluetooth modules are more suitable.

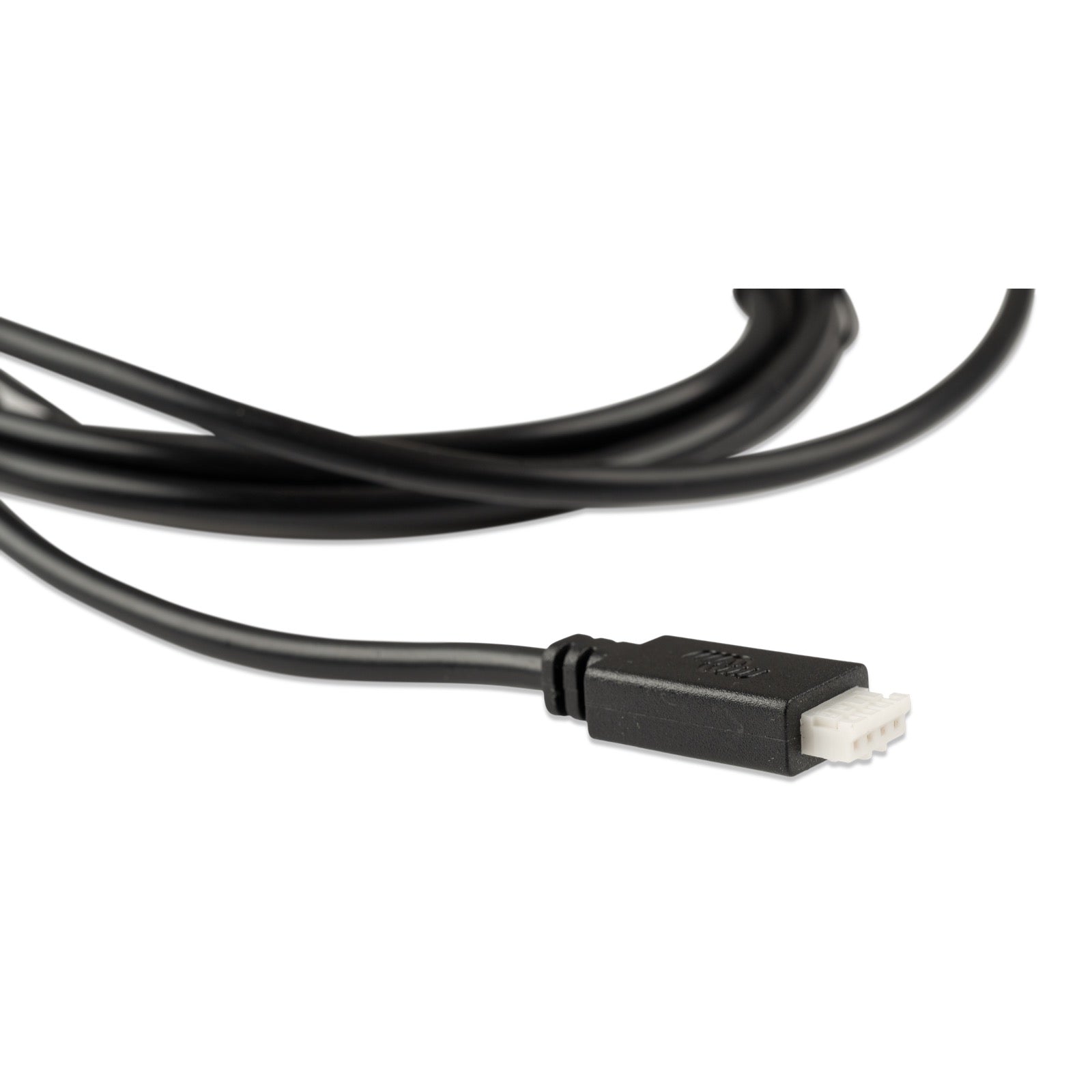

Victron Energy devices equipped with a VE.Direct port are usually identifiable by the "VE.Direct" label next to a small 4-pin connector. You can also check your Victron device’s user manual to confirm the presence of this communication port.

In most cases, the drivers required for the VE.Direct to USB-C interface are generic USB drivers or are included in the VictronConnect software installation. It is rare to need to install drivers manually, but if there is an issue, Victron Energy provides support resources on its website.

The VE.Direct to USB-C interface is an electronic component designed for use in a dry and protected environment, typical of electronic equipment installation areas. It is not specifically designed to be waterproof or resistant to direct moisture or saltwater spray.

If your smartphone or tablet does not have a native USB-C port (for example, a micro-USB or Lightning port), you will need an additional adapter (for example, USB-C to Lightning or USB-C to micro-USB) to connect the interface. Make sure the adapter supports OTG (On-The-Go) for data communication.

No, if your Victron device already has built-in Bluetooth, the VE.Direct to USB-C interface is not strictly necessary for communication and configuration via VictronConnect. Bluetooth provides a wireless connection. However, the USB-C interface can serve as a wired alternative for diagnostics or configuration if Bluetooth connectivity encounters issues.

The interface uses Victron Energy's proprietary VE.Direct communication protocol. This protocol is designed for simple and efficient serial communication between Victron devices and monitoring or configuration devices.

The VictronConnect software is available for free download on the official Victron Energy website. Versions are available for various operating systems, including Windows, macOS, Linux, Android, and iOS.
