Garmin

010-11532-00

Cablu de întoarcere a unghiului de bară

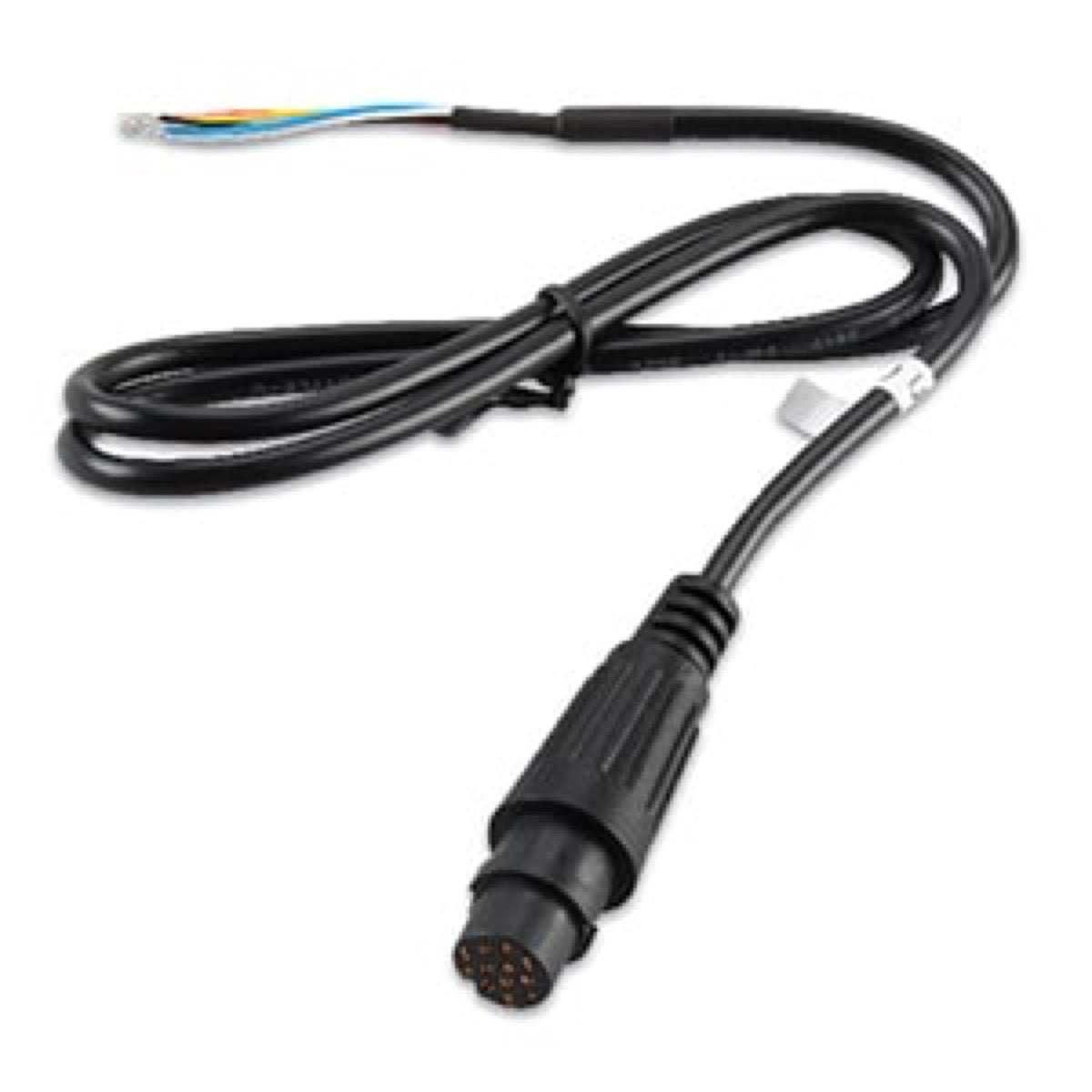

Conçu pour les systèmes Garmin GHP 12 et Reactor 40, le câble de retour de barre 010-11532-00 assure une intégration fiable des capteurs de barre tiers de type potentiomètre. Il fournit des données de position précises pour optimiser la performance du pilote automatique. Le produit inclut le câble de feedback de barre uniquement.

Prix publicBénéficier du tarif pro

72,94 RON

72,94 RON ~~80,98 RON~~

TTC Expediere calculată la momentul plății.

Stoc epuizat

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Secțiune (mm²)	0.34
Secțiune (AWG)	22.0
Număr de conductori	3.0
Culoare	Noir
Tensiune maximă	30.0
Ecranare	Blindé
Flexibilitate	Flexible
Tip curent	DC
Curent nominal	0.1
Material manta	PVC marin
Material conductor	Cuivre étamé
Certificări	CE
Finisaj conductor	Étamé
Tip cablu	Câble de commande
Rețea compatibilă	Systèmes de pilote automatique Garmin (GHP 12, Reactor 40)
Conectoare pre-montate	Un côté moulé, l'autre dénudé
Amplasament instalare	Environnement marin
Aplicație cablu	Retour de position de barre
Temperatură de funcționare	-15°C à 70°C
Temperatură depozitare	-20°C à 85°C
Rază de curbură minimă	20
Tip de conector	Propriétaire Garmin (côté ECU), fils dénudés (côté capteur)
Rezistență UV	Oui
Compatible Autopilot Systems	GHP 12, Reactor 40
Tip senzor compatibil	Potentiomètre à 3 bornes, Codeur rotatif
Connection Point Ecu	Port orange de l'ECU SmartPump
Connection Point Sensor Side	Fils dénudés
Data Signal Type	Position de barre en temps réel
Incompatible Sensor Type	Capteur basé sur la fréquence
Integration Flexibility	Élevée
Jacket Material Properties	Résistance à l'environnement marin, Résistance UV
Max Operating Voltage Dc	30
Nominal Operating Voltage	12/24
Tipul produsului	Câble de retour de barre

Description détaillée

Cablul de întoarcere a barei Garmin (referință 010-11532-00) este un accesoriu conceput pentru a furniza un semnal de poziție a barei către sistemele de pilot automat Garmin compatibile, în special atunci când sunt integrate senzori de bară terți. Acest cablu este destinat în mod specific sistemelor de pilot automat GHP 12 de la Garmin, precum și anumitor instalații de retrofit mecanice sau cu solenoid ale sistemelor Reactor 40, atunci când este folosit un senzor de bară non-Garmin.

Compatibilitate și Integrare Sistem

Acest cablu este compatibil cu orice senzor de bară de tip potențiometru cu 3 borne sau codor rotativ. Se conectează la capătul portului portocaliu al ECU SmartPump, în timp ce celălalt capăt prezintă fire dezizolate pentru conectarea la senzorul de referință al barei terț. Este important de menționat că acest cablu nu este compatibil cu senzorii de întoarcere a barei bazați pe frecvență. Prin transmiterea datelor de poziție a barei în timp real, acesta permite sistemului de pilot automat să optimizeze performanța și să asigure o direcționare precisă. Această abordare oferă flexibilitate de integrare pentru instalațiile existente sau personalizate, unde un senzor de bară terț este deja instalat sau preferat, spre deosebire de soluțiile complet proprietare care necesită senzori de aceeași marcă.

Concepție Marină și Fiabilitate

Fabricat din componente de calitate marină, cablul 010-11532-00 prezintă o construcție robustă și flexibilă, capabilă să reziste în medii marine exigente. Oferă rezistență la sare, raze UV și uzură generală, integrând conectoare anticorozive pentru o durabilitate sporită. Dimensiunile sale compacte și greutatea redusă (aproximativ 0,11 kg pentru cablu) îl fac, de asemenea, o piesă de schimb ușor de păstrat la bord pentru depanarea rapidă a problemelor legate de direcționare sau defecte ale unghiului de bară.

Avis de l'expert

« Garmin rudder angle feedback cable: essential integration for third-party sensors »

This Garmin tiller feedback cable is a critical component for integrators and users looking to maximize the flexibility of their autopilot system. Its role is to ensure the connection between a third-party tiller sensor, such as a potentiometer or 3-terminal rotary encoder, and Garmin GHP 12 or Reactor 40 computers via the SmartPump ECU. It is crucial to verify the compatibility of the third-party sensor, as this cable is not suitable for frequency-based sensors.

Its main advantage lies in its ability to simplify retrofit installations or custom configurations where an existing or preferred tiller sensor is not Garmin-branded. Integration is relatively straightforward: one end plugs into the dedicated orange port of the SmartPump ECU, while the other, with its stripped wires, requires careful connection to the third-party sensor. This solution provides precise tiller position feedback, essential for autopilot algorithm performance, without the need to replace a functional sensor. It is an integration part that adds significant value in terms of system compatibility and maintenance.
