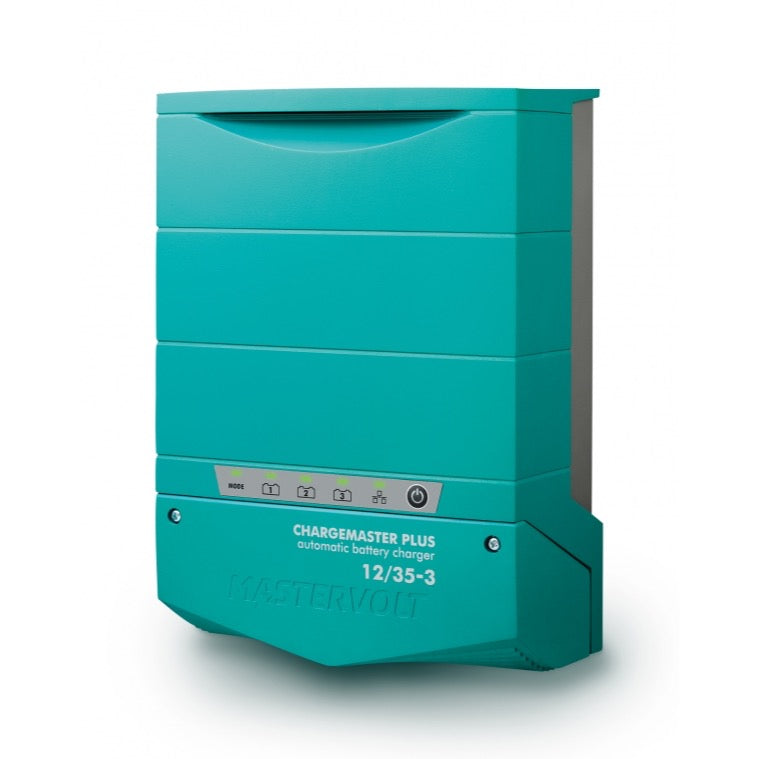

Chageur convertisseur ChargeMaster Plus 12/35-3

Încărcător convertor ChargeMaster Plus 12/35-3

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Economisești 18%

Mastervolt

44310355

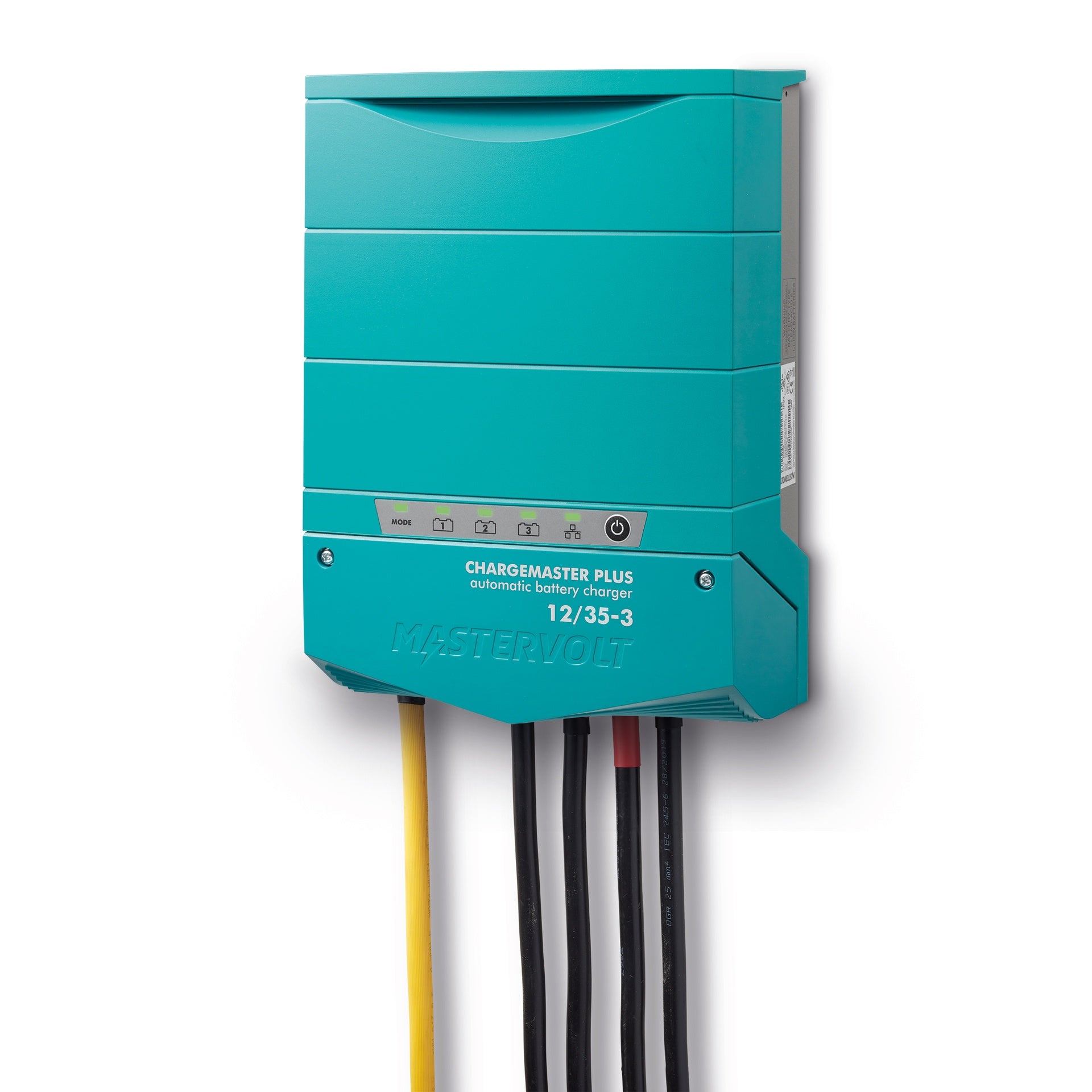

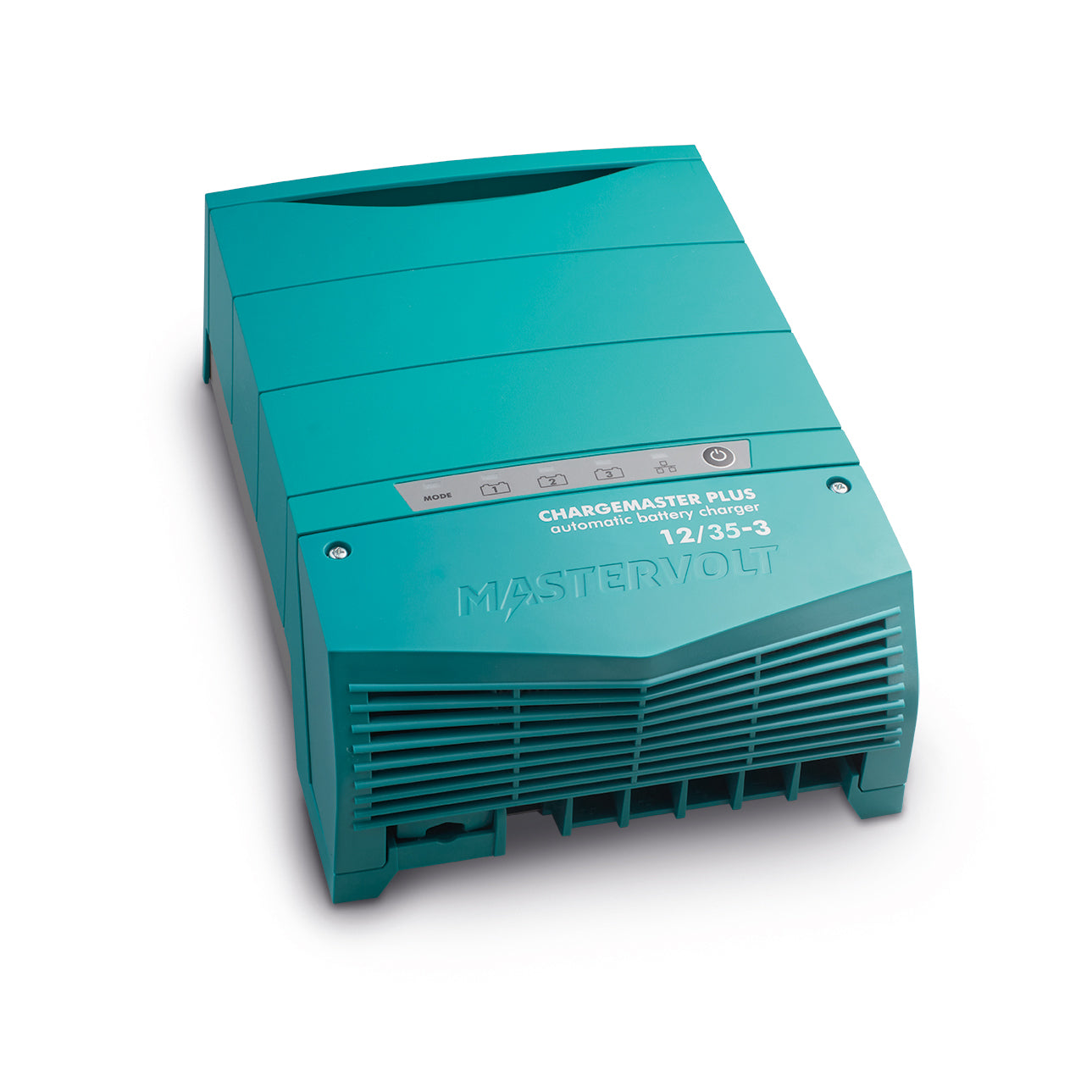

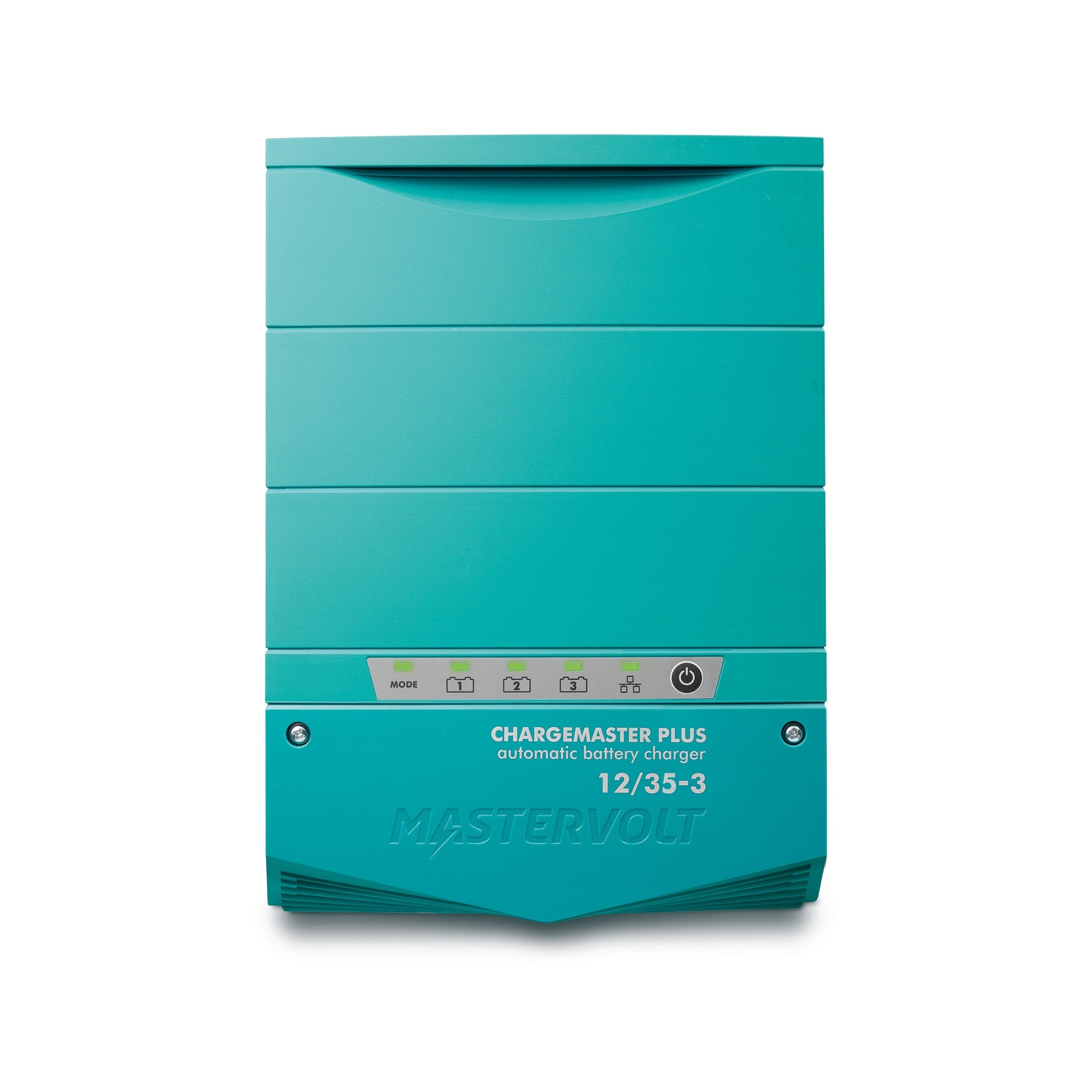

Încărcător convertor ChargeMaster Plus 12/35-3

Le MASTERVOLT ChargeMaster Plus 12/35-3 est un chargeur de batterie automatique 12V/35A avec trois sorties indépendantes, idéal pour les systèmes marins et mobiles. Cette unité de la gamme ChargeMaster Plus, non obsolète, offre une compatibilité étendue avec tous types de batteries, y compris lithium-ion, et une intégration réseau via MasterBus, CZone et NMEA2000. Il est livré avec une sonde de température pour une charge optimisée.

Prix publicBénéficier du tarif pro

2.429,81 RON

2.429,81 RON ~~2.976,45 RON~~

TTC Expediere calculată la momentul plății.

Stoc epuizat

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Senzor temperatură baterie inclus	Oui
Indice IP	IP23

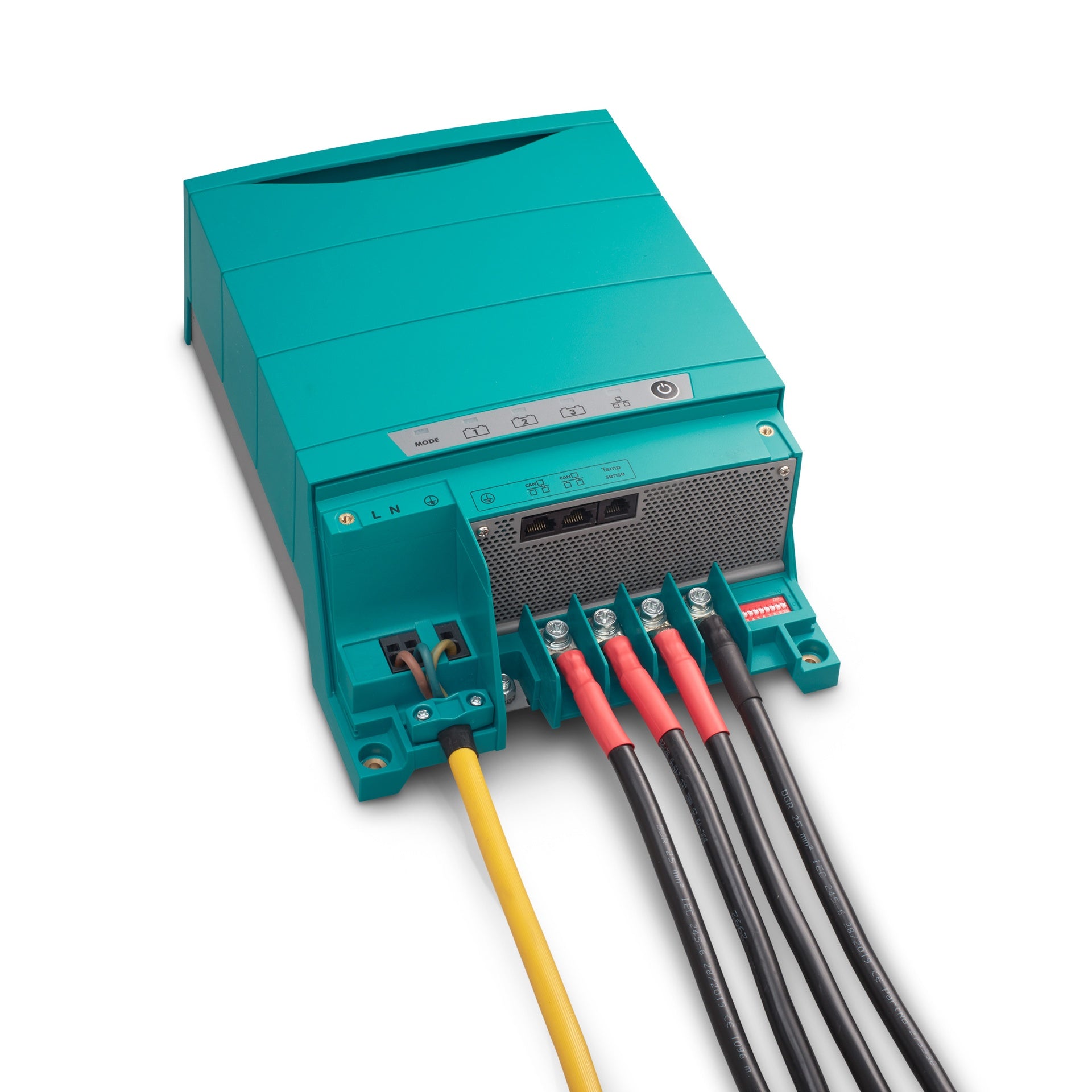

Intrare cablată	Bornier à vis
Rețea cablată	MasterBus, CZone, NMEA2000
Secțiune cablu AC recomandată	2.5
Interval tensiune intrare AC	80-275
Dimensiuni (L x H x P)	291 x 210 x 105
Chimii de baterie suportate	Plomb-acide, Gel, AGM, Lithium-ion
Tensiune de încărcare de absorbție	14.25
Algoritm de încărcare	IUoUo
Faze de încărcare	3 étapes+ (Bulk, Absorption, Float, Pre-float)
Metoda de răcire	Ventilateur vario
Randament maxim	98.0
Tensiune de menținere (Float)	13.25
Curent de intrare AC maxim	5.0
Curent de încărcare maxim (A)	35.0
Secțiune minimă cablu DC	16.0
Tip de montaj	Montage vertical
Tensiune nominală	12.0
Interval de temperatură de funcționare	-25 à 80 °C
Tensiune de ieșire	12.0
Factor de putere (Cos Phi)	0.98
Calibru siguranță recomandat	40.0
Putere continuă la 25°C	420.0
Putere de ieșire continuă (40°C)	420.0
Izolare galvanică	Oui
Interval tensiune intrare	80-275
Proiectat pentru mediu marin	Oui
Tensiune de intrare nominală	230.0
Tensiune de ieșire nominală	12.0
Protecție împotriva suprasarcinilor	Oui
Suport pentru pornire/oprire la distanță	Oui
Protecție împotriva scurtcircuitelor	Oui
Greutate	2.5
Ieșire cablată	Bornier à vis

Accessoires

Interfață MasterBus NMEA 2000

2.442,83 RON

2.442,83 RON ~~2.958,92 RON~~

Cumpără

Cablu de legătură Mastervolt-CZone 1 m

138,37 RON

138,37 RON ~~161,15 RON~~

Cumpără

Cablu MasterBus 1 m

68,28 RON

68,28 RON ~~75,89 RON~~

Cumpără

Afișaj SmartRemote

699,70 RON

699,70 RON ~~854,69 RON~~

Cumpără

Adaptor CEE-7/7 la CEE cu indicator de putere

148,13 RON

148,13 RON ~~178,35 RON~~

Cumpără

Cablu electric 16A - 15 metri 2,5mm²

1.001,05 RON

1.001,05 RON ~~1.199,66 RON~~

Cumpără

Interfață USB MasterBus

938,50 RON

938,50 RON ~~1.068,68 RON~~

Cumpără

Senzor de temperatură 6 m

166,83 RON

166,83 RON ~~190,95 RON~~

Cumpără

Terminator MasterBus RJ45

24,06 RON

Cumpără

Ieșire de contact multifuncțională

997,03 RON

997,03 RON ~~1.167,23 RON~~

Cumpără

Description détaillée

ChargeMaster Plus 12/35-3 de la MASTERVOLT este un încărcător de baterii automat avansat, poziționat ca soluție all-in-one pentru sistemele electrice marine și mobile care necesită performanțe ridicate. Face parte din noua generație ChargeMaster Plus și depășește încărcătoarele convenționale prin combinarea mai multor funcții esențiale într-un singur dispozitiv compact, reducând astfel complexitatea și costurile de instalare. Spre deosebire de modelele mai simple sau de sistemele vechi care necesită încărcătoare separate pentru diferite bancuri de baterii, modelul 12/35-3 integrează o arhitectură „Battery's Best Friend”, permițând încărcarea simultană și optimizată a până la trei bancuri de baterii cu chimii variate (plumb-acid, gel, AGM, litiu-ion) prin intermediul unor profile de încărcare personalizabile și o funcție de pre-floating care împiedică suprasarcina bateriilor mici.

Integrare și Performanțe Tehnice

Acest model livrează o tensiune de ieșire nominală de 12 V cu un curent total de încărcare de 35 A, putând furniza acest curent maxim pe fiecare dintre cele trei ieșiri, cu condiția să nu se depășească limita totală pentru model. Funcționează pe o plajă largă de tensiuni de intrare (80-275 V) și frecvențe (50/60 Hz), asigurând compatibilitate globală. ChargeMaster Plus 12/35-3 menține o alimentare stabilă a sistemului chiar și fără baterie conectată și beneficiază de izolare galvanică pentru o siguranță sporită. Procesul de încărcare este gestionat printr-un algoritm IUoUo în 3+ etape, cu compensare de temperatură (inclusiv sondă) și tensiune CC prin MasterShunt sau automat, optimizând durata de viață a bateriilor.

Conectivitate și Rezistență

ChargeMaster Plus 12/35-3 este echipat cu interfețe de comunicare MasterBus, CZone și NMEA2000, permițând integrare completă și monitorizare detaliată în sisteme complexe. Această conectivitate avansată oferă posibilitatea ajustărilor în timp real și o sinergie optimă cu bateriile litiu-ion Mastervolt și ecranele sistemelor. Designul său robust îi permite să reziste la temperaturi ambiante de la -25 °C la 80 °C (cu reducere de putere peste 40 °C) și la fluctuații mari de tensiune, fiind astfel potrivit pentru medii extrem de solicitante. Răcirea este asigurată de un ventilator vario cu zgomot redus, iar dispozitivul este protejat împotriva supraîncălzirii, suprasarcinii, scurtcircuitelor, tensiunilor anormale ale bateriei și dispune de protecție la aprindere, toate sub un grad de protecție IP23.

Documentations

Type	Nom
	EN - Installation and User Manual - ChargeMaster Plus 12/35-3 Charger/Inverter
	EN - Detailed technical datasheet - ChargeMaster Plus 12/35-3 Battery Charger
	EN - Installation and user manual - ChargeMaster Plus 12/35-3 battery charger/inverter
	EN - User and Installation Manual - ChargeMaster Plus 12/35-3 Charger Converter

Avis de l'expert

Pol CONIN

Responsabil digital

« MASTERVOLT ChargeMaster Plus 12/35-3 charger: versatility and advanced integration »

The MASTERVOLT ChargeMaster Plus 12/35-3 represents a significant advance in onboard energy management. Its "all-in-one" design greatly simplifies the architecture of electrical systems by eliminating the need for multiple chargers. Strategically, its ability to simultaneously manage three battery banks with different chemistries, including lithium-ion with customizable profiles, makes it an ideal choice for modern and scalable installations. Compatibility with MasterBus, CZone, and NMEA 2000 ensures seamless integration with the entire onboard network, enabling precise monitoring and advanced automation. In terms of reliability, this device is designed to withstand extreme marine conditions, with an extended operating temperature range (-25 °C to 80 °C) and IP23 protection. Its ability to provide continuous power without a battery and its temperature and voltage compensation guarantee optimal performance and extended battery bank longevity.

Durabilité

Facilité d'installation

Rapport performance / prix

Pièces de rechange

Ieșire de contact multifuncțională

997,03 RON

997,03 RON ~~1.167,23 RON~~

Cumpără

Senzor de temperatură 6 m

166,83 RON

166,83 RON ~~190,95 RON~~

Cumpără

Terminator MasterBus RJ45

24,06 RON

Cumpără

Capac verde MasterBus

68,33 RON

68,33 RON ~~75,94 RON~~

Cumpără

Kit de conectare MLI Ultra 12 V

1.644,10 RON

1.644,10 RON ~~1.932,42 RON~~

Cumpără

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

Încărcător convertor ChargeMaster Plus 12/35-3

2.429,81 RON

2.429,81 RON ~~2.976,45 RON~~

Complétez votre installation avec des

Équipements complémentaires

Batterie MLI Ultra Lithium 12/1250 - 1,25 kWh

Mastervolt

Baterie MLI Ultra Lithium 12 V 1,25 kWh

Ref : 66011250

8.105,80 RON

Contrôleur de batterie MasterShunt 500 CZone

Mastervolt

Controler baterie MasterShunt 500 CZone

Ref : 77020115

1.779,95 RON

1.779,95 RON ~~1.979,74 RON~~

Convertor sinusoidal Mass Sine 12/2000 (230V/50Hz)

Mastervolt

Convertor sinusoidal Mass Sine 12/2000 (230V/50Hz)

Ref : 24012000

8.681,43 RON

8.681,43 RON ~~11.010,91 RON~~

Regulator de încărcare solară SCM60 MPPT-MB

Mastervolt

Regulator de încărcare solară SCM60 MPPT-MB

Ref : 131906000

3.305,93 RON

3.305,93 RON ~~4.215,01 RON~~

Alternateur Alpha 12/130 III incl. Alpha Pro III

Mastervolt

Alternator Alpha 12/130 III cu Alpha Pro III

Ref : 48612130

6.717,71 RON

6.717,71 RON ~~8.267,91 RON~~

Transformateur d'isolement Mass GI 3.5 kW

Mastervolt

Transformator de izolare MASS GI 3,5 kW

Ref : 88000355

5.544,15 RON

5.544,15 RON ~~7.262,79 RON~~

Mastervolt

Baterie AGM 12 V 225 Ah (grupa 8D)

Ref : 62002250

2.838,72 RON

2.838,72 RON ~~3.534,13 RON~~

Mastervolt

DC Master 12/12-6 izolat

Ref : 81500700

1.104,21 RON

1.104,21 RON ~~1.361,77 RON~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the ChargeMaster Plus 12/35-3 and what is it used for?

The MASTERVOLT ChargeMaster Plus 12/35-3 is an advanced automatic battery charger designed as an all-in-one solution for marine and mobile electrical systems. It efficiently and safely charges up to three battery banks with different chemistries while reducing installation complexity and costs compared to systems requiring multiple chargers.

What are the main features of the ChargeMaster Plus 12/35-3?

Main features include:

A "Battery's Best Friend" architecture for optimized charging of various batteries. Capable of charging up to three battery banks simultaneously. Stable system power supply even without a connected battery. Galvanic isolation for enhanced safety. A 3-step+ IUoUo charging process. DC voltage and temperature compensation to extend battery lifespan. MasterBus, CZone, and NMEA2000 connectivity. Improved cooling for very low noise levels.

How many battery outputs does the ChargeMaster Plus 12/35-3 have?

The ChargeMaster Plus 12/35-3 is equipped with three battery outputs. It can supply the maximum charging current on each of these outputs, provided that the total charging current does not exceed the maximum specified for the model.

What is the output voltage and current of this charger?

This model delivers a nominal output voltage of 12 V with a total charging current of 35 A. It can supply this maximum current on each of its three outputs, provided the total does not exceed the device's limit.

Can the ChargeMaster Plus 12/35-3 power my system without a connected battery?

Yes, the ChargeMaster Plus 12/35-3 is designed to maintain stable power supply to the system even without a battery connected, which is a useful feature for various applications.

What are the dimensions and weight of the ChargeMaster Plus 12/35-3?

The ChargeMaster Plus 12/35-3 has dimensions of 291 x 210 x 105 mm (Height x Width x Depth) and weighs 2.5 kg.

Is the ChargeMaster Plus 12/35-3 quiet?

Yes, the ChargeMaster Plus 12/35-3 integrates enhanced cooling technology that delivers very low noise levels across the entire power range, ensuring quiet operation.

What protections does the ChargeMaster Plus 12/35-3 include?

The ChargeMaster Plus 12/35-3 is equipped with multiple protections to ensure system and battery safety, including against overheating, overcharging, short circuits, high/low battery voltages, and ignition protection.

What is the charging method used by the ChargeMaster Plus 12/35-3?

The ChargeMaster Plus 12/35-3 uses a 3-step+ IUoUo charging process. This process is automatic and suitable for Gel, AGM, flooded lead-acid, and Lithium Ion batteries, with the option to set a custom profile.

What types of batteries can the ChargeMaster Plus 12/35-3 charge?

The ChargeMaster Plus 12/35-3 is compatible with a wide range of batteries, including lead-acid, gel, AGM, and lithium-ion batteries. It features charging profiles tailored to these different chemistries, as well as the ability to create custom profiles.

Is the ChargeMaster Plus 12/35-3 compatible with MasterBus, CZone, or NMEA 2000 systems?

Yes, the ChargeMaster Plus 12/35-3 is fully compatible and equipped with communication interfaces for MasterBus, CZone, and NMEA2000 systems. This allows complete integration and monitoring within a larger electrical system.

Can batteries with different chemistries be charged simultaneously with this charger?

Yes, thanks to its "Battery's Best Friend" architecture, the ChargeMaster Plus 12/35-3 allows simultaneous and optimized charging of up to three battery banks with varied chemistries (flooded lead-acid, gel, AGM, lithium-ion). The pre-floating function prevents overcharging of small batteries.

Does this charger work with different AC voltages and frequencies worldwide?

Yes, the ChargeMaster Plus 12/35-3 is designed to operate across a wide input voltage range (80–275 V) and frequencies (50/60 Hz), ensuring global compatibility with virtually all mains voltages and frequencies.

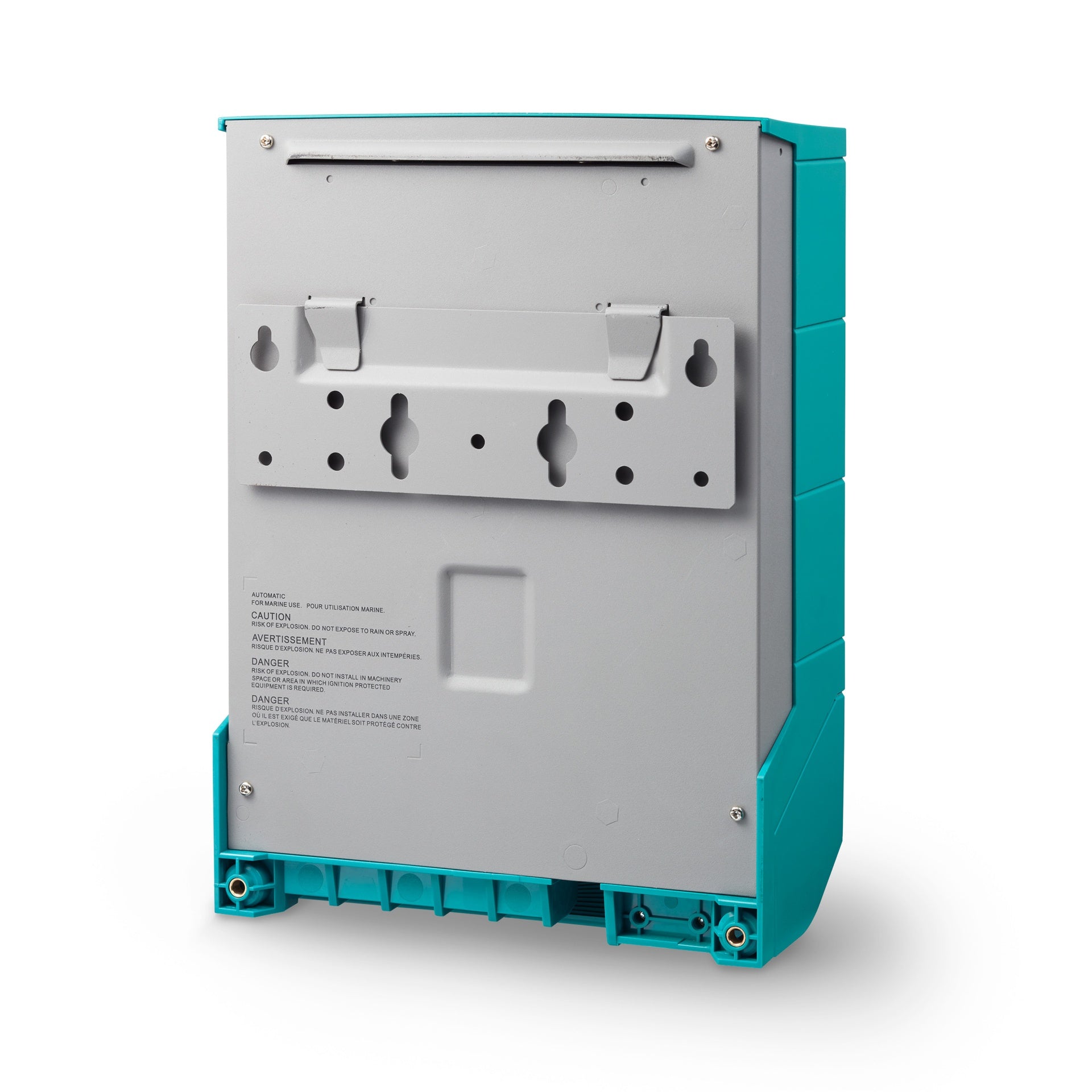

Where can I install the ChargeMaster Plus 12/35-3?

The ChargeMaster Plus 12/35-3 must be installed in a well-ventilated area. It is designed for vertical mounting. It must not be placed directly above a charging battery, in an enclosed unventilated space, or have its ventilation openings covered.

What is the protection rating (IP) of the ChargeMaster Plus 12/35-3?

The ChargeMaster Plus 12/35-3 has an IP23 protection rating. This means it is protected against solid objects larger than 12.5 mm and against rain falling up to 60° from the vertical.

Does installing the ChargeMaster Plus 12/35-3 require specific skills?

Yes, installation of the ChargeMaster Plus 12/35-3 and any work performed on it must be carried out solely by qualified and trained personnel, in accordance with applicable local standards and regulations. This is a device designed to be permanently connected to an AC and DC electrical system.

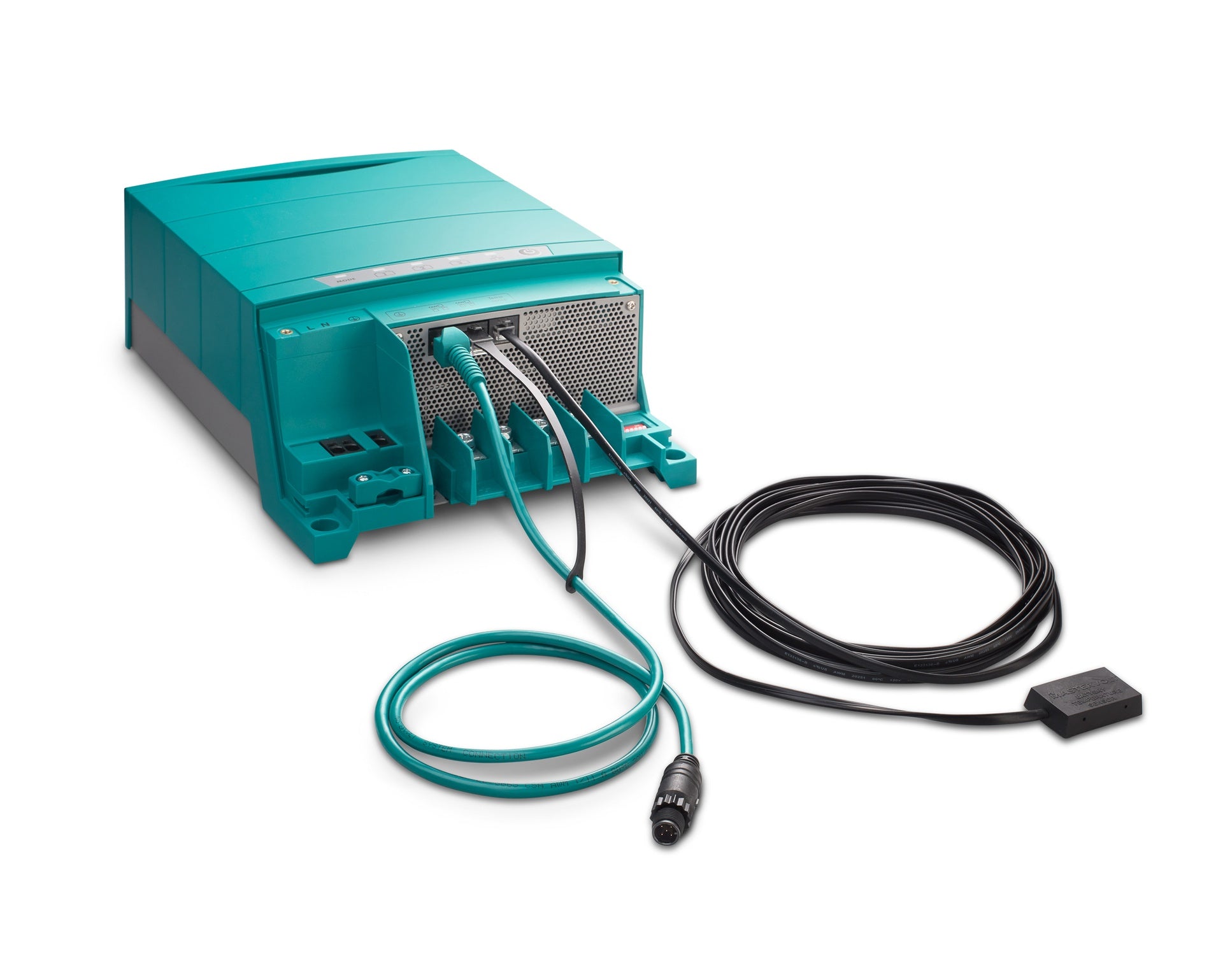

Is the charger supplied with a temperature sensor?

Yes, the ChargeMaster Plus 12/35-3 comes with an included temperature sensor for temperature compensation, which optimizes the charging process and extends battery life.

What is the warranty duration for the ChargeMaster Plus 12/35-3?

The ChargeMaster Plus 12/35-3 comes with a two-year product warranty from the date of purchase. This warranty is valid provided the product is installed and used in accordance with the instructions provided in the user manual.
