Whale

BP2054

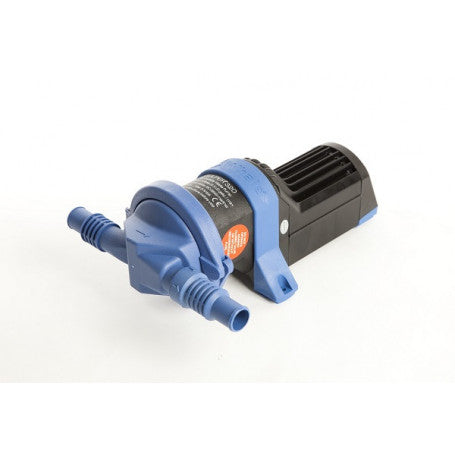

Pompă electrică Gulper 320 24 V

La pompe électrique Whale Gulper 320 24V est une solution sans filtre pour les eaux grises et les petites cales, offrant un débit de 19 L/min (5 US GPM) sous 24V DC. Conçue pour un montage à distance avec une tête rotative à 360°, elle fonctionne à sec sans dommage et est protégée contre l'allumage (ISO8846). Idéale comme pompe de cale primaire pour les navires jusqu'à 12 mètres, elle est fournie seule.

Prix publicBénéficier du tarif pro

1.725,50 RON

1.725,50 RON ~~1.983,12 RON~~

TTC Expediere calculată la momentul plății.

Stoc redus

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Dry Run Capability	Oui
Filter Presence	Non
Flow Rate	19 (5 US GPM)
Protecție antiexplozivă	Oui
Tensiune de funcționare	24
Power Consumption Max Current A	3.25
Pump Type	Diaphragme
Calibru siguranță recomandat	5
Voltage Range	21.6 V à 27.2 V
Greutate	1.6

Description détaillée

Concepută pentru aplicații marine exigente, pompa electrică Whale Gulper 320 24V (referință BP2054) este o pompă cu diafragmă fără filtru, destinată gestionării apelor gri și a micilor cale. Funcționează la o tensiune de alimentare de 24V DC (interval de tensiune între 21,6 V și 27,2 V DC), asigură un debit de 19 litri pe minut (5 US GPM), cu un consum maxim de curent de 3,25 amperi și un siguranță recomandată de 5 amperi de tip auto.

Concepție și performanță tehnică

Gulper 320 se remarcă prin designul fără filtru, eliminând riscul de înfundare și simplificând întreținerea. Capacitatea sa de a funcționa în gol fără a suferi daune, asociată cu protecția împotriva aprinderii (ISO8846), o face o soluție fiabilă pentru mediile marine. Capul pompei, fabricat din nailon armat cu fibră de sticlă, precum și valvele/diafragmele din Santoprene® contribuie la durabilitatea sa. Cu conexiuni pentru furtunuri compatibile cu diametre de 19 mm (3/4") și 25 mm (1"), oferă flexibilitate în instalare. Poate susține o înălțime maximă de aspirație de 3 metri și o înălțime maximă de refulare de 3 metri, cu o înălțime combinată maximă de 4 metri.

Poziționare în gama Whale

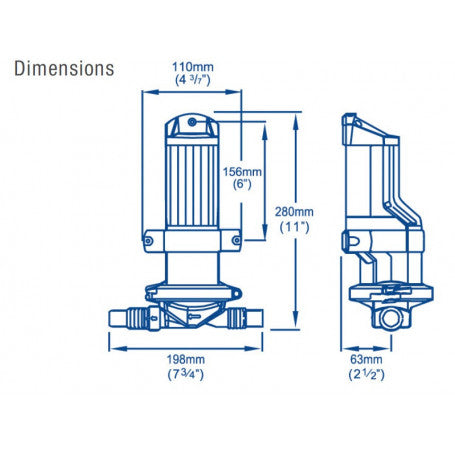

Gulper 320 se poziționează ca o pompă de cale primară pentru nave de până la 12 metri, conformă cu standardul ISO15083, depășind modele precum Gulper 220 (14 L/min) în ceea ce privește debitul. Spre deosebire de kiturile Gulper IC (referințe SI82XX, SI84XX, WM8XXX, SG8XXX) care integrează funcționalități automate și senzori, Gulper 320 este o pompă autonomă, oferind simplitate în integrare. Se diferențiază de pompele submersibile din gama Orca sau Supersub, care necesită montaj la distanță pentru instalare într-un loc uscat și protejat. Greutatea de 1,6 kg și dimensiunile compacte (273 x 111 x 117 mm) facilitează integrarea în spații restrânse. Este furnizată fără accesorii suplimentare, concentrându-se pe performanța pompei în sine.

Documentations

Type	Nom
	EN - Guide d'installation - Pompe électrique Gulper 320 24 V
	EN - Manuel d'installation et d'utilisation - Pompe électrique Gulper 320 24 V
	EN - Tableau comparatif des pompes de cale manuelles - Pompe électrique Gulper 320 24 V
	EN - Liste des pièces détachées et accessoires - Pompe électrique Gulper 320 24 V
	EN - Guide de sélection - Pompe électrique Gulper 320 24 V

Avis de l'expert

Pol CONIN

Responsabil digital

« Technical analysis: Whale Gulper 320 24V electric pump »

The Whale Gulper 320 24V pump (BP2054) is a strategic choice for vessels requiring a reliable, low-maintenance gray water or bilge pumping solution. Its diaphragm architecture, which requires no filter, is a major advantage as it eliminates recurring clogging issues common with traditional pumps—critical for maintaining the integrity of the onboard system. Its ability to run dry without damage ensures increased durability, a key factor for equipment installed in demanding marine environments. The 24V voltage makes it suitable for the electrical systems of medium to large boats. Its designation as a primary bilge pump for vessels up to 12 meters, per ISO15083 standards, underscores its compliance with safety and performance requirements. The remote mounting option, facilitated by a 360° swivel head, offers significant installation flexibility, allowing it to be placed in a dry, protected compartment away from potentially cluttered bilge areas—unlike submersible pumps, which are directly exposed to debris. For optimal integration, it is recommended to use 19 mm (3/4") or 25 mm (1") hoses and adhere to a minimum cable size of 1.5 mm² (16 AWG) to ensure consistent performance and prevent voltage drop.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

Pompă electrică Gulper 320 24 V

1.725,50 RON

1.725,50 RON ~~1.983,12 RON~~

Complétez votre installation avec des

Équipements complémentaires

BEP Marine

Cupă-baterie telecomandată 275A 32V

Ref : AD185

984,22 RON

984,22 RON ~~1.288,51 RON~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the flow rate of the Whale Gulper 320 24 V electric pump?

The Whale Gulper 320 24 V electric pump delivers a flow rate of 19 litres per minute, equivalent to 5 US GPM (US gallons per minute).

What is the required operating voltage for this pump?

The Whale Gulper 320 electric pump operates on a 24 V DC power supply. Its voltage range is from 21.6 V DC to 27.2 V DC.

Can the Gulper 320 pump run dry without sustaining damage?

Yes, the Whale Gulper 320 pump is designed to run dry without sustaining damage, ensuring reliability and extending its service life.

What type of pump is the Gulper 320?

The Gulper 320 is a diaphragm pump without a filter. This unique design eliminates clogging risks and greatly simplifies maintenance.

What are the main materials used in the construction of the Gulper 320 pump?

The Gulper 320 pump is made from robust materials for increased durability in marine environments:

The pump head is made of glass-reinforced nylon. The valves and diaphragm are made of Santoprene®. The pump body is made of aluminum. The fasteners are made of stainless steel.

What is the weight of the Gulper 320 electric pump?

The Whale Gulper 320 24 V electric pump weighs 1.6 kg.

Is the Gulper 320 pump spark-proof?

Yes, the Gulper 320 pump is fitted with ignition protection compliant with ISO 8846, making it safe for use in marine environments.

To which standard is the Gulper 320 compliant as a primary bilge pump?

The Gulper 320 is positioned as a primary bilge pump for vessels up to 12 meters, in accordance with ISO15083.

What is the maximum current consumption of the Gulper 320 pump?

The maximum current consumption of the Gulper 320 pump is 3.25 amperes.

What is the maximum suction and discharge height of the Gulper 320 pump?

The Gulper 320 pump can handle a maximum suction height of 3 meters and a maximum discharge height of 3 meters. The combined maximum height (suction + discharge) is 4 meters.

What pipe dimensions are compatible with the Gulper 320 pump?

The Gulper 320 pump is compatible with 19 mm (3/4") and 25 mm (1") hose connections, offering installation flexibility.

What is the minimum wire gauge recommended for the pump's electrical installation?

To ensure optimal performance and prevent voltage drop, it is recommended to use a minimum wire gauge of 1.5 mm² (16 AWG) for the pump's electrical installation.

What type of fuse is recommended for the Gulper 320 pump and what is its rating?

A 5 amp automotive fuse is recommended to protect the Gulper 320 pump from damage in case of system blockage.

How should I orient the pump during installation?

During installation, position the pump on a stable surface and determine the best angles for the pipes to avoid bends. Then, mark the three hole positions using the pump's feet for secure mounting.

Is the Gulper 320 pump suitable for pumping grey water or black water?

The Gulper 320 pump is designed for managing gray water and small bilges. It is not intended for pumping black water.

What size of boat is this pump suitable for?

The Gulper 320 is perfectly suited as a primary bilge pump for vessels up to 12 meters in length, in accordance with ISO15083 standards.

Is the Gulper 320 pump an automatic pump?

No, the Gulper 320 pump is a standalone pump. It does not have automatic functions or integrated sensors like the Gulper IC kits, which are automatic.
