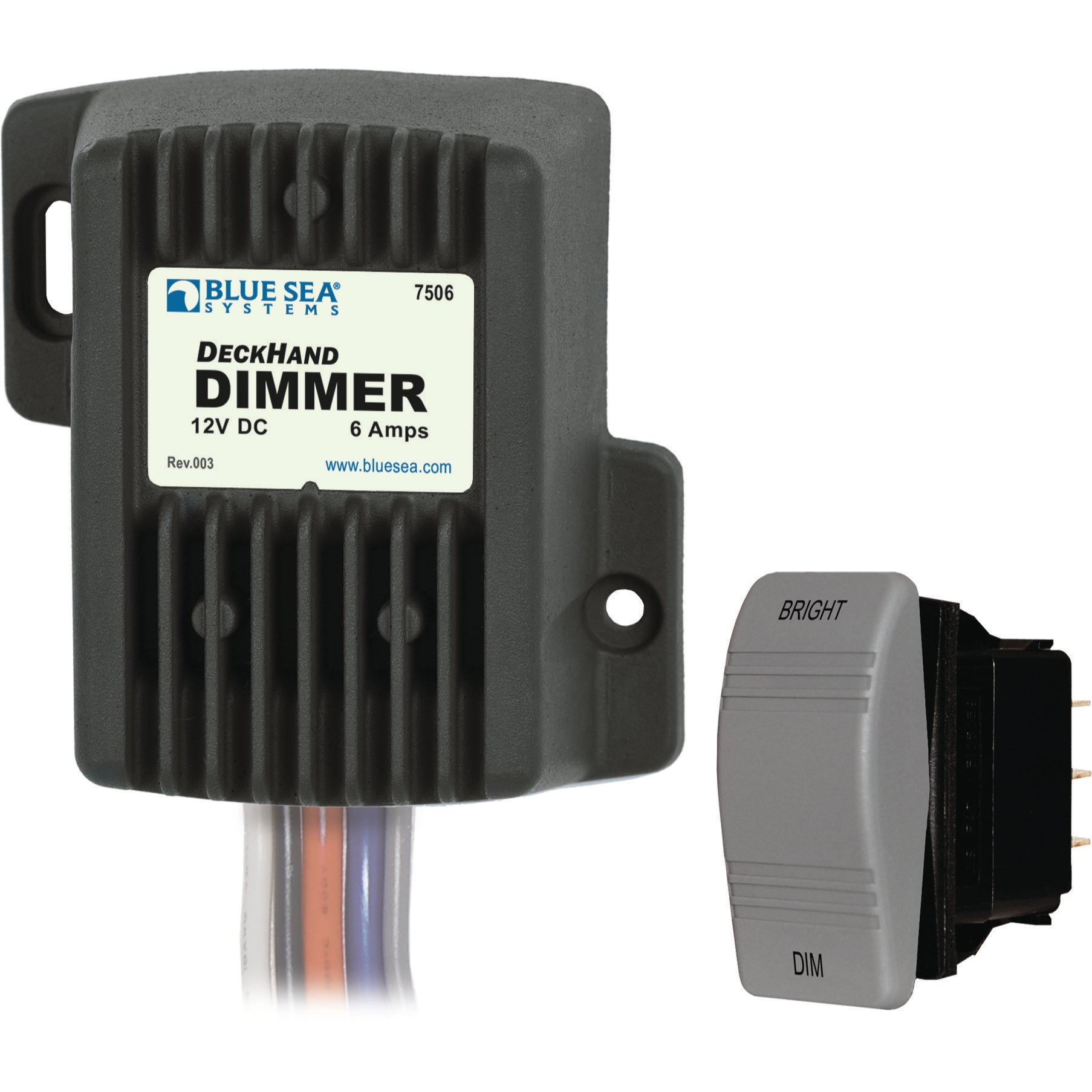

Deckhand Dimmer - 12V DC 6A - Deckhand Dimmer - 12V DC 6A

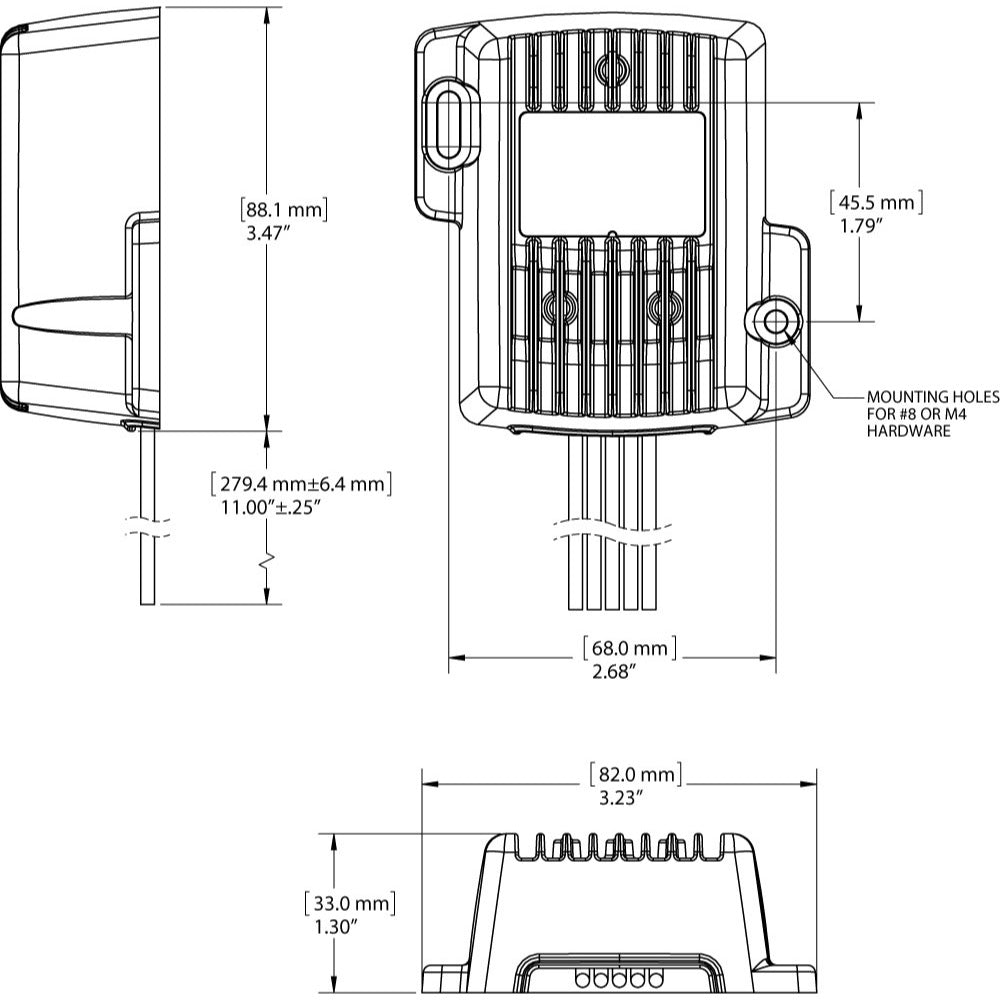

Deckhand Dimmer - 12V DC 6A - Dimensioned Drawing

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Prihranek 11%

Blue Sea Systems

7506-BSS

Regulator Deckhand - 12 V DC 6 A

Q: What type of lighting can the Deckhand 7506-BSS dimmer control?

The Deckhand 7506-BSS dimmer is designed to digitally control the light intensity of unregulated LED lighting, incandescent lights, and halogen lights.

Q: What is the nominal operating voltage of this Blue Sea Systems variable speed drive?

This variable speed drive operates at a nominal voltage of 12 V DC.

Q: What is the input voltage range accepted by the Deckhand 7506-BSS drive?

The Deckhand 7506-BSS drive can operate within an input voltage range from 9 V to 16 V DC.

Q: What is the maximum output current capacity of this drive?

The Deckhand 7506-BSS drive has a maximum output current capacity of 6 A.

Q: What is the function of the integrated 'Bulb Saver' in the dimmer?

The 'Bulb Saver' function (bulb saver) is designed to prevent excessive aging of bulbs during the charging phases of the boat's electrical system.

Q: Does the dimmer store the last brightness setting?

Yes, the Deckhand 7506-BSS dimmer stores the last brightness setting used.

Q: What is the operating temperature range of this drive?

The drive is designed to operate within a wide temperature range, from -40 °C to 85 °C.

Q: What is the maximum standby current of the device?

The Deckhand 7506-BSS drive’s maximum standby current is less than 2 mA.

Q: What type of brightness control does the Deckhand dimmer use?

The dimmer uses continuous pulse-width modulation (PWM) control, allowing adjustment from 0 to 100 % of the input voltage.

Q: Is this drive supplied with a switch?

Yes, the drive is supplied with a momentary (ON)-OFF-(ON) switch.

Le variateur Deckhand 7506-BSS de BLUE SEA est une solution numérique de 12 V CC et 6 A pour le contrôle de l'intensité des éclairages marins (LED non régulées, incandescents, halogènes).

Il offre une modulation PWM continue, une mémoire de réglage, et une fonction "bulb saver", et est livré avec un interrupteur momentané (ON)-OFF-(ON).

Ce modèle, qui remplace les 7501/7502, fait partie de la gamme Deckhand, reconnue pour sa fiabilité et sa conformité aux normes ISO 8846 et SAE J1171.

Napetost: 12 V

12 V 24 V

Tok: 6 A

6 A 12 A

Public priceGet pro pricing

98,34€

98,34€ ~~110,58€~~

DDV vključen Dostava se izračuna ob plačilu.

Na zalogi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Technical specifications

Vrsta vmesnika za upravljanje	Numérique (PWM)
Vrsta upravljanja	Interrupteur momentané (ON)-OFF-(ON)
Združljivi sistemi osvetlitve	LED non régulées, incandescentes, halogènes
Zone Control	Non
Območje delovne napetosti	9-16
Tipična poraba električne energije	<0.024
Vrsta namestitve	Montage sur panneau
Dimenzije izdelka	82.55 x 88.9 x 44.45
Podpora za zatemnitev	Oui
Vsebina paketa	Variateur Deckhand, interrupteur momentané (ON)-OFF-(ON)
Certifikati	CE,ISO 8846,SAE J1171,SAE J1455,SAE J1113
Ime proizvajalca	BLUE SEA SYSTEMS
Številka dela proizvajalca	7506
Maximum Output Current	6
Maximum Parasitic Current	2
Nazivna napetost	12
Maksimalna delovna temperatura	85
Minimalna delovna temperatura	-40
SKU izdelka	7506-BSS

Detailed description

Namenjen za upravljanje morskih svetilk, regulator Deckhand 7506-BSS podjetja BLUE SEA SYSTEMS zagotavlja natančno digitalno regulacijo svetlobnega intenziteta. Ta naprava je združljiva z neurejenimi LED, žarnicami in halogenkami, ki delujejo pri nazivni napetosti 12 V DC, z delovnim območjem od 9 V do 16 V.

Tehnične značilnosti in delovanje

Regulator Deckhand 7506-BSS uporablja kontinuirano regulacijo s širinsko modulacijo impulzov (PWM), kar omogoča nastavitev od 0 do 100 % vhodne napetosti. Njegova maksimalna izhodna moč je 6 A, medtem ko je preostali tok manjši od 2 mA. Deluje v širokem temperaturnem območju, od -40 °C do 85 °C. Funkcija varovanja žarnic preprečuje predčasno staranje žarnic med fazami polnjenja sistema. Ta model ima tudi pomnilnik za zadnjo nastavitev svetlosti in izhod z osvetlitvijo z nastavljivim zakasnitvijo od 1 do 5 minut za olajšanje izhoda. Njegove prestavljene montažne nogice omogočajo tesno nameščanje več regulatorjev, in je dobavljen z momentnim stikalom (ON)-OFF-(ON).

Pozicija in skladnost

Regulator Deckhand 7506-BSS predstavlja vsestransko rešitev za upravljanje osvetlitve v morskih krmilnih krogih z majhno do srednjo močjo. V seriji Deckhand predstavlja 12 V DC različico z najmanjšo močjo (6 A), ki jo dopolnjujejo modeli 7507 (12 A) in 7508 (25 A) za večje potrebe, ter različice 24 V DC (7504, 7509). Ta regulator je v skladu z normami za zaščito pred vžigom ISO 8846 in SAE J1171 ter je označen s CE, kar zagotavlja njegovo zanesljivost in varnost v morskem okolju. Zamenjuje starejše modele 7501 ali 7502 tega podjetja, ponuja izboljšano funkcionalnost z dimenzijami 82,55 mm širine in 88,9 mm višine.

Documentation

Type	Nom
	EN - Instructions - Deckhand Dimmer - 12V DC 6A
	EN - Deckhand Dimmer - Deckhand Dimmer - 12V DC 6A

Payment and security

Your payment information and data are processed securely.

Regulator Deckhand - 12 V DC 6 A

98,34€

98,34€ ~~110,58€~~

Frequently asked questions

Need help? Contact us

What type of lighting can the Deckhand 7506-BSS dimmer control?

The Deckhand 7506-BSS dimmer is designed to digitally control the light intensity of unregulated LED lighting, incandescent lights, and halogen lights.

What is the nominal operating voltage of this Blue Sea Systems variable speed drive?

This variable speed drive operates at a nominal voltage of 12 V DC.

What is the input voltage range accepted by the Deckhand 7506-BSS drive?

The Deckhand 7506-BSS drive can operate within an input voltage range from 9 V to 16 V DC.

What is the maximum output current capacity of this drive?

The Deckhand 7506-BSS drive has a maximum output current capacity of 6 A.

What is the function of the integrated 'Bulb Saver' in the dimmer?

The 'Bulb Saver' function (bulb saver) is designed to prevent excessive aging of bulbs during the charging phases of the boat's electrical system.

Does the dimmer store the last brightness setting?

Yes, the Deckhand 7506-BSS dimmer stores the last brightness setting used.

What is the operating temperature range of this drive?

The drive is designed to operate within a wide temperature range, from -40 °C to 85 °C.

What is the maximum standby current of the device?

The Deckhand 7506-BSS drive’s maximum standby current is less than 2 mA.

What type of brightness control does the Deckhand dimmer use?

The dimmer uses continuous pulse-width modulation (PWM) control, allowing adjustment from 0 to 100 % of the input voltage.

Is this drive supplied with a switch?

Yes, the drive is supplied with a momentary (ON)-OFF-(ON) switch.

What are the physical dimensions of the Deckhand 7506-BSS autopilot drive unit?

The dimensions of the Deckhand 7506-BSS autopilot drive unit are:

Width: 3.25 inches (82.55 mm)Height: 3.5 inches (88.9 mm)

Is this drive compliant with safety and regulatory standards?

Yes, the Deckhand 7506-BSS drive is CE marked and meets the ignition protection requirements of ISO 8846 and SAE J1171.

Can I use this dimmer with LED lights that are already regulated?

No, this dimmer is specifically designed to control the intensity of unregulated LEDs. It may not function correctly or could damage regulated LEDs.

Is this variable speed drive compatible with a 24 V DC electrical system?

No, the 7506-BSS model is designed for 12 V DC systems. For 24 V DC systems, other models in the Deckhand range are available, such as PN 7504 or 7509.

Can this dimmer be used with other types of bulbs than LED, incandescent, or halogen?

The dimmer is specifically designed for unregulated LED lighting, incandescent, and halogen bulbs. Use with other types of bulbs is not guaranteed and may not function correctly.

How does the delayed dimmed output function work?

The delayed dimmed output function keeps the lights on for an adjustable duration after turning off the dimmer. Here’s how to set it:

1-minute delay: Hold the switch in the high (lit) position for 2 seconds. The lights will flash. Release the switch after the first flash. The lights will stay on for 1 minute.Delay of 2 to 5 minutes: Hold the switch in the high (lit) position for 1 to 4 seconds after the first flash. Release the switch after 2 to 5 flashes. The lights will stay on for 1 minute per flash, up to a maximum of 5 minutes.

Is it possible to install multiple Deckhand drives side by side?

Yes, the Deckhand 7506-BSS drive has offset mounting feet that allow installation of multiple drives very close to each other.

Does the dimmer support multiple switch locations for lighting control?

Yes, the Deckhand 7506-BSS dimmer is designed to support multiple switch locations, providing installation flexibility.

How to adjust the delay for the illuminated exit function?

To adjust the delay for the illuminated exit function:

For a 1-minute delay: Hold the switch in the high (illuminated) position for 2 seconds until the lights flash once. Release the switch.For delays of 2 to 5 minutes: Hold the switch in the high (illuminated) position for 1 to 4 seconds after the first flash, then release the switch after the number of flashes corresponding to the desired minutes (e.g., 3 flashes for 3 minutes).

What are the main connections for installing the Deckhand dimmer?

The main connections for the Deckhand dimmer are as follows:

+12V DC (red) : Positive power supply.Ground (black) : Ground.Lamp (blue) : Connection to the lighting.Up Input (white) : Input to increase brightness.Down Input (gray) : Input to decrease brightness.A (ON)-OFF-(ON) switch is included for brightness control.
