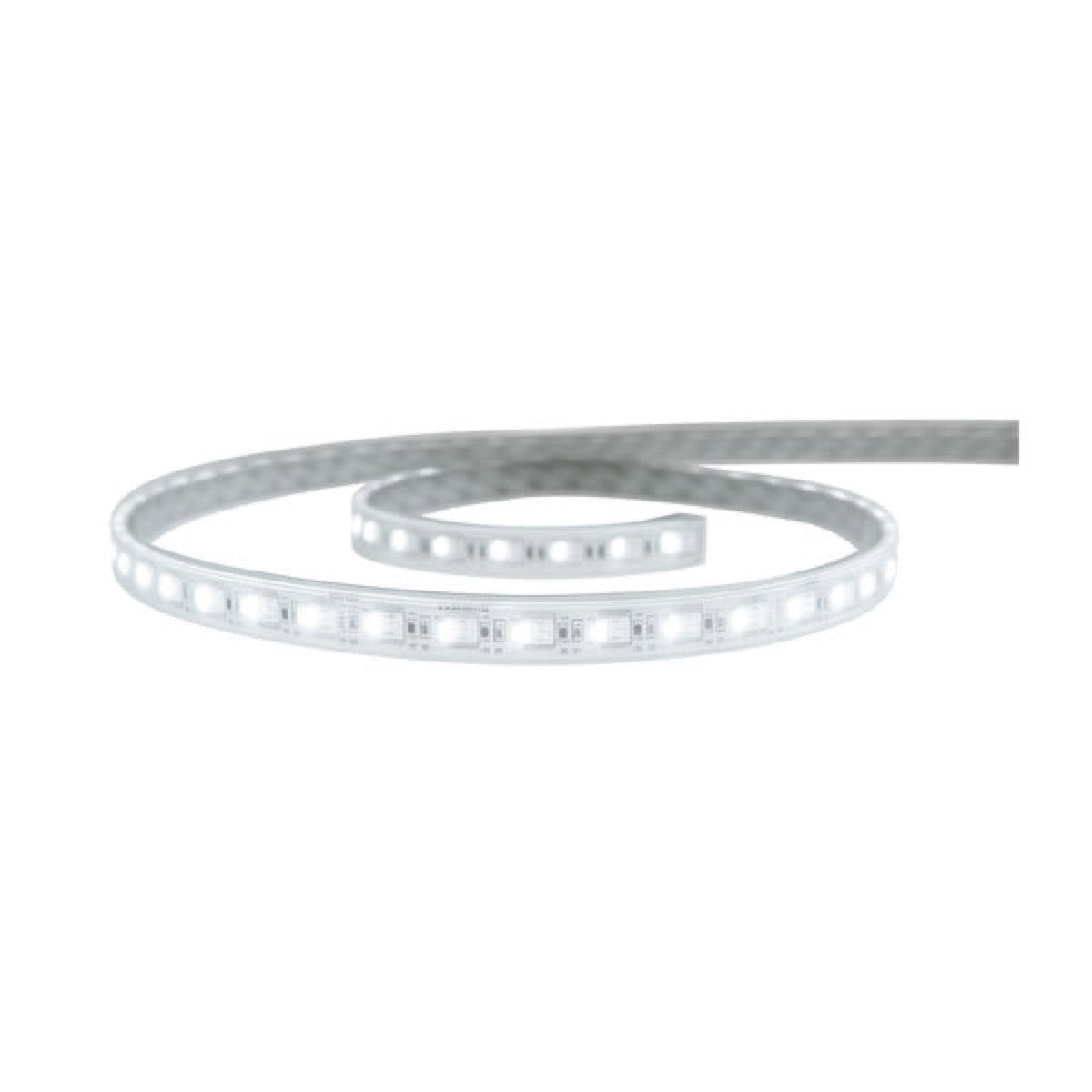

LUX SL180, Strip Light, CRGBW, 300mm - Garmin image 1

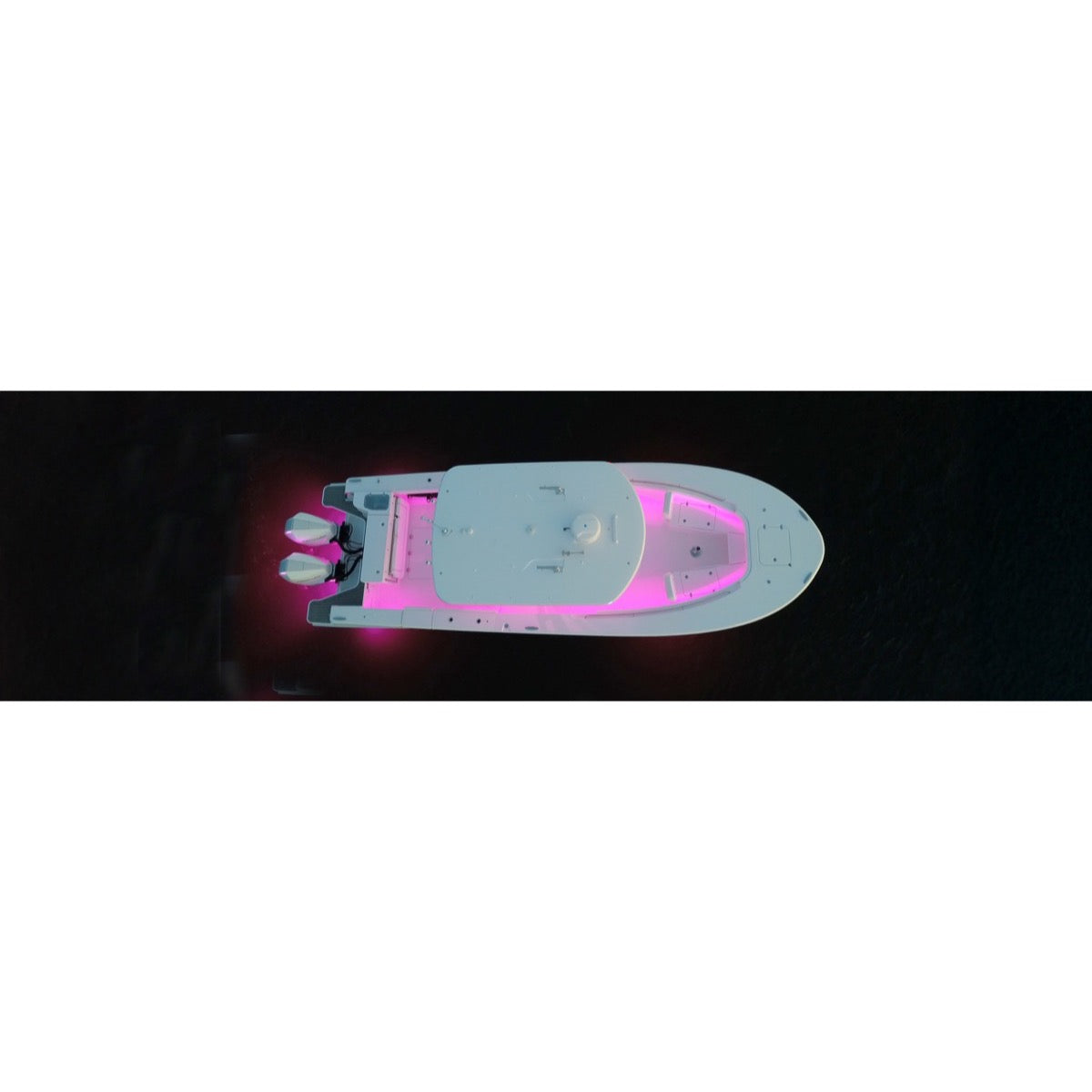

LUX SL180, Strip Light, CRGBW, 300mm - Garmin image 2

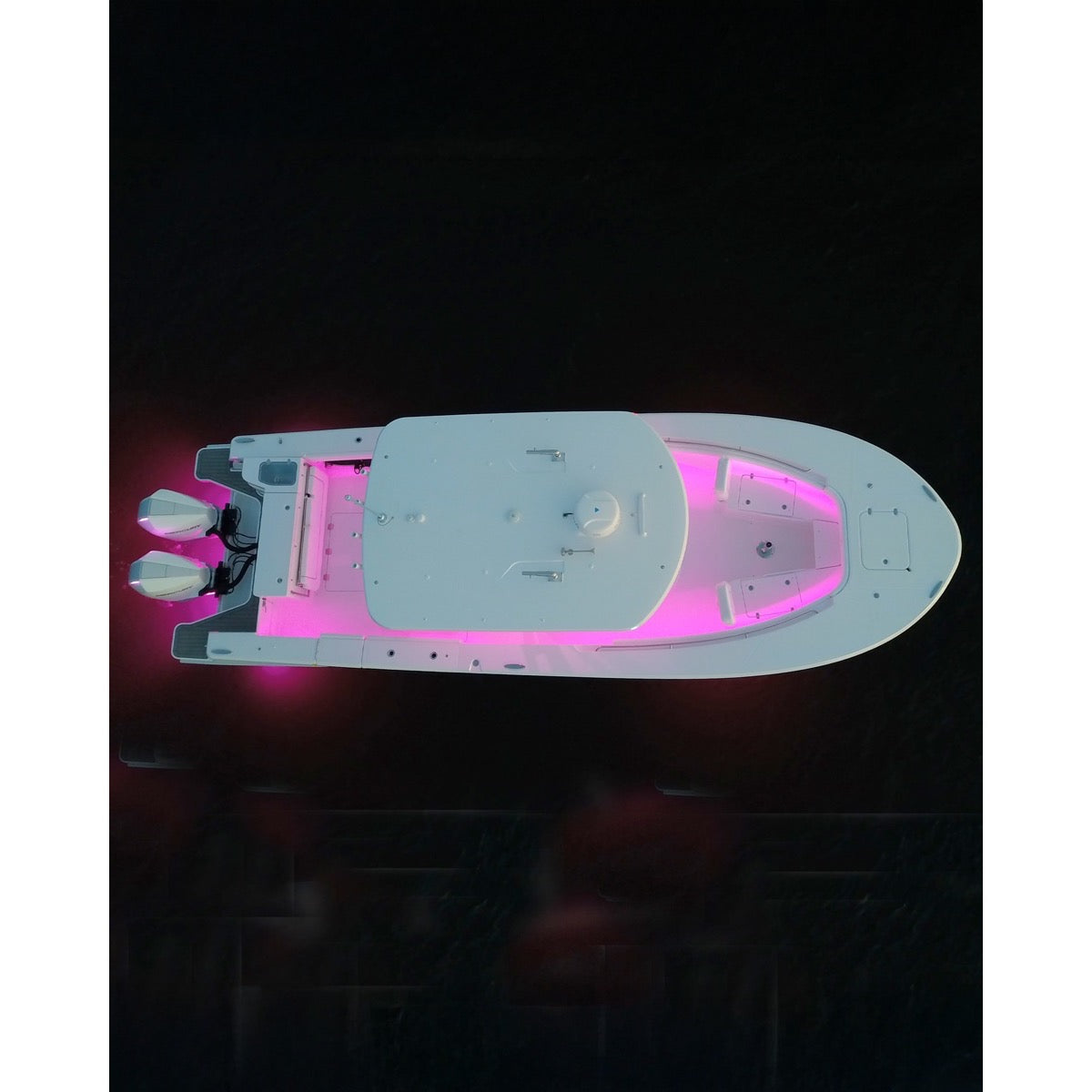

LUX SL180, Strip Light, CRGBW, 300mm - Garmin image 3

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Prihranek 8%

Garmin

010-04364-00

LUX SL180, traka LED, CRGBW, 300 mm

Le bandeau lumineux Garmin LUX SL180 CRGBW de 300 mm offre un éclairage marin couleur plein spectre, avec 180 LED par mètre et une température de couleur tunable (2700 K à 6500 K). Résistant aux UV et testé au brouillard salin, il est classé IP68 pour une installation au-dessus de la ligne de flottaison.

Conçu pour fonctionner exclusivement avec les modules pilotes Lumishore LUX, il s'intègre via adhésif 3M ou clips de fixation. Inclus : le bandeau LUX SL180 CRGBW 300mm et des clips de fixation à visser.

Public priceGet pro pricing

41,26€

41,26€ ~~44,99€~~

DDV vključen Dostava se izračuna ob plačilu.

Na zalogi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Technical specifications

Podtip izdelka	Bandeau lumineux
Delovna napetost	23-25 V
Tipična poraba električne energije	2.61 W
Barva svetilke	CRGBW (Blanc froid, rouge, vert, bleu, blanc chaud)
IP razred	IP68
Podpora za zatemnitev	Oui
Dolžina traku	0.3
Gostota LED na meter	180.0
Lepljiva podloga	Oui
Compatible Driver Module	Lumishore LUX Strip Light Driver
Lokacija nameščenega izdelka	Intérieur et extérieur (au-dessus de la ligne de flottaison)
Max Current Consumption Per Meter 12v	0.6
Max Current Consumption Per Meter 24v	0.36
Minimalni polmer upogiba	50
Mounting Method Primary	Adhésif 3M
Mounting Method Secondary	Fixations mécaniques (clips)
Poraba električne energije na meter	8.7
Salt Fog Resistance	Oui
Odpornost na UV sevanje	Oui

Detailed description

Traka LED Garmin LUX SL180 CRGBW, dolžine 300 mm, je fleksibilno morsko osvetljevalno rešitev, namenjena nameščanju zunaj vode. Sistem ponuja polnokromatsko barvno osvetlitev (CRGBW), ki vključuje hladno belo, rdečo, zeleno, modro in toplo belo barvo, z nastavljivo barvno temperaturo od 2700 K do 6500 K. Na vsak meter trake je nameščenih 180 LED CRGBW, kar zagotavlja maksimalno porabo toka 0,6 A/m pri 12 V ali 0,36 A/m pri 24 V preko posameznega vodenega gonilnika trake. Povprečna poraba je 8,7 W/m.

Vgradnja in tehnične specifikacije

LUX SL180 je namenjen uporabi z gonilnimi moduli za trake Lumishore LUX, kar zagotavlja optimalno kompatibilnost in delovanje. Traka se lahko namešča tako znotraj kot zunaj plovila, nad vodno črto, zaradi stopnje zaščite IP68. To pomeni, da je zaščitena pred prahom in daljšim potopom, vendar ni namenjena stalnemu potopu. Material je odporen proti UV sevanju in je bil testiran v solni meglici, kar zagotavlja trajnost v morskem okolju. Trake ni mogoče rezati in je dobavljena v predhodno določenih, tovarniško zapečatenih dolžinah, da se ohrani njeno IP68 zaščita.

Nameščanje in upravljanje

Nameščanje trake LUX SL180 je olajšano zaradi fleksibilnega in diskretnega dizajna. Traka se lahko pritrdi z vgrajeno 3M lepilno trako, s priloženimi vijaknimi pritrdilnimi klipsi ali z opcijskimi kovinskimi klipsi iz nerjavnega jekla za področja, ki zahtevajo okrepljeno pritrditev ali ožje polmere upogiba. Traka ima minimalno polmer upogiba 50 mm na vertikalni osi. Upravljanje osvetlitve je večplastno: preko kompatibilnega večfunkcijskega zaslona (MFD), Lumishore zaslona, pametnega naprave ali trenutnega stikala. Možnosti upravljanja preko MFD, Lumishore zaslona in pametne naprave zahtevajo upravljalski center EOS-LUX, medtem ko upravljanje s trenutnim stikalom zahteva gonilnik trake. Stopnjevanje osvetlitve je standardna funkcija teh trakov LUX.

Documentation

Type	Nom
	Installation Guide - LUX SL90 & SL180 IP68 LED Strip Light

Expert review

Pol CONIN

Odgovorni digitalni delavec

« Technical analysis of the Garmin LUX SL180 CRGBW marine strip light »

The Garmin LUX SL180 CRGBW LED strip is a supplementary lighting solution for marine interior and exterior applications above the waterline. Its CRGBW design offers notable chromatic flexibility, allowing the creation of varied ambiances, from warm white to cool white, including bright colors. The integration of 180 LEDs per meter over a length of 300 mm ensures uniform light distribution for targeted areas.

The most critical aspect of this product is its mandatory dependence on the Lumishore LUX LED strip driver module. It is not a standalone solution. Installers must absolutely plan for the integration of this driver, as any connection to another control system or third-party driver will void the warranty and may damage the strip. The driver module manages the specific input voltage (23-25V) required by the SL180. This ecosystem constraint must be considered during installation planning.

Despite its IP68 rating, ensuring protection against temporary immersion and dust, it is clear that it is not designed for permanent submersion. Installation should therefore be prioritized for deck lighting, cockpit lighting, under gunwales, or behind panels. The strip's flexibility allows installation in curves (minimum vertical bend radius of 50 mm), but restrictions regarding torsion or horizontal curvature must be strictly followed to avoid damaging the product. For areas subject to vibrations or mechanical stress, the use of additional mounting clips is strongly recommended in addition to the 3M adhesive.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

LUX SL180, traka LED, CRGBW, 300 mm

41,26€

41,26€ ~~44,99€~~

Frequently asked questions

Need help? Contact us

Which lighting colors are available with the Garmin LUX SL180 LED strip?

The Garmin LUX SL180 LED light bar provides full-spectrum CRGBW color lighting. This includes cold white, red, green, blue, and warm white. The white color temperature is adjustable from 2700 K (warm white) to 6500 K (cold white).

What is the length of the Garmin LUX SL180 light bar?

The Garmin LUX SL180 LED strip has a length of 300 mm. It is supplied in predefined, factory-sealed lengths and must not be cut.

Is the LUX SL180 LED strip waterproof?

Yes, the LUX SL180 LED light bar has an IP68 protection rating. This means it is protected against dust and prolonged immersion. However, it is not designed for continuous submersion in water. It can be installed in wet areas but above the waterline.

Can the LUX SL180 LED light bar be installed outdoors on a boat?

Yes, the LUX SL180 LED strip is designed to be installed both inside and outside the vessel, above the waterline. Its material is UV-resistant and has been tested for salt spray to ensure durability in the marine environment. It should however not be installed in areas of strong direct sunlight.

What is the power consumption of the LUX SL180 LED light bar?

The average power consumption of the LUX SL180 LED strip is 8.7 W per meter. Maximum current draw is 0.6 A/m at 12 V or 0.36 A/m at 24 V, via the dedicated strip driver.

Can the LUX SL180 LED strip be cut to adjust its length?

No, the LUX SL180 LED strip must not be cut. It is supplied in predefined lengths sealed at the factory to maintain its IP68 waterproof rating and performance.

What type of LED is fitted to the LUX SL180 LED strip light?

Each meter of the LUX SL180 LED strip integrates 180 CRGBW LEDs, providing full-spectrum color lighting.

Is the LED light bar UV and salt resistant?

Yes, the LUX SL180 light strip housing is UV-resistant and has passed salt spray testing, ensuring durability in a marine environment.

Which control modules is the LUX SL180 LED strip compatible with?

The LUX SL180 LED strip is specifically designed to be used only with Lumishore LUX LED strip controller modules. It must not be connected to other lighting control products or third-party controllers.

Can I use a lighting controller from another brand with the LUX SL180 strip?

No, you must not use the LUX SL180 strip with lighting controllers from other brands. It must be used exclusively with Lumishore LUX strip lighting controller modules to ensure compatibility, optimal performance, and warranty validity.

What precautions should be taken before installing the LUX SL180 LED light strip?

Before any installation, always ensure that the vessel's power source and battery are disconnected or isolated. It is also recommended that a qualified professional performs the electrical and mechanical installation.

How to install the LUX SL180 LED strip?

The strip can be installed using its integrated 3M adhesive strip. Clean the mounting surface thoroughly with IPA, then remove the adhesive backing and press the strip firmly into place, applying pressure only to the edges and not the LEDs. Allow the adhesive to cure for 24 hours before powering on the strip.

Is mechanical fastening required for installation?

For outdoor installations in wet areas or with tight bend radii, it is recommended to use mechanical fasteners in addition to the adhesive layer. These mounting clips should be placed every 25 to 30 cm or on each side of a bend.

What are the rules regarding the curvature of the LUX SL180 LED strip?

The LUX SL180 LED light bar has a minimum bending radius of 50 mm on the vertical axis only. It must never be bent on the horizontal axis, twisted, pulled, or stretched.

Can I install the LUX SL180 light strip alone?

For banner lengths exceeding 1 meter, it is recommended to use two people for installation: one person to install and another to hold and unroll the banner. For this 300 mm model, single-person installation is possible by following the other precautions.

How to avoid damaging the LED strip during installation?

Do not let the strip fall or twist during installation; carefully unroll it from the reel. Do not apply pressure on the LED area; press only on the edge of the strip. Do not pull, stretch, twist, or bend it on the horizontal axis. Ensure it is laid flat in a straight line to avoid creases or twists.

How long should you wait after installation before powering on the strip?

After installation with 3M adhesive, you must allow the adhesive to cure for 24 hours before powering on the LED strip.

What is the warranty duration for the Garmin LUX SL180 LED strip light?

The Garmin LUX SL180 lighting system is warranted against manufacturing defects for a period of three years from the original purchase date.

What can void the warranty of the LUX SL180 LED strip?

The warranty may be void in cases of misuse, abuse, incorrect installation, negligence, improper shipping, damage caused by disasters (fire, flood, lightning), installation by unqualified personnel, unauthorized repair or modification, or unapproved installations. Use with third-party autopilots not from Lumishore LUX will also void the warranty.
