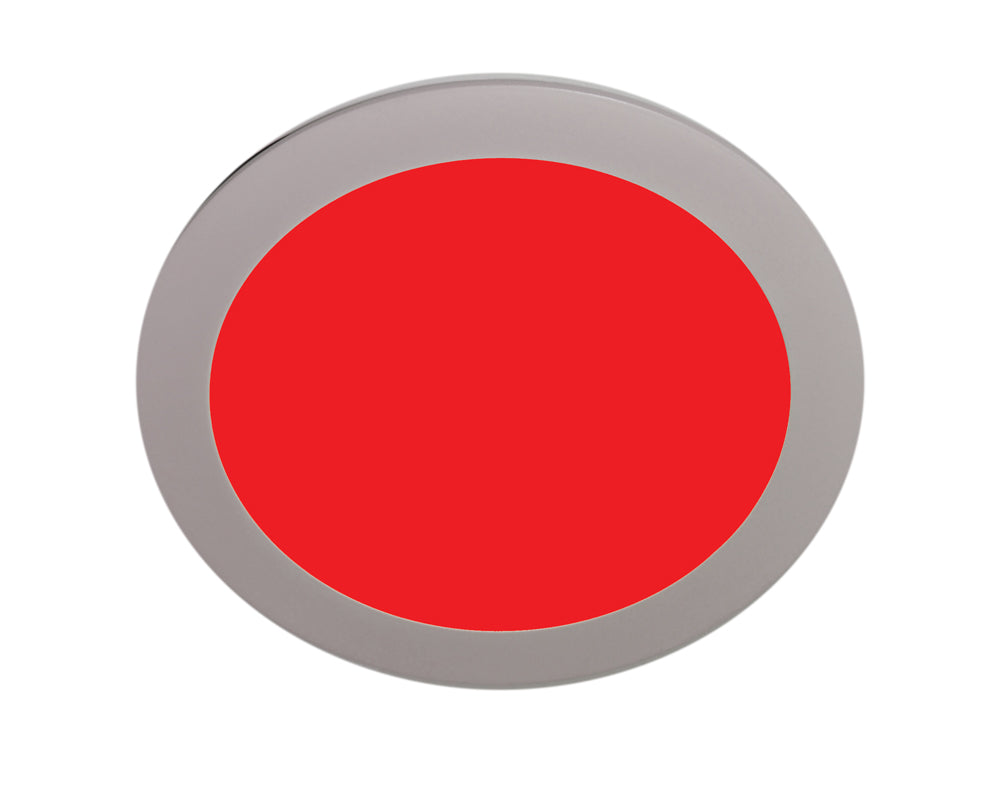

Panneau LED encastré MANTAGUA Penfret rouge, 700 lumens, Ø170mm, 225-260 VAC.

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Prihranek 3%

MANTAGUA

01898

Penfret - 700 lumen - Rdeča - Ø170 mm - 225-260 VAC

Name: Penfret - 700 lumen - Rdeča - Ø170 mm - 225-260 VAC
Brand: MANTAGUA
SKU: 01898
Price: 176.42 EUR
Availability: InStock

Le MANTAGUA Penfret (réf. 01898) est un panneau LED encastré de 700 lumens en couleur rouge, idéal pour l'éclairage intérieur des navires professionnels, notamment les coursives et carrés. Alimenté en 225-260 VAC avec une consommation de 12W, il offre un éclairage discret et efficace. Ce modèle est fourni avec son alimentation (driver LED).

Public priceGet pro pricing

176,42€

176,42€ ~~183,48€~~

DDV vključen Dostava se izračuna ob plačilu.

Na zalogi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Technical specifications

Podtip izdelka	Plafonnier LED encastré
Vrsta namestitve	Encastré
Delovna napetost	225-260
Tipična poraba električne energije	12
Svetlobni tok	700.0
Glavni material telesa	Aluminium et PMMA
IP razred	IP20
Kot snopa	120
Barva (nalepka)	Rouge
Stopnja zaščite pred udarci	IK05
Ime modela	Penfret
Območje delovnih temperatur	-25°C à +55°C
Globina izdelka	20
Neto teža izdelka	450
Vrsta napetosti	AC
Garancija	2

Detailed description

Vgrajen LED panel MANTAGUA Penfret (referenca 01898) je rešitev za osvetljevanje notranjih prostorov trgovskih in profesionalnih plovil. Z svetlostjo 700 lumenov v rdeči barvi in porabo le 12 W zagotavlja učinkovito in diskretno osvetlitev, ki je posebno primerna za območja, kjer je potrebno ohranjati nočni vid ali ustvariti specifično vzdušje, kot so prehodi in jedilnice. Deluje pri napetosti 225-260 VAC in se enostavno integrira v standardne električne sisteme na morju.

Konstrukcija in tehnične lastnosti

Izdelan iz aluminija in PMMA, panel MANTAGUA Penfret ima premer 170 mm in debelino 20 mm za vgrajeno namestitev. Kot širjenja 120° zagotavlja enakomerno razporeditev svetlobe. Panel je zasnovan za delovanje v temperaturnem območju od -25°C do +55°C, kar zagotavlja njegovo zanesljivost v različnih morskih okoljih. Vključen je tudi napajalnik (LED driver) in ima 2-letno garancijo.

Položaj v seriji Mantagua

Model Penfret rdeče barve z 700 lumenov se v seriji Penfret podjetja MANTAGUA razlikuje po specifični barvi osvetlitve in moči. Medtem ko druge variante, kot je Penfret 1500 lumenov (ref. 01448 ali 01551), nudijo višjo svetlost v nevtralni beli barvi (4000 K) za splošno osvetlitev, je ta različica rdeče optimizirana za uporabe, kjer je pomembna diskretna osvetlitev. Njegov indeks vodotesnosti IP20 ga omejuje izključno na suhe notranje instalacije, v nasprotju z lučmi za palubo, ki zahtevajo višje indekse IP. Dopolnjuje ponudbo Mantagua z možnostjo funkcionalne in specializirane osvetlitve za zahteve profesionalcev na morju.

Documentation

Type	Nom
	page_9.pdf

Payment and security

Your payment information and data are processed securely.

Penfret - 700 lumen - Rdeča - Ø170 mm - 225-260 VAC

176,42€

176,42€ ~~183,48€~~

Frequently asked questions

Need help? Contact us

What is the luminous output of this Penfret red LED panel?

The MANTAGUA Penfret red LED panel provides a luminous output of 700 lumens.

What is the lighting color of this Penfret model?

This specific LED panel model from Penfret (reference 01898) emits red light.

For which type of environment is this Penfret red LED panel recommended?

This LED panel is specifically designed for interior spaces of commercial and professional vessels. Its red lighting is particularly suited to areas requiring preservation of night vision or a specific ambiance, such as passageways and saloons.

What materials are used to manufacture the Penfret LED panel?

The MANTAGUA Penfret LED panel is manufactured using aluminum and PMMA.

What are the dimensions of the Penfret LED panel?

The MANTAGUA Penfret LED panel has a diameter of 170 mm and a thickness of 20 mm.

What is the required power supply voltage for this Penfret LED panel?

This MANTAGUA Penfret LED panel operates on a voltage of 225-260 VAC.

What is the power consumption of this LED panel?

The power consumption of this MANTAGUA Penfret LED panel is 12 W.

What is the beam angle of the light for this LED panel?

The Penfret LED panel has a 120° beam angle, ensuring even light distribution.

What is the IP rating of this Penfret LED panel?

The IP rating of this panel is IP20. This means it is intended exclusively for dry indoor installations and is not suitable for wet or outdoor environments.

What operating temperatures does the Penfret LED panel support?

The MANTAGUA Penfret LED panel is designed to operate within a temperature range of -25°C to +55°C.

Is this LED panel supplied with its power supply?

Yes, the MANTAGUA Penfret LED panel is supplied with its power supply (LED driver).

What is the warranty duration for the Penfret LED panel?

The MANTAGUA Penfret LED panel comes with a 2-year warranty.

What is the weight of this Penfret LED panel?

The weight of this MANTAGUA Penfret LED panel (reference 01898) is 450 grams.

Can this LED panel be easily integrated into standard marine electrical systems?

Yes, operating on 225-260 VAC, this model is designed to integrate easily into standard marine electrical systems.

What is the distinguishing feature of this Penfret red model compared to other models in the Mantagua range?

This Penfret model stands out with its red lighting color and 700-lumen output. It is optimized for applications where low-light visibility is critical, unlike other Penfret variants that provide higher brightness in neutral white for general illumination.

What is the mounting type for this luminaire?

The MANTAGUA Penfret is a recessed LED panel, designed for flush integration into interior surfaces.

What is the SKU reference for this Mantagua Penfret product?

The SKU reference for this MANTAGUA Penfret LED panel is 01898.

What are the advantages of red lighting on a boat?

Red lighting is particularly advantageous for preserving night vision, as it disrupts the eye's adaptation to darkness less than white light. It is ideal for areas where discreet lighting is required, such as navigation stations or night cabins.

Can this LED panel be used on a boat's deck or in wet areas?

No, with an IP20 waterproof rating, this LED panel is designed exclusively for dry indoor installations. It is not suitable for use on deck or in areas exposed to moisture or harsh weather conditions.
