Simrad

000-14380-001

AIS razred B V3100 SOTDMA

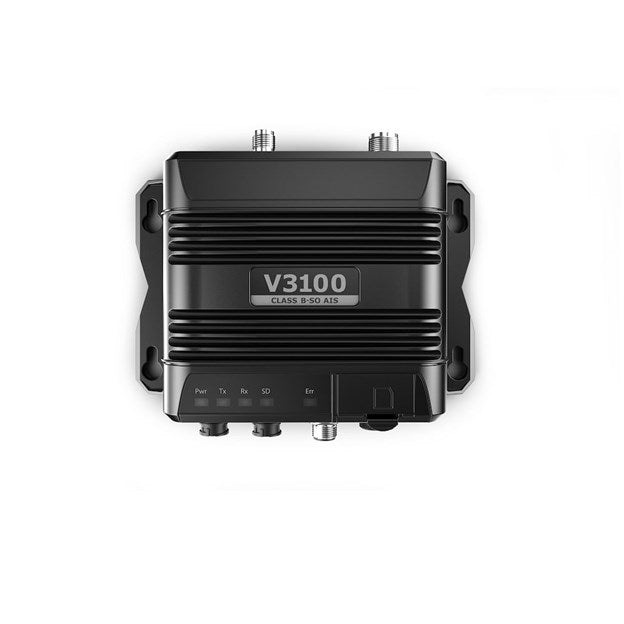

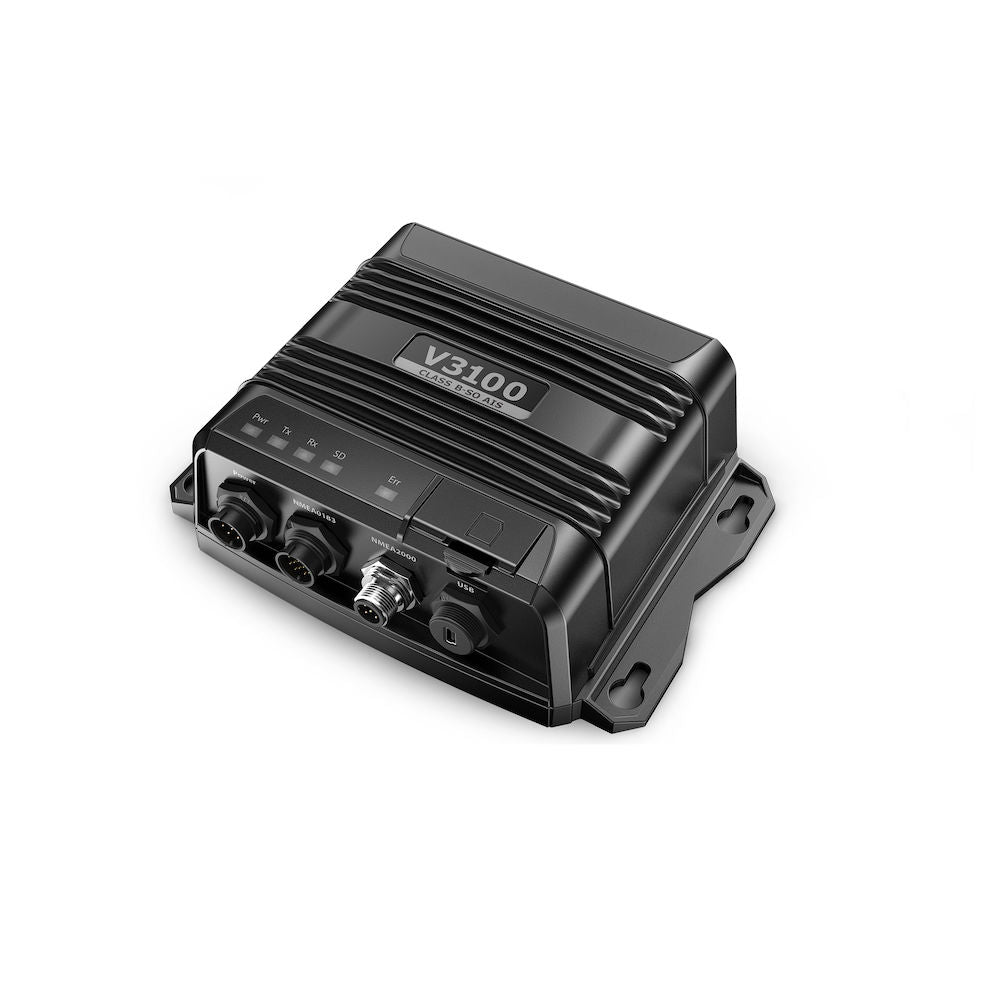

The Simrad V3100 SOTDMA Class B AIS transponder offers a 5 W transmit power and an increased dynamic update rate for optimal navigation safety. Part of the current high-performance transponder range, this IP67 waterproof housing (12/24 VDC) integrates a 50-channel GNSS receiver and interfaces directly with onboard networks via NMEA 2000, NMEA 0183, and USB connection.

Includes: V3100 AIS transponder, GPS-500 antenna with cable (10 m), power cable (8-pin), NMEA 0183 data cable (12-pin), Mini-USB to USB cable, TNC to SMA adapter, mounting kit, software CD, and documentation.

Public priceGet pro pricing

912,92€

912,92€ ~~1.122,00€~~

DDV vključen Dostava se izračuna ob plačilu.

Ni na zalogi

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Support service

Choose complementary installation support

Technical specifications

Ekvivalentno obremenitev NMEA 2000 (LEN)	1
Delovna napetost	12 / 24 DC
Delovna temperatura	-15 to +55
Maksimalna poraba električne energije	24
Tipična poraba električne energije	< 3
Priporočena vrednost varovalke	3
IP razred	IPX7
Združljivost z vodilo	NMEA 2000, NMEA 0183
Žično omrežje	NMEA 2000, NMEA 0183, USB
Tip montaže	Surface-mount
Certifikati	IEC 60945, IEC 62287-2
Razred AIS	Class B SOTDMA
AIS - sprejem	Yes
AIS oddajanje	Yes
GPS	Built-in receiver (external antenna required)
VHF frekvenčni razpon	156.025 - 162.025
Vtič antene	SO-239 (Female)
Vtič GPS antene	TNC (Female)
Čutljivost sprejemnika	< -107 dBm
Oddajna moč	5 W / 1 W
Čas do prvega fiksiranja (hladno zagon)	45
Podpora zunanje GNSS antene	Yes
Vsebina paketa	AIS V3100 transponder, GPS-500 antenna with cable (10 m), power cable (8-pin), NMEA 0183 data cable (12-pin), Mini-USB to USB cable, TNC to SMA adapter, mounting kit, software CD and documentation.
Na voljo alarmi	MMSI not configured, high antenna VSWR, high background noise, GPS signal loss, abnormal supply voltage
Ais Receiver Count	2
Ais Transmitter Count	1
Izhodna moč audio signala	N/A
Dimenzije (D x V x G)	177 x 60 x 132
Ločljivost zaslona	N/A
Tip zaslona	None
Dsc Receiver Count	1
Lowrance Network	Yes
Leto izdaje	2018.0
Raven uporabnika	Intermediate
Garancija	2.0

Detailed description

SIMRAD V3100 je transponder AIS razreda B, ki se odlikuje z tehnologijo SOTDMA (samouravnavajoči časovni multipleksni dostop). Namenjen je zahtevnim navigatorjem, bodisi profesionalcem bodisi ljubiteljskim mornarjem, ter zagotavlja višjo raven varnosti in učinkovitosti v primerjavi s standardnimi transponderji AIS razreda B, ki uporabljajo tehnologijo CSTDMA.

Tehnologija SOTDMA: povečana varnost in učinkovitost

Za razliko od tehnologije CSTDMA (Carrier-Sense), ki čaka na prosto časovno okno za oddajo, SOTDMA uporablja samouravnavajočo se shemo dostopa, podobno sistemom AIS razreda A. To zagotavlja zanesljivo oddajo vaših podatkov, tudi v območjih z zelo gostim pomorskim prometom. Z izhodno močjo 5W, kar je več kot dvakratnik 2W pri napravah CSTDMA, V3100 zagotavlja bistveno večjo dosegljivost detekcije in oddaje. Poleg tega je frekvenca posodabljanja dinamičnih podatkov občutno višja in lahko doseže interval 5 sekund pri hitrostih nad 23 vozlov, v primerjavi s 30 sekundami pri klasičnih AIS CSTDMA. Ta odzivnost je ključna za predvidevanje in preprečevanje trkov.

Celovita povezanost in enostavna integracija

V3100 je zasnovan za enostavno integracijo v obstoječe navigacijske sisteme. Ima celovit nabor vhodov/izhodov, ki vključuje port NMEA 2000 (Micro-C) za namestitev "plug-and-play", dva porta NMEA 0183 za združljivost s starejšo opremo in vodotesen USB Mini-B port za konfiguracijo. Tišinski način, ki omogoča prenehanje oddajanja, hkrati pa nadaljnje prejemanje AIS podatkov, je mogoče aktivirati preko zunanjega stikala ali neposredno iz večfunkcijskega zaslona Navico, združljivega preko omrežja NMEA 2000.

Robustna izvedba za morsko okolje

Zgrajen za odpornost proti najhujšim morskim pogojem, je ohišje V3100 certificirano po standardu IP67, kar zagotavlja popolno zaščito pred prahom in potopitvijo. Deluje v temperaturnem območju od -15°C do +55°C in ima nizko porabo energije, običajno manj kot 3W pri 12V DC. Naprava vključuje lastni GPS sprejemnik s 50 kanali za zagotavljanje natančnih podatkov o položaju in se povezuje z zunanjo VHF anteno preko standardnega konektorja SO-239.

Documentation

Type	Nom
	v3100_um_fr_988-12036-002_w_pdf.pdf
	EN - Manuel de l'utilisateur - AIS Class B V3100 SOTDMA
	EN - Déclaration de conformité RCM - AIS Class B V3100 SOTDMA
	EN - Certificat d'autorisation d'équipement FCC - AIS Class B V3100 SOTDMA
	EN - Certificat d'Acceptation Technique - AIS Class B V3100 SOTDMA

Expert review

Pol CONIN

Odgovorni digitalni delavec

« SOTDMA 5W: AIS Class B with Class A Performance »

The SIMRAD V3100 transponder represents a significant advance in accessible safety for non-SOLAS vessels. Its main advantage lies in the adoption of SOTDMA technology, which places it well above traditional Class B CSTDMA transponders. In practice, this translates to transmission reliability nearly equivalent to that of a Class A, as the V3100 reserves its transmission slots in advance, eliminating the risk of not being "heard" in high-density traffic areas. The 5W power, combined with this intelligent transmission management, ensures optimal range and visibility. Its dual compatibility with NMEA 2000 and NMEA 0183 ensures easy integration into any electronic architecture, whether modern or older. It is a robust unit, rated IP67 and with low power consumption, designed for long-term reliability, making it a strategic investment for offshore cruisers, racers, and small commercial vessels.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

AIS razred B V3100 SOTDMA

912,92€

912,92€ ~~1.122,00€~~

Frequently asked questions

Need help? Contact us

What is the main difference between this SOTDMA AIS and a standard Class B AIS?

The main difference lies in the transmission technology. The V3100 uses SOTDMA (Self-Organising Time Division Multiple Access) technology, the same as Class A AIS units. This allows it to reserve transmission slots, ensuring your data is sent even in high-traffic areas. It also offers:

Higher transmission power: 5 watts, compared to 2 watts for standard AIS (CSTDMA). Faster update rate: up to every 5 seconds depending on speed, compared to 30 seconds for CSTDMA.

How can I connect the V3100 to my other navigation instruments?

The V3100 offers comprehensive connectivity to integrate with your system:

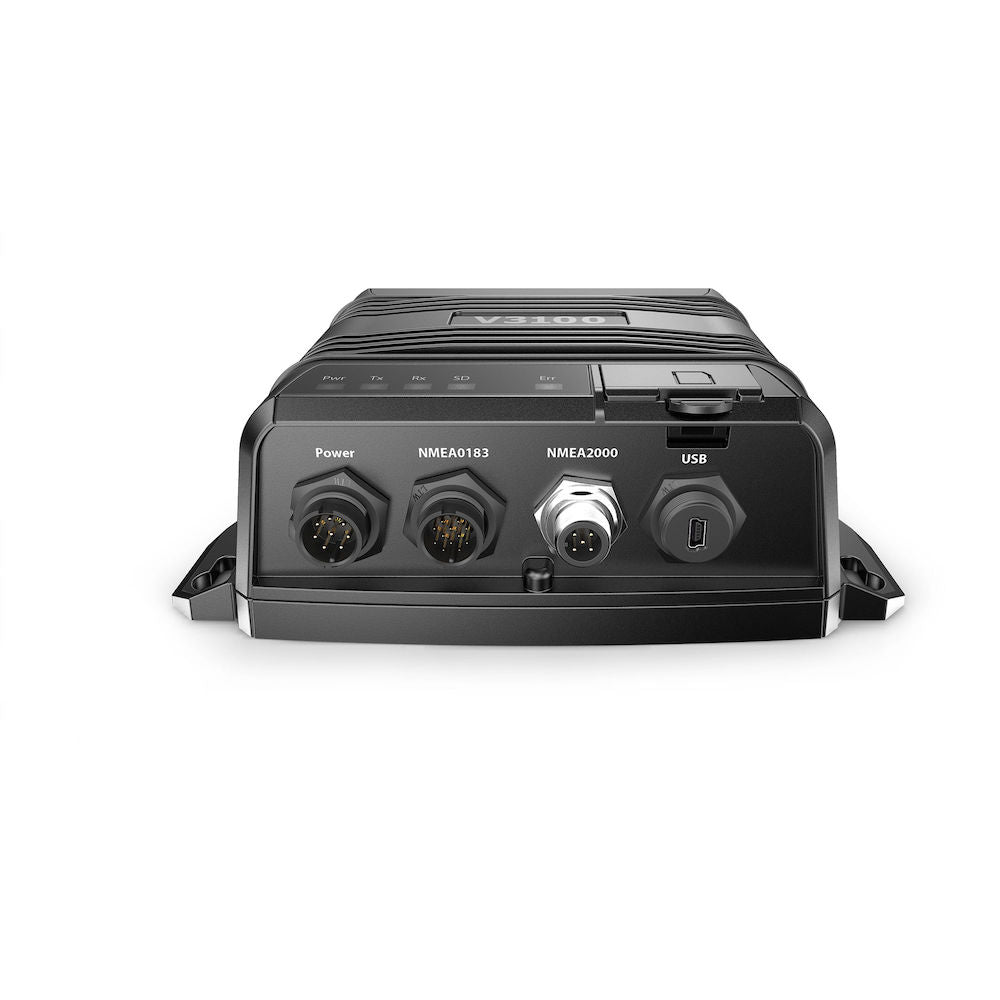

NMEA 2000: One Micro-C port for simple and modern connection to most multifunction displays.NMEA 0183: Two ports to ensure compatibility with older equipment.USB: One waterproof Mini-B port, primarily used for initial setup via a computer.

What electrical power supply does this device require?

The V3100 AIS transponder is designed to operate on a 12V or 24V DC electrical system, making it compatible with the vast majority of recreational and professional boats.

How often is my position transmitted to other vessels?

The transmission frequency of dynamic data (position, speed, heading) depends on your vessel's speed:

Over 23 knots: every 5 seconds.Between 14 and 23 knots: every 15 seconds.Between 2 and 14 knots: every 30 seconds.Under 2 knots, at anchor or moored: every 3 minutes.

Can I disable my vessel's position transmission while still viewing others?

Yes, the V3100 has a silent mode. When enabled, the device stops transmitting your vessel's information but continues to receive all AIS data from nearby boats. The 'Tx/Silent' LED lights up solid orange to indicate this mode is active.

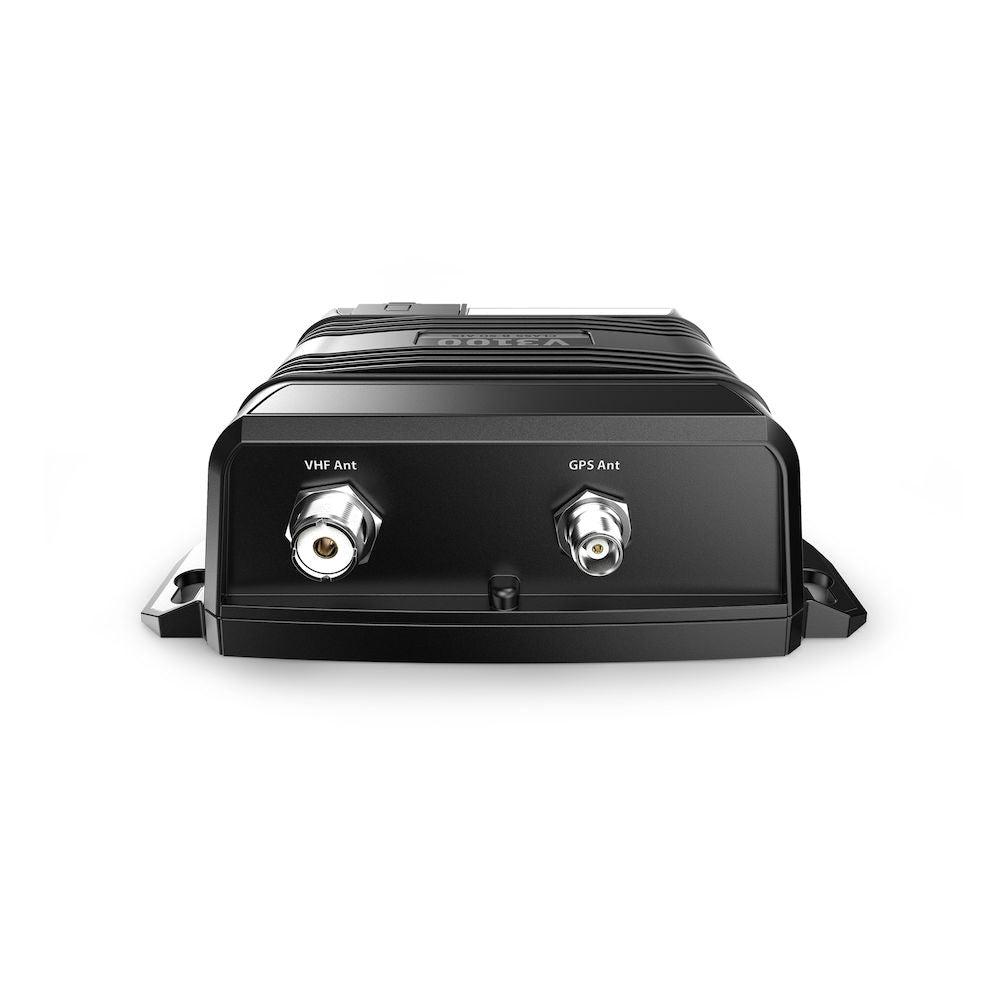

Which types of antenna connectors are required for installation?

The device requires two antennas and uses the following connectors:

VHF antenna: One standard SO-239 connector (female).GPS antenna: One SMA connector. An adapter is included to facilitate the connection.

Is the V3100 compatible with older equipment using only NMEA 0183?

Yes, absolutely. The V3100 has two NMEA 0183 ports, allowing it to communicate with chartplotters, autopilots, or other older instruments that lack NMEA 2000 connectivity.

What is the power consumption of the V3100?

The V3100 is designed to be energy-efficient. Its typical power consumption is below 3 watts on average with a 12V DC power supply.

How do I program my MMSI number in the device?

Programming your MMSI number, along with other static vessel data (name, dimensions, etc.), is done by connecting the V3100 to a computer via its USB Mini-B port. You will need to use the provided configuration software to enter this information.

Is this AIS Class A or Class B?

The Simrad V3100 is an AIS Class B transponder. However, it uses SOTDMA technology, which is typically reserved for Class A devices, giving it performance superior to traditional Class B AIS (CSTDMA).

What does the solid red indicator light mean on the device?

A solid red error indicator means the MMSI number has not been programmed into the device. The AIS cannot transmit without a valid MMSI. You must configure it using the provided software.

Which communication networks are supported by the V3100?

The V3100 supports the two most common marine communication protocols: NMEA 2000 and NMEA 0183. This ensures broad compatibility with both modern and older navigation equipment.

What does the flashing green "Tx/Silent" LED mean?

The flashing green "Tx/Silent" LED indicates that the device is actively transmitting AIS data. The blink rate varies with your vessel's speed, reflecting the frequency of position updates.

Do you need to install drivers to use the USB port on a computer?

Yes, to have your computer recognize the AIS V3100 when connected via USB, you will need to install the USB drivers. They are usually included on the software CD provided with the device.
