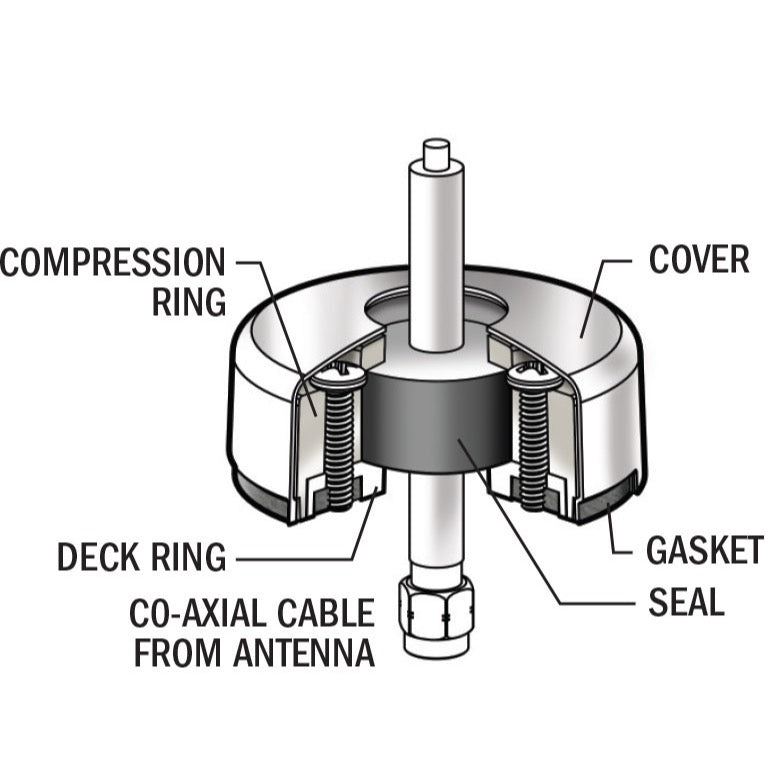

CableClam with Stainless Steel Dress Cap 1.40" - Cutaway Drawing

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Estalvieu 16%

Blue Sea Systems

1003100-BSS

Pressió-empunyadura CableClam amb caputxa de fi acabat en acer inoxidable 1.40"

Conçu pour une étanchéité fiable et une finition esthétique, le CableClam BLUE SEA 1.40" (35.57 mm) est un passe-câbles marin avec capuchon en acier inoxydable. Il protège les câbles des éléments tout en assurant une intégration durable sur le pont. Ce modèle, de la gamme CableClam, inclut un anneau de pont, un joint d'étanchéité, un joint en caoutchouc, une bague de compression et un capuchon décoratif en acier inoxydable.

Format: 1,4 polzada

0,68 polzada 0,83 polzada 1,4 polzada Entrada lateral

Acabat: Tap inoxidable

Estàndard Tap inoxidable

Public priceGet pro pricing

38,65€

38,65€ ~~46,02€~~

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Diàmetre màxim del cable (mm)	35.57
Diàmetre màx. del connector (mm)	35.57
Diàmetre de la serra de foradar	35.57
Tipus de muntatge	Bulkhead
Material	Composite
Divisible	Oui
Cap Material	Acier inoxydable
Material de la junta	Caoutchouc
Installation Surface Mount Compatible	Oui
Entraxe de fixació vertical	38.16
Mounting Screw Hole Diameter Mm	4.5
Mounting Screw Size Imperial	#8
Mounting Screw Type	Vis
Alçada total del producte	25.86
Llargada total del producte	67.70
Product Overall Width Mm	70.48
Tipus de producte	Passe-câble

Detailed description

El CableClam de BLUE SEA amb caputxa decorativa en acer inoxidable de 1.40" (35,57 mm) ofereix una solució de pas de cables estanca i estètica per a aplicacions marines. Dissenyat per protegir els cables dels elements exteriors mantenint la integritat de la coberta, aquest model es distingeix pel seu caputxa en acer inoxidable, que garanteix una fiabilitat duradora i resistent a la corrosió.

Disseny i instal·lació

Aquest CableClam incorpora una junta de cautxú que es pot perforar o ajustar per adaptar-se amb precisió al diàmetre del cable, assegurant una estanquitat òptima. La instal·lació implica fixar el collaret de coberta i la junta a la superfície, passar el cable a través de la caputxa, i inserir-lo a continuació en la junta escotada i el collaret de compressió. El conjunt es prem sobre el collaret de coberta amb un parell de força moderat per evitar danyar els components. Les seves dimensions inclouen un diàmetre de pas de cable de 1,40 polzades (35,57 mm), una alçada de 1,02 polzades (25,86 mm) i una amplada de 2,77 polzades (70,48 mm) amb la caputxa, per a un muntatge amb cargols n°8.

Posicionament i alternatives

En la gamma de passacables marins, el CableClam de BLUE SEA es posiciona com una opció preferent per a instal·lacions que requereixen tant funcionalitat com estètica, especialment gràcies a la seva caputxa en acer inoxidable. Comparat amb les versions estàndard de plàstic, aquest model 1003100-BSS, amb un diàmetre de 1,40 polzades, ofereix una resistència augmentada als raigs UV i a la corrosió salina, alhora que aporta un acabat més acurat. Altres mides de CableClam estan disponibles a BLUE SEA per a diàmetres de cable diferents, però aquesta versió específica és adequada per a feixos de cables o cables individuals de mida mitjana.

Documentation

Type	Nom
	EN - Instructions - CableClam with Stainless Steel Dress Cap 1.40in
	EN - Dimensioned Drawing - CableClam with Stainless Steel Dress Cap 1.40in

Expert review

Pol CONIN

Responsable digital

« Technical analysis of the BLUE SEA CableClam 1.40" stainless steel model »

The CableClam BLUE SEA 1.40" with stainless steel cap (PN 1003100) is a critical component for any electrical or electronic installation aboard requiring a watertight and durable cable pass-through through the deck or bulkhead. Unlike all-plastic versions, the stainless steel cap provides superior resistance to UV and salt environments, extending the lifespan of the installation and reducing maintenance needs. Its design allows for single cables or bundles up to 35.57 mm in diameter, which is particularly useful for solar panel installations, antennas, or complex sensor setups. The integrated rubber gasket, adjustable via fine drilling, ensures precise adaptation to the cable diameter, minimizing water infiltration risks. While installation is relatively straightforward, it is essential not to overtighten the compression ring screws to avoid damaging the gasket or the cable gland body. This model is ideal for sailboats and motorboats where aesthetics and reliability are priorities, and where a more robust solution than a simple ABS cable gland is required. However, it is not intended for very large cable diameters, for which multi-cable solutions or industrial cable glands would be more appropriate.

Durabilité

Facilité d'installation

Rapport performance / prix
