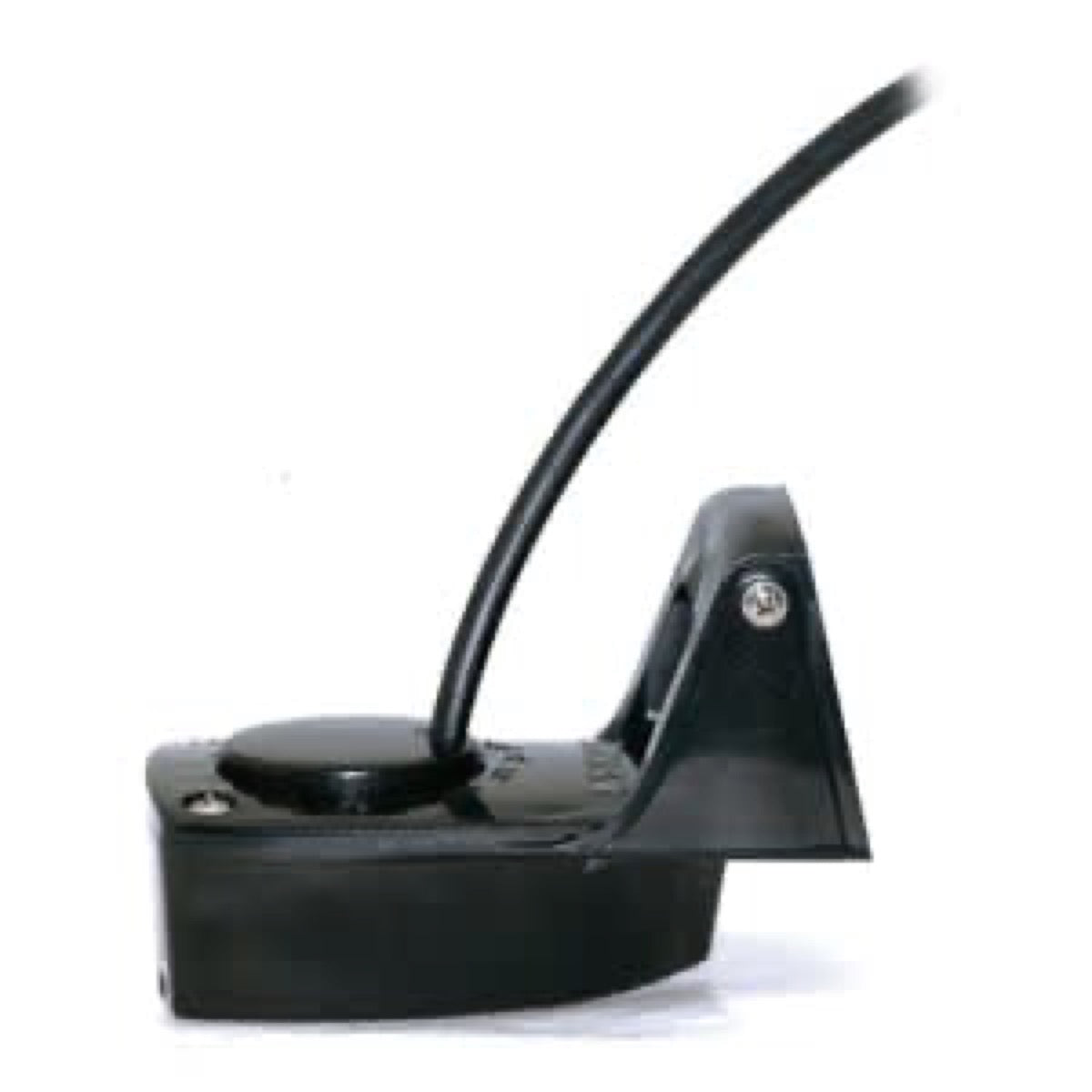

Airmar TM150M - Sonda TA plàstic CHIRP 300W (95-155kHz) + temperatura - (8 pins)

Conçue pour les applications de pêche côtière et en eau douce, la sonde Garmin Airmar TM150M est un transducteur CHIRP à montage sur tableau arrière. Elle délivre une puissance de 300 W sur une plage de fréquences de 95-155 kHz, offrant des relevés précis de profondeur jusqu'à 183 m et de température. Idéale pour les bateaux jusqu'à 8 mètres, elle améliore la résolution des cibles par rapport aux sondes traditionnelles. La sonde est livrée avec son étrier de fixation et ses accessoires de montage.

Public priceGet pro pricing

343,54€

343,54€ ~~419,00€~~

IVA inclòs Expedició calculada en el moment del pagament.

En estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Tecnologies de sondatge compatibles	CHIRP
Freqüències del sonar	95-155 kHz
Potència de pic	300.0
Profunditat màxima de lectura	183.0
Material de la sonda	Plastique
Tipus de connector per a sondes	8 broches
Longitud del cable	12.2
Amplada del producte	77
Sensor de temperatura integrat	Oui
Alçada del producte	102
Pantalles compatibles	Garmin
Fondària del producte	86
Compatibilitat de bus	Propriétaire Garmin
Xarxa amb fil	Propriétaire Garmin
Connectivitat sense fils	Non
Tipus de muntatge	Tableau arrière
Antifouling Recommended	Oui
Angle de cobertura del feix	17-26
Diàmetre del cable	13
Freqüència CHIRP baixa	95-155
Tipus de pesca	Mer, Lac, Rivière
Hull Deadrise Max Angle	28
Hull Material Compatibility	Bois, Fibre de verre, Aluminium, Acier
Sensor de velocitat integrat	Non
Max Operating Speed Knots	44
Max Operating Speed Mph	50
Max Vessel Length M	8
Nom del model	TM150M
Tipus de producte	Transducteur
Any de llançament	2018.0
Transom Angle Compatibility Range Degrees	3-20

Detailed description

Dissenyada per a la pesca recreativa en aigües poc profundes a mitjanes, la sonda Airmar TM150M de Garmin és un transductor CHIRP per a muntatge a la popa. Opera en un rang de freqüències mitjanes de 95 a 155 kHz amb una potència de transmissió de 300 W, oferint un ample de banda total de 60 kHz. Aquesta tecnologia CHIRP permet una resolució de blanc superior i una millor penetració a l’aigua respecte a les sondes monofreqüència tradicionals, com els models 50/200 kHz. El TM150M proporciona lectures precises de profunditat fins a 183 metres i un monitoratge ràpid de la temperatura de l’aigua.

Integració i Rendiment Tècnic

El TM150M és adequat per a embarcacions amb una longitud màxima de 8 metres (25 peus), tant de casc planant com de desplaçament, construïdes en fusta, fibra de vidre, alumini o acer. És compatible amb angles de popa de 3° a 20° i pot orientar el feix sonor verticalment en cascs amb un angle de "deadrise" fins a 28°. El seu feix cònic varia de 26° a 17° segons la freqüència, millorant la detecció de peixos propers a estructures o en suspensió. És capaç de mantenir el seguiment del fons a velocitats elevades de l’embarcació.

Diferenciació i Posicionament

Posicionada com una solució CHIRP polivalent, la sonda TM150M es diferencia dels transductors CHIRP d’alta potència (per exemple, els models de 1 kW com el B265 o TM265) per la seva potència i profunditat màxima adaptades a aplicacions costaneres i interiors. Ofereix una millora significativa del rendiment respecte a les sondes tradicionals a un preu comparable, alhora que és més accessible que els sistemes CHIRP d’alt nivell. Incorpora la tecnologia Xducer ID® per a una configuració automàtica de l’ecosonda Garmin i una optimització del sistema. El seu suport de desenganxament de plàstic protegeix la carcassa d’impactes frontals, assegurant una durabilitat en condicions d’ús habituals.

Documentation

Type	Nom
	Notice d'installation - Guide d'installation Airmar TM150M (tableau arrière)
	Notice d'installation - Supplément d'installation Airmar TM150M (sondes Chirp)
	Plan technique - Plan technique Airmar TM150M
	Reference technique - Données techniques Airmar TM150M (95-155kHz)
	Brochure technique - Brochure: Sondes CHIRP Airmar pour tableau arrière
	Schema de cablage - Schéma de câblage Airmar D-91-1348
	Schema de cablage - Schéma de câblage Airmar D-91-1397
	Schema de cablage - Schéma de câblage Airmar D-91-1400

Expert review

Pol CONIN

Responsable digital

« Technical analysis of the CHIRP TM150M transducer for inshore fishing »

The Garmin Airmar TM150M transducer is a strategic choice for recreational boaters and anglers targeting coastal and inland waters on vessels up to 8 meters. Its CHIRP design with mid-range frequency (95-155 kHz) provides superior target detection and separation compared to classic 50/200 kHz transducers, without the investment required for wideband CHIRP systems of 1 kW or more, often oversized for this segment of boats.

In terms of installation, transom mounting is inherently less intrusive than through-hull options. However, careful attention must be paid to positioning to ensure a "clean" water flow around the active face, minimizing aeration and maximizing performance at high speed. Compatibility with transom angles from 3° to 20° and the ability to compensate for up to 28° of deadrise offer appreciable flexibility. It is crucial to avoid areas disturbed by propellers, water intakes, or chines to fully exploit its potential. This model is not recommended for chine hulls or boats equipped with inboard engines, where through-hull or in-hull transducers would be more appropriate.

The TM150M is a high-performance solution for initiating or upgrading a CHIRP sonar installation on small boats. It excels in detecting underwater structures and fish schools in depths up to 183 meters, a threshold sufficient for most inshore and lake fishing applications. Its robustness, with a breakaway bracket designed to absorb impacts, contributes to its field reliability.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Airmar TM150M - Sonda TA plàstic CHIRP 300W (95-155kHz) + temperatura - (8 pins)

343,54€

343,54€ ~~419,00€~~

Complete your installation with

Complementary equipment

Garmin

GPSMAP® 723xsv - combinat GPS-sondeig 7" amb cartografia mundial

Ref : 010-02365-02

1.010,88€

1.010,88€ ~~1.259,00€~~

Garmin

GPSMAP® 923xsv - combinat GPS-sondeig de 9" amb cartografia mundial

Ref : 010-02366-02

1.429,48€

1.429,48€ ~~1.789,00€~~

Garmin

GPSMAP® 1223xsv - combinat GPS-sondeig de 12" amb cartografia mundial

Ref : 010-02367-02

2.472,35€

2.472,35€ ~~3.259,00€~~

Garmin

GPSMAP® 9010xsv - combinat GPS-sondeig 10" de gamma alta

Ref : 010-03175-02

3.509,62€

3.509,62€ ~~3.999,98€~~

Garmin

GPSMAP® 9013xsv - combinat GPS-sondeig 13" d'alta gamma

Ref : 010-03176-02

4.625,58€

4.625,58€ ~~5.499,98€~~

Garmin

GPSMAP® 9017xsv - combinat GPS-sondador de 17" d'alta gamma

Ref : 010-03177-02

6.796,55€

6.796,55€ ~~8.099,99€~~

Garmin

GPSMAP® 8416xsv - combinat GPS-sondeig 16"

Ref : 010-02093-02

5.253,08€

5.253,08€ ~~6.829,00€~~

Garmin

GPSMAP® 8410xsv - combinat GPS-sonador de 10"

Ref : 010-02091-02

2.447,99€

2.447,99€ ~~3.149,00€~~

Garmin

GPSMAP® 8412xsv - combinat GPS-sonador de 12"

Ref : 010-02092-02

3.708,70€

3.708,70€ ~~4.619,00€~~

Garmin

GPSMAP® 1022xsv - combinat GPS-ecosonda de 10"

Ref : 010-01740-02

1.712,41€

1.712,41€ ~~2.099,00€~~

Garmin

GPSMAP® 1222xsv - combinat GPS-sondeig de 12"

Ref : 010-01741-02

2.268,71€

2.268,71€ ~~2.939,00€~~

Garmin

Carcassa black box GPSMAP® 8700

Ref : 010-02094-00

3.792,35€

3.792,35€ ~~4.999,00€~~

Frequently Asked Questions

Need help? Contact us

What is the Airmar TM150M transducer?

The Airmar TM150M transducer is a CHIRP transducer designed for mounting on the transom, intended for recreational fishing in shallow to medium-depth waters. It is made of plastic and includes a water temperature sensor.

What is the frequency range of this transducer?

The Airmar TM150M transducer operates on a CHIRP mid-frequency range, from 95 to 155 kHz.

What is the maximum depth this depth sounder can reach?

The Airmar TM150M transducer provides accurate depth readings down to 183 meters (600 feet).

What are the advantages of the CHIRP technology used by the TM150M?

The CHIRP technology of the TM150M depth sounder provides superior target resolution and better water penetration compared to traditional single-frequency sounders (such as 50/200 kHz models). This enables clearer detection of fish and underwater structures.

Does the Airmar TM150M transducer measure water temperature?

Yes, the Airmar TM150M transducer is equipped with a sensor that enables fast and accurate water temperature monitoring.

What material is the Airmar TM150M transducer made of?

The housing of the Airmar TM150M transducer is made of plastic, and its radiating surface, or acoustic window, is made of urethane.

With which types of boats is the TM150M transducer compatible?

The Airmar TM150M transducer is recommended for boats up to 8 meters (25 feet) in length, whether they have planing or displacement hulls. It is compatible with hulls made of wood, fiberglass, aluminum, or steel.

Can this transducer be installed on a boat with an inboard engine?

No, the Airmar TM150M transducer is not recommended for boats equipped with one or more inboard engines.

What type of connector does the Airmar TM150M transducer have?

The Airmar TM150M transducer is equipped with an 8-pin connector, making it compatible with Garmin devices featuring the corresponding connection.

Is the TM150M transducer compatible with stepped hulls?

No, the Airmar TM150M transducer is not recommended for boats with stepped hulls.

What is the mounting type for the Airmar TM150M transducer?

The Airmar TM150M transducer is a transom-mounted transducer. This means it is designed to be bolted to the outside of the boat, on the transom, with its active face and sides submerged in the water during operation.

What are the supported transom angles for installation?

The Airmar TM150M transducer can be adjusted to compensate for transom angles ranging from 3° to 20°, ensuring the beam is correctly directed toward the bottom.

What is the maximum deadrise angle of the hull for which the beam can be oriented vertically?

The Airmar TM150M transducer can orient the sound beam vertically on hulls with a deadrise angle up to 28°.

What is the maximum boat speed at which the depth sounder can operate correctly?

The Airmar TM150M transducer is designed to maintain proper operation and reliable bottom tracking at boat speeds up to 44 knots (approximately 50 MPH).

What is the minimum vertical height required for the transducer installation?

A minimum vertical space of 89 mm (3.5 inches) is required above the mount to allow for installation and upward rotation of the transducer.

Where should the transducer be installed on the transom for optimal performance?

For optimal performance, the face of the transducer must be in contact with smooth water. It is recommended to mount it on the side of the transom where the propeller blades move downward, and as close as possible to the boat’s centerline (keel). Avoid mounting it in line with or near water intakes, drains, or behind hull strakes or irregularities that could disrupt water flow.

Should marine sealant be used when installing the transducer?

Yes, it is critical to apply marine sealant to the threads of the self-tapping screws on the transducer mount to prevent any water ingress into the transom.
