Lector de targetes / Lector LED Shark 10-30V Long. 30 cm

null

Public priceGet pro pricing

118,22€

118,22€ ~~124,80€~~

IVA inclòs Expedició calculada en el moment del pagament.

Estoc baix

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

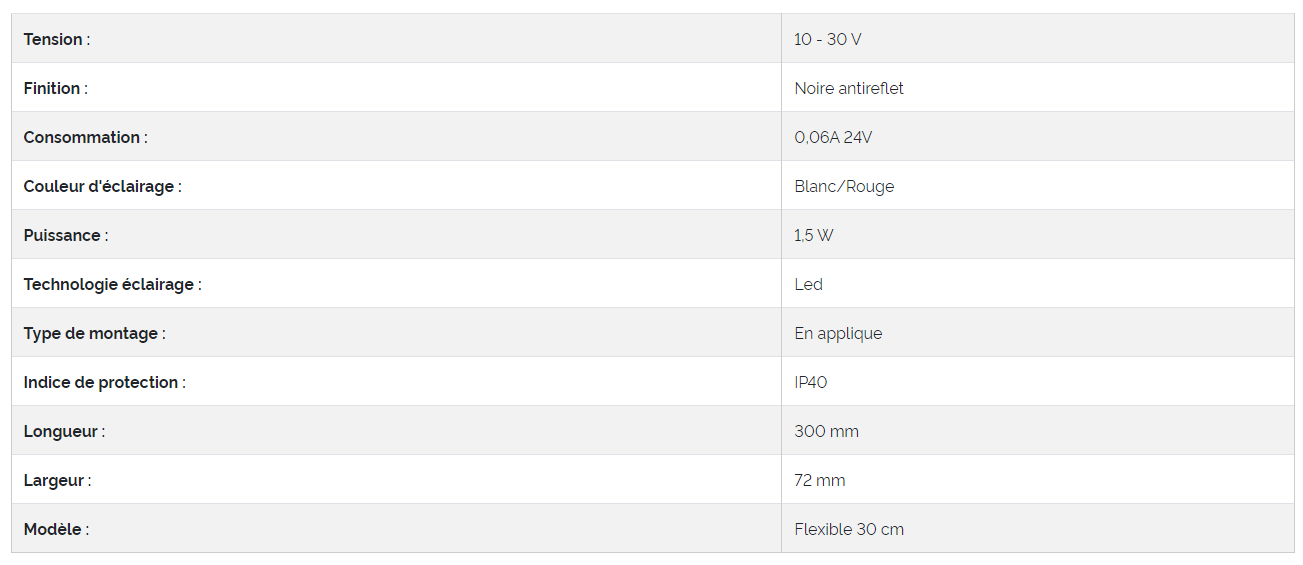

Technical specifications

Tensió de funcionament	10-30V
Consum elèctric típic	1.5W
Bicolor blanc/vermell	Oui
Braç articulat	Oui
Interruptor integrat	Oui
Material principal del cos	Composite
Tipus d'instal·lació	Montage en surface
Arm Length	30
Body Material Color	Noir
Grau de protecció IP	IP40
Life Expectancy Hours	50000
Light Color Modes	Blanc, Rouge
Mounting Method	Par vis
Power Supply Stability	Tension constante
Aplicació del producte	Éclairage de lecture / carte nautique
Gama de productes	Shark

Detailed description

El lector de targetes / lector LED Quick Shark QL061 és una solució d’il·luminació polivalent dissenyada per a entorns marins. Alimentada amb una tensió de 10 a 30V DC, és compatible amb els sistemes elèctrics de bord de 12V i 24V, amb un consum elèctric de 1,5W. El seu braç flexible de 30 cm (300 mm) permet un posicionament precís de la llum, essencial per llegir targetes o per a una il·luminació focalitzada.

Il·luminació bicolor i robustesa

Aquest llum incorpora una font lumínica LED bicolor, que ofereix una il·luminació blanca i una altra vermella per preservar la visió nocturna. Un interruptor d’encesa/apagada està integrat directament al capçal de la làmpada per a un ús intuïtiu. El lector està fabricat amb materials compostos duradors per al capçal i la base, amb una carcassa negra. Disposa d’una protecció IP40, cosa que la fa resistent a cossos sòlids superiors a 1 mm. La seva vida útil s’estima en aproximadament 50.000 hores.

Integració i fiabilitat

Dissenyada per a muntatge vertical, el lector Quick Shark QL061 es fixa sòlidament mitjançant cargols. El seu funcionament a tensió constant garanteix una sortida lumínica estable. Tot i que no és regulable ni disposa de port USB, aquest lector es posiciona com un equip d’il·luminació funcional i durador, comparable a altres solucions d’il·luminació de cabina o de taula de cartes disponibles al mercat, però amb l’avantatge de la seva flexibilitat i doble color adaptats a la navegació nocturna.

Expert review

Pol CONIN

Responsable digital

« Quick Shark reader: essential for navigation and comfort on board »

The Quick Shark QL061 LED reading light is a practical solution for lighting the navigation station or berths aboard. Its 10-30V DC compatibility greatly simplifies integration into most marine electrical systems, whether 12V or 24V, without requiring an additional converter. The main advantage lies in its dual-color lighting: the white mode is sufficient for reading charts or documents, while the red mode is essential for maintaining nighttime visual acuity—a critical factor in navigation.

The 30 cm flexible arm is a functional asset, allowing precise light targeting and preventing glare for other occupants. While the IP40 rating indicates no protection against water splashes, this product is designed for indoor installations, typically at the chart table or sleeping area. Installation is straightforward with simple vertical mounting, requiring direct connection to the 10-30V DC power supply. It is worth noting that the lack of dimming or USB port may be a deciding factor for users prioritizing simplicity and reliability over additional features.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Lector de targetes / Lector LED Shark 10-30V Long. 30 cm

118,22€

118,22€ ~~124,80€~~

Frequently Asked Questions

Need help? Contact us

What is the Quick Shark QL061 LED chartplotter/reader used for?

The Quick Shark QL061 LED chartplotter light is a versatile luminaire designed for marine environments. It provides targeted lighting, ideal for reading charts or as a cabin reading light.

What are the available lighting color options?

This e-reader features a dual-color LED light source, providing white lighting for normal visibility and red lighting to preserve night vision.

What is the required power supply voltage range for this chartplotter?

The Quick Shark QL061 e-reader operates on a 10 to 30V DC power supply.

Is this e-reader compatible with 12V and 24V electrical systems?

Yes, thanks to its voltage range of 10 to 30V DC, the reader is compatible with common 12V and 24V onboard electrical systems.

What is the power consumption of the Quick Shark QL061 reading light?

The e-reader has a low power consumption of 1.5W.

Is the e-reader dimmable or can its brightness be adjusted?

No, this e-reader is not dimmable. It provides a stable light output with constant voltage.

Is there an integrated switch on the chartplotter?

Yes, an on/off switch is directly integrated into the lamp head for intuitive use.

What is the length of the flexible arm of the reading light?

The chartplotter is equipped with a 30 cm (300 mm) flexible arm, allowing precise positioning of the light.

What materials are used to manufacture the reading light?

The head and base of the chartplotter display are made from durable composite materials, and its housing is black in color.

What is the estimated lifespan of the LEDs in this reading light?

The lifespan of the LED lights in the Quick Shark QL061 reading light is estimated at approximately 50,000 hours.

What is the ingress protection (IP) rating of this chartplotter?

The e-reader has IP40 protection. This means it is resistant to solid objects larger than 1 mm, but is not waterproof.

Does the Quick Shark QL061 chartplotter have a USB port?

No, this e-reader does not have a USB port.

What is the recommended mounting type for this light?

The display is designed for vertical mounting and is securely attached using screws.

Does the e-reader maintain a stable light?

Yes, its constant voltage operation ensures stable light output.

Is red light effective for night navigation?

Yes, the red light is specifically integrated to preserve night vision, which is essential in navigation.

Can this chartplotter be used outside a boat, for example in a motorhome?

Although designed for marine environments, it can be used in any environment requiring targeted lighting and equipped with a 10-30V DC electrical system, such as a camper van or a converted vehicle.

How to change the lighting color (white/red)?

The color change is controlled via the integrated switch located directly on the lamp head.

Is the chartplotter easy to install yourself?

Yes, the display is designed for simple vertical mounting using screws. A standard installation should not pose any major difficulty.

What is the color of the display housing?

The Quick Shark QL061 display unit is black.

Is the e-reader suitable for intensive use?

With an estimated lifespan of 50,000 hours and durable composite materials, this reading light is designed as a functional and durable lighting fixture, suitable for regular use in a marine environment.
