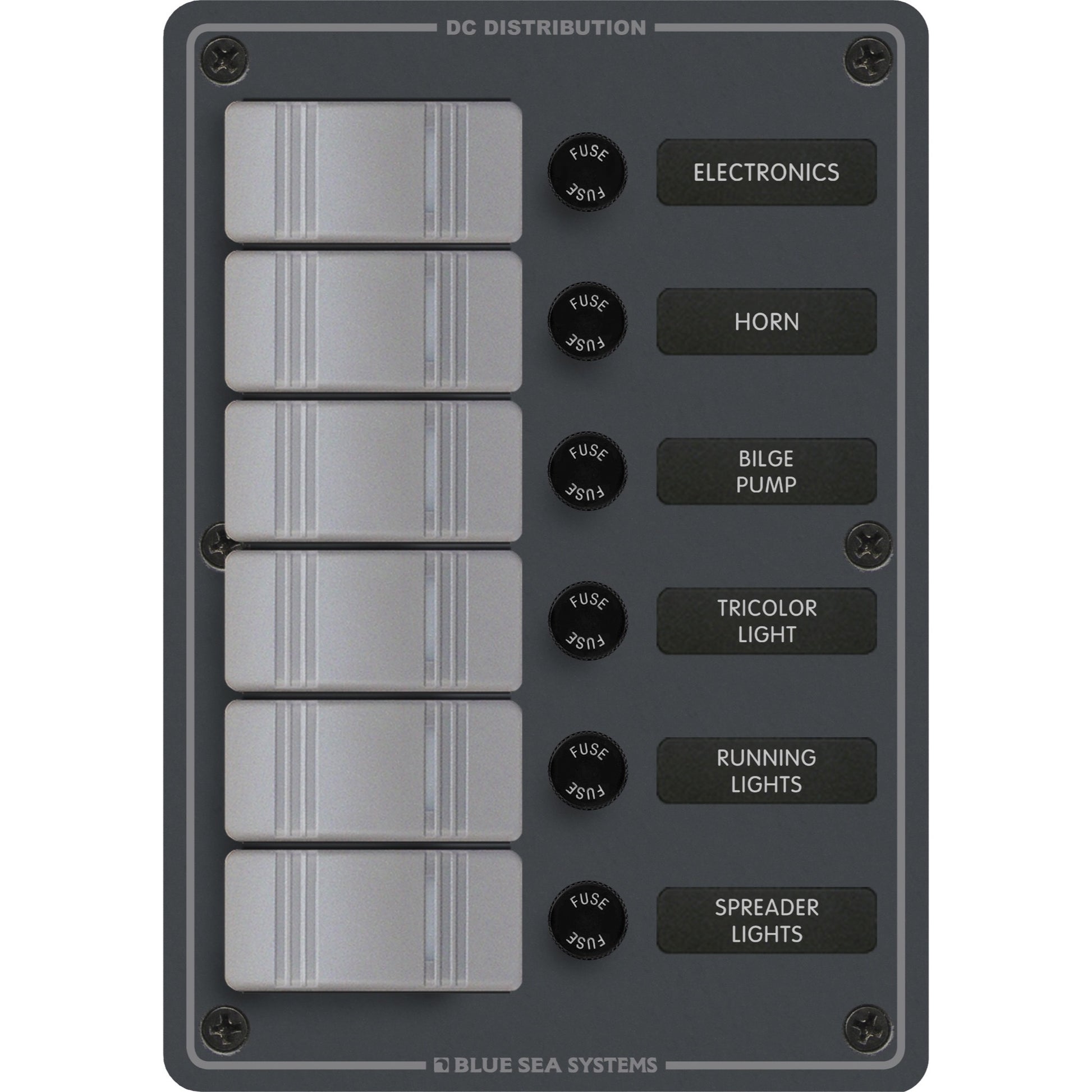

6 positions - Slate gray

The BLUE SEA 8053-BSS DC distribution panel is designed for electrical distribution aboard vessels. It provides six positions for circuit protection and switching and is specifically built for marine environments where water resistance is critical.

The panel is made of 0.100-inch-thick 5052-H32 aluminum alloy.

The panel has a textured graphite two-component polyurethane finish and has undergone chemical treatment per Mil Spec C-5541C standard.

This distribution panel provides six positions for circuit protection and switching.

The fuse holders accept 1-1/4" x 1/4" AGC (fast) and MDL (slow) glass fuses, which are commonly available.

The panel ships with preinstalled 15 amp AGC (fast-acting) fuses.

Yes, this panel is water-resistant. It can withstand water exposure typically encountered in deck applications, such as salt spray, rain, jet washing, and brief immersions.

Each switch is equipped with a circuit indicator LED that lights up to show that the circuit is powered.

The LEDs integrated in the switches are rated for a lifespan of 100,000 hours at half-life.

The overall dimensions of the panel are 133.40 x 190.50 mm (5-1/4 x 7-1/2 inches).

The panel is compatible with 12 V or 24 V DC systems.

Each switch and fuse holder is rated for a maximum current of 20 amperes for 12-volt systems and 15 amperes for 24-volt systems.

The total cumulative capacity of the panel is 45 amperes.

No, this panel must not be installed in explosive environments such as gasoline engine rooms or battery compartments, as the switches are not protected against ignition.

Before starting the installation, it is imperative to disconnect the main positive cable from all batteries and the AC shore power cord from the boat to eliminate any risk of short-circuit or electrocution.

A sealing gasket is included and must be placed between the panel and the mounting surface. The panel must be firmly screwed in to ensure a water-resistant installation.

The positive power cable must be sized for a 3% voltage drop at the panel’s full capacity (45 amps), or at the maximum amperage carried by the installation, whichever is lower. It is recommended to size the cable for the panel’s full capacity, which typically requires at least an 8 AWG cable for a 10-foot run in 12-volt systems.

Yes, a properly sized fuse or circuit breaker must protect the positive power cable.

Positive cables (red) of secondary circuits must be connected to the load terminals of each switch. Negative cables (black) of each secondary circuit must be connected to a DC negative bus, such as the Blue Sea Systems MiniBus PN 2304.

Yes, 30 basic labels are provided for secondary circuits. An extended 120-label set (PN 8039) can be ordered separately from your marine supplier if additional labels are required.
