Blue Sea Systems

6007-BSS

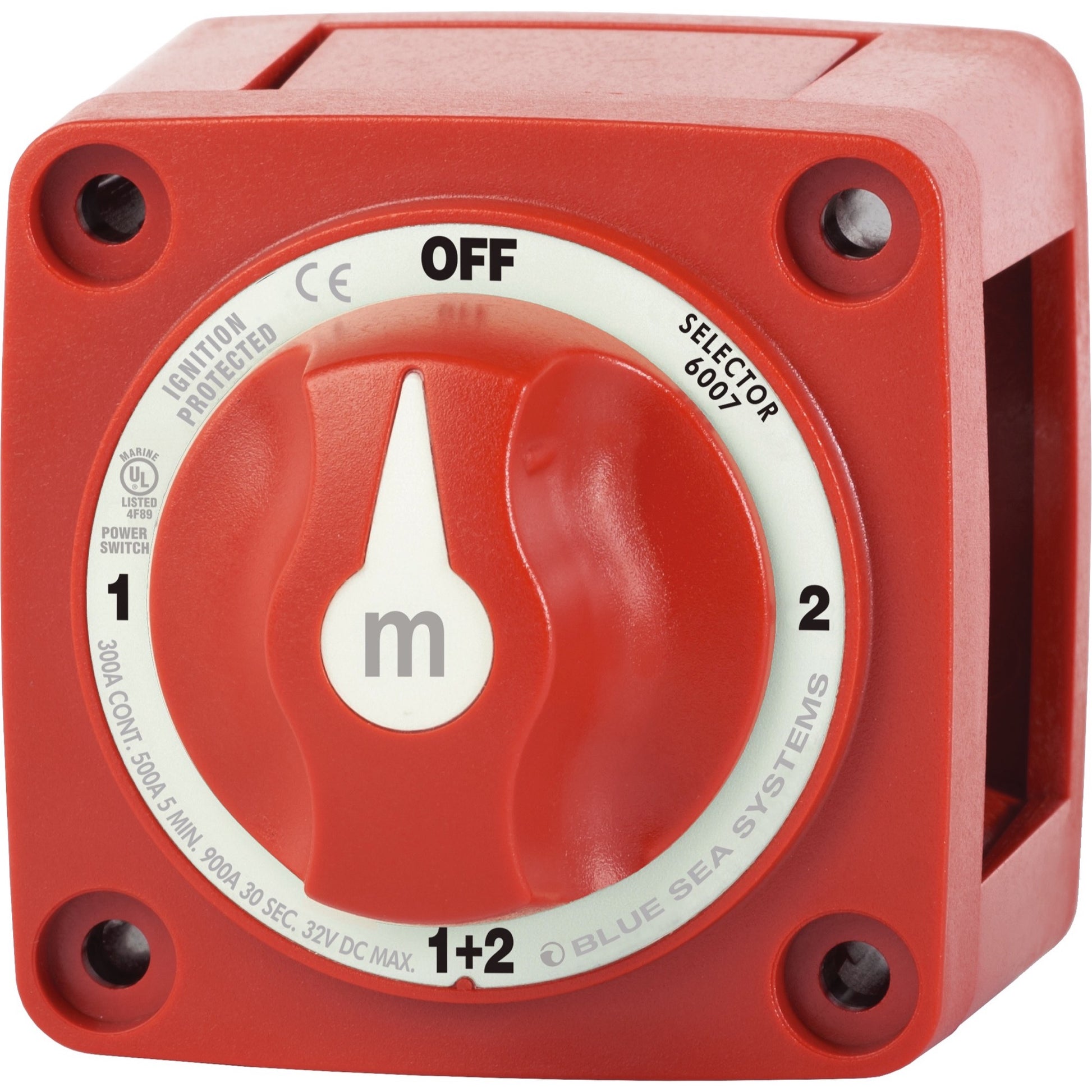

Battery switch selector mini m-Series - red

Designed for managing two battery banks, the BLUE SEA m-Series Mini Selector 6007 switch provides a continuous capacity of 300A and ignition protection. Its ultra-compact design and IP66 compliance make it suitable for small outboard or inboard gasoline/diesel engines. This model in the m-Series range includes a removable button and an insulating protective cover.

Retail priceBenefit from the professional rate

52,50€

52,50€ ~~59,04€~~

Tax included. Shipping calculated at checkout.

In stock

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Product use	Management of two battery banks for marine electrical systems, outboard motors, and low-power gasoline or diesel engines.
Switch type	4-position selector
Courant continu (A)	300
Courant intermittent (A)	500
Courant de démarrage (A)	900
Maximale tension dc	32
Nombre de pôles	1
Positions	4 (OFF, 1, 2, 1+2)
Type de borne	Tinned copper studs
Terminal size	3/8"-16 (M10)
Type de connexion câblage	Eye terminals
Type de contrôle	Manual rotary button
Mounting type	Surface mounting, panel mounting (front or rear)
IP rating	IP66
Operating voltage range	0-32 V DC
Diamètre de découpe du panneau	67 (front mount)
Housing material	Plastic
Dimensions (W x H x D)	74.93 x 74.93 x 84.34
Conformité ABYC	Yes
Couleur de l'actionneur	Red
Style d'actionneur	Rotary
Amperage	300
Nombre de parcs de batteries supportés	2
Battery Combine Function	Yes
Battery Inputs Count	2
Eu Directive Compliance List	94/25/EC, 2003/44/EC
Ignition Protection Standards List	UL 1500, SAE J1171, ISO 8846
Voyant lumineux	No
Make Before Break Feature	Yes
Nominal voltage	32V
Nom de la série de produits	m-Series
Type de produit	Battery isolator
Fonction de l'interrupteur	Select isolated battery banks for all loads or combine battery banks for all loads.
Ul Certification Standard	UL 1107

Detailed description

Designed for managing two battery banks, the BLUE SEA m-Series Mini Selector 6007 battery switch is a compact solution for marine electrical systems. It is suitable for outboards and low-power gasoline or diesel engines, with a continuous capacity of 300 amperes, an intermittent capacity of 500 amperes for 5 minutes, and a starting capacity of 900 amperes for 30 seconds.

Features and performance

This 4-position switch allows selection between battery 1, battery 2, both battery banks combined (1+2), or the OFF position. Its "make-before-break" design ensures switching without interrupting power supply, which is relevant for the stability of electrical systems. The 3/8"-16 (M10) tinned copper studs provide conductivity and corrosion resistance for reliable connections. They accept cables up to 4/0 AWG (120 mm²), meeting current requirements.

Safety and installation

The 6007-BSS is UL 1107 certified and compliant with ABYC requirements for battery switches. It is also ignition protected according to UL 1500 and SAE J1171 standards, allowing safe installation in engine compartments of gasoline-powered boats. Its IP66 rating ensures protection against dust and intense water splashes, guaranteeing reliability in marine environments. Compared to BLUE SEA’s e-Series (350A) or HD-Series (600A) ranges, the m-Series is sized for the electrical needs of smaller boats. Its ultra-compact design and surface, front, or rear panel mounting options facilitate integration into confined spaces. The removable rear protective insulator simplifies cable access from multiple directions, and the removable knob offers a service lock function.

Documentation

Type	Nom
	EN - Dimensioned Drawing - m-Series Mini Selector Battery Switch - Red
	EN - Instructions - m-Series Mini Selector Battery Switch - Red
	EN - M Series, E Series, and HD Series Battery Switch Operation Diagrams - m-Series Mini Selector Battery Switch - Red
	EN - Manual - m-Series Mini Selector Battery Switch - Red
	EN - Certificate - m-Series Mini Selector Battery Switch - Red
	EN - Certificate - m-Series Mini Selector Battery Switch - Red
	EN - Certificate - m-Series Mini Selector Battery Switch - Red

Expert opinion

Pol CONIN

Digital Manager

« Technical analysis: BLUE SEA m-Series selector switch for dual-battery management »

The BLUE SEA m-Series Mini Selector 6007 battery switch is a critical component for owners of small sailboats, RIBs, or motorboats equipped with two battery banks (start and house). Its 4-position selector function provides flexible battery management, allowing isolation, independent connection, or combination of the banks, which contributes to onboard energy management and safety. Its 300A continuous rating positions it for installations with outboard motors or small inboard gasoline/diesel engines.

Its compact design and multiple mounting options (surface, front/back panel) facilitate integration even in tight spaces. The rear insulating plate with detachable sections enables clean and secure cable routing. It is critical to respect the 13.56 N·m tightening torque for M10 studs and to use 4/0 AWG (120 mm²) cables to ensure nominal performance and electrical safety. The "ignition protected" function allows confident installation in gasoline engine compartments, a key safety factor for compliance and risk prevention.

This model is suitable for optimizing battery lifespan and ensuring stable power for sensitive electronics while preserving the start battery. Unlike BLUE SEA’s e-Series (350A) or HD-Series (600A) ranges, the m-Series 6007 is not designed for high-consumption systems or large diesel engines. It excels in its segment, offering a reliable and compact solution for managing two batteries with moderate continuous current requirements.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Battery switch selector mini m-Series - red

52,50€

52,50€ ~~59,04€~~

Frequently Asked Questions

Need help? Contact us

What is the DC current rating of this battery switch?

This BLUE SEA m-Series Mini Selector battery switch has a DC current rating of 300 amperes.

What is the intermittent current rating of this switch?

The intermittent current rating of this switch is 500 amperes DC for 5 minutes, in accordance with UL 1107.

What is the cranking rating of the 6007-BSS switch?

The 6007-BSS switch has a cranking rating of 900 amperes DC for 30 seconds.

What is the maximum voltage this switch can handle?

This switch is rated for a maximum of 32 Volts DC.

What are the available positions on this battery switch?

This 4-position selector switch allows you to choose between:

Battery 1Battery 2Battery 1+2 (to combine both battery banks)OFF (off)

What type of terminals does the switch use and what is their size?

The switch uses 3/8"-16 (M10) tinned copper stud terminals. They are designed for maximum conductivity and corrosion resistance.

What is the maximum cable size this switch can accept?

The terminal studs of this switch can accept cables up to 4/0 AWG (120 mm²) to meet current requirements.

What is the recommended torque for the switch terminals?

The recommended torque for the terminal studs is 120 in-lb (13.56 N·m). It is important to secure the battery cable lugs under the safety washer and the nut.

Does this switch have the 'make-before-break' function?

Yes, this switch features a "make-before-break" design. This ensures switching without interruption of power supply, which is critical for the stability of electrical systems.

Is this switch water- and dust-proof?

Yes, this switch has an IP66 rating, ensuring protection against dust and intense water jets, guaranteeing reliability in marine environments.

Can I install this switch in a gasoline engine compartment?

Yes, this switch is ignition-protected per UL 1500 and SAE J1171 standards, allowing safe installation in gasoline engine compartments of boats.

What are the mounting options for this switch?

This switch offers several mounting options:

Surface mountingFront panel mountingRear panel mounting

What are the required hole diameters for panel mounting?

For panel mounting, the required hole diameters are:

Front panel: 2-5/8" (67 mm)Rear panel: 2-3/16" (59 mm)

Are there any precautions to take when installing the switch?

Yes, it is crucial to disconnect the battery’s positive terminal before any installation. It is also recommended to consult a marine electrician for correct wiring.

For which types of engines is this switch recommended?

This switch is designed for marine electrical systems and is particularly suited to outboard engines and low-power gasoline or diesel engines.

How many battery banks can this switch manage?

This switch is designed for managing two isolated battery banks, allowing you to select one, the other, or combine them.

What are the important usage instructions for this switch?

For safe and correct use:

Turn off all electrical devices before setting the battery switch to the OFF position.
Do not set the switch to OFF while the engine is running.

Is this switch compliant with marine standards?

Yes, the 6007-BSS is UL 1107 certified and meets ABYC requirements for battery switches. It also complies with UL 1500 ignition protection and SAE J1171, as well as ISO 8846 and Directive 94/25/EC.
