Mounting hardware (Panoptix™ PS70)

This mounting hardware is a set of accessories designed specifically for the secure and optimal installation of the downward-facing Panoptix PS70 through-hull transducer. It ensures durable mounting even in demanding marine conditions.

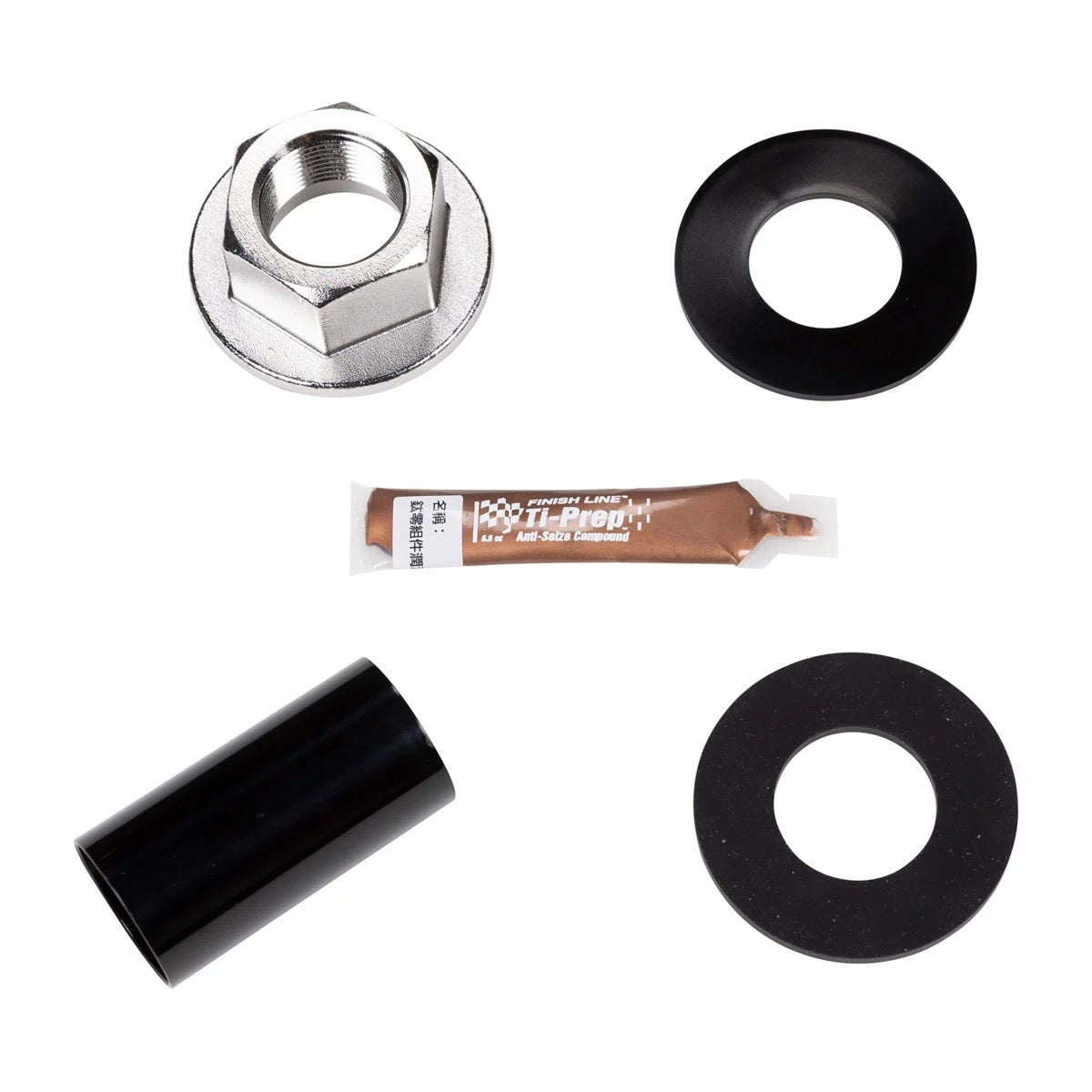

The mounting kit includes stainless steel through-hull components, essential for durability and corrosion resistance in a marine environment. A fairing block is also supplied, along with an anti-rotation bolt.

The fairing block is provided to allow the transducer to be installed on hulls with deadrise angles up to 20 degrees. It is designed to position the transducer parallel to the waterline, which is critical for maintaining sonar return accuracy at operating speeds and resisting hydrodynamic stresses.

The through-hull components included in this mounting hardware are made of stainless steel, ensuring excellent durability and corrosion resistance in a marine environment.

This mounting hardware is specifically designed for installing the downward-facing Garmin Panoptix™ PS70 transducer.

This mounting hardware is compatible with a variety of hull types, including fiberglass (with or without core) and metal. It can be installed according to the provided instructions for these materials.

The included fairing block is designed for hulls with a leeway angle up to 20 degrees. It aligns the transducer parallel to the waterline on an inclined hull surface.

If the hull's deadrise angle exceeds 20 degrees, installation with the fairing block is not recommended. In this case, the transducer must be installed in a dedicated hull pocket. The fairing block and anti-rotation bolt are not used for installation in a hull pocket.

Yes, to achieve optimal performance and avoid potential damage to the device or the vessel, installation by a qualified marine technician is recommended.

Drill3 mm (1/8 in) drill bit18 mm wrench or adjustable wrench46 mm (1 13/16 in) wrench or adjustable wrench for nuts up to 50 mm (2 in)Marine sealant (flexible, fast-curing type for below waterline)Mild household detergent or rubbing alcoholSandpaperMasking tapeWaterproof electrical tapeWax

Yes, applying marine sealant is mandatory to ensure perfect watertightness and prevent any risk of water infiltration. The sealant must be applied between the fairing block and the hull, between the fairing block and the transducer, between the fairing block and the anti-rotation bolt cap, on the holes for the bolts and the transducer cable rod, between the rod and the hull nut, between the rings, the rod and the hull, and between the transducer and the hull pocket.

The arrows on the fairing block and on the transducer must point toward the bow of the vessel. This ensures the transducer is aligned with the vessel's heading for optimal performance.

The transducer must be mounted in clean (non-turbulent) water for optimal performance, away from elements that create bubbles or turbulence (straps, struts, fittings, water intake or discharge openings). It must not be mounted behind propellers or in their path on single-propulsion boats. On twin-propulsion boats, it should be mounted between the propulsion units if possible. Avoid locations where it could be shaken during launching, towing, or storage. Do not install near the engine, in the engine room, or in any other hot area to prevent overheating and interference.

To avoid potential bodily injury, it is imperative to always wear safety goggles, hearing protection, and a dust mask when drilling, cutting, or sanding. Always check what is on the other side of the surface before drilling or cutting to avoid damaging the vessel.

The anti-rotation bolt is mandatory for installations using the fairing block to prevent the transducer from rotating while the boat is underway, which could damage the hull. However, it is not used when the transducer is installed in a dedicated hull pocket.

Yes, the Garmin chartplotter's software must be updated when installing this device to ensure compatibility and optimal operation.

After marking the hole locations, drill a 3 mm pilot hole. Then use a spade bit or a 42 mm hole saw for the bolt hole, and an 18 mm drill bit for the anti-rotation bolt hole. It is critical to remove the core material plug and seal the exposed core with marine-grade epoxy resin and let it cure before attaching the transducer to prevent water intrusion.

After marking the hole locations, drill a 3 mm pilot hole. Then use a 38 mm hole saw for the stud hole and a 16 mm drill bit for the anti-rotation bolt hole. It is important to sand and clean the inside and the area around the holes after drilling.

Yes, the Garmin mounting hardware (Panoptix™ PS70) is covered by Garmin’s standard warranty for its marine products and accessories. This warranty covers manufacturing and material defects.

The package for this through-hull mounting hardware includes all accessories required to install the Panoptix PS70 transom-mount transducer. It contains the stainless steel through-hull components, a fairing block, an anti-rotation bolt, and the installation instructions.
