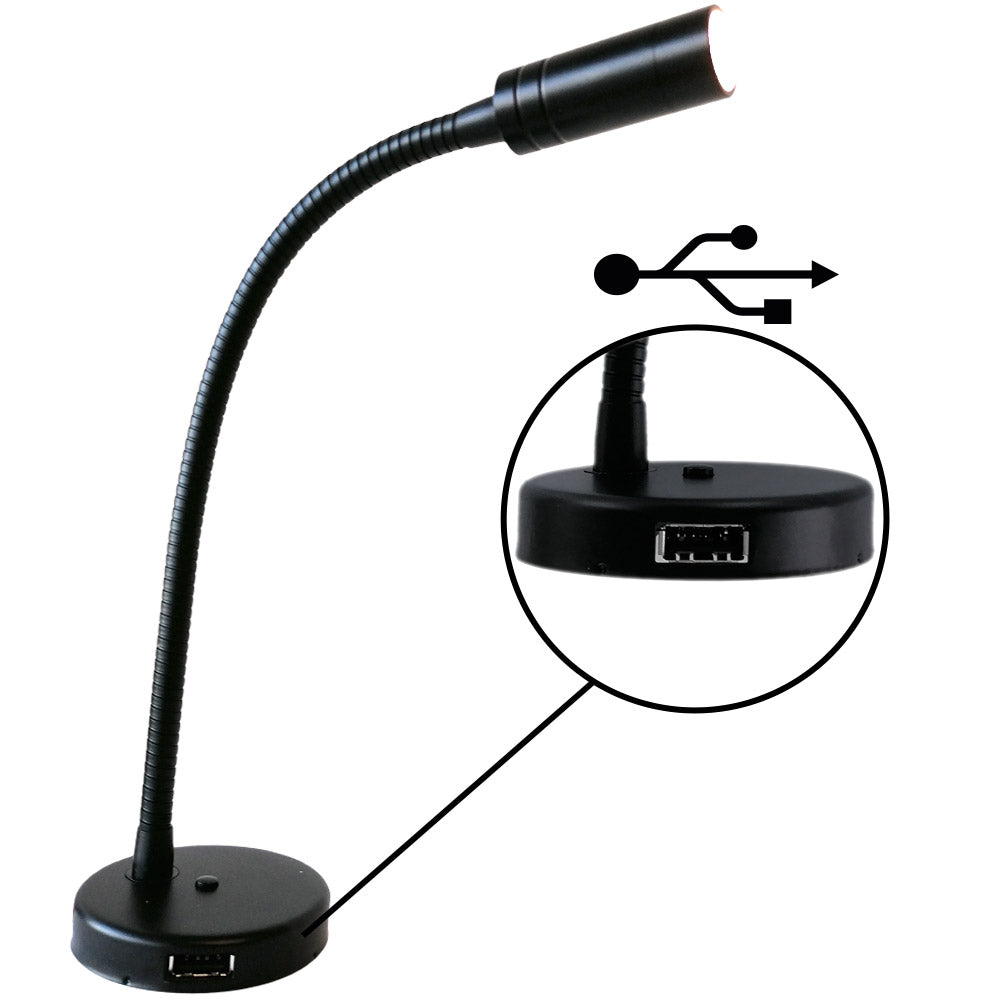

Lampe de table à carte MANTAGUA Yeu noire, idéale pour la navigation.

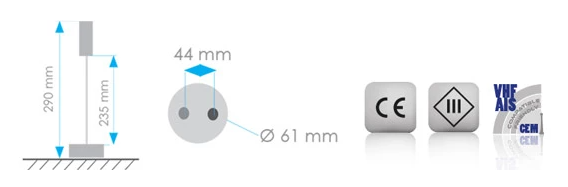

Lampe de table à carte MANTAGUA Yeu noire, pour la navigation marine.

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Save 2%

MANTAGUA

01594

Black Eye Card Table Lamp

The MANTAGUA Yeu black chart table lamp is a flexible 1W LED light (100 lumens, 3100K) designed for navigation. Its robust aluminium/Zamak construction and 10° narrow beam optimize chart reading, while IEC60945 certification ensures no interference with VHF/AIS equipment. It comes with an integrated push-button switch, a USB charging port, and two mounting screws.

Retail priceBenefit from the professional rate

119,23€

119,23€ ~~121,79€~~

Tax included. Shipping calculated at checkout.

In stock

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Operating voltage	9-30 VDC
Typical power consumption	1 W
Flux lumineux	100.0
Température de couleur	3100.0
Bras articulé	Oui
Interrupteur intégré	Oui
USB connection type	USB
Matériau principal du corps	Zamak and Aluminium
Installation type	Surface mount
Largeur de la base	61
Finish	Matte black
Diamètre de la tête de lampe	20
Overall hauteur mm	290
Composition du matériau du produit	Brushed aluminium, Zamak
Poids net du produit	120
Product range	Yeu
Product type	Chart table lamp

Detailed description

The MANTAGUA Yeu black chart table lamp (reference 01594) is a flexible LED lighting solution designed specifically for demanding marine environments, particularly chart tables and cabin reading areas. Equipped with a 1W LED light source, it delivers a luminous output of 100 lumens, equivalent to a 10W halogen bulb, while ensuring minimal energy consumption (9-30 VDC). Its warm white lighting color (3100K) and narrow 10° beam angle are optimized for precise chart reading without disrupting ambient night vision, distinguishing it from broader cabin lighting.

Robust Design and Marine Reliability

Manufactured from brushed aluminum and Zamak, machined from a solid block and offered here in a matte black finish, the Yeu lamp provides robustness suited to marine conditions. Weighing 120g and with compact dimensions (base 61mm wide, total height 290mm, lamp diameter Ø20mm), it integrates discreetly. The design includes a regulated bulb for consistent light intensity and extended LED lifespan. It also holds IEC60945 certification, ensuring it does not interfere with onboard AIS and VHF systems, a critical criterion for the safety and performance of electronic equipment.

Installation and Positioning in the MANTAGUA Range

Installation of the Yeu lamp is simplified by its 10cm bare wire electrical connection and mounting via two screws (supplied), as well as its polarity-insensitive electrical design. It features a push-button switch and a USB charging port (2A max) for easy use and device charging. Within the MANTAGUA range, the Yeu is positioned as a technical and specialized lamp, complementing models such as reference 01177 (flexible LED chart lamp with switch) or 01593 (Yeu version with matte black switch, 10W warm white). While other MANTAGUA lights focus on general ambiance or specific applications like cockpit lighting, the Yeu is clearly oriented toward functionality and precision for navigation or reading tasks. It outperforms generic lamps with its dedicated marine design and compliance with standards.

Documentation

Type	Nom
	technical_sheet_-_black_eye_chart_table_lamp.pdf

Expert opinion

Pol CONIN

Digital Manager

« MANTAGUA Yeu noire: LED technical and certified chart table lamp »

The MANTAGUA Yeu noire chart table lamp (reference 01594) is a technical and reliable lighting solution perfectly suited to the demands of navigation stations. Its 1W LED source delivers 100 lumens in warm white (3100K) with a 10° beam angle, ideal for illuminating a precise work area without causing glare or impairing night vision adaptation. This feature is crucial for reading charts or using navigation instruments at night. The 9-30 VDC compatibility, polarity-insensitive design, and integrated USB charging port simplify its integration into onboard electrical systems, whether 12V or 24V, while providing convenient charging functionality. Its IEC60945 certification ensures no electromagnetic interference, a critical point for the reliability of VHF and AIS equipment. The machined aluminum and Zamak construction gives this luminaire superior robustness and durability, essential in a corrosive marine environment. The extended LED lifespan reduces maintenance requirements.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Black Eye Card Table Lamp

119,23€

119,23€ ~~121,79€~~

Frequently Asked Questions

Need help? Contact us

What is the luminous output of the MANTAGUA Yeu black chart table lamp?

The MANTAGUA Yeu black chart table lamp delivers a luminous output of 100 lumens. This output is equivalent to that of a 10W halogen bulb, while ensuring minimal energy consumption thanks to its 1W LED source.

What is the color of the lighting on this marine lamp?

The MANTAGUA Yeu black lamp provides warm white lighting (3100K). This shade is optimized for precise chart reading without disrupting ambient night vision.

Which materials is the Yeu chart table lamp made of?

The Yeu lamp is made from brushed aluminum and Zamak. It is machined from a solid block, giving it robustness suited to marine conditions.

What is the weight of the MANTAGUA Yeu black lamp?

The weight of the MANTAGUA Yeu black lamp is 120 grams (0.12 kg).

Is the Yeu black lamp specifically designed for marine use?

Yes, the MANTAGUA Yeu black lamp is specifically designed for demanding marine environments, particularly for chart tables and cabin reading areas. Its robust design and certifications attest to this.

What is the beam angle of this chartreading light?

The Yeu black reading light has a narrow 10° beam angle. This angle is optimized for precise chart reading without disturbing ambient darkness.

Is this LED light energy-efficient?

Yes, the Yeu black LED light is very energy-efficient. It uses a 1W LED light source and is designed for minimal power consumption (9-30 VDC).

Does the Yeu black lamp have an integrated switch?

Yes, the Yeu black lamp includes a push-button switch for easy operation.

What is the aesthetic finish of the MANTAGUA Yeu black lamp?

The MANTAGUA Yeu black lamp is available in a matte black finish.

What is the total height of the Yeu black chart table lamp?

The total height of the Yeu black lamp is 290 mm.

What is the diameter of the Yeu lamp head?

The diameter of the Yeu lamp head is Ø20 mm.

Is this lamp suitable for reading marine charts?

Yes, the MANTAGUA Yeu black lamp is specifically optimized for precise chart reading. Its warm white lighting and 10° narrow beam are ideal for this application without impairing night vision.

How is the Yeu black chart table lamp installed?

Installing the Yeu lamp is straightforward. It is mounted using two screws (supplied) and connected electrically via its 10 cm bare wire.

Are the screws required for mounting the light included?

Yes, the two mounting screws are supplied with the light to facilitate installation.

Does the lamp require a specific polarity when connecting the power supply?

No, the Yeu Noire lamp has a non-polarized electrical connection, which simplifies installation.

What is the length of the electrical connection cable for the lamp?

The lamp is supplied with 10 cm bare electrical wire leads for connection to the power supply.

What is the width of the base of the Yeu black lamp?

The base of the Yeu black lamp has a width of 61 mm.

What is the required supply voltage to operate this lamp?

The Yeu black chart table lamp requires a 9 to 30 VDC (direct current volts) power supply, making it compatible with 12V and 24V marine electrical systems.

Does the MANTAGUA Yeu noire lamp allow charging electronic devices?

Yes, the Yeu noire lamp includes a USB charging port that can deliver up to 2A (amperes) maximum, allowing you to charge your electronic devices.

Is the Yeu black lamp certified not to interfere with navigation equipment?

Yes, the Yeu black lamp holds IEC 60945 certification. This certification ensures it does not interfere with onboard AIS (Automatic Identification System) and VHF (Very High Frequency) systems, which is critical for the safety and performance of marine electronic equipment.
