Raymarine

E70655-00-MED

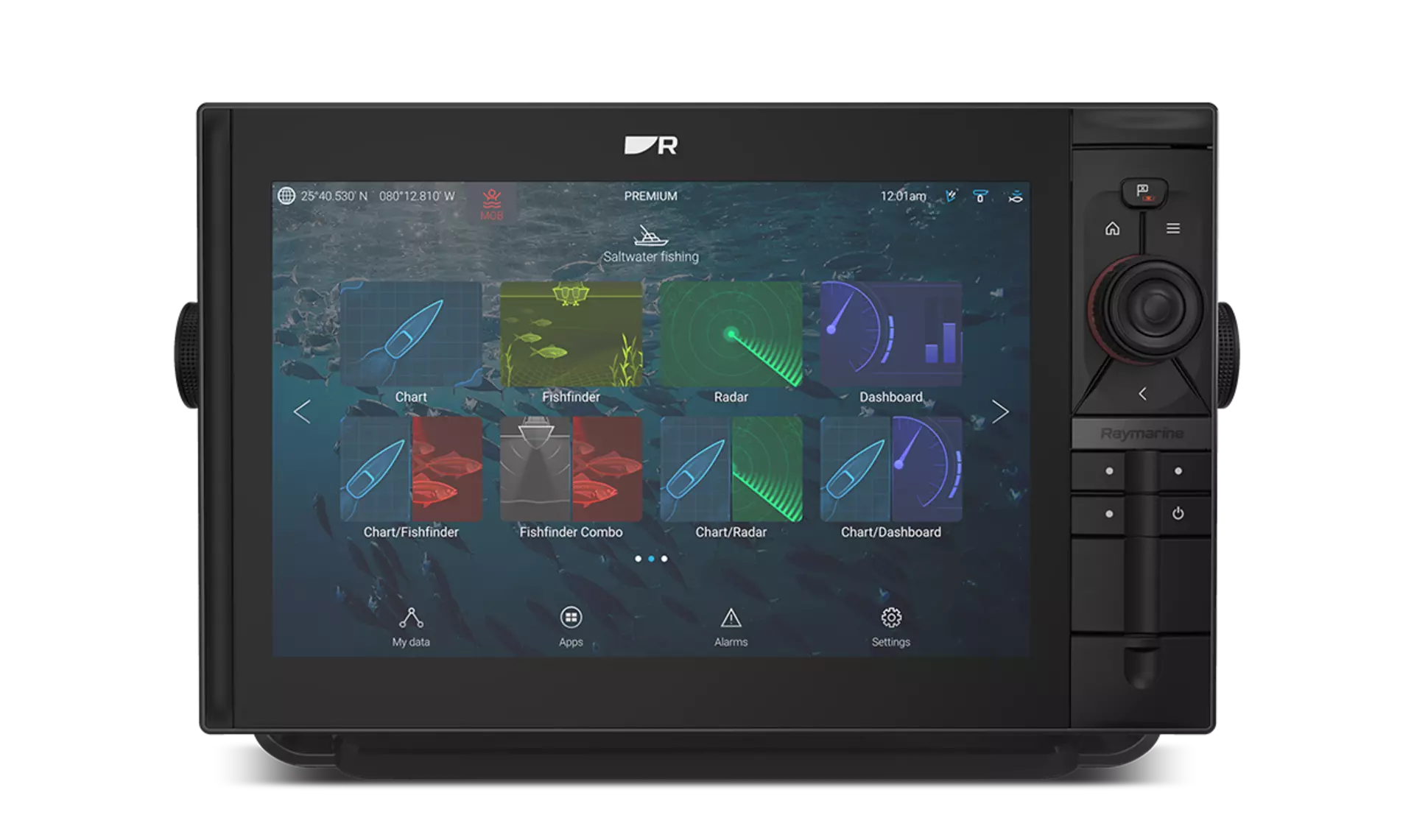

AXIOM2 12 Pro-S, 12" Hybrid Touch Multifunction Display with CHIRP Sonar for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, Transducer Not Included

The Raymarine AXIOM2 12 Pro-S 12-inch hybrid multifunction display is designed for navigation and fishing, integrating a single-channel CHIRP sounder optimized for CPT-S transducers. Part of the AXIOM2 Pro range, this version differs from the AXIOM2 RV/RVX models by focusing on a traditional CHIRP sounder, offering a touchscreen interface and physical controls for versatile use. It ships with LightHouse Mediterranean mapping preloaded, without a transducer.

Retail priceBenefit from the professional rate

3.555,50€

3.555,50€ ~~4.254,00€~~

Tax included. Shipping calculated at checkout.

In stock

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Operating voltage	12 V DC
Supported sonar technologies	Traditional CHIRP
Fishfinder frequencies	Traditional CHIRP
Sonar connector type	CPT-S connector
ActiveTarget compatible	No
IP rating	IPX6 / IPX7
Bus compatibility	SeaTalk NG / NMEA 2000
Trolling motor integration	No
Wired network	RayNet
Integrated GPS antenna	Yes
Wireless connectivity	Wi-Fi
Mounting type	Bracket or flush-mounted depending on kit
Display resolution	1280 x 800 px
Screen size	12 inches
Touchscreen	Yes

Detailed description

Designed for coastal and offshore navigation, the Raymarine AXIOM2 12 Pro-S multifunction display features a hybrid interface with a 12" touchscreen and physical controls. This design combines the responsiveness of touch for planning and menu access with the precision of buttons and a joystick for fine adjustments in rough seas, an advantage over purely touchscreen displays in the Axiom and Axiom+ ranges.

Integrated CHIRP Sonar and Chartplotter

The system includes a single-channel CHIRP sonar optimized for CPT-S transducers, providing reliable depth and temperature data. Unlike the Axiom Pro RV or RVX models, which include DownVision, SideVision, or RealVision technologies, the Pro-S version focuses on traditional CHIRP sonar functionality, suited for bottom and fish detection without advanced imaging capabilities. The chartplotter ships with Raymarine LightHouse Mediterranean chartplotter data, and supports LightHouse 4 features such as automatic route creation and customization of the home screen.

Connectivity and System Integration

Wi-Fi connectivity simplifies software updates (applicable version v4.10.149) and integration with other devices. The AXIOM2 12 Pro-S is compatible with Quantum radar systems and iTC-5 sensors. It integrates with SeaTalk HS and SeaTalk NG networks, enabling seamless communication with older eS and gS Series displays. The LightHouse 4 operating system supports third-party applications, such as the Suzuki engine monitoring app, and offers data management, alarm, and user profile features.

Documentation

Type	Nom
	FR - Manuel d'utilisation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	EN - Declaration of Conformity - AXIOM2 12 Pro-S, 12" Hybrid Touchscreen Multifunction Display with CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Mapping, Without Transducer
	EN - Declaration of Conformity - AXIOM2 12 Pro-S, 12" Hybrid Touchscreen Multifunction Display, CHIRP fishfinder for CPT-S transducer, WiFi, Lighthouse Mediterranean mapping, without transducer
	EN - Declaration of Conformity - AXIOM2 12 Pro-S, 12" Hybrid Touch Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Mapping, No Transducer
	EN - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	FR - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	EN - Installation Instructions - AXIOM2 12 Pro-S, 12" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, No Transducer Included
	EN - Installation Guide - AXIOM2 12 Pro-S, 12" Hybrid Touch Multifunction Display, CHIRP Sonar for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Mapping, Transducer Not Included
	EN - Installation Manual - AXIOM2 12 Pro-S, 12" Hybrid Touch Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Mapping, Transducer Not Included
	EN - Installation Guide - AXIOM2 12 Pro-S, 12" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, WiFi, Lighthouse Mediterranean Charts, Transducer Not Included
	EN - Mounting Template - AXIOM2 12 Pro-S, 12" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, WiFi, Lighthouse Mediterranean Cartography, Transducer Not Included

Expert opinion

Pol CONIN

Digital Manager

« Technical review: Raymarine AXIOM2 12 Pro-S, a high-performance hybrid MFD »

The Raymarine AXIOM2 12 Pro-S is a versatile solution for cruising sailors and racers seeking a balance between modern touchscreen interface and the reliability of physical controls. Its 12-inch display offers comfortable visibility, essential for navigation and depth sounder monitoring. The "Pro-S" version stands out with its faster processor and hybrid interface, a notable advantage over the purely touchscreen Axiom and Axiom+ models, especially in rough seas where touch sensitivity degrades. The integration of a single-channel CHIRP CPT-S sounder targets primarily depth detection and basic coastal fishing rather than the sophisticated lateral or down-imaging of RealVision models.

Installation is standard for an MFD of this size, requiring a cutout in the console and connections to NMEA 2000 networks (SeaTalkng) for sensor and engine integration, and NMEA 0183 for some VHF units. The CPT-S sounder connects directly. It is critical to plan the location to optimize access to physical controls and the touchscreen while ensuring adequate ventilation for the MFD.

This model is particularly relevant for those who already own a CPT-S sounder or do not require the advanced imaging functions (DownVision, SideVision) of the Axiom Pro RV or RVX. It provides a robust and scalable platform via LightHouse 4, capable of handling Quantum radar, autopilots, and Suzuki engine integration. For mid-sized cruising boats or regatta sailboats, it offers a balanced choice with intuitive performance and control without the added cost of sounder features that would go unused.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

AXIOM2 12 Pro-S, 12" Hybrid Touch Multifunction Display with CHIRP Sonar for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, Transducer Not Included

3.555,50€

3.555,50€ ~~4.254,00€~~

Frequently Asked Questions

Need help? Contact us

Which CPT-S transducer types are compatible with the Raymarine AXIOM2 12 Pro-S display?

The AXIOM2 12 Pro-S multifunction display is specifically designed to operate with Raymarine CHIRP transducers of the CPT-S series. This includes through-hull CPT-S transducers (available with different tilt angles: 0°, 12°, 20°) as well as transom-mount CPT-S transducers. The choice of transducer will depend on your hull type and detection requirements.

Is it possible to use other marine charts than the provided Lighthouse Méditerranée mapping?

Yes, the AXIOM2 12 Pro-S multifunction display supports the use of additional marine charts. Although it comes with Raymarine LightHouse mapping for the Mediterranean, you can purchase and install other LightHouse charts for different regions or third-party compatible charts via the device's MicroSD card slot.

What is the particularity of the hybrid interface on the AXIOM2 12 Pro-S display?

The AXIOM2 12 Pro-S stands out with its hybrid interface, combining a 12-inch touchscreen with traditional physical controls, including buttons and a joystick. This design allows for quick and intuitive navigation via the touchscreen for planning and menu access, while providing increased precision with the physical controls for fine adjustments, particularly useful in rough seas.

How can the Raymarine AXIOM2 12 Pro-S display be installed on my boat?

The Raymarine AXIOM2 12 Pro-S display offers flexible installation options to suit various dashboard configurations. It can be installed in two main ways:

Flush-mount installation: For a flush and aesthetic integration into your console.Bracket-mount installation: The unit is secured to a surface using an adjustable bracket, allowing flexible screen orientation for optimal visibility.

What connectivity options are available on the AXIOM2 12 Pro-S?

The AXIOM2 12 Pro-S provides extended connectivity to integrate with your marine system:

Wi-Fi: Enables software updates (version applicable v4.10.149) and integration with other marine devices.SeaTalk HS (Ethernet): Allows connection to Quantum radars, other Raymarine multifunction displays, and sounder modules.SeaTalk NG (NMEA 2000): Ensures seamless communication with iTC-5 sensors, autopilots, and other NMEA 2000-compatible instruments.

Does the AXIOM2 12 Pro-S integrated fishfinder offer advanced imaging features like DownVision or SideVision?

No, the AXIOM2 12 Pro-S integrates a single-channel CHIRP fishfinder optimized for CPT-S transducers. This fishfinder provides reliable depth and temperature data as well as traditional fish detection. It does not include advanced imaging technologies such as DownVision, SideVision, or RealVision, which are available on other models like the Axiom Pro RV or RVX.

Which operating system does the AXIOM2 12 Pro-S use, and what are its main features?

The AXIOM2 12 Pro-S operates on Raymarine LightHouse 4 operating system. This system enables automatic route creation, customization of the home screen, and integration of third-party applications, such as the Suzuki app for engine monitoring. It also provides data management, alarm, and user profile features, and facilitates software updates via Wi-Fi.

Which type of memory card is compatible with the AXIOM2 12 Pro-S display for storing charts or user data?

The AXIOM2 12 Pro-S display is compatible with MicroSD memory cards. These cards are essential for expanding storage memory, installing additional chartsets, software updates, and transferring user data such as waypoints, routes, and tracks.
