Radar Cyclone 55 Watts avec antenne poutre 3' et câble radar RayNet 15m

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Save 7%

Raymarine

T70491

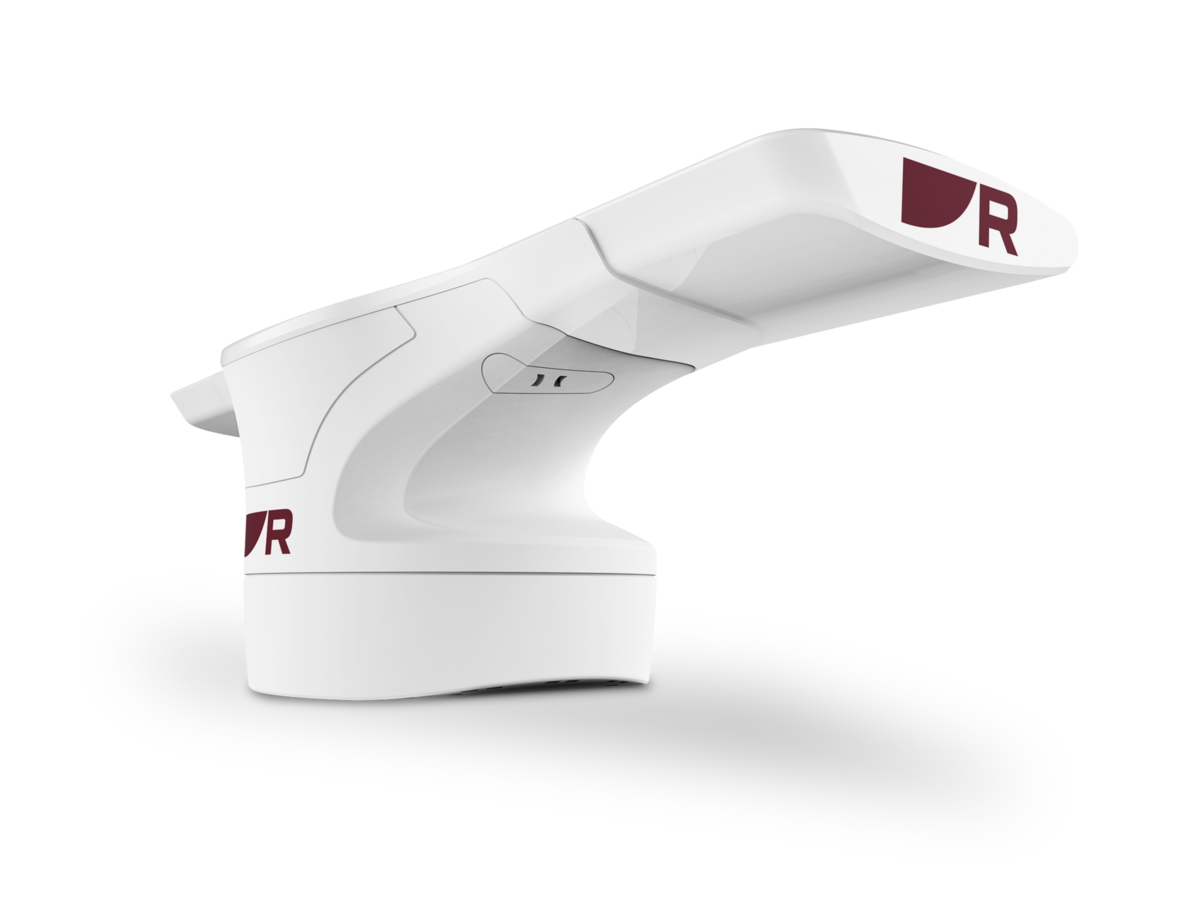

Cyclone 55-Watt Radar with 3' beam antenna and 15m RayNet radar cable

Designed for safe navigation, the Raymarine Cyclone 55 Watts radar integrates a 3-foot beam antenna and Doppler technology for precise target detection. This system, RayNet-compatible, ensures seamless integration with LightHouse multifunction displays.

This pack includes the Cyclone 55 Watts radar base, the 3-foot beam antenna, the VCM100 voltage converter module, and a 15-meter RayNet radar cable.

Power: 55 W

55 W 110 W Pro

Antenna: 3 ft

3 ft 4 feet 6 feet

Retail priceBenefit from the professional rate

7.744,81€

7.744,81€ ~~8.394,00€~~

Tax included. Shipping calculated at checkout.

In stock

Free pickup point shipping over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Product diameter	914 mm
Product height	220 mm
Operating voltage	12 V DC / 24 V DC
Max power consumption	70 W
Radar technology	Compressed High Intensity Radar Pulse (CHIRP) with Doppler
Max radar range	72 nautical miles
Recommended fuse rating	10 A (12 V) / 5 A (24 V)
Radar rotation speed	12, 24, 48 RPM (variable)
Horizontal beam width	2.5°
Waterproof	IPX6
Typical power consumption	18 W (standby)
Sweep bandwidth	32 MHz
Pulse length	Variable (compressed pulse)
Compass safe distance	100 cm
Noise figure	6 dB
Min radar range	6 m
Wired network	RayNet (Ethernet)
Operating temperature	-25°C to +55°C
MARPA tracking	Yes
Radar transmit power	55 W
Radar band	X band
Radar antenna / radome type	Open-array antenna
Product width	370 mm
Doppler radar technology	Yes
Dual-range radar	Yes, thanks to RangeFusion™ technology that combines short and long pulses for a unique and clear radar image, displaying short- and long-range targets simultaneously.
Radar VelocityTrack	Yes
Largeur faisceau vertical	25°
Radar peak power	55 W
Package contents	Cyclone 55W radar pedestal, 3' whip antenna, 15m RayNet radar cable, VCM100 voltage converter module, mounting kit, documentation
Available alarms	Collision alarms (ARPA), Doppler target tracking for hazardous target identification.

Detailed description

The Raymarine Cyclone 55-Watt radar with a 3-foot beam antenna is a marine detection solution designed to provide detailed visibility of targets in various sailing conditions. This system integrates a 3-foot beam antenna and is powered by 55 watts, ensuring radar range and image clarity for safety at sea. The VCM100 voltage converter module is included, facilitating electrical integration aboard.

Advanced Doppler Technology and System Integration

The Raymarine Cyclone radar benefits from an overview of Doppler technology, enabling improved detection of moving targets. This feature is essential for quickly distinguishing potential hazards from stationary elements, optimizing decision-making at sea, particularly in low-visibility conditions or dense traffic. Integration with the system is ensured via a 15-meter RayNet radar cable, guaranteeing a reliable and fast connection to compatible Raymarine LightHouse multifunction displays.

Marine Compliance and Reliability

The Cyclone 55-Watt radar system complies with strict international standards. It is certified to EN IEC 62368-1+A11:2020 for health and safety, IEC 60945:2002 (including Corrigendum 1 of 2008) for electromagnetic compatibility (EMC) in marine environments, and ETSI EN 302 248 V2.1.1 for radio spectrum use. These certifications, along with compliance with Directive 2014/53/EU, attest to the product's reliability and robustness in demanding marine environments. It is designed to operate with compatible multifunction displays and can be configured for ARPA target acquisition, subject to specific software requirements.

Documentation

Type	Nom
	EN - Notice d'installation - Radar Cyclone 55 Watts avec antenne poutre 3' et câble radar RayNet 15m
	FR - Notice d'installation - Radar Cyclone 55 Watts avec antenne poutre 3' et câble radar RayNet 15m
	EN - Declaration of Conformity - Cyclone 55 Watts Radar with 3' beam antenna and RayNet 15m radar cable
	EN - Declaration of Conformity - Cyclone 55W Radar with 3' array antenna and RayNet 15m radar cable
	EN - Mounting template - Cyclone 55 Watts radar with 3' beam antenna and RayNet 15m radar cable

Expert opinion

Pol CONIN

Digital Manager

« Analysis of the Raymarine Cyclone 55W radar: power and Doppler detection »

The Raymarine Cyclone 55-watt radar with a 3-foot slotted-array antenna is a solid choice for vessels needing strong radar detection without the bulk of larger antennas. Its 55-watt output, paired with a 3-foot antenna, strikes a practical balance between range, resolution, and physical integration, making it well-suited for mid-sized to large sailboats and cruising powerboats. The built-in Doppler technology is a key safety feature, enabling quick and intuitive identification of moving targets, which reduces the navigator’s cognitive load in complex or low-visibility conditions. This ability to distinguish moving targets is a significant advantage over conventional radars.

Installing this system requires mounting the radar pedestal and antenna, along with integrating the VCM100 voltage converter module. The VCM100 should be carefully positioned in a protected but accessible technical space to optimize power cabling and the 15-meter RayNet cable routing to multifunction displays. It is essential to maintain safe distances from compasses and allow sufficient clearance for antenna rotation while minimizing obstructions to the radar beam. This model outperforms dome radars of equivalent power in target separation and range, but for very long ranges or detecting very small targets, 4- or 6-foot antennas from the Cyclone Pro series may offer improved resolution at the cost of greater physical size.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Cyclone 55-Watt Radar with 3' beam antenna and 15m RayNet radar cable

7.744,81€

7.744,81€ ~~8.394,00€~~

Frequently Asked Questions

Need help? Contact us

What is the transmit power of this Raymarine Cyclone radar?

The Raymarine Cyclone radar has a transmit power of 55 Watts. This power ensures range and image clarity for effective target detection in various sailing conditions.

What is the size of the antenna supplied with this Raymarine Cyclone radar model?

This Raymarine Cyclone radar model is supplied with a 3-foot open-array (poutre) antenna.

What type of detection technology does this Raymarine Cyclone radar use?

The Raymarine Cyclone radar integrates advanced Doppler technology. This feature provides enhanced detection of moving targets, helping to quickly distinguish potential hazards from stationary objects and optimize decision-making at sea.

Is the VCM100 voltage converter module included with the radar?

Yes, the VCM100 voltage converter module is included in the Raymarine Cyclone 55 Watts radar pack. It is essential for simplifying the electrical integration of the system aboard your vessel.

What is the length of the RayNet cable supplied with the radar?

The Raymarine Cyclone radar system is supplied with a 15-metre RayNet radar cable. This cable provides a reliable and quick connection to compatible multifunction displays.

Is this radar compliant with safety and electromagnetic standards?

Yes, the Raymarine Cyclone 55 Watts radar complies with several strict international conformity standards. It is certified under:

EN IEC 62368-1+A11:2020 for health and safety. IEC 60945: 2002 (including Corrigendum 1 of 2008) for electromagnetic compatibility (EMC) in marine environments. ETSI EN 302 248 V2.1.1 for radio spectrum usage. It also complies with Directive 2014/53/EU.

Can the Cyclone radar be used for ARPA target acquisition?

Yes, the Raymarine Cyclone radar can be configured for ARPA (Automatic Radar Plotting Aid) target acquisition. However, this feature requires specific software requirements that must be met by the compatible multifunction display.

What are the main components included in the Cyclone radar pack?

The Raymarine Cyclone 55 Watts radar pack includes the following main components:

The radar scanner pedestal.The 3-foot beam antenna.The VCM100 voltage converter module.A 15-meter RayNet radar cable.

Can the Cyclone radar distinguish between moving and stationary targets?

Yes, thanks to its advanced Doppler technology, the Raymarine Cyclone radar can distinguish moving targets from stationary objects. This capability is essential for rapidly identifying potential hazards at sea, particularly in low visibility or heavy traffic conditions.

What is the function of the VCM100 module?

The VCM100 module (Voltage Converter Module) converts voltage to power the Cyclone radar. It simplifies the electrical integration of the radar system aboard your vessel.

Which multifunction displays (MFD) are compatible with the Raymarine Cyclone radar?

The Raymarine Cyclone radar is designed to operate with Raymarine LightHouse-compatible multifunction displays (MFD). A reliable connection is ensured via the included RayNet cable.

Is it possible to connect multiple Cyclone radar scanners to the same system?

Yes, it is possible to connect multiple Cyclone radar scanners to the same system. However, specific location requirements must be met to ensure proper operation and avoid interference.

How can I ensure that the software on my multifunction display is up to date for the Cyclone radar?

To ensure that your multifunction display's software is compatible and up to date with the Cyclone radar, it is recommended to check Raymarine's official website. There you will find the latest software versions and instructions for the required updates.

What factors should be considered when choosing the radar installation location on the boat?

When selecting the installation location for the Raymarine Cyclone radar, several important factors must be taken into account:

The general position of the radar for a clear 360-degree view.
Compliance with the safety distance from the boat's magnetic compass.
The mounting angle of the radar antenna.
Specific location requirements if multiple radar scanners are installed.
The location of the VCM100 module.
Warnings and cautions regarding fire risks and safety.

Is a circuit breaker or fuse required for the radar power supply?

Yes, a circuit breaker and/or fuse is required for the Raymarine Cyclone radar power supply to protect the electrical circuit. The specific ratings for the circuit breaker and fuse are detailed in the product installation instructions.

Does the VCM100 voltage converter module need to be grounded?

Yes, the VCM100 voltage converter module requires proper grounding. Grounding requirements are detailed in the installation manual to ensure system safety and proper operation.

Where to find detailed installation instructions for the Cyclone radar?

Detailed installation instructions for the Raymarine Cyclone radar are provided with the product. They are also available in PDF format on the official Raymarine website under document reference 87402.

Is there a minimum distance to be respected between the radar and the boat's compass?

Yes, it is imperative to respect a minimum safety distance between the Cyclone radar scanner and the magnetic compass of your boat. This "compass safe distance" is specified in the installation manual to avoid any interference and ensure the accuracy of your compass.

Is the included 15 m RayNet cable sufficient for all installations?

The Raymarine Cyclone radar comes with a 15 m RayNet cable. This length is standard for many installations, but you should check whether it is adequate for your boat's specific cable routing before installation. Cables of different lengths may be available separately if needed.

Where can I register my Raymarine Cyclone product for warranty?

You can register your Raymarine Cyclone product on the official Raymarine website. Registration is recommended to benefit from the manufacturer's warranty policy.
