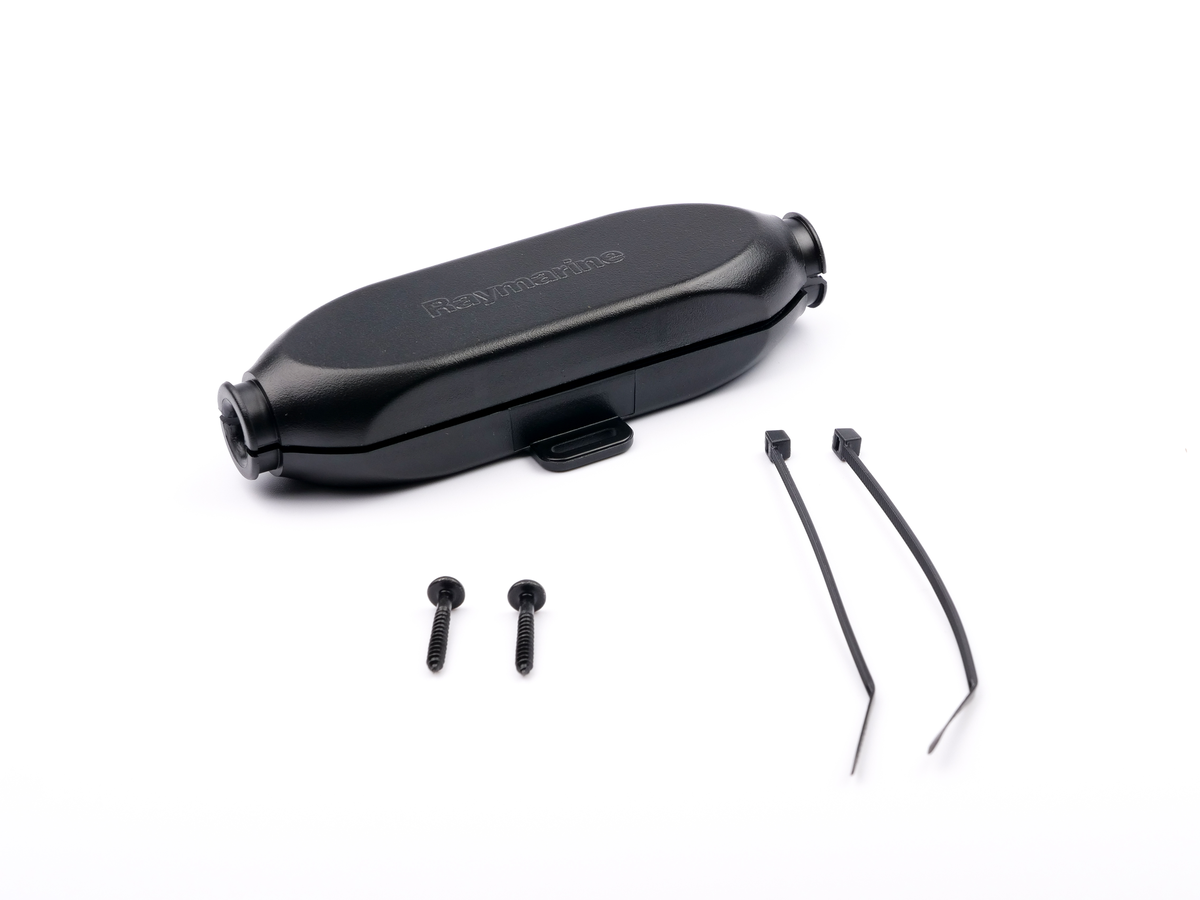

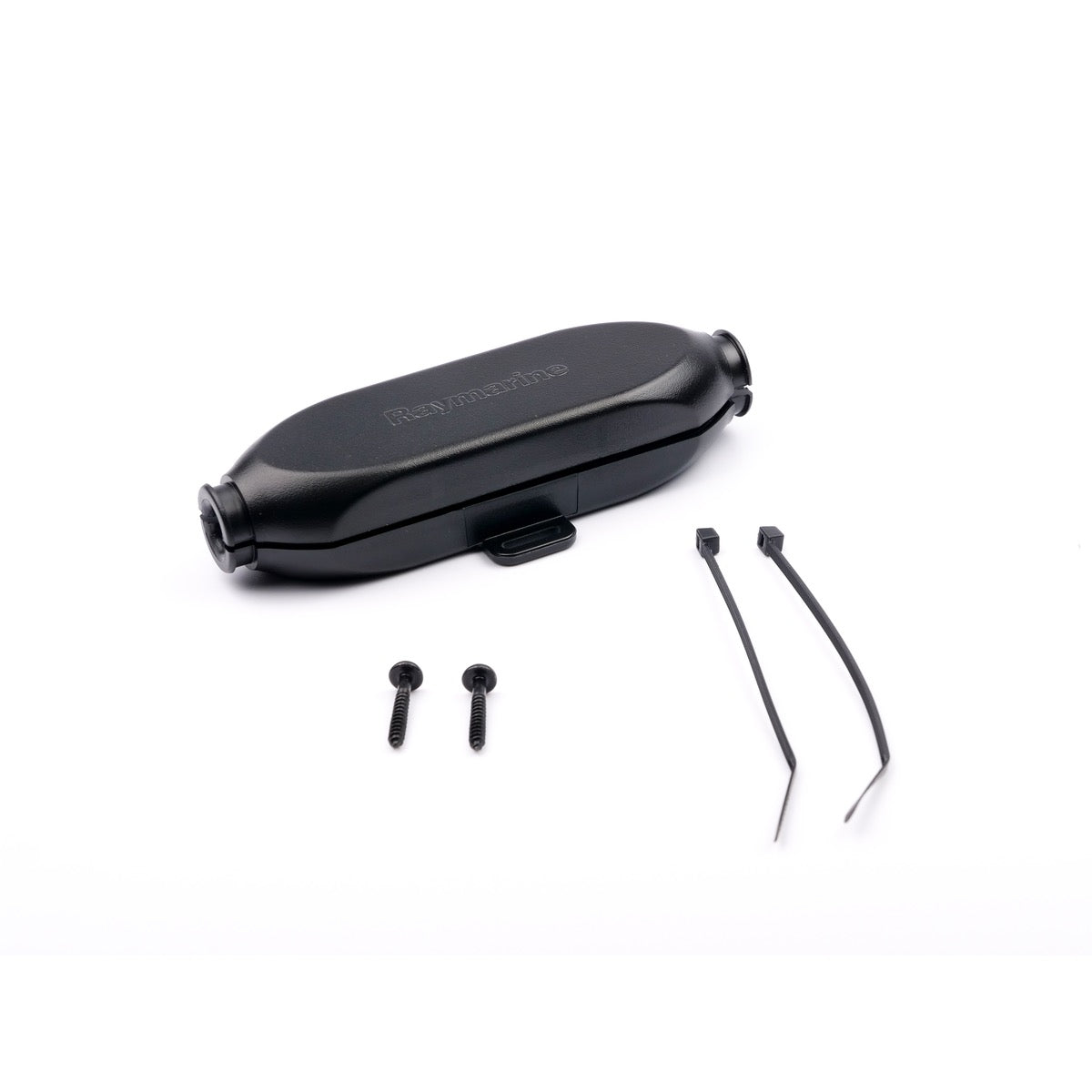

SeaTalk Highspeed cross-coupler

The Raymarine E55060 SeaTalk Highspeed cross-coupler is designed to establish a direct, point-to-point link between two devices compatible with Raymarine's SeaTalk HS network. It enables these two units to communicate with each other without requiring a multi-port network switch.

The main difference lies in their function. A SeaTalk HS switch (such as the Raymarine HS5) is a multi-port device that allows connecting multiple devices within a complex network. The E55060 cross-coupler, on the other hand, is a simpler, targeted solution that establishes a direct connection between only two SeaTalk HS devices, avoiding the complexity of a switch when the need is limited to a binary interconnection.

This coupler is compatible with all Raymarine equipment featuring a SeaTalk HS interface. It is typically used to directly connect a multifunction display (MFD) to a sonar module, a radar module, or any other device requiring a direct and high-speed SeaTalk HS link.

The Raymarine SeaTalk Highspeed E55060 cross-coupler is of passive design. This means it requires no external power supply to operate and provides seamless integration into your existing network infrastructure.

Installing the E55060 cross-coupler is straightforward. Simply connect a SeaTalk HS cable from your first device (for example, a multifunction display) to one port of the coupler, then connect a second SeaTalk HS cable from your second device (for example, a sonar or radar module) to the other port of the coupler. Ensure the cables are fully inserted for a secure connection.

To connect your devices to the SeaTalk Highspeed E55060 cross-coupler, you will need standard Ethernet cables compatible with the SeaTalk HS network. These cables are typically shielded Cat 5e or higher RJ45 cables, specifically designed for marine environments or supplied by Raymarine.

Yes, the SeaTalk Highspeed E55060 cross-coupler can be used to extend a network by establishing a direct link between two specific points on that network. It is particularly useful for adding a new device or creating a dedicated connection between two pieces of equipment without altering the overall network structure via a switch.

Choosing a cross-connect coupler like the Raymarine E55060 for just two devices provides a simpler and often more cost-effective solution than a multi-port switch. It reduces installation complexity, minimizes the number of components, and can be ideal for setups where a direct, dedicated connection is preferred without the bulk or additional cost of a switch.
