Kit snertiskjár 10 Gen 2

This kit is an advanced digital switching interface. It centralizes the management of electrical circuits, monitors your battery banks, and controls your boat's alarms from a single point.

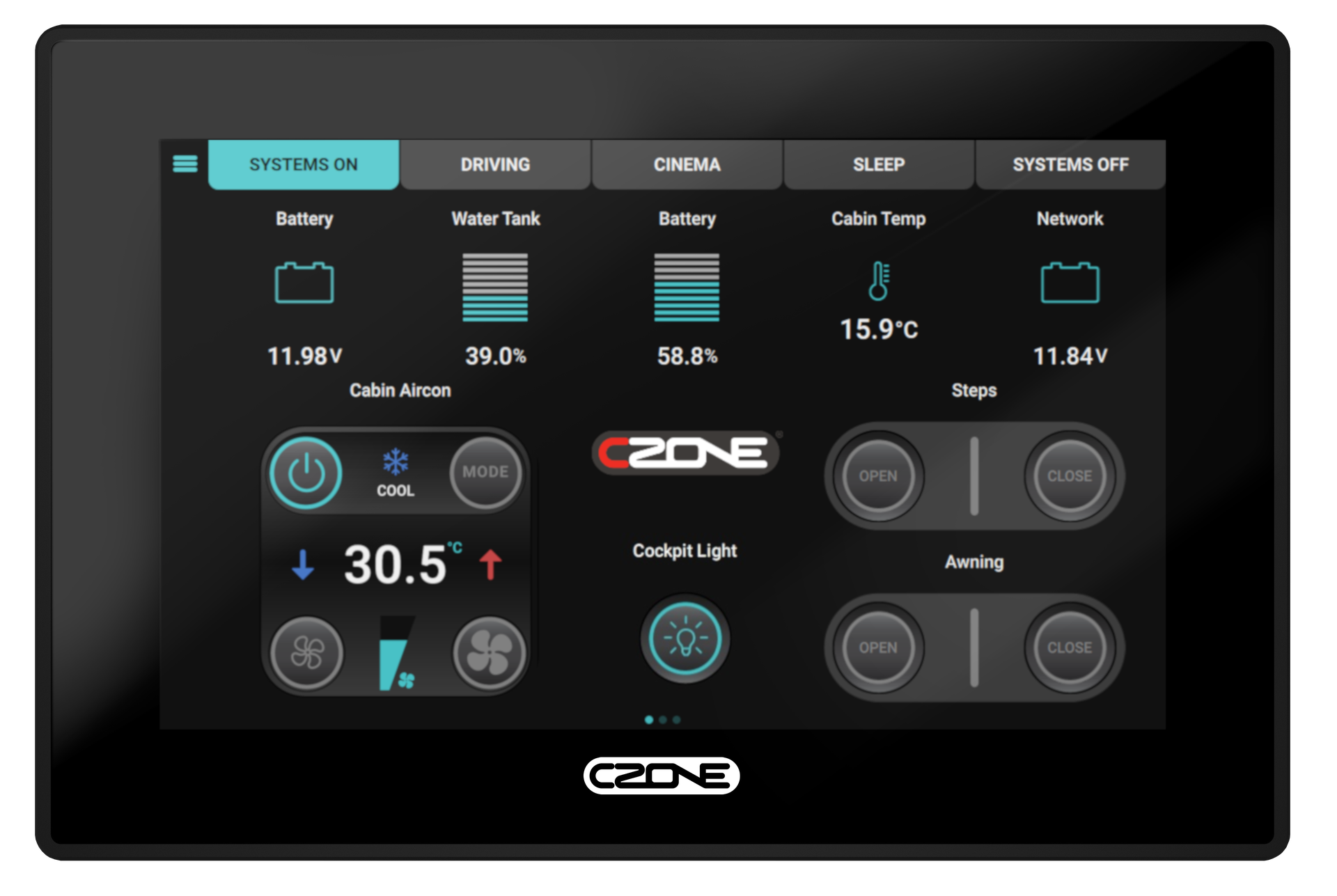

This kit includes a 10.1-inch touchscreen. This size provides excellent readability of data on the chart table.

Yes, this display has an IPX6 protection rating. It features a splash-resistant mounting system and is suitable for use indoors as well as outdoors on a boat.

The Touch 10 Gen 2 screen kit is compatible with 12V and 24V DC marine electrical systems.

The display natively communicates with CZone data and power modules via the NMEA 2000 protocol. It also features an Ethernet port for connecting to a WiFi router to extend network integration.

Yes, the touchscreen interface allows you to control all marine home automation systems on your vessel. You can easily manage lighting, pumps, and optimize overall energy management.

The integrated USB port has two main functions:

To facilitate firmware updates (internal software).To allow backup and restoration of your digital switching configurations.

The kit includes an Ethernet port but does not have built-in WiFi connectivity. It must be connected to an external WiFi router for wireless control. This allows for extended networking, facilitating remote control or interfacing with other equipment.

Yes. Thanks to its Ethernet and NMEA 2000 connectivity, it integrates into your onboard network where other compatible third-party multifunction displays can also be connected to control the CZone system (WiFi control requires an external router).

Yes, it uses a capacitive touch interface. This technology ensures excellent responsiveness and optimal fluidity when navigating menus and controlling your equipment.

The total weight of the kit, including its original packaging, is 2.26 kg.

Thanks to its IPX6 waterproof rating, it can be installed in any marine environment, including outdoors or in damp areas. The chart table or the interior helm station are ideal locations to centralize control of your vessel.

Yes, one of the main functions of this display is battery bank monitoring. It allows you to view in real time the voltage, consumption and state of charge of your 12V or 24V battery banks.

The display connects to the NMEA 2000 network in a standard way. Simply use a standard NMEA 2000 drop cable to link it to your boat's backbone.

Yes, the Touch 10 Gen 2 kit centralizes control and display of your CZone system alarms, immediately alerting you to any anomalies in your circuits or batteries.

No, this product includes only the supervision screen kit. CZone data acquisition and power modules required to control equipment must be present on the network or purchased separately.

Yes, as a digital switching interface, it can replace traditional electrical panels and physical switches with centralized and intelligent touch control.

The initial configuration of a CZone system typically requires the brand's specific configuration tool. However, once set up, you can easily save or restore your configuration via the screen's USB port.

Yes, the 10.1-inch screen was designed to provide optimal data readability, allowing clear reading of your circuit status and gauges, even in a brightly lit indoor marine environment.

Yes, the Touch 10 Gen 2 screen kit communicates via the standard NMEA2000 protocol, ensuring backward compatibility with existing CZone power and data modules in your installation.
