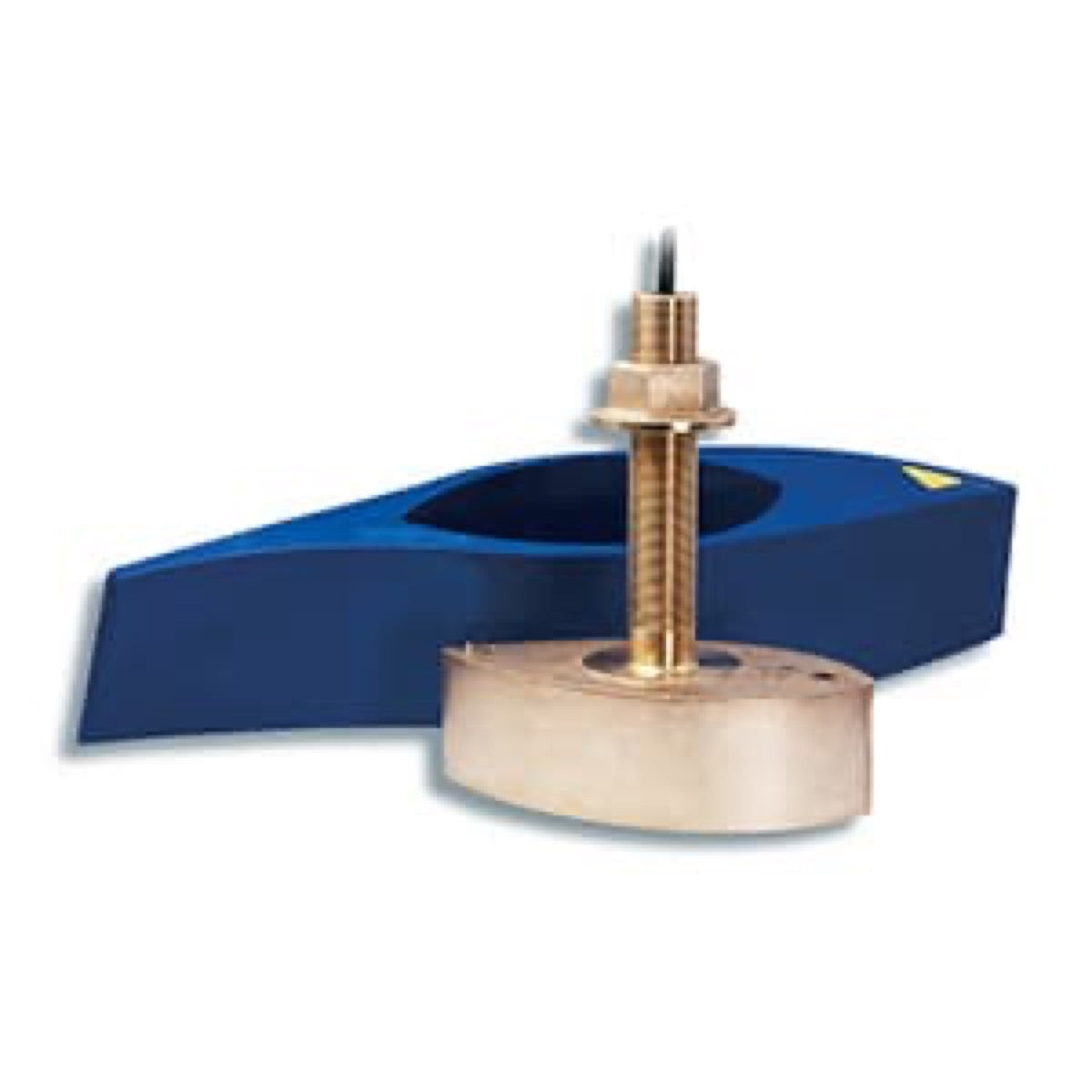

Airmar B260 - þversónarbronssón 1 kW (50/200 kHz) með undirspori + hitastig – (8 stiftur)

The Garmin Airmar B260 transducer is a 1 kW transducer operating on two main frequencies: 50 kHz and 200 kHz.

At 50 kHz, the transducer can reach a depth of 762 meters (2500 feet) with a 19° beam. At 200 kHz, its maximum range is 305 meters (1000 feet) with a narrower 6° beam for improved target resolution.

Yes, the Garmin Airmar B260 transducer is equipped with an integrated sensor that provides water temperature data.

The Airmar B260 transducer housing is made of bronze, making it robust and suitable for certain hull types.

This is a through-hull transducer, meaning it is designed to be installed by drilling a hole in the boat's hull, with the transducer passing through the hull.

The B260 depth sounder, when installed with its high-performance fairing shoe, maintains optimal performance and stable bottom tracking up to speeds of 30 knots (approximately 55 km/h).

At 50 kHz, the transducer provides a wide 19° beam, ideal for broad coverage. At 200 kHz, the beam is narrower at 6°, for improved target resolution and detail.

The Airmar B260 transducer, with its bronze housing, is specifically recommended for installation on fiberglass or wooden hulls.

No, it is essential not to install a transducer with a bronze housing on a metal hull (such as aluminum or steel) to prevent electrolytic corrosion.

The Garmin Airmar B260 transducer is equipped with an 8-pin connector, making it compatible with Garmin fishfinders and chartplotters featuring an 8-pin transducer port.

No, the B260 is a conventional (non-CHIRP) transducer. It is designed for use with conventional fishfinders only, not CHIRP systems. CHIRP systems require specific transducer models.

The B260 transducer is designed to operate optimally on hulls with a deadrise angle up to 20°, thanks to its fairing shoe.

Yes, with its 1 kW power and ability to reach 762 m at 50 kHz, the B260 depth sounder is well suited for detecting fish and structures in deep water.

Yes, the high-performance fairing block is included and its installation is essential to optimize the transducer's performance, ensure clean water flow, and stable bottom tracking, especially at high speeds.

Yes, installing the anti-rotation bolt is mandatory to securely fix the skeg mount and prevent it from rotating while the boat is in motion.

For the main body of the B260 transducer, a 33 mm (1-5/16") hole is required. A 14 mm (9/16") hole must also be drilled for the anti-rotation bolt.

The fairing shoe must be installed parallel to the boat's keel. The end of the shoe with the arrows or triangular recess must always point forward (the bow).

Yes, using a high-quality marine sealant suitable for below-waterline applications is essential to ensure a watertight seal and prevent water ingress into the hull.

It is crucial to shape the fairing shoe to fit the hull as precisely as possible. A gap larger than 3 mm (1/8") between the shoe and the hull must be avoided, as water could enter and cause issues.

Yes, specific anti-fouling coatings such as Foulfree (Airmar-certified) can be applied to the transducer face without affecting its performance, helping to prevent marine growth.
