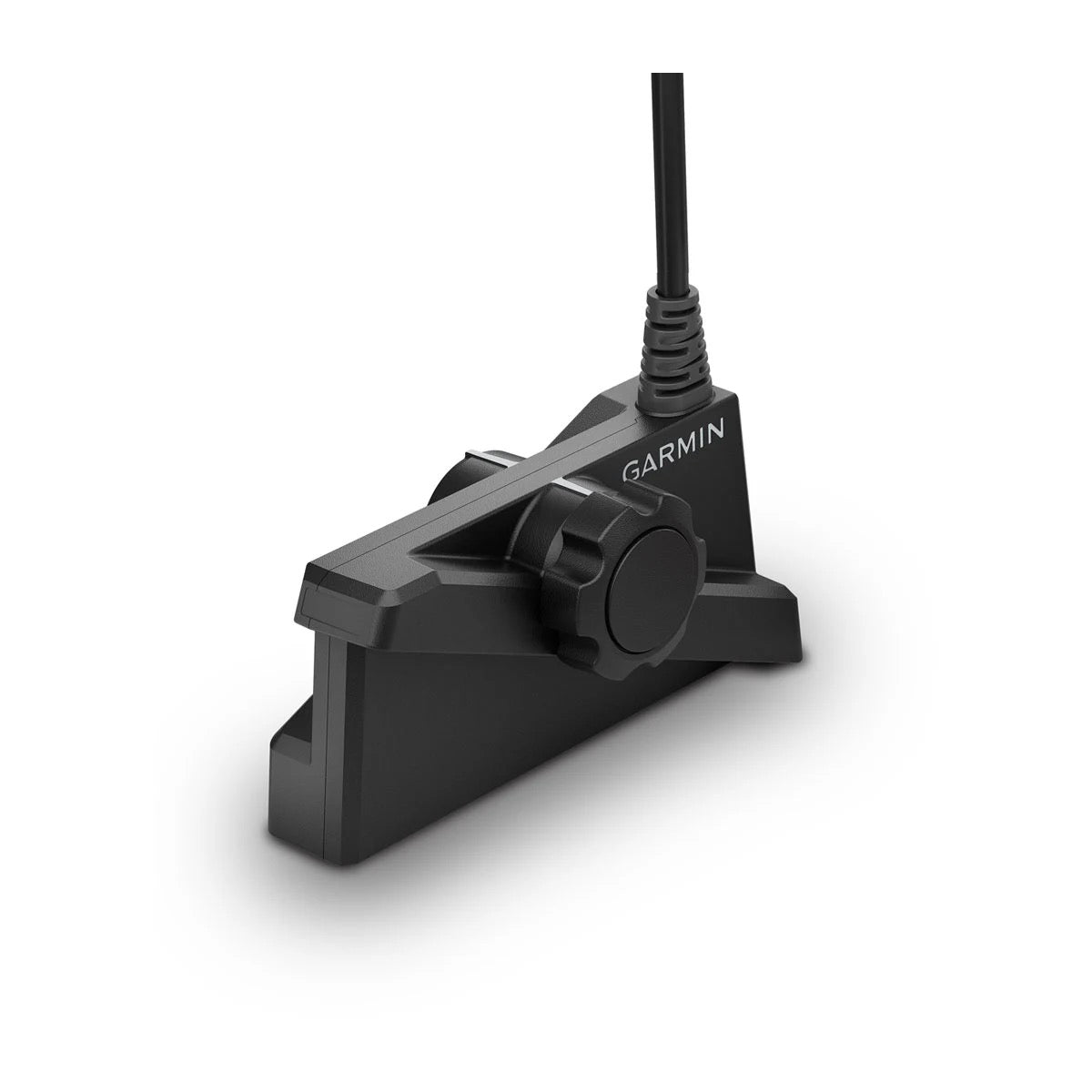

LiveScope™ Plus LVS34-IF - visuel officiel Garmin 2

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service & Support

Choose additional installation support

Spara 12%

Garmin

010-02706-20

LiveScope™ Plus LVS34-IF

La sonde Garmin LiveScope™ Plus LVS34-IF est une sonde de sonar en temps réel conçue spécifiquement pour la pêche sous glace, offrant une clarté et une séparation des cibles améliorées sur une plage de fréquences de 530 à 1 100 kHz et une portée de 61 m. Cette version est une adaptation de la gamme LiveScope Plus, optimisée pour les conditions de froid et de montage sur perche. Elle est livrée avec le matériel de montage pour perche de pêche sous glace (doublure en caoutchouc, support d'arbre, vis, rondelle néoprène, bouton) et une option de montage à profil bas, mais la perche n'est pas incluse.

Uppsetning: LVS34-IF Depth Sounder

Complete system LVS34 depth sounder only LVS34-IF Depth Sounder

Retail priceGet pro pricing

1.378,18€

1.378,18€ ~~1.579,00€~~

með skatti Sendingar reiknaðar við greiðslu.

Á lager

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service & Support

Choose additional installation support

Technical specifications

Hitastig við notkun	-10 à 40
Breidd varahlutar	47.8
Hæð vörunnar	77.5
Dýpt vörunnar	161.7
Gerð festingar	Montage sur canne à pêche
Geislasvæði	135 x 20
Samhæfir skjáar	Garmin GLS 10 (module sonar)
Gerð veiðar	Glace
Innbyggður hraðaskynjari	Non
Hámarksdýptarkvarði	61.0
Útgáfuár	2022.0
Tegund tenginga fyrir sonar	XDCR
Tíðni sonar	530-1100
Tæknar í botnvörpum sem styðjast við	LiveScope

Detailed description

Garmin-sonarinn LiveScope™ Plus LVS34-IF er sérhæfður sonar í rauntíma fyrir ísveiði. Byggt á fyrri útgáfum LiveScope, svo sem LVS32, býður LVS34-IF upp á betri skilgreiningu, auðveldari aðgreiningu á markmiðum og minni hávaða fyrir skarpari og nákvæmari sonar myndir. Aðgreind frá staðlaðri útgáfu LVS34, sem er hönnuð fyrir afturborðs- eða rafmótorskráningu, er útgáfa -IF gerð fyrir festingu á ísveiðispjaldi, sem auðveldar útbreiðslu og stefnun í ísopi.

Tæknileg framfarir fyrir ís

Þessi sonar virkar á breiðu tíðnisviði, frá 530 til 1 100 kHz, og veitir háupplausnarmyndir. Hann getur náð 61 metra dýpi/umferð, sem gerir hann gagnlegann til að kanna stórt vatnssvæði undir ís. Sýnissviðið er 135° fram og aftur og 20° til hliðanna, sem veitir vítt umhverfi til að staðsetja fisk og undirvatnsbyggingar. Smáar og léttar mál (161,7 x 77,5 x 47,8 mm) og 1018 g (sonar einungis) gerir hann auðvelt í meðhöndlun og uppsetningu á spjaldi. Hönnuð fyrir erfiðar aðstæður starfar hann við hitastig frá -10° til 40°C og getur geymst frá -40° til 85°C.

Einfaldar uppsetningar og tengingar

Uppsetning sonar LVS34-IF á ísveiðispjald (ekki fylgir með) er auðveld með meðfylgjandi uppsetningarhlutum, með gúmmíklæðingu fyrir spjöld upp til 25 mm í þvermál, tréuppsetningar og skrúfur. Lágprófílluppsetningarval er einnig fylgt með fyrir þá sem vilja diskrétta uppsetningu án endurtekinna stillinga. Sonarinn tengist beint við GLS™ 10 sonarhluta gegnum XDCR port. Til að draga úr rafmagns truflunum getur járnþráður (ef fylgir með) verið settur nálægt tengingu GLS 10. Hönnunin gerir fljótlega skipti á stefnu milli niður og framsýn, sem gefur mikilvæga sveigjanleika fyrir ísveiði. Mikilvægt er að tryggja öryggi keflisins til að forðast hrapa- og fallhættu og ekki herða klemmurnar of mikið til að forðast skemmdir á keflinu.

Documentation

Type	Nom
	Notice d'installation - Instructions d'installation du transducteur Garmin LiveScope Plus LVS34-IF

Expert review

Pol CONIN

Digital Manager

« Technical analysis of the LiveScope Plus LVS34-IF fishfinder for ice fishing »

The Garmin LiveScope Plus LVS34-IF ice fishing transducer represents a significant advancement for ice fishing, offering a dedicated solution leveraging LiveScope Plus technology. Its ability to provide real-time sonar images with improved clarity and target separation compared to previous models is a major asset for accurately identifying fish and their behavior under the ice. The frequency range of 530 to 1,100 kHz and the 61-meter range are perfectly suited to ice fishing conditions, enabling efficient exploration of the water column. Integration with the GLS 10 sonar module is seamless, and mounting options, including the low-profile option, demonstrate a design focused on practicality in the field. Attention to installation details, such as cable securing and optimal transducer positioning, is critical to maximizing system performance and durability in cold, wet environments.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

LiveScope™ Plus LVS34-IF

1.378,18€

1.378,18€ ~~1.579,00€~~

Complete your installation with

Complementary equipment

Garmin

GPSMAP® 8410 - 10" skjáskotsskjá með heimskortasöfn

Ref : 010-02091-00

2.237,30€

2.237,30€ ~~2.939,00€~~

Garmin

GPSMAP® 8416xsv - GPS-sónar 16"

Ref : 010-02093-02

5.253,08€

5.253,08€ ~~6.829,00€~~

Garmin

GPSMAP® 9010xsv - GPS-sonar 10" af floti

Ref : 010-03175-02

3.509,62€

3.509,62€ ~~3.999,98€~~

Garmin

Þversónarþrúður GDT™ 43 (dýpt/hiti) og NMEA 2000 aðlægi

Ref : 010-01749-10

253,67€

253,67€ ~~319,00€~~

Garmin

GST™ 43 + GST™ 10 gegnumstreymis-sonar

Ref : 010-04284-00

158,56€

158,56€ ~~209,00€~~

Frequently asked questions

Need help? Contact us

What are the main improvements of the LiveScope™ Plus LVS34-IF compared to previous generations of LiveScope?

The LiveScope™ Plus LVS34-IF transducer offers several significant improvements over previous generations, such as the LVS32. It provides enhanced clarity, better target separation, and reduced noise, resulting in sharper and more detailed sonar images, particularly useful for ice fishing.

What is the difference between the LVS34-IF version and the standard versions of the LVS34?

The main difference lies in its installation optimization. The LVS34-IF version is specifically designed for mounting on an ice-fishing pole, making deployment and orientation in an ice hole easier. The standard versions of the LVS34 are designed for installation on the transom or on an electric motor.

What are the maximum depth and field of view specifications for the LiveScope™ Plus LVS34-IF transducer?

The LiveScope™ Plus LVS34-IF transducer can reach a maximum depth/range of 61 meters (200 feet). Its field of view is optimized for ice fishing, offering a 135-degree angle from front to back and a 20-degree lateral angle, enabling extended coverage to locate fish and underwater structures.

Which tools are required to install the LiveScope™ Plus LVS34-IF transducer on an ice fishing pole?

To install the transducer on an ice fishing pole (not included), you will need the following tools:

Electrical tape (preferred) or cable ties to secure the cable.A Phillips screwdriver if assembling a Garmin optional ice fishing pole mount.The transducer comes with the necessary hardware and a hex key for assembly.

How should I mount the LVS34-IF transducer on an ice fishing rod?

Here are the general steps to mount the transducer on an ice fishing pole (not included):

If the pole diameter is 25 mm or less, wrap the rubber lining around the pole at the mounting location.Place the transducer mounting bracket halves around the pole (with or without the rubber lining).Insert the screws into the transducer mounting bracket and tighten them using the supplied hex key.Place the transducer against the mounting bracket and secure it with the neoprene washer and button.Secure the transducer cable to the pole or another safe location and route it to the GLS™ 10 sonar module.Connect the transducer cable to the XDCR port on the GLS 10 sonar module.Position the transducer for the desired view. You can rotate the transducer by one notch to change the orientation (from downward to forward-facing).It is important to ensure the top of the transducer is below the bottom surface of the ice for optimal performance.

Which sonar modules and devices is the LiveScope™ Plus LVS34-IF compatible with?

The LiveScope™ Plus LVS34-IF transducer is designed to connect to the GLS™ 10 sonar module via its XDCR port. For full functionality, it also requires a compatible Garmin chartplotter, as specified in the product safety information.

What are the physical dimensions and weight of the LiveScope™ Plus LVS34-IF transducer?

The LiveScope™ Plus LVS34-IF transducer has compact dimensions of 161.7 x 77.5 x 47.8 mm (6.37 x 3.05 x 1.88 in). Its weight is 1018 g (2.25 lb) for the transducer alone, making it easy to handle and install on an ice fishing rod.

Is it possible to install the LVS34-IF transducer with a lower profile without the adjustment button?

Yes, if you do not plan to frequently change the display mode of the transducer or prefer a lower-profile installation, you can use the included low-profile fasteners. Instead of using the adjustment button, you can secure the transducer to the mounting bracket using the low-profile screw and metal washer provided. You will then need to adjust the transducer's view and tighten the low-profile screw with the included hex key.
