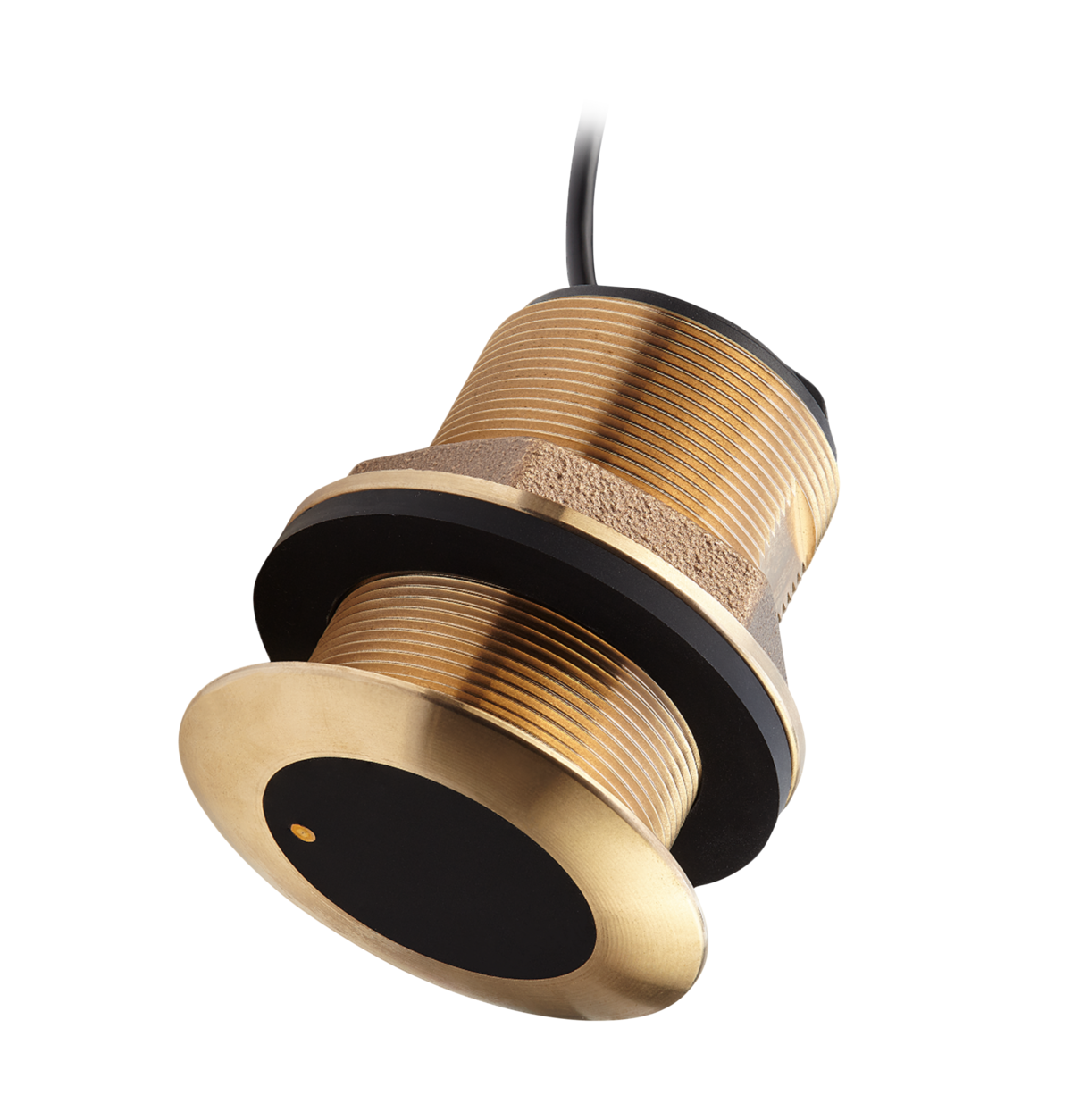

Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service & Support

Choose additional installation support

Spara 11%

Raymarine

A80446

Þverskurður brons með keilulaga geisla HIGH CHIRP, 0° horn CPT-S, 10 m rafmagnskafli

La sonde Raymarine CPT-S bronze traversante A80446, avec son faisceau conique HIGH CHIRP et son angle de 0°, est conçue pour une détection précise des fonds marins. Idéale pour les coques sans tonture, elle offre robustesse et performances fiables grâce à sa construction en bronze et sa conformité EN ISO 8846:2017. Le produit inclut la sonde traversante bronze avec 10m de câble.

Horni: 0 degree

0 degree 12 degrees 20 degrees

Retail priceGet pro pricing

301,64€

301,64€ ~~342,00€~~

með skatti Sendingar reiknaðar við greiðslu.

Á lager

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service & Support

Choose additional installation support

Technical specifications

Tæknar í botnvörpum sem styðjast við	CHIRP Haute Fréquence, Faisceau Conique
Tíðni sonar	170-230
Hitastig við notkun	-15 à 55
Hámarksdýptarkvarði	270.0
Efni mælisnefils	Bronze
Tegund tenginga fyrir sonar	9 broches DownVision™
Lengd rafleiðara	10.0
Breidd varahlutar	75
Innbyggður hitaskynjari	Oui
Hæð vörunnar	120
Samhæfir skjáar	Raymarine Element S, Axiom Pro S, Axiom 2 Pro S, Axiom DV, Axiom (avec adaptateur A80490), Element HV (avec adaptateur A80559), module sondeur CP100, MFDs DownVision™ aSeries et eS Series (eS78, eS98, eS128)
Dýpt vörunnar	75
Örugg fjarlægð frá áttavita (cm)	50
Gerð festingar	Traversante
Vottanir	CE, 2013/53/EU, EN ISO 8846:2017, 2004/108/EC
Mælingarúrtak vatnshita	-15 à 55 °C
Geislasvæði	25
CHIRP tíðni (hár)	170-230
Gerð veiðar	Mer, Verticale, Traîne
Innbyggður hraðaskynjari	Non
Útgáfuár	2017.0

Detailed description

Brons þverskurður Raymarine A80446 er hannaður til að nema botnfarveg með HIGH CHIRP tækni og keilulaga geisla. Þessi umbreytir, með 0° horni, er sérstaklega hannaður fyrir skroka með litlum eða engum bogamyndun á setstaðnum, sem tryggir að geislinn sé rétt stilltur fyrir nákvæma lestur.

Sonar CHIRP tækni og samræmi

Meðlimur í CPT-S seríunni frá Raymarine notar þessi þverskurður keilulaga geisla með háum tíðni CHIRP til að veita betri aðgreiningu og skýrari mynd en fast tíðni þverskurðar. CHIRP tækni skannar breiðan tíðnibylgjuband og gerir það kleift að greina betur milli fiska og byggingarhluta. Varan er í samræmi við evrópskar stefnur 2013/53/EU og samræmdar staðlar EN ISO 8846:2017, sem staðfestir öryggi og rafmagns-magnetískan samhæfni í sjávarumhverfi.

Staða og uppsetning

Miðað við aðra módel í CPT-S seríunni, svo sem útgáfur með 12° horn (E70340/A80447) eða 20° horn (E70341/A80448) eða plasteinkennar (E70339), er A80446 bronsþverskurðurinn með 0° horn valinn fyrir styrkleika og endingarþol í saltvatni, ásamt aðlögun fyrir bein skrok. Hann fylgir með 10 metra rafmagnskafli sem gerir tengingu við Raymarine sondumódul einfaldari. Þverskurðaruppsetningin tryggir lágmarks vatnsfræðilega viðnám og vernd gegn áverkum frá árekstrum, að því gefnu að uppsetningar leiðbeiningar séu nákvæmlega framkvæmdar fyrir skrok úr gleri, hvort sem er heil eða með samlokuuppbyggingu.

Documentation

Type	Nom
	EN - Declaration de conformite - Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble
	EN - Declaration de conformite - Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble
	EN - Declaration de conformite - Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble
	EN - Notice d'installation - Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble
	FR - Notice d'installation - Sonde bronze traversante à faisceau conique HIGH CHIRP angle 0° CPT-S, 10m câble

Expert review

Pol CONIN

Digital Manager

« Technical analysis of the Raymarine CPT-S bronze through-hull 0° depth sounder »

The Raymarine CPT-S bronze through-hull 0° depth sounder (A80446) is a suitable choice for vessels with hull designs allowing perpendicular installation to the waterline, minimizing turbulence and maximizing signal quality. The bronze material provides superior resistance to corrosion and electrolysis compared to plastic depth sounders in harsh marine environments, making it ideal for permanent installation on fiberglass or wooden hulls.

The HIGH CHIRP conical beam advantage lies in its ability to provide broader and more detailed detection across varying depths, without the resolution compromises of single-frequency depth sounders. For successful installation, it is critical to ensure no obstructions exist under the hull and to maintain the 0° angle. It is imperative never to cut the 10m cable of the depth sounder, as this would irreparably degrade its performance and void the warranty. This depth sounder is a key component for Raymarine fishfinder systems, providing a solid foundation for fishing and navigation.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Þverskurður brons með keilulaga geisla HIGH CHIRP, 0° horn CPT-S, 10 m rafmagnskafli

301,64€

301,64€ ~~342,00€~~

Frequently asked questions

Need help? Contact us

What is the HIGH CHIRP conical beam technology used by this fishfinder?

This transducer uses HIGH CHIRP conical beam technology. CHIRP (Compressed High-Intensity Radiated Pulse) sweeps a wide frequency band, providing improved target discrimination and image clarity compared to traditional fixed-frequency transducers. The conical beam ensures optimal coverage beneath the boat, helping to more precisely distinguish fish from underwater structures.

Why is this transducer made of bronze and what are the advantages of this material?

This transducer is made of bronze for its robustness and durability, particularly suited to saline marine environments. Bronze offers excellent resistance to corrosion and wear, making it a preferred choice for through-hull installations requiring long-term reliability.

What type of hull is the through-hull transducer with a 0° angle intended for?

The through-hull transducer with a 0° angle is specifically designed for hulls with little or no deadrise (keel angle) at the installation point. This ensures optimal orientation of the beam beneath the boat, allowing precise and effective reading of the seabed.

Is it possible to shorten the 10-meter cable of the depth sounder if necessary?

No, it is not recommended to cut the cable of the depth sounder. Trimming the cable significantly reduces the performance of the fishfinder. Additionally, this would void the product warranty and invalidate the European CE mark. The cable must be replaced if damaged, as it cannot be repaired.

How should I maintain and clean my depth sounder to keep its performance?

To maintain your depth sounder's performance and prevent marine growth buildup, it is recommended to apply a thin coat of water-based antifouling paint. This paint should be reapplied every 6 months or at the start of each sailing season. For cleaning, use a soft cloth and mild household detergent. In case of heavy fouling, a non-abrasive cleaning sponge can be used, taking care not to scratch the face of the depth sounder. Never use aggressive solvents such as acetone or ketone-based paint, nor spray paint, as they can damage the depth sounder.

Which Raymarine devices is this CPT-S transducer compatible with?

This transducer is designed to be compatible with Raymarine sounder modules and multifunction displays that support CHIRP technology in the CPT-S series. It requires connection to a compatible Raymarine sounder module to function correctly.

What are the benefits of a certified Raymarine installation for the warranty of this depth sounder?

Raymarine recommends a certified installation performed by an authorized installer. Such an installation allows for enhanced warranty benefits on the product. It is advised to contact your Raymarine dealer for further details on specific conditions.

Can I test the depth sounder out of the water before putting it in the water?

No, it is essential to test and use the depth sounder only in water. Operating the depth sounder out of the water can cause overheating and damage the device.
