Victron Energy

BAT512120705

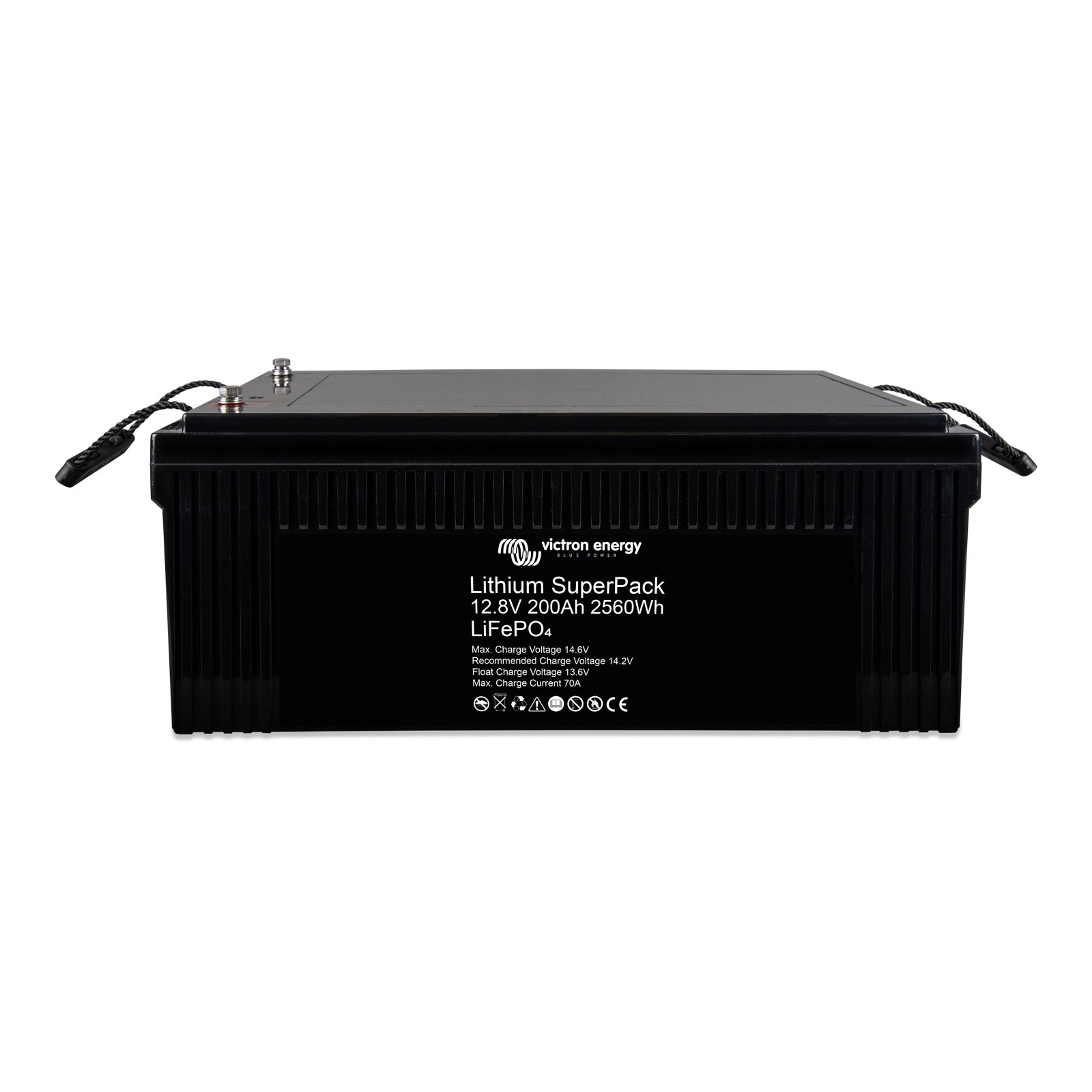

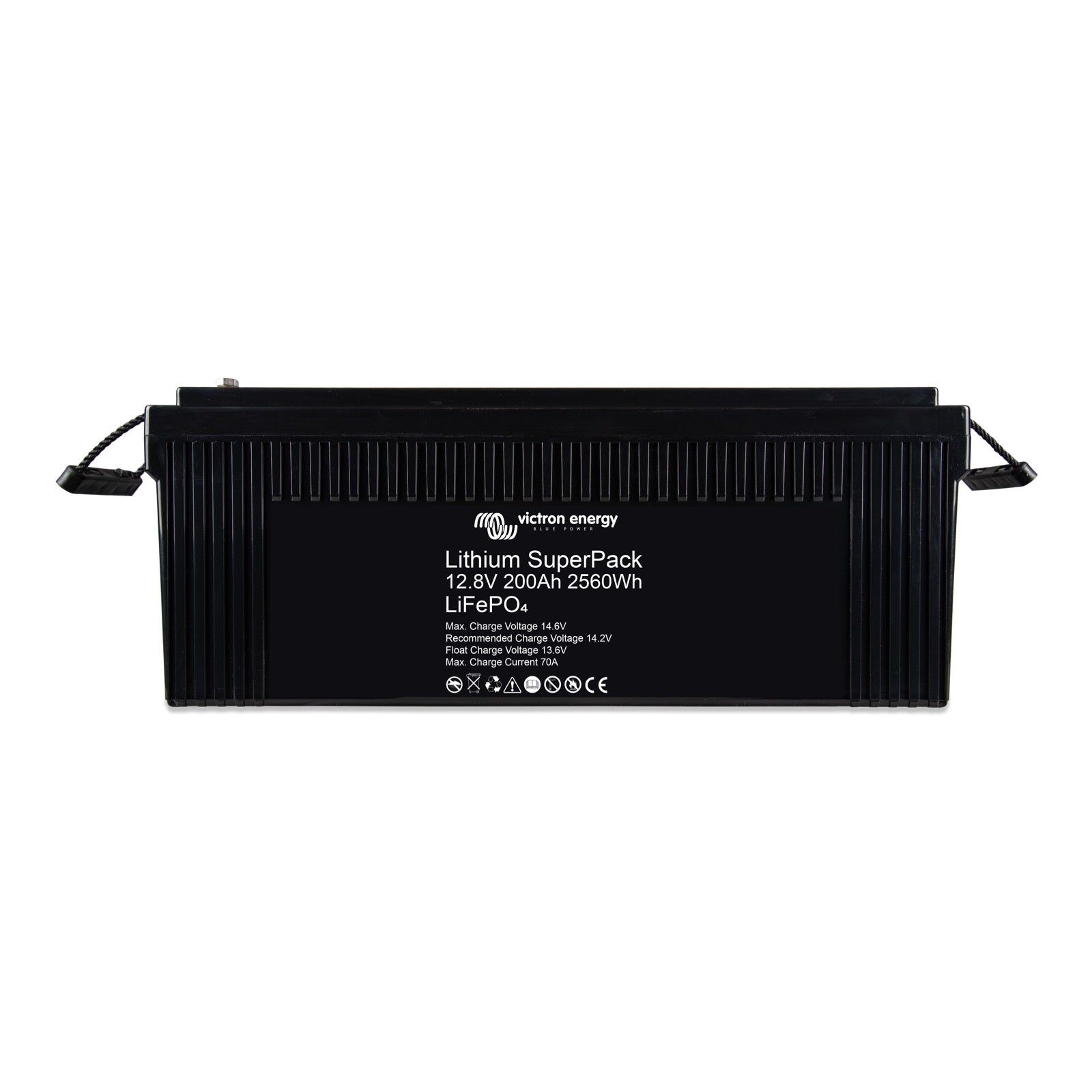

Rafgeymslukerfi SuperPack 12,8V 200Ah

Designed for simplified integration, the Victron Energy SuperPack 12.8 V 200 Ah lithium battery (BAT512120705) delivers 2560 Wh of energy with an integrated BMS ensuring protection and longevity. This model, the highest-capacity in the 12.8 V SuperPack range, supports 2500 cycles at 80% DoD and continuous discharge of 70 A. It is supplied ready to use.

Retail priceGet pro pricing

1.106,38€

1.106,38€ ~~1.152,00€~~

með skatti Sendingar reiknaðar við greiðslu.

Á lager

Free pickup point for orders over €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service & Support

Choose additional installation support

Technical specifications

Rafhlöðutækni	Lithium Fer Phosphate (LiFePO4)
Nefnd spenna	12.8
Rafgeymisgeta (Ah)	200.0
Orka (Wh)	2560.0
Innbyggður BMS	Oui
Hámarks hleðslustraumur (A)	70.0
Tillögð hleðsluráð	70.0
Hámarksstraumur við útlagningu (A)	70.0
Hámarkslosunarstraumur	100.0
Rafspenna við losun	10.0
Spennuhækkunarspenna við upptöku	14.4
Spennuhald (floating) spenna	13.5
Djúp útblokkun (DOD)	80.0
Líftími í hringrásum	2500.0
Hámarksfjöldi rafhlöð í röð	0.0
Hámarksfjöldi rafhlöð í parallel	Illimité
Stærð tenginga	M8
Festistefna	Verticale et sur les côtés longs (avec restrictions)
Hitastigsviðmið (Hlaða)	0 °C à +45 °C
Hitastigsviðmið (Upphleysla)	-20 °C à +50 °C
Hitastigssvið geymslu	-40 °C à +65 °C
IP-stig	IP 43
Mál (L x H x D)	520 x 208 x 269
Þyngd	21.0
Vernd við lágum hita	Oui, pour la charge et la décharge
Absorption Time Max Hours	4
Vörunúmer	BAT512120705
Nánari upplýsingar um efnafræði rafhlöðu	LiFePO4
Innbyggð rafhlöðueftirlit	Oui
Capacity Ah 0c	160
Capacity Loss Per 100 Cycles Percent	0.9
Þéttispennu (Li-ón)	14,2 V – 14,4 V
Flotspennu (Li-ón)	13,5 V
Energy Loss Per 100 Cycles Percent	0.9
Max Storage Time Fully Charged	1 an ≤ 25 °C, 3 mois ≤ 40 °C
Mounting Restriction Positive Terminal	Ne pas poser sur le côté long avec la borne positive (+) vers le bas
Odoo-flokkur	Marchandise
Rakastig við notkun (án þéguðu lofts)	95
Hitastigsviðmið við notkun	-20 °C à +50 °C
Over Charge Protection	Oui
Over Discharge Protection	Oui
Innihald pakka	1x Batterie SuperPack au lithium – 12,8 V
Heiti vörumerkis	SuperPack
Gerð	Batterie
Tillögð samfelld útloðunarstraumur	70.0
Round Trip Efficiency Percent	92
Raðnúmeraspilun	serial
Vendor	VICTRON ENERGY

Detailed description

Hönnuð fyrir haffræðilegar notkunarsviður sem krefjast mikillar sjálfstæðni, veitir rafgeymslukerfið SuperPack 12,8 V 200 Ah úr lithium frá Victron Energy (SKU: BAT512120705) lausn fyrir orkugeymslu með innbyggðu stjórnkerfi.

Innbyggt stjórnkerfi og frammistaða

Innbyggt stjórnkerfi fyrir rafgeymslu (BMS) verndar gegn ofhleðslu, djúpuröskun og öfgakenndum hitastigum og tryggir sjálfvirka losun ef mörk eru yfirgefin. Með nafnorku 200 Ah við 25 °C og orku 2560 Wh veitir þessi rafgeymsla samfellda hleðslugetu upp á 70 A og topphleðslugetu upp á 100 A í 10 sekúndur. Orkuafköst í báðar áttir eru 92 % sem er betra en blýsýrugeymslur sem ná um 80 %. Líftími er metinn á 2500 hleðslur við 80 % dýptaröskun (DoD) og 25 °C. Aftur á móti blýsýrugeymslur þjást af fyrir tímabundinni skemmd við hlutahleðslur eða rekstur í skortstöðu.

Uppsetning og staðsetning innan vörulínu

Líkanið 12,8/200 er hannað fyrir einfaldar uppsetningar og krefst ekki viðbótarhluta. Það má tengja í hliðrun til að auka getu en ekki í raðtengingu. Starfshitastig eru frá -20 °C til +50 °C við losun og frá 0 °C til +45 °C við hleðslu með sjálfvirku losun ef hleðsla fer undir 0 °C fyrir nýlegar vörur (frá númeri HQ2040). Með tengiboltum M8 eru málin 208 x 520 x 269 mm og þyngd 21 kg. Innan SuperPack vörulínu Victron Energy, sem inniheldur líkan frá 12,8 V (20 Ah, 60 Ah, 100 Ah) og 25,6 V (50 Ah), er 12,8 V 200 Ah valkosturinn með mestu getu innan 12 V flokks og hentar fyrir háorkukröfur án þess að krefjast flókins rafgeymslubúnaðar.

Expert review

Pol CONIN

Digital Manager

« Integrated management and autonomy for 12 V marine systems »

The Victron Energy SuperPack 12.8 V 200 Ah (BAT512120705) battery is an all-in-one solution for medium to large marine installations. Its value lies in its integrated battery management system (BMS), which eliminates the need for an external controller, drastically simplifying wiring and configuration. For a cruising sailboat or a small trawler, this battery provides significant electrical autonomy for navigation equipment, lighting, and small domestic appliances.

Installation is simplified by the absence of additional components, requiring only connection to the charging and discharging circuit. However, it is imperative to respect the prohibition on series connection, which limits its use to 12 V systems or the creation of parallel banks only. For 24 V systems, the SuperPack 25.6 V 50 Ah model or a Victron LiFePO4 solution with an external BMS would be required for greater flexibility.

The robustness of the LiFePO4 chemistry combined with integrated thermal and voltage management ensures operational reliability. This model is particularly relevant for users seeking the simplicity of a drop-in battery while benefiting from the advantages of lithium over lead-acid batteries, particularly in terms of usable depth of discharge and voltage maintenance under load. Its IP 43 rating makes it resistant to water spray, but it is not designed for immersion or prolonged exposure to extreme weather conditions.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Rafgeymslukerfi SuperPack 12,8V 200Ah

1.106,38€

1.106,38€ ~~1.152,00€~~

Complete your installation with

Complementary equipment

Victron Energy

Hleðslutæki fyrir rafhlöður Blue Smart IP65 12V 25A CEE 7/16

Ref : BPC122531034

191,81€

191,81€ ~~246,00€~~

Victron Energy

Hleðslutæki með einangrun Orion Tr Smart 12/12-18A (220W) DC-DC

Ref : ORI121222120

153,47€

153,47€ ~~205,20€~~

Victron Energy

Stjórnandi hleðslu SmartSolar MPPT 100/30

Ref : SCC110030210

117,17€

117,17€ ~~164,40€~~

Victron Energy

Umbreytingartæki Phoenix 12/250-15 IEC 230V

Ref : SIN121251100

121,00€

121,00€ ~~136,80€~~

Victron Energy

Miðstöð samskipta Cerbo GX

Ref : BPP900450100

276,00€

276,00€ ~~370,80€~~

Victron Energy

GX Touch 50

Ref : BPP900455050

202,37€

202,37€ ~~282,00€~~

Victron Energy

Umbreytir Phoenix Smart 12/2000 230V

Ref : PIN122201000

683,81€

683,81€ ~~780,00€~~

Frequently asked questions

Need help? Contact us

What distinguishes the Victron Energy SuperPack lithium 12.8 V battery?

The Victron Energy SuperPack 12.8 V 200 Ah lithium battery is an energy storage solution designed for marine applications. It integrates a Battery Management System (BMS) that provides comprehensive protection, requiring no additional external components for operation.

What is the nominal capacity of this SuperPack battery?

The nominal capacity of this battery is 200 Ah (Ampere-hours) at a temperature of 25 °C. At 0 °C, its nominal capacity is 160 Ah.

How much energy can this battery store?

This SuperPack battery can store a nominal energy of 2560 Wh (Watt-hours) at a temperature of 25 °C.

What is the estimated lifespan of the Victron Energy SuperPack battery?

The estimated lifespan of this battery is 2500 cycles, measured at 80% depth of discharge (DoD) and a temperature of 25 °C.

What is the maximum continuous discharge current this battery can provide?

The maximum continuous discharge current this battery can provide is 70 A.

What peak discharge current can the SuperPack battery handle and for how long?

The SuperPack battery can handle a peak discharge current of 100 A for a maximum duration of 10 seconds.

Is the SuperPack battery efficient in terms of energy consumption?

Yes, this battery is highly efficient. Its round-trip energy efficiency (discharge from 100% to 0% and return to 100% charge) is 92%, which is higher than lead-acid batteries.

What type of chemistry is used in the Victron Energy SuperPack battery?

The Victron Energy SuperPack battery uses LiFePO4 (Lithium Iron Phosphate) chemistry.

Does the battery include a Battery Management System (BMS)?

Yes, this SuperPack battery includes an internal Battery Management System (BMS). This BMS is designed to protect the battery and optimize its performance.

What protections does the integrated BMS of the SuperPack battery provide?

The integrated BMS provides several essential protections:

Overcharge protection. Deep discharge protection. Protection against extreme temperatures (low and high). It ensures automatic disconnection in case these limits are exceeded.

Is it necessary to fully charge the SuperPack battery regularly to preserve its lifespan?

No, unlike lead-acid batteries, a Lithium-Ion battery such as the SuperPack does not require regular full charging. Its lifespan is even slightly improved with partial charging rather than systematic full charging.

Can multiple SuperPack 12.8 V lithium batteries be connected in parallel to increase capacity?

Yes, these batteries can be connected in parallel to increase the total capacity of your system. Parallel connection is unlimited.

Is it possible to connect these batteries in series to obtain a higher voltage?

No, these batteries are not permitted to be connected in series.

What are the operating temperatures allowed for battery charging and discharging?

For discharging, the battery can operate between -20 °C and +50 °C. For charging, the temperature range is 0 °C to +45 °C.

Is there low-temperature charge protection?

Yes, for recent models (serial number HQ2040 and above), charging is automatically blocked when cell temperature drops below 0±3 °C. Charging is accepted again when temperature exceeds 3±3 °C.

What are the dimensions and weight of the SuperPack 12.8 V 200 Ah battery?

The dimensions of this battery are 208 x 520 x 269 mm (height x width x depth). Its weight is 21 kg.

What type of connection terminals does the battery use?

The SuperPack 12.8 V 200 Ah battery is equipped with M8 threaded connection terminals.

What are the recommendations for physically mounting the battery?

The battery can be mounted in a vertical position or on its longest sides. However, it is important not to install it so that both battery terminals face downward. Additionally, do not place the battery on its longest side if the positive terminal (+) is at the bottom.

Can the battery disconnect when connecting to certain devices?

Yes, the battery may temporarily disconnect if connected to a load with high input capacitance, such as an inverter. However, the battery will attempt to reconnect automatically after approximately 10 seconds.

What are the recommended charging voltages for this battery?

For optimal charging, recommended voltages are:

Absorption voltage: between 14.2 V and 14.4 V. It is preferable that the absorption period does not exceed 4 hours to avoid slightly reducing battery lifespan.Float voltage (float charge): 13.5 V.Maximum continuous charging current is 70 A.
