Mega 300A drošinātājs

The Blue Sea Systems MEGA 300A fuse is an electrical protection device designed for high-current circuits. It is specifically rated to interrupt a 300-amp current in case of overload or short circuit, thereby protecting your marine installation's equipment and wiring.

The main function of this fuse is to protect marine electrical circuits from damage caused by overcurrent or short circuits. By melting quickly when the current exceeds its rated value of 300A, it cuts off the power supply and prevents the risk of fire or damage to connected equipment.

This fuse is ideal for protecting high-power marine equipment. It is recommended for applications such as:

InvertersThrustersWindlassesHigh-capacity battery charging/discharging systemsAny other installation requiring circuit protection between 50A and 300A.

This fuse has a rated current of 300 amperes (300A). This means it is designed to operate normally up to this current and will blow if the current exceeds it significantly.

The Blue Sea Systems MEGA 300A fuse is designed for systems operating up to 32 volts DC. It must not be used in alternating current (AC) applications or at higher voltages.

The weight of this fuse is approximately 0.03 kilogram (30 grams). Its design is optimized to be compact and lightweight.

No, a fuse is a single-use protective device. Once it has blown to interrupt a circuit in the event of an overload or short circuit, it must be replaced with a new fuse of the same rating to ensure continued protection.

MEGA fuses are distinguished by their ability to protect circuits from 50A to 300A, bridging the gap between low-to-medium current MIDI or ANL fuses and more complex circuit breakers. They offer a compact format and are particularly suited to high-current marine applications requiring rapid interruption.

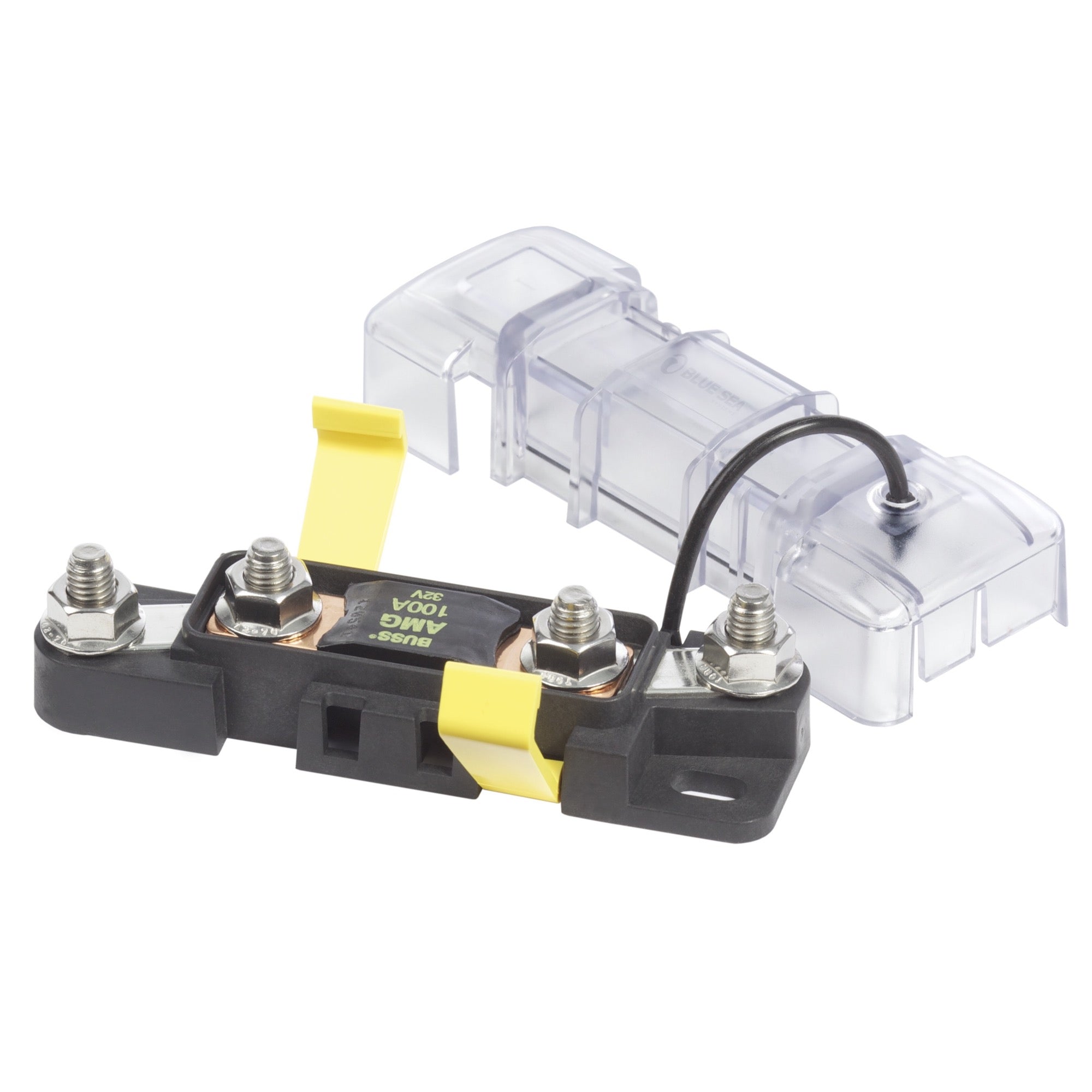

No, this fuse requires a fuse holder specifically designed for MEGA fuses. Fuse holders for ANL, MIDI, or standard blade fuses are not compatible due to different dimensions and connection points.

No, this fuse is designed exclusively for direct current (DC) systems and must not be used in alternating current (AC) applications. Its maximum voltage rating is 32V DC.

Yes, this fuse can be used in automotive applications or other 12V/24V DC systems if the voltage and current ratings match. It is commonly used to protect high-current circuits in recreational vehicles, trucks, and heavy equipment, in addition to marine applications.

To install this fuse, you will need the following accessories:

A compatible MEGA fuse holder.Electrical cables with an appropriate cross-section to handle 300A currents.Suitable terminals or lugs for connecting the cables to the fuse holder.Tools for tightening the connections.

A fuse has no specific installation direction. It can be inserted into the fuse holder in any orientation. The key is that it is properly seated and that the electrical connections are secure and tightly fastened.

Yes, it is mandatory to always disconnect the battery or the main power source before installing or replacing a fuse. This safety measure prevents accidental short circuits, electric shocks, and material damage.

The recommended tightening torque depends primarily on the fuse holder used. It is essential to consult the manufacturer's specifications for the fuse holder to determine the exact torque. In general, connections must be tight and secure to ensure good conductivity and prevent overheating, without being excessively tightened to avoid damaging the terminals.

Yes, as a Blue Sea Systems product, this fuse is specifically designed for the marine environment. It is manufactured with robust and reliable materials to ensure durable performance even in harsh conditions (humidity, vibrations) typical of nautical applications.

The fuse is typically packaged individually or in small batches in protective packaging to ensure its integrity during transport. As a compact and lightweight component (0.03 kg), its packaging is designed to protect it from shocks and moisture.
