AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde

Free pickup point from €150 in France
Collection at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Ietaupiet 6%

Raymarine

E70655

AXIOM2 12 Pro-S, hibrīds skārienekrāns ar vairākām funkcijām, 12 collas, CHIRP sonars ar CPT-S zondi, Wi-Fi, bez zondes

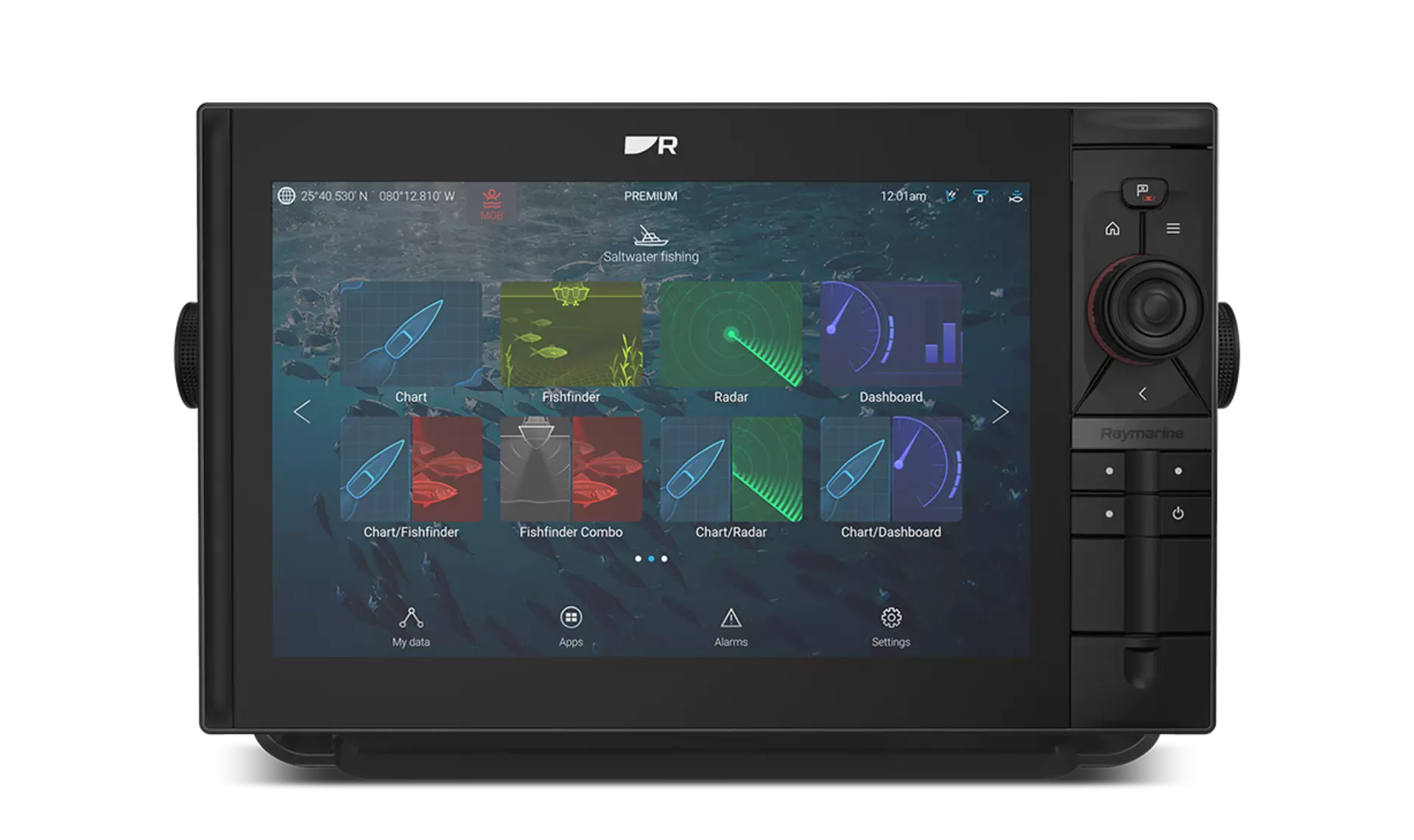

Le Raymarine AXIOM2 12 Pro-S est un écran hybride multifonctions de 12 pouces intégrant un traceur de cartes et un sondeur CHIRP pour sondes CPT-S. Appartenant à la génération AXIOM2, il offre un contrôle tactile et par boutons physiques, ainsi que le Wi-Fi. Ce produit est fourni sans sonde.

Size: 12 inches

9 inches 12 inches

Public priceGet pro pricing

3.882,77€

3.882,77€ ~~4.134,00€~~

TTC Piegāde aprēķināta maksājuma brīdī.

Noliktavā

Free pickup point from €150 in France
Collection at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

NMEA 2000 ekvivalenta slodze (LEN)	1
Strāvas spriegums darbībai	12 V
Darbības temperatūra	-25°C à +55°C
Ekrāna sadalījuma skaits	4.0
Ieteicamais drošinātāja kalibrs	5 A
Atbalstītās zondes tehnoloģijas	CHIRP traditionnel
Sonāra frekvences	170-230 kHz (CHIRP Haute Fréquence)
Produkta izmēri	389 x 246 x 44 mm
Sonāra savienotāja tips	Connecteur Raymarine 7 broches
Saderīgs ar ActiveTarget	Non
Kartes savietojamība	LightHouse Charts, Navionics, C-MAP
IP indekss	IPX7
Sonāra ierakstīšana	Oui
Līnijas savietojamība	NMEA 2000,NMEA 0183,Ethernet (RayNet),Wi-Fi,Bluetooth
Elektriskā motora integrācija	Non
Vadu tīkls	NMEA 2000,NMEA 0183,Ethernet (RayNet)
Iebūvēta GPS antena	Oui
Bezvadu savienojamība	Wi-Fi,Bluetooth
Waypointu ietilpība	10 000 waypoints
Kompass drošības attālums	50 cm
Montāžas tips	Encastré, Sur étrier
Sertifikāti	CE,FCC,RCM,IEC 60945
Griezuma izmērs	343.1 x 207-209 mm
Ekrāna izšķirtspēja	1280 x 800 pixels
Ekrāna tips	LCD couleur avec rétroéclairage LED
Ekrāna spilgtums	1200 nits
Ekrāna izmērs	12 "
Skārienekrāns	Oui
Maksimālais SD kartes izmērs	256 Go
Skatīšanās leņķis	80° (haut/bas/gauche/droite)
Programmatūras atjaunināšanas metode	Carte mémoire, Internet (Wi-Fi)
Vadu ieeja	Alimentation,NMEA 2000,NMEA 0183,Ethernet (RayNet),Vidéo composite
Lietotāja līmenis	Intermédiaire, Expert
Zvejas veids	Mer, Lac
Garantija	2.0
Ūdens temperatūras mērīšanas diapazons	0°C à 30°C
Pieejamie trauksmes signāli	Ancre, Profondeur, Arrivée, Homme à la mer (MOB), Tension, Température
Cilvēks ūdenī (MOB) atbalsts	Oui
Maršrutu ietilpība	150 routes
Pēdu ietilpība	15 pistes (10 000 points par piste)

Detailed description

Izstrādāts piekrastes un jūras braukšanai, Raymarine AXIOM2 12 Pro-S hibrīdais multifunkcionālais ekrāns apvieno attīstītu kartes zīmētāju un CHIRP sonaru, piedāvājot daudzpusīgu kontroles risinājumu buriniekiem un zvejniekiem.

Hibrīda interfeiss un skaidrs attēlojums

Ar 12 collu skārienekrānu, AXIOM2 12 Pro-S papildina fiziskā kontroles tastatūra. Šis hibrīdais interfeiss nodrošina intuitīvu un precīzu mijiedarbību, arī nelabvēlīgās jūras apstākļos, piedāvājot skārieninterfeisa elastīgumu un pogu kontroles izturību. Iekārtojuma izgriezuma izmēri ir 343,1 mm x 207–209 mm, konsoles dziļums — 14,50 mm. Kabeļiem 90° leņķī nepieciešams minimālais atbrīvojums 201,3 mm.

Integrētais CHIRP sonars un paplašinātā savienojamība

AXIOM2 12 Pro-S integrētais CHIRP sonara modulis ir optimizēts darbam ar CPT-S zondēm, nodrošinot skaidru un detalizētu grunts un zivju noteikšanu. Integrētā Wi-Fi savienojamība atvieglo programmatūras atjauninājumus caur LightHouse 4 (versijas v4.10.149 un v4.6) un integrāciju ar esošajiem borta tīkliem, ļaujot vienkāršot datu un perifērijas ierīču pārvaldību. Šis modelis ir AXIOM Pro sērijas attīstība, iekļaujot AXIOM2 platformas uzlabojumus par lielāku reaģētspēju.

Pozicionēšana Raymarine sortimentā

AXIOM2 12 Pro-S atšķiras no tikai skārieninterfeisa AXIOM modeļiem ar savu hibrīdo interfeisu, piedāvājot kompromisu starp skārienergonomiku un fizisko kontroles izturību. Atšķirībā no AXIOM2 Pro-RVX, kas iekļauj RealVision 3D, šis modelis "S" ir paredzēts lietotājiem, kuri meklē augstas klases CHIRP vienfrekvences sonaru bez 3D sonara funkcijām. Tas ir līdzsvarots variants tiem, kas prioritāri izvēlas daudzfunkcionalitāti un tradicionālā CHIRP veiktspēju 12 collu formātā.

Documentation

Type	Nom
	EN - Plan technique - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Plan technique - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Plan technique - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	FR - Manuel d'utilisation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Declaration de conformite - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Declaration de conformite - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Declaration de conformite - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	FR - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	FR - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	FR - Notice d'installation - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde
	EN - Gabarit de montage - AXIOM2 12 Pro-S, Écran Hybride tactile multifonctions 12”, sondeur CHIRP pour sonde CPT-S, Wifi, sans sonde

Expert review

Pol CONIN

Digital Manager

« AXIOM2 12 Pro-S: versatility and hybrid performance Raymarine »

The AXIOM2 12 Pro-S is a strategic choice for recreational boaters and anglers who prioritize a reliable control interface and a dedicated CHIRP fishfinder. Its combination of a 12-inch display and physical controls makes it particularly suitable for boats where sea conditions can make touch-only operation less practical, such as on fast tenders or regatta sailboats. It provides a robust platform for navigation, engine data management, and sensor integration.

Integrating the AXIOM2 12 Pro-S requires careful planning, particularly for the cutout. The cutout dimensions (343.1 mm x 207-209 mm) and depth (14.50 mm) are standard for an MFD of this size, but the 201.3 mm clearance for 90° connectors must be anticipated behind the console. NMEA 2000 cabling and power supply are standard. The absence of a transducer in the package allows the user to select the CPT-S transducer tailored to hull type and intended use.

This model positions itself as an alternative to the AXIOM2 Pro-RVX for those who do not require RealVision 3D and prefer a high-performance single-frequency CHIRP fishfinder. It offers interesting scalability for existing networks thanks to its LightHouse 4 and Wi-Fi compatibility. It is less sailboat-focused than some B&G models, but its versatility makes it relevant for a wide range of vessels. It is important to note that this model does not include a transducer. The user will need to purchase a transducer from the CPT-S range separately, which may impact the total installation budget. While versatile, it may be oversized for rigid inflatables under 6 meters or undersized for vessels over 20 meters requiring redundant displays or more advanced fishfinder features.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

AXIOM2 12 Pro-S, hibrīds skārienekrāns ar vairākām funkcijām, 12 collas, CHIRP sonars ar CPT-S zondi, Wi-Fi, bez zondes

3.882,77€

3.882,77€ ~~4.134,00€~~

Complete your installation with

Complementary equipment

Raymarine

Daudzfunkcionālais displejs i70s

Ref : E70327

678,00€

678,00€ ~~714,00€~~

Raymarine

Digitālais displejs i50 Tridata

Ref : E70060

567,25€

567,25€ ~~654,00€~~

Raymarine

Vēja displejs i60

Ref : E70061

560,23€

560,23€ ~~594,00€~~

Raymarine

Pilotsistēma kabīnes stūrei — Evolution EV-100

Ref : A80737

1.143,06€

1.143,06€ ~~1.254,00€~~

Frequently asked questions

Need help? Contact us

What are the main features of the Raymarine AXIOM2 12 Pro-S multifunction display?

The Raymarine AXIOM2 12 Pro-S display is a 12-inch hybrid multifunction screen designed for coastal and offshore navigation. It features an advanced chartplotter and a CHIRP sounder module optimized for CPT-S transducers. It also includes built-in Wi-Fi connectivity for software updates and network integration.

What type of fishfinder is integrated in the Raymarine AXIOM2 12 Pro-S and which transducers is it compatible with?

The Raymarine AXIOM2 12 Pro-S integrates a CHIRP fishfinder module. It is specifically optimized to work with CPT-S transducers, providing clear and detailed bottom and fish detection.

Is the Raymarine AXIOM² 12 Pro-S supplied with a transducer?

No, the Raymarine AXIOM² 12 Pro-S is sold without a transducer. You will need to purchase a compatible transducer separately, such as a CPT-S transducer.

What are the cut-out dimensions and console depth required for a flush-mount installation?

For a flush-mount installation of the AXIOM2 12 Pro-S, the required cut-out dimensions are 343.1 mm x 207-209 mm. The minimum console depth required is 14.50 mm. It is also important to allow a minimum clearance of 201.3 mm for 90° cable routing.

How does the AXIOM2 12 Pro-S user interface work?

The AXIOM2 12 Pro-S features a hybrid interface. This means it combines a 12-inch touchscreen with a physical control keypad. This design allows for intuitive and precise interaction, offering the flexibility of touch and the robustness of button controls, even in harsh marine conditions.

Does the Raymarine AXIOM2 12 Pro-S have wireless connectivity?

Yes, the Raymarine AXIOM2 12 Pro-S includes Wi-Fi connectivity. This feature enables software updates via LightHouse 4 and simplifies integration with existing onboard networks for data and device management.

What operating system is used by the AXIOM2 12 Pro-S?

The AXIOM2 12 Pro-S uses the LightHouse 4 operating system. This software enables updates and provides an improved user interface for navigation and fishfinder features.

Does the AXIOM2 12 Pro-S include RealVision 3D features?

No, the AXIOM2 12 Pro-S does not include RealVision 3D features. This model is specifically designed for users seeking a high-performance CHIRP single-frequency fishfinder without the 3D sonar capabilities found in other models such as the AXIOM2 Pro-RVX.
