Scanstrut

DS-MULTI

Vertikālais daudzkabelu alumīnija blīvējums

Name: Vertikālais daudzkabelu alumīnija blīvējums
Brand: Scanstrut
SKU: DS-MULTI
Price: 87.40 EUR
Availability: InStock

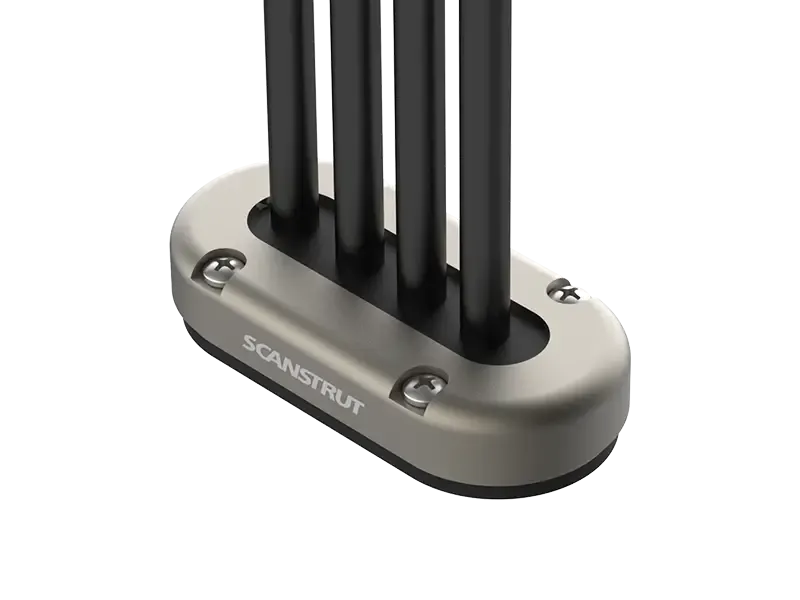

Le passe-câble vertical Scanstrut DS-MULTI en aluminium assure une étanchéité marine fiable pour le passage de plusieurs câbles jusqu'à Ø15mm. Conçu pour une installation verticale sur pont ou cloison, il offre une protection robuste et discrète contre l'eau. Ce produit inclut la coque, la base, le joint, un boulon M4X10, quatre vis autotaraudeuses n°6 X16 et un obturateur DS-Multi.

Public priceGet pro pricing

87,40€

TTC Piegāde aprēķināta maksājuma brīdī.

Noliktavā

Free pickup point from €150 in France
Collection at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Minimālais kabeļa diametrs (mm)	4.0
Maksimālais kabeļa diametrs (mm)	15.0
Maksimālais savienotāja diametrs (mm)	0.0
Caurumu zāģa diametrs	18.0
Montāžas veids	Vertical
Materiāls	Aluminium anodisé
IP indekss	IP68
Sadalāms	Non
Virsmizglāde	Anodisation
Pamatnes garums	70
Pamatnes platums	70
Bultu skaits	1
Bultu izmērs (metriskais)	M4X10
Blīvējuma aizbāžņa iekļauts komplektā	Oui
Blīvējuma aizbāžņu materiāls	Caoutchouc marine
Kabeļa ieejas diametrs (mm)	17
Korozijas izturība	Oui
Distributora nosaukums	Tecmar
Uzgriežņa diametrs	2
Iekļautais fiksācijas tips	Boulon M4X10, Vis autotaraudeuses No. 6 X16
Blīves materiāls	Silicone
Minimālais paneļa biezums uzstādīšanai	1.5
Piemērotība jūras videi	Oui
Horizontālais fiksācijas centru attālums	47.5
Augstums (mm)	51.5
Garums (mm)	99
Produkta tips	Passe-câble
Platums (mm)	99
Viru skaits	4
Viru izmērs (impērijas sistēma)	No. 6 X16
Nepieciešams hermētiskais blīvējums	Oui
UV izturība	Oui

Detailed description

Scanstrut DS-MULTI alumīnija vertikālais daudzkabelu blīvējums ir jūras hermētiskuma risinājums, kas paredzēts kabeļu aizsardzībai un organizācijai, kad tie caururbjas kuģa klāja vai starpsienu. Izgatavots no alumīnija, nodrošina palielinātu izturību. Šis klāja blīvējums nodrošina vairāku kabeļu vienlaicīgu caurlaidi ar maksimālo diametru 15 mm katram kabelim. Tas ir būtisks elements, lai uzturētu kuģa iekšējās vides integritāti pret ārējiem elementiem, it īpaši ūdeni un mitrumu.

Tehniskie raksturlielumi un konstrukcija

DS-MULTI izceļas ar vertikālo konstrukciju, optimizētu plakano virsmu iestrādāšanai. Precīzas izmēri (99 mm kopējais platums/gara, 70 mm pamata platums/gara, 51,5 mm augstums/dziļums) nodrošina diskrētu un efektīvu integrāciju. Tas spēj izvietot atsevišķus kabeļus līdz 15 mm diametram. Komplektā ietilpst DS-Multi korpuss, DS-Multi pamats, DS-Multi blīvējums, M4X10 skrūve (melna), četras pašgriežņu skrūves nr. 6 X16 un DS-Multi aizbāznis, nodrošinot pilnīgu un uzticamu instalāciju.

Instalācija un jūras uzticamība

DS-MULTI blīvējuma instalācija prasa specifiskus instrumentus: Pozidriv atslēgu, silikona hermētisko līdzekli, 18 mm (0,7 collas) caurulīšu zāģi galvenajam urbumam un 2 mm (0,07 collas) urbumu fiksācijas punktiem. Vienkāršā montāža, kombinācijā ar alumīnija materiālu kvalitāti, garantē ilgmūžību un optimālu izturību jūras vides apstākļos. Šis Scanstrut produkts, ko izplata Tecmar, nodrošina stabilu tehnisko veiktspēju jūsu iebūvēto elektronisko sistēmu aizsardzībai, atbilstot augstajiem standartiem, ko piedāvā zīmols montāžas un hermētiskuma risinājumos.

Payment and security

Your payment information and data are processed securely.

Vertikālais daudzkabelu alumīnija blīvējums

87,40€

Complete your installation with

Complementary equipment

Scanstrut

Alumīnija PowerTower antennas statīvs — 150 mm augstums

Ref : APT-150-01

475,00€

Atbalsta konstrukcija PowerTower Starlink antennei — alumīnijs, augstums 150 mm

Scanstrut

Atbalsta konstrukcija PowerTower Starlink antennei — alumīnijs, augstums 150 mm

Ref : APT-150-SL-01

510,00€

Atbalsts PowerTower Starlink antennei — melns alumīnijs

Compatible avec Starlink

Scanstrut

Atbalsts PowerTower Starlink antennei — melns alumīnijs

Ref : APT-150-SL-01-BLK

510,00€

Scanstrut

Alumīnija atbalsta tornis 150 mm siltumkamerai (FLIR M100/M200/M300)

Ref : CAM-PT-150

340,01€

Atbalsts KVH M3/Raymarine STV37/Intellian i3/Seatel Coastal 1 antennēm

Scanstrut

Atbalsts KVH M3/Raymarine STV37/Intellian i3/Seatel Coastal 1 antennēm

Ref : SC35

350,00€

Frequently asked questions

Need help? Contact us

What is the Scanstrut DS-MULTI vertical multi cable gland made of aluminum?

The Scanstrut DS-MULTI vertical multi cable gland made of aluminum is a marine sealing solution designed to protect and organize cables passing through the decks or bulkheads of your vessel. It is made of aluminum for enhanced durability and provides effective protection against water and moisture.

What material is the Scanstrut DS-MULTI cable gland made of?

The Scanstrut DS-MULTI cable gland is made of aluminum, providing optimal robustness and resistance in demanding marine environments.

Is this cable gland designed for marine use?

Yes, the Scanstrut DS-MULTI is specifically designed as a marine product. It is optimized to ensure durability and reliability in the demanding conditions of the nautical environment, protecting onboard electronic systems.

What is the main function of the DS-MULTI seal?

The main function of the DS-MULTI seal is to ensure perfect watertightness for cable penetrations, thus protecting the inside of your boat from water ingress and moisture.

Is the DS-MULTI cable gland supplied with a blanking plug?

Yes, the DS-MULTI cable gland kit includes a DS-Multi blanking plug (DS-Multi Bung). This blanking plug can be used to seal unused cable passages or for a clean finish.

What is the color of the bolt supplied with the installation kit?

The DS-MULTI cable gland installation kit includes a black M4X10 bolt.

Is the cable gland resistant to harsh marine conditions?

Yes, made of aluminum, the DS-MULTI cable gland is designed to provide excellent robustness and optimal resistance to demanding marine conditions, including exposure to the elements and moisture.

How many self-tapping screws are included in the kit?

The DS-MULTI cable gland installation kit includes four No. 6 X16 self-tapping screws.

Can the cable gland be installed on a non-flat surface?

The DS-MULTI cable gland is specifically designed with a vertical design, optimized for installation on flat surfaces. This is essential to ensure effective sealing and secure mounting.

What is the maximum cable diameter that the DS-MULTI can accommodate?

The DS-MULTI cable gland can accommodate individual cables up to a maximum diameter of 15 mm (0.6 inches) each. It is designed for passing multiple cables simultaneously.

Is the cable gland compatible with different types of marine cables?

Yes, provided that the diameter of each cable does not exceed 15 mm (0.6 in), the DS-MULTI cable gland is compatible with a wide range of marine cables, whether electrical, data, antenna or other.

Can I run multiple cables through this fitting?

Yes, the Scanstrut DS-MULTI is a multi-cable gland, designed specifically to allow multiple cables to pass through simultaneously, each cable having a maximum diameter of 15 mm.

Does the DS-MULTI cable gland have a warranty?

Yes, the Scanstrut DS-MULTI vertical multi cable gland in aluminium is a Scanstrut product and benefits from the warranty applicable to products of this brand.

Is the product delivered as a complete kit?

Yes, the DS-MULTI cable gland is delivered as a complete kit. It includes all parts required for assembly and installation, such as the housing, base, gasket, a bolt, self-tapping screws, and a blanking plug.
