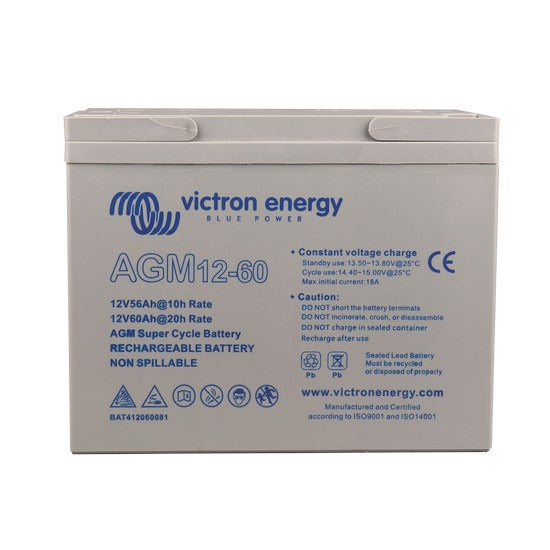

AGM baterija Super Cycle 12V/60Ah (M6)

This is an AGM Super Cycle battery, designed to provide enhanced performance and durability, particularly for deep-cycle applications.

The nominal voltage of the Victron Energy AGM Super Cycle battery is 12V.

The capacity of this battery is 60Ah measured over 20 hours (C20). It is also 56Ah at C10 (10 hours) and 52Ah at C5 (5 hours).

The dimensions of this battery are 224 x 135 x 178 mm (length x width x height) and its weight is 14 kg.

The AGM Super Cycle battery can support at least 300 cycles at 100% depth of discharge (DoD). This test includes a rest period in a discharged state, which is very demanding for batteries.

For a 60% depth of discharge (DoD), this battery can reach at least 700 cycles.

The battery is designed to support at least 1000 cycles at 40% depth of discharge (DoD).

Super Cycle technology integrates several improvements:

Positive plates less prone to softening, even after repeated deep discharges.Additive electrolytes that reduce sulfation in case of deep discharge.Slightly smaller size and weight compared to Victron Energy standard deep-cycle AGM batteries.Slightly lower internal resistance.

Yes, due to its low internal resistance, this battery is particularly suitable for applications requiring high discharge currents, such as powering inverters, thrusters, or windlasses.

The Victron Energy AGM Super Cycle 12V/60Ah battery is equipped with M6 terminals (M6 insert).

The CCA (Cold Cranking Amps) rating of this battery is 300 A at 0°F.

The reserve capacity (RES CAP) of this battery is 90 minutes at 80°F.

Yes, the new Super Cycle battery chemistry provides a slightly smaller size and lower weight compared to Victron Energy standard deep-cycle AGM batteries.

For the 'Float' service (float charge), the recommended charging voltage is between 13.5 V and 13.8 V.

For 'Normal Cycle' service, the recommended absorption voltage is between 14.2 V and 14.6 V.

Yes, temperature compensation is required if the battery temperature is likely to be below 10°C (50°F) or above 30°C (85°F) for extended periods. The recommended compensation for a 12V battery is -24 mV per °C, with a reference point of 25°C (70°F).

This battery is particularly recommended for applications requiring occasional deep discharges to 100% or frequent discharges to 60–80% depth of discharge. It is ideal for marine, mobile and standalone systems where deep-cycle reliability is essential.

Yes, you can use a charger compatible with AGM batteries. However, it is crucial to ensure the charger is configured with the appropriate charge voltages (absorption, float) recommended for Victron Energy AGM Super Cycle batteries and has a temperature compensation function if required.

Although this battery has a cold cranking amperage (CCA) of 300 A, it is primarily designed for deep cycling and service applications. For engine starting, it is generally recommended to use a battery specifically optimized for this function, which prioritizes very high starting currents over short durations.

Yes, the Victron Energy AGM Super Cycle 12V/60Ah battery is covered by the Victron Energy manufacturer warranty. The specific terms and conditions of this warranty are detailed in the documentation provided with the product.
