Pack de connectors per a unitat central H5000

This kit (reference 000-12894-001) provides all the plugs and terminals required to connect the H5000 central processing unit. It includes connectors for the NMEA 2000 network, the Ethernet network, the mini-USB port, the power supply, the analog inputs for external sensors, and the digital output for alarms.

No, this pack is exclusively compatible with the standard H5000 central processing unit. For the H5000 autopilot processor, a different kit with reference 000-12895-001 must be used.

The power connectors in this kit are rated for a nominal 12 V DC input (with an acceptable operating range of 9 to 16 V).

The Ethernet connector enables high-speed network connection. It is essential for rapid transfer of navigation data and for accessing the web server integrated into the H5000 processor to configure the system.

The mini-USB port is primarily used for technical maintenance operations and for installing software updates on the central unit.

Yes. Do not route data cables in close proximity to a radar, a radio transmitter, or large power cables to avoid electromagnetic interference. Also avoid sharp bends.

No, this connector kit has been specifically molded and designed to interface with the ports of the B&G H5000 central processing unit. It does not match the connectors on Zeus or Triton displays.

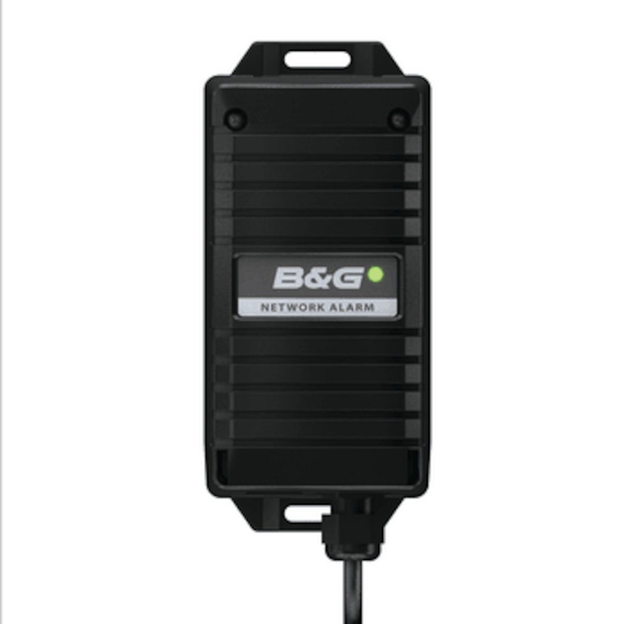

Yes, the kit includes the necessary terminals to wire the digital output of the central unit, enabling external alarm modules to be triggered when needed.

Absolutely. If your sensor cables are shortened, extended, or re-terminated to fit these connectors, you must absolutely insulate and protect all electrical connections to maintain the reliability of the marine system.

Once correctly installed on the H5000 central unit, the assembly provides an environmental protection rating of IPX4, ensuring resistance to water splashes from all directions.

It is recommended to use plastic cable ties (P-clips) to attach and secure all cables. This prevents mechanical tension from being applied to the connectors due to the boat's vibrations.

Yes, it includes the specific connector to link the H5000 central unit to your Micro-C NMEA 2000 backbone, enabling communication with other onboard instruments.

Yes, when installing the H5000 CPU, it is essential to leave sufficient space at the rear to connect and disconnect the connectors without excessively bending the cables.

No, this is only a pack of connectors and terminals (the ends that plug into the processor). It does not include the long cables (network, sensors) themselves.

To avoid magnetic interference, the central unit and its connected cables must be installed at a minimum safe distance of 0.3 metre (1 foot) from any magnetic compass.

The H5000 CPU ports use very specific terminal blocks and connectors to ensure watertight integrity and data security. This pack is therefore essential to properly connect your power supply, network, and sensors.
