B&G

000-12612-001

Connector de 4 vies de baixa pèrdua Micro-C NMEA 2000

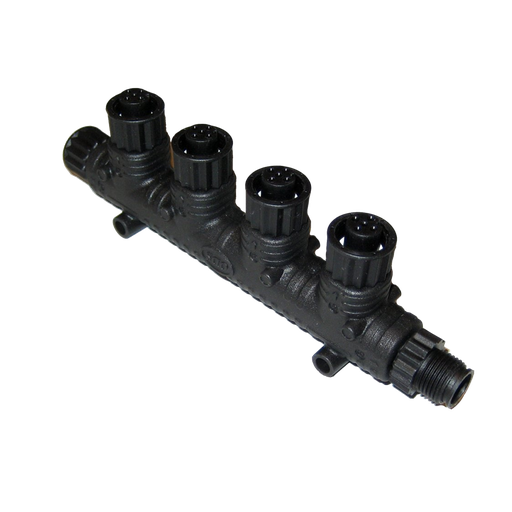

The B&G 4-way low-loss Micro-C NMEA 2000 connector allows you to connect four devices simultaneously to your marine network while minimizing voltage drops. More reliable and compact than multiple classic T-connector assemblies, it is compatible with all standard NMEA 2000 equipment. Included: 1x 4-way Micro-C connector block.

Public priceGet pro pricing

71,02€

71,02€ ~~90,72€~~

IVA inclòs Expedició calculada en el moment del pagament.

Disponible en estoc

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Service d'assistance

Choose additional assistance for installation

Technical specifications

Temperatura de funcionament	-25 to +55
Temperatura d'emmagatzematge	-40 to +85
Grau de protecció IP	IP67
Tipus de producte	Network connector
Backbone Port Count	2
Configuració de gèneres	1 Male, 5 Female
Connector Thread	M12
Material dels contactes	Gold-plated brass
Daisy Chain Alternative	Yes
Drop Port Count	4
Nombre de ports NMEA 2000	6
Signal Integrity Protection	Yes
Compatibilitat del sistema	NMEA 2000 certified networks
Voltage Drop Reduction	Yes

Detailed description

El connector de 4 vies de baixa pèrdua Micro-C NMEA 2000 de B&G és un component de cablejat essencial per a la creació o l'extensió d'una xarxa de bord. Dissenyat per a centralitzar les derivacions, permet connectar fins a quatre aparells (pantalles multifunció, sensors, antenes GPS) directament a la dorsal (backbone) NMEA 2000. A diferència de l'assemblatge en garlanda amb diversos connectors en T individuals, que genera resistència, aquest bloc multipresa minimitza dràsticament les caigudes de tensió i garanteix una integritat màxima del senyal de dades.

Fiabilitat i integració de xarxa

Dotat d'un disseny motllurat i estanc, totalment adaptat als entorns marins exigents, aquest connector Micro-C estandarditza i simplifica la instal·lació. En reduir el nombre de punts de unió a la dorsal, disminueix significativament els riscos de desconnexió accidental o d'infiltració d'aigua. S'integra de manera nativa amb els equips de les marques B&G, Simrad, Lowrance (grup Navico), així com amb qualsevol altre aparell certificat NMEA 2000. El seu pes lleuger de 0,05 kg i el seu format compacte faciliten molt el seu muntatge darrere els quadres de comandament o en els compartiments tècnics estretos.

Expert review

Pol CONIN

Responsable digital

« The essential solution to secure the NMEA 2000 backbone »

Using a power distribution block like this B&G 4-way connector is a golden rule when designing a dense NMEA 2000 network. In the field, stacking four individual T-connectors creates dangerous mechanical rigidity and multiplies electrical resistance points, promoting voltage drops. This low-loss connector solves this issue by providing a centralized and robust distribution point. Ideal for consolidating connections behind a navigation console where space is limited, it ensures smooth communication between your displays, sensors, and autopilot while meeting the strict requirements of the Micro-C standard.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Connector de 4 vies de baixa pèrdua Micro-C NMEA 2000

71,02€

71,02€ ~~90,72€~~

Complete your installation with

Complementary equipment

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde - photo 2

B&G

Rastreador cartogràfic Zeus 3S 12" amb carta base mundial

Ref : 000-15412-002

3.981,96€

3.981,96€ ~~4.772,38€~~

B&G

Antena GPS ZG100

Ref : 000-11048-002

275,56€

275,56€ ~~351,54€~~

Navico

DT-800 Sensor de temperatura i de profunditat NMEA 2000, cable 2 m

Ref : 000-11738-001

396,22€

396,22€ ~~510,31€~~

Navico

Sensor d'angle de timó RF25N - NMEA 2000 - cable de 5,5 m

Ref : 000-10756-001

313,78€

313,78€ ~~382,80€~~

B&G WS310 Pack vent avec câble 20m et interface

B&G WS310 Pack vent avec câble 20m et interface - photo 2

B&G

Kit WS310 vent amb cable de 20 m i interfície

Ref : 000-14382-001

507,42€

507,42€ ~~691,74€~~

Frequently Asked Questions

Need help? Contact us

What is a 4-way Micro-C NMEA 2000 connector?

The 4-way Micro-C NMEA 2000 connector is a connection block that allows up to four NMEA 2000-compatible devices to be connected to a main NMEA 2000 backbone network. It simplifies the integration of multiple devices at a single connection point, reducing the number of cables and individual connectors.

Is this connector compatible with all NMEA 2000 devices?

Yes, this connector is compatible with all NMEA 2000 certified devices, including those from B&G, Simrad, and Lowrance. Ensure your devices use Micro-C connectors.

Why use a 4-way connector instead of multiple T-connectors?

Using a low-loss 4-way connector minimizes voltage drops and ensures better data signal integrity compared to multiple T-connectors. It also reduces the number of connection points, lowering the risk of disconnection and water ingress.

Is the connector waterproof?

Yes, the connector is designed with a molded and waterproof construction, making it suitable for demanding marine environments.

Can I use this connector with brands other than B&G?

Yes, this connector is compatible with all NMEA 2000 certified devices, including those from other brands.

Is this connector suitable for outdoor use?

Yes, its waterproof design makes it perfectly suitable for outdoor use, even in harsh marine conditions.

Where can I install this connector on my boat?

You can install this connector behind the helm consoles, in technical compartments, or anywhere you need to connect multiple NMEA 2000 devices to your network.
