Motor elèctric Force® Kraken, negre, motor elèctric de 63" amb comandament a distància i sonda GT56UHD-TR integrada

The pack includes the Force® Kraken 63-inch (160 cm) electric motor, a wireless remote control, and a GT56UHD-TR transducer integrated directly into the lower unit.

The shaft length of this Garmin Force® Kraken electric motor model is 63 inches, which is approximately 160 centimetres.

The integrated GT56UHD-TR transducer is a dual-beam high-definition (UHD) CHIRP-compatible transducer. It is designed to provide precise sonar images directly from the bow of the boat, eliminating interference and offering real-time reading of the water column beneath the bow. Its cable runs inside the mast for optimal protection.

The GT56UHD-TR transducer is compatible with Garmin chartplotters equipped with CHIRP sonar ports, such as the ECHOMAP™ UHD and GPSMAP® series.

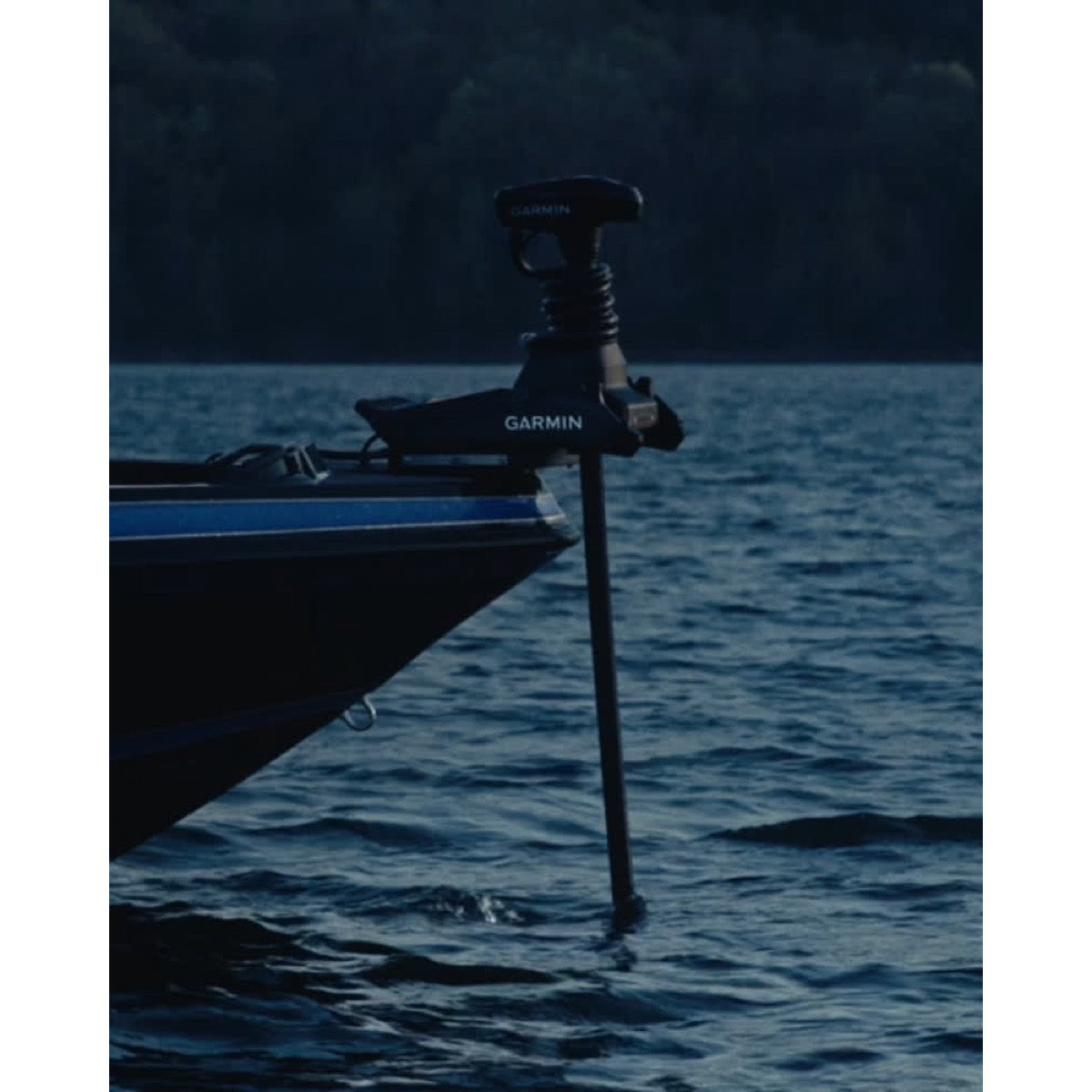

The motor must be installed at the bow of your boat. It is recommended to install it so that the deployed motor is as close as possible to the center of the boat and that the U-shape of the bracket extends beyond the gunwale.

Yes, it is strongly recommended to use the mounting template provided in the product box. If you print a template yourself, you must follow the scaling instructions precisely (100%) and verify the dimensions with a ruler to avoid incorrect cutting. Garmin declines all responsibility for damage resulting from incorrect cutting due to failure to follow these instructions.

A #2 Phillips screwdriverAllen keys: 2.5 mm, 5 mm, and 6 mm (included)Diagonal cutting pliersElectrical tapeCable tiesEyelet wrench (included)Marine grease (included)Torque wrench

Yes, you can mount a LiveScope transducer (LVS32, LVS34 or LVS62, sold separately) on the Force Kraken engine using a dedicated bracket. The kit includes all necessary hardware for this installation.

Yes, once the LiveScope transducer is installed, the engine can only be stored in one direction. You must choose which side the propeller should face when stored, as this cannot be changed after installation. You may need to adjust the engine's storage side.

Yes, the Force Kraken motor can be used in saltwater or brackish water. However, after each use in these environments, it is imperative to flush the entire motor with fresh water and apply a water-based silicone spray with a soft cloth. Avoid directing water jets onto the top cap of the shaft during flushing.

The Force® Kraken retains the basic architecture of the first-generation Force® Trolling Motor but delivers a more powerful motor and extended compatibility with the Garmin ecosystem. The integration of the GT56UHD-TR transducer into the base is also a key feature.

To maintain your warranty and ensure the engine operates correctly, you must perform a series of routine maintenance tasks. This includes flushing with fresh water after use in saltwater, applying a silicone spray, and regular checks of the anodes, propeller, and engine components.

Before any intervention, you must absolutely disconnect the engine from the battery to avoid any risk of electric shock or damage. Also be aware of the risks of pinching or crushing by moving parts when stowing or deploying the engine.

Yes, the cable of the GT56UHD-TR transducer runs inside the engine mast. This design protects it from shocks and wear, and eliminates any visible external wiring.
